| Category | Specification | Details |
|---|

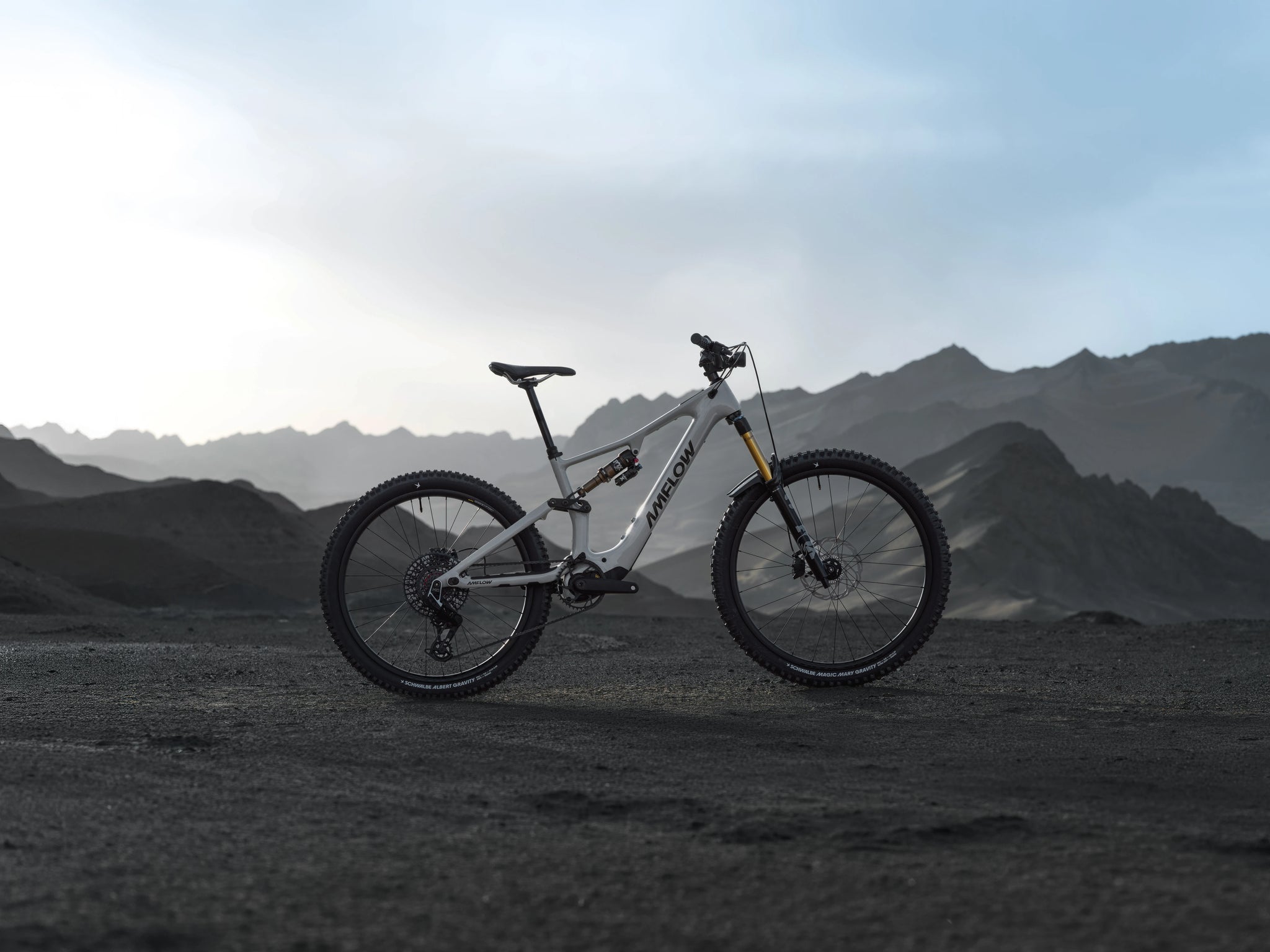

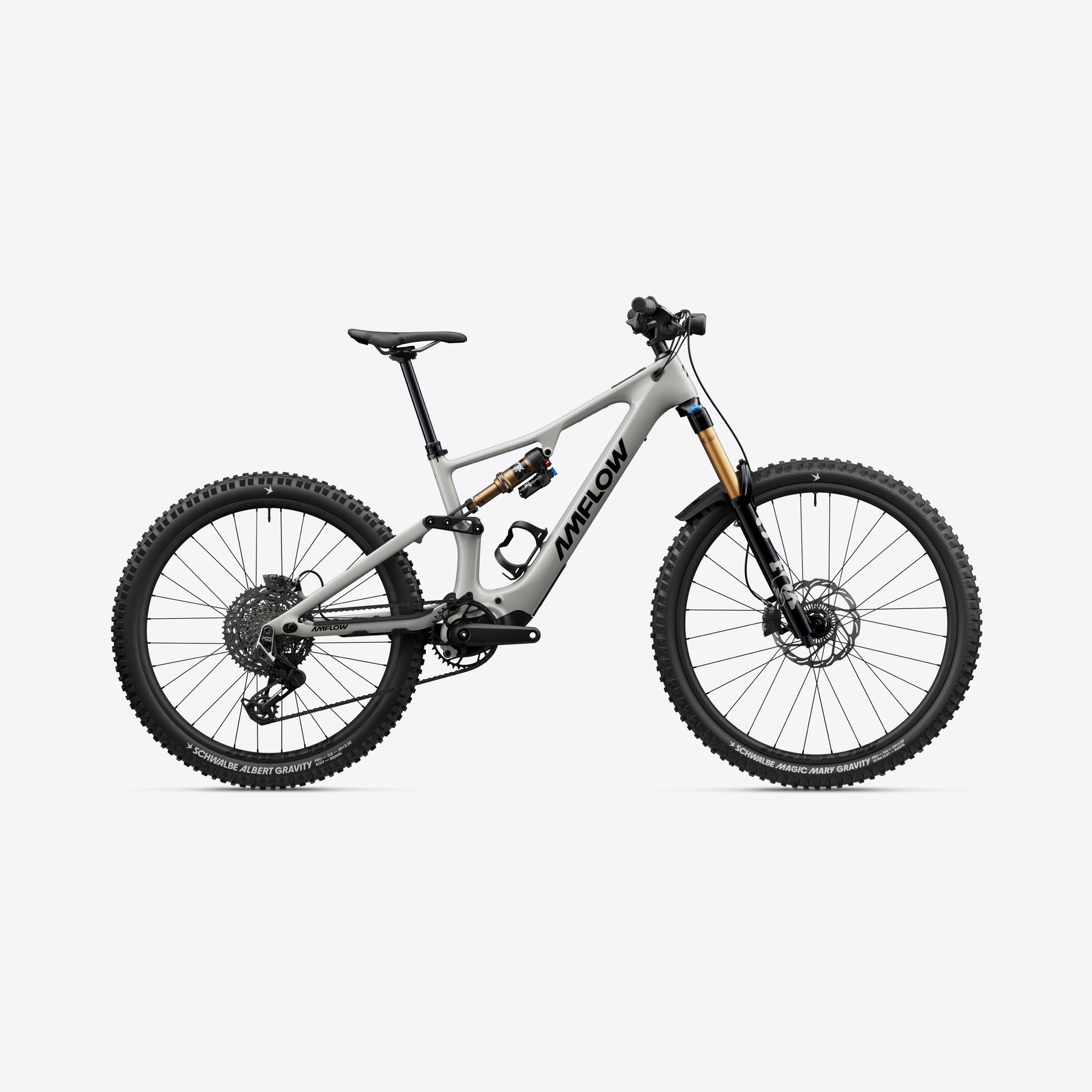

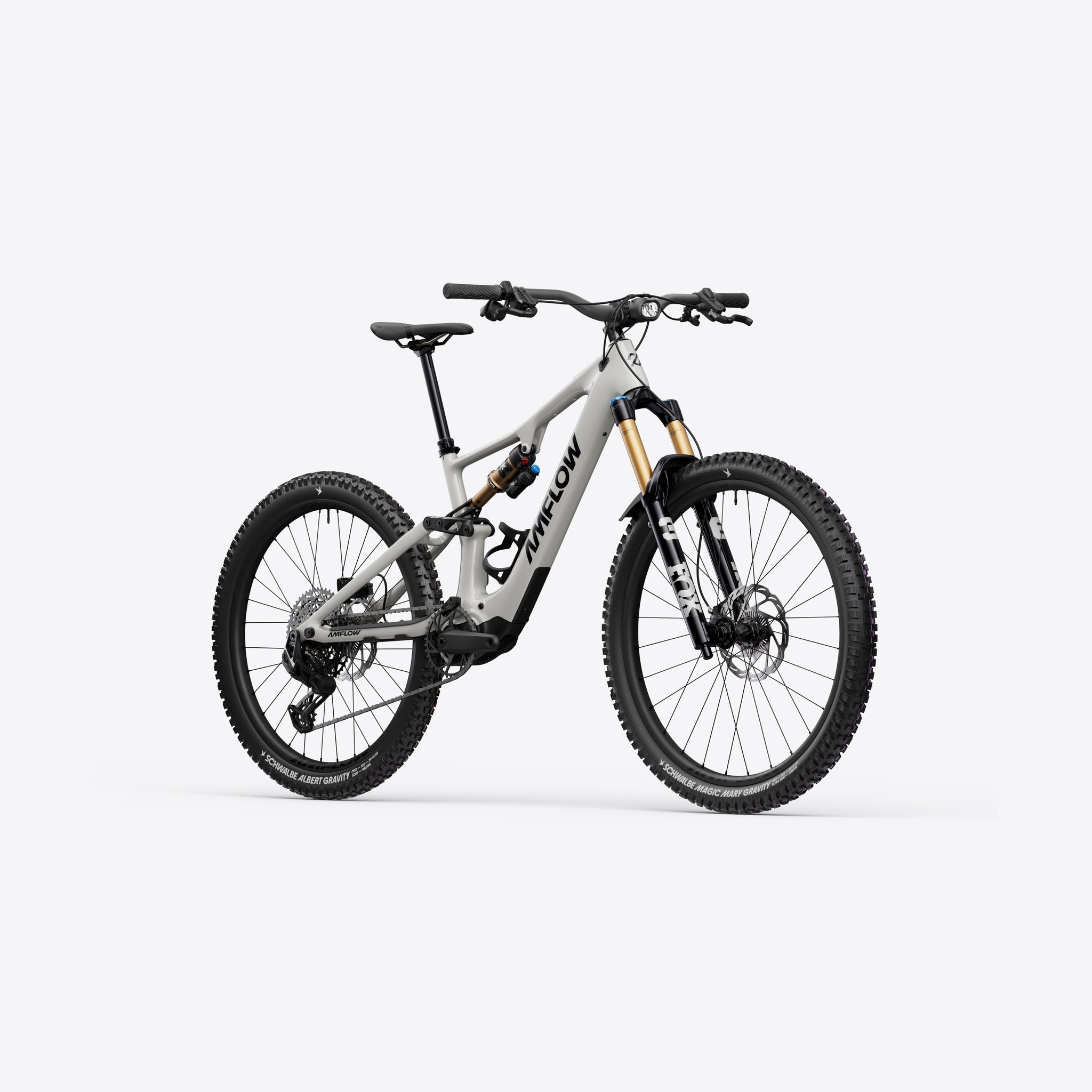

| Frame | Model | Amflow PX Carbon Pro Frame |
| Color | Moonstone Gray |
| Geometry | 40 adjustable geometry configurations |
| Wheel Compatibility | Compatible with 27.5″ and 29″ rear wheels |

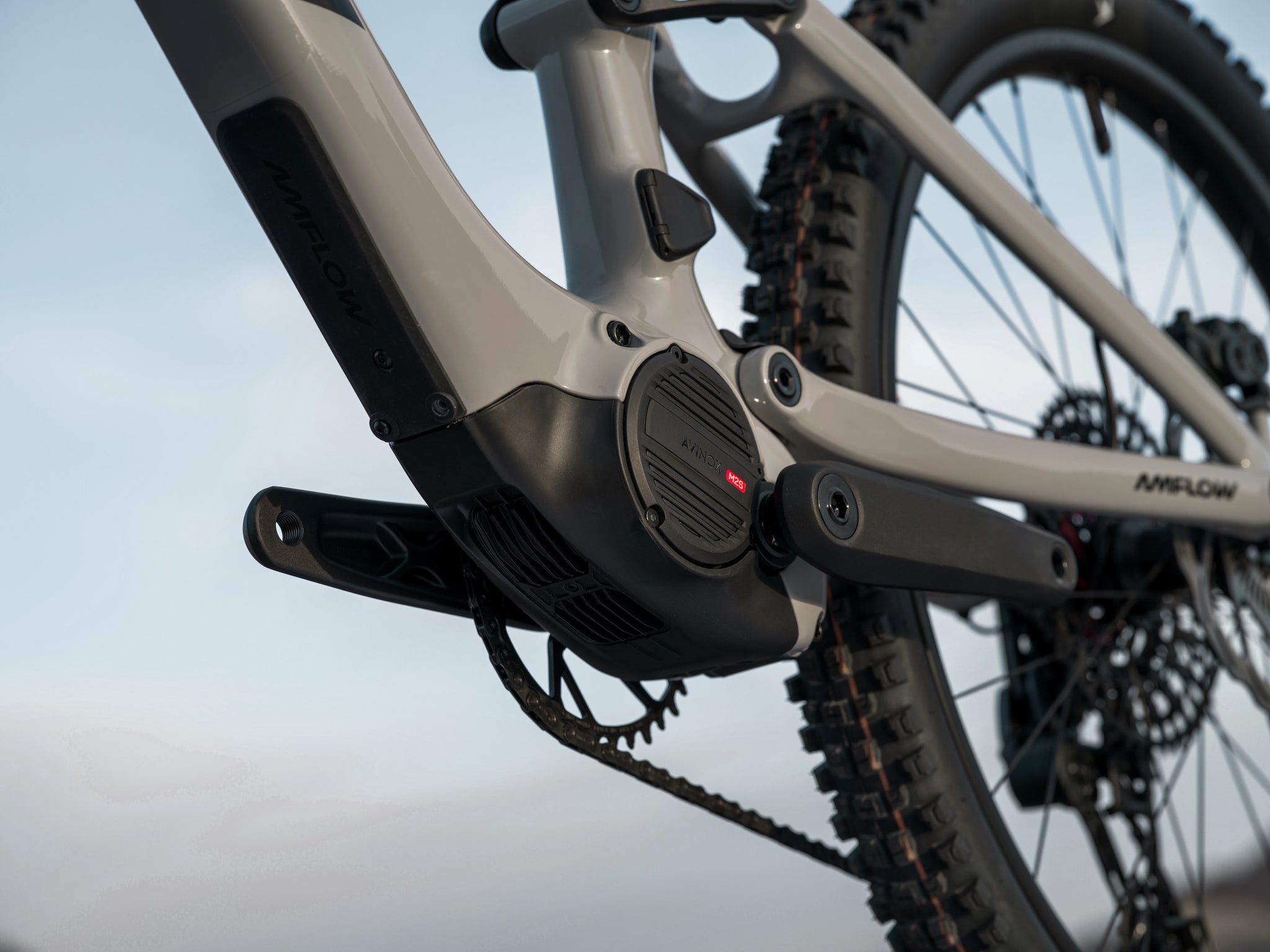

| E-Bike System | Drive Unit | Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m |

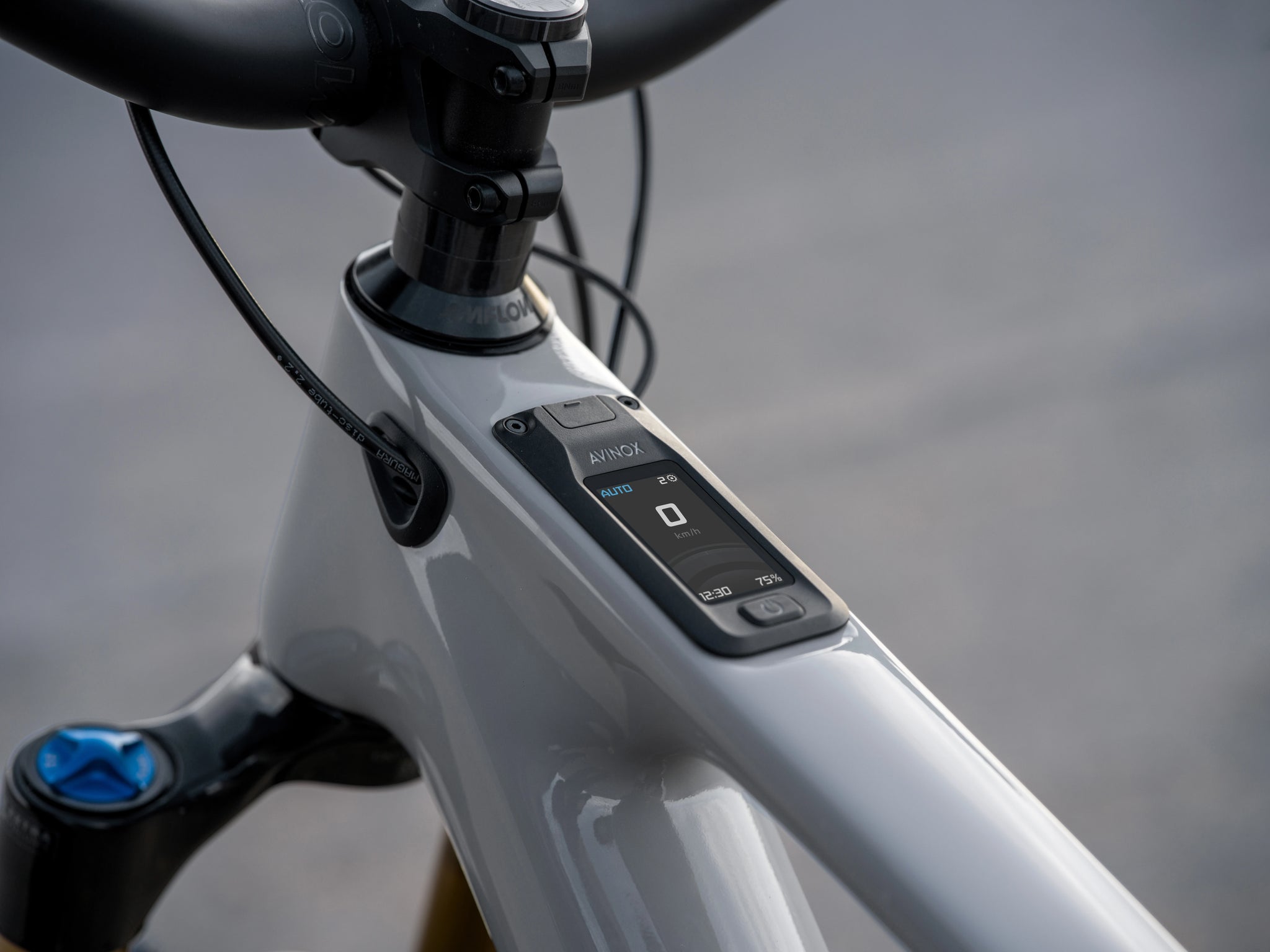

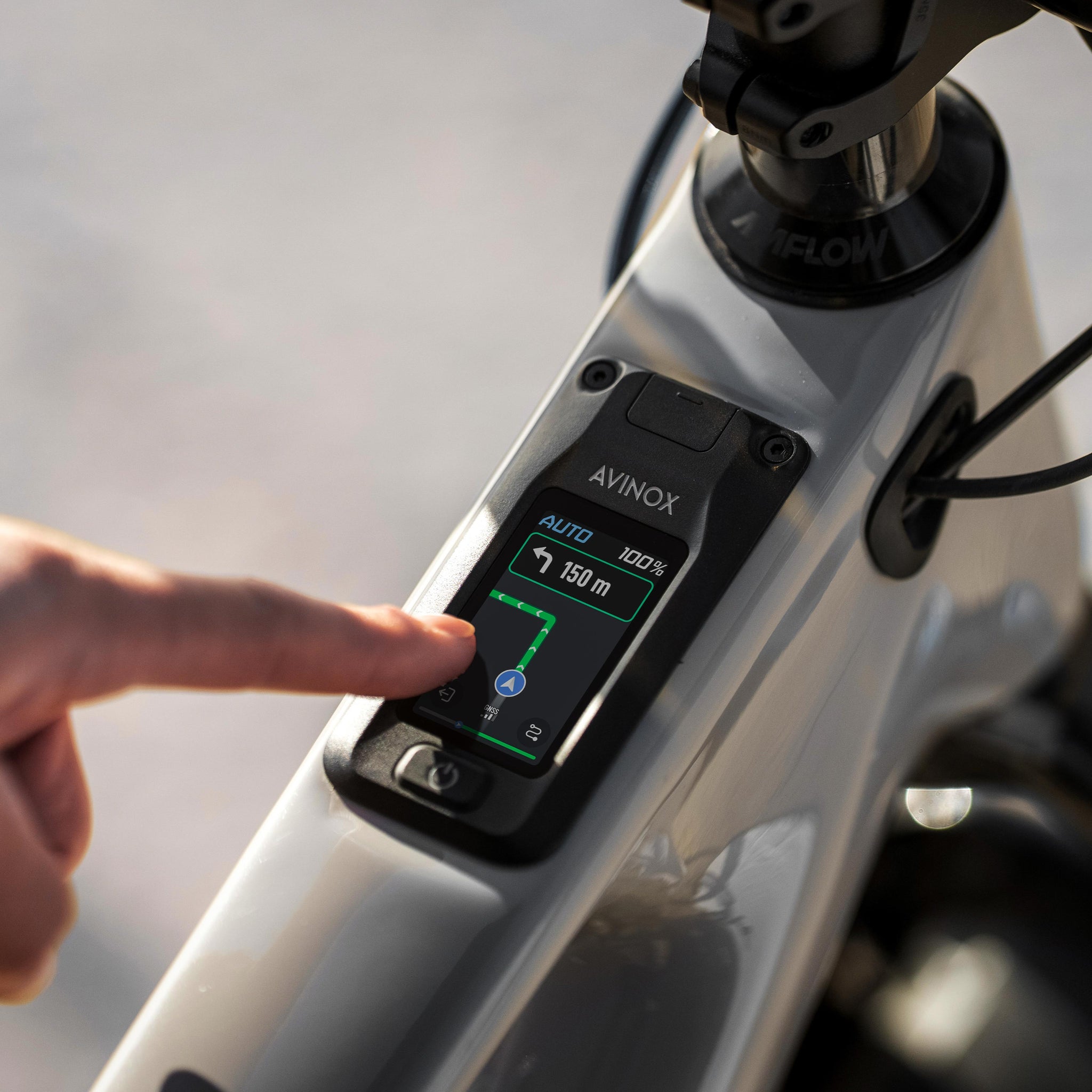

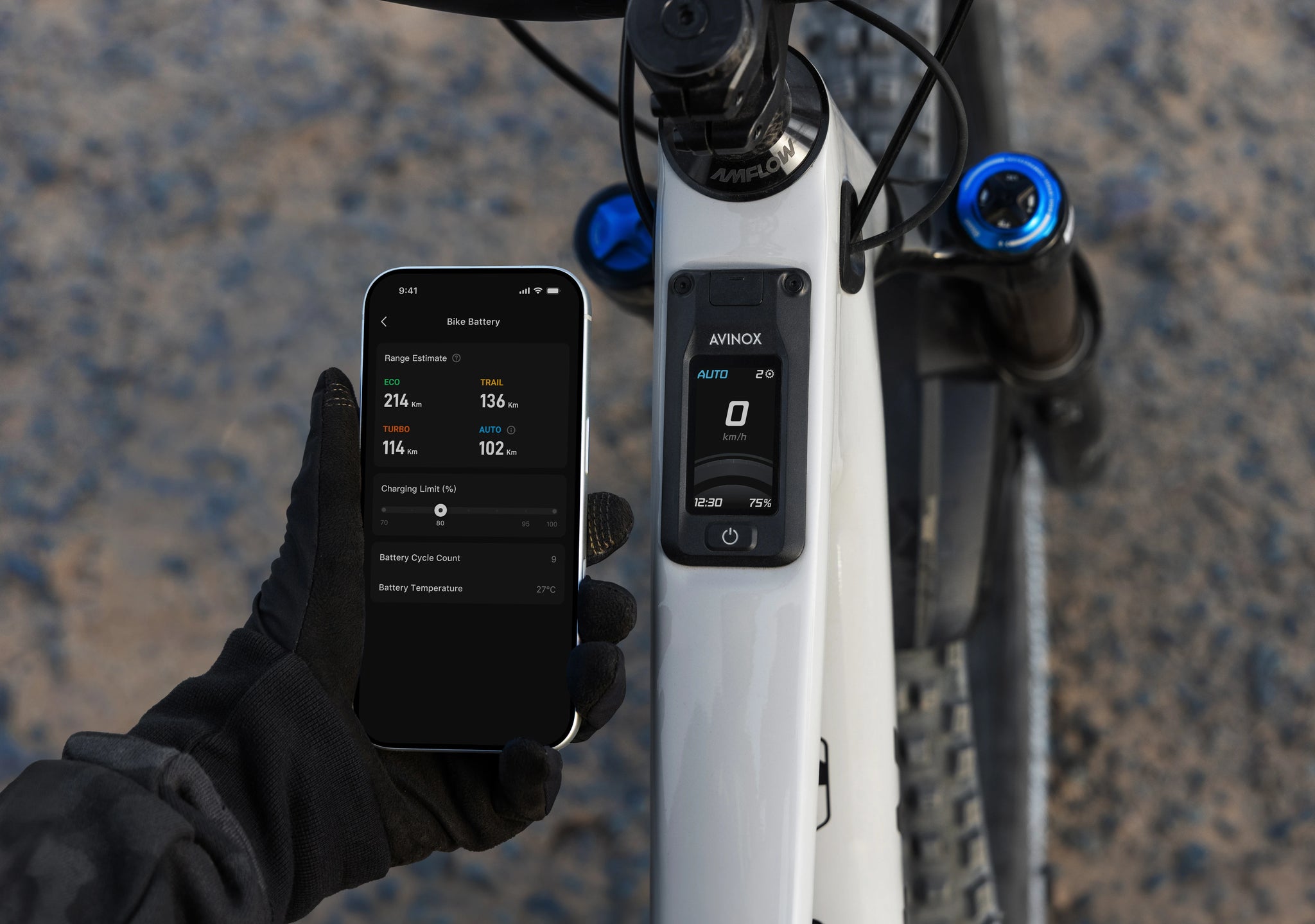

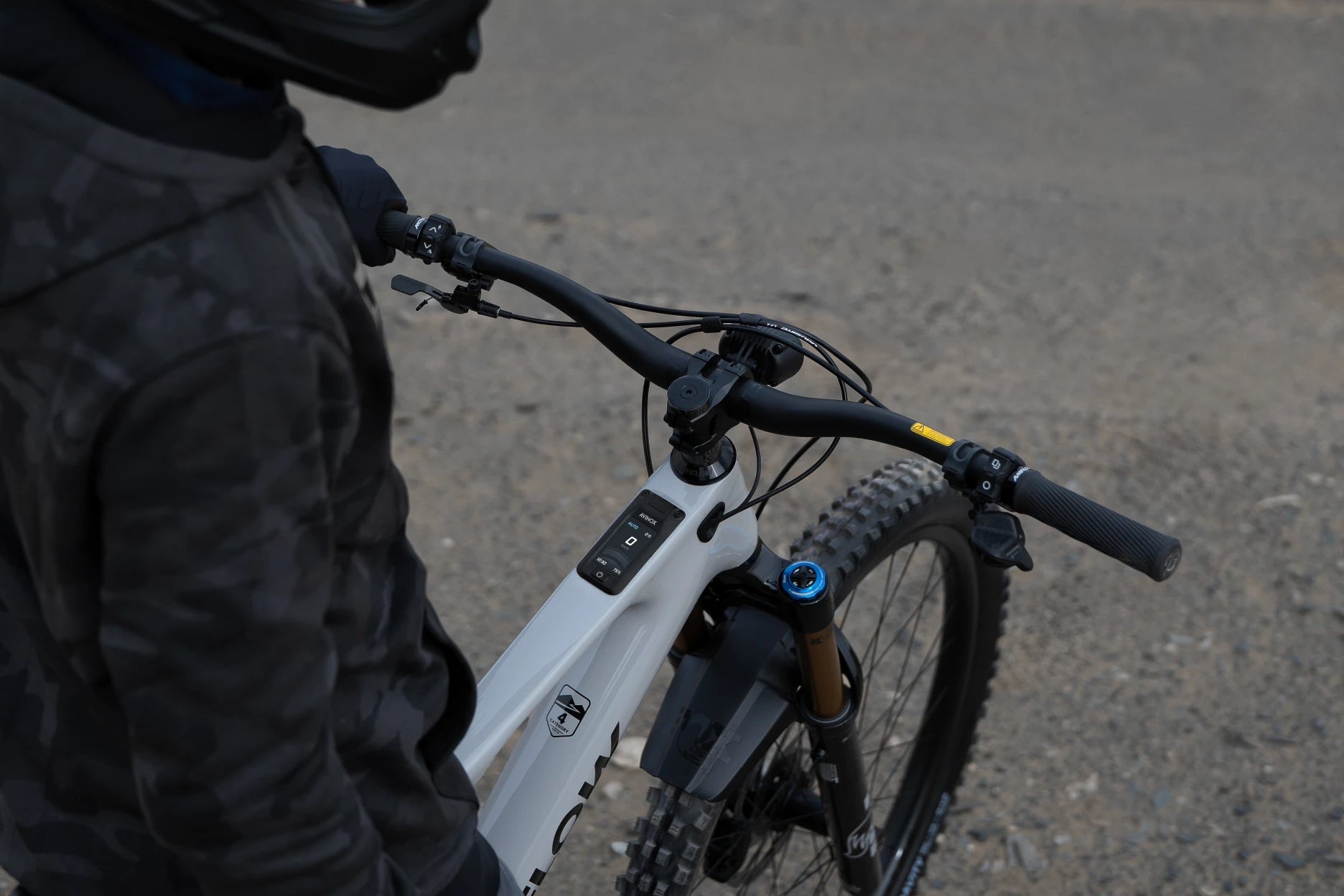

| Display | Avinox Screen: 2-inch OLED Control Display |
| Battery | Avinox Integrated Battery: 700Wh |
| Controllers | Avinox Wireless Controllers (Right & Left) |

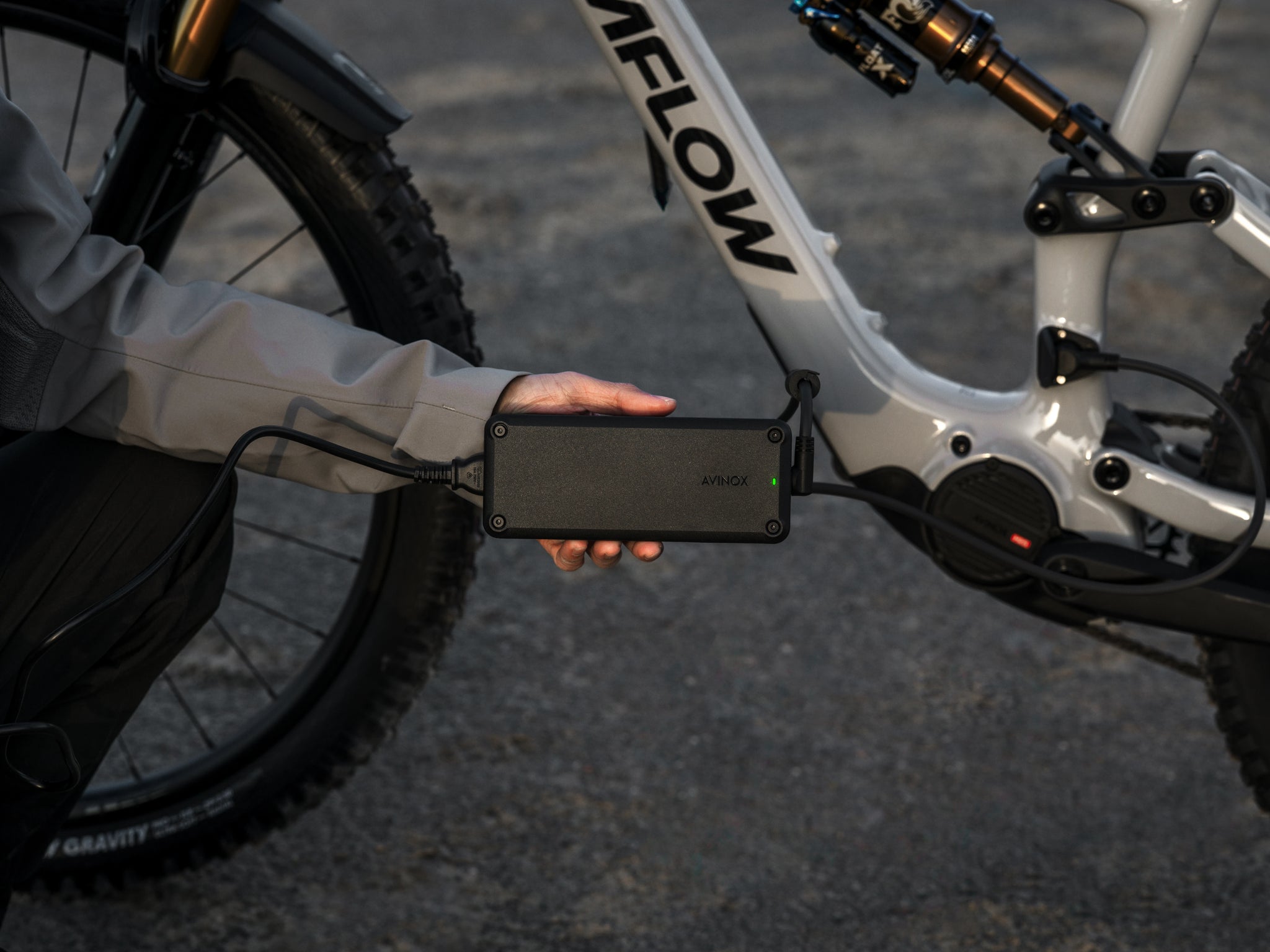

| Charger | Avinox Fast Charger: 12A / 508W |

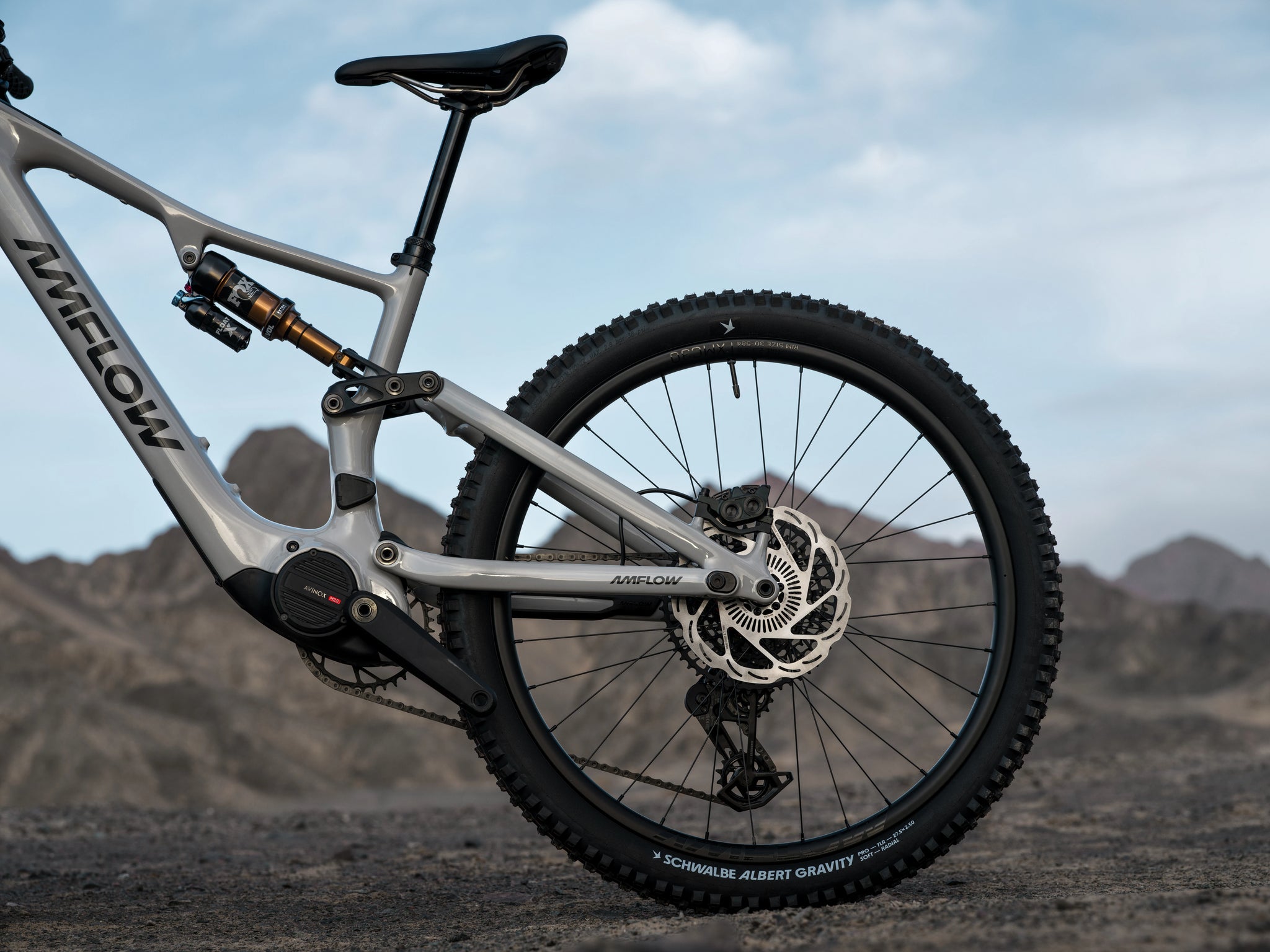

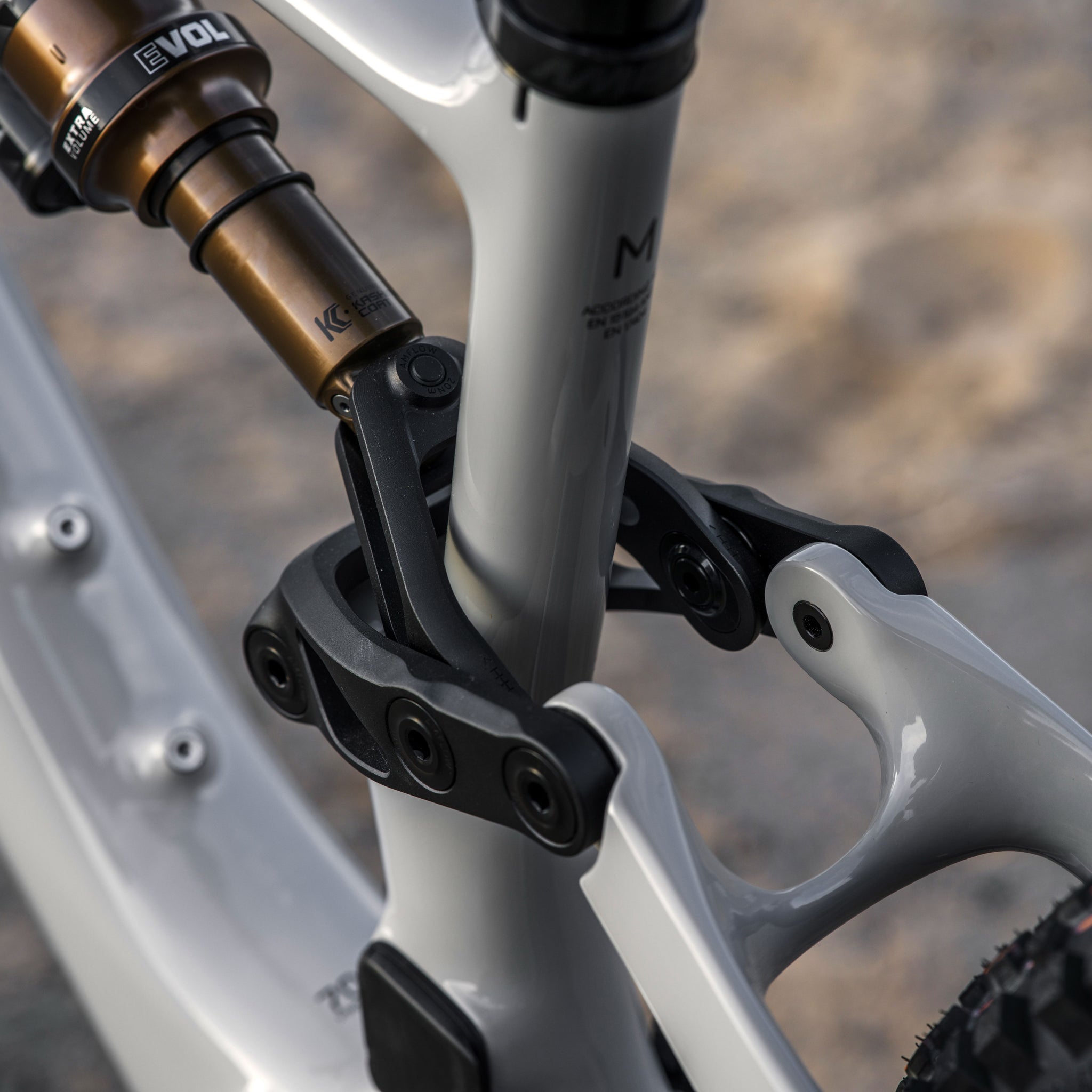

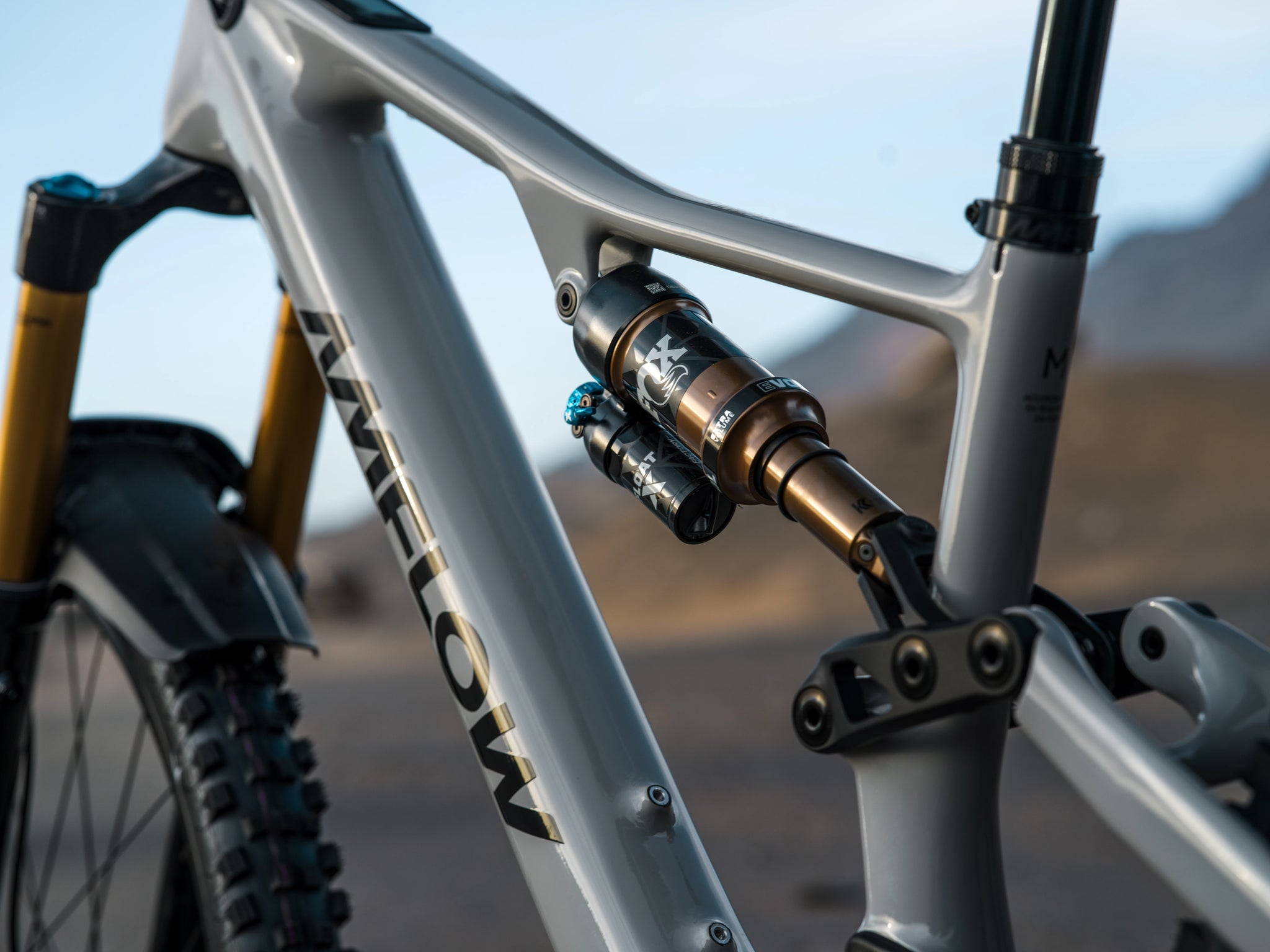

| Rear Shock | Model | FOX Float X Factory (MY 2027) |
| Specs | 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock |

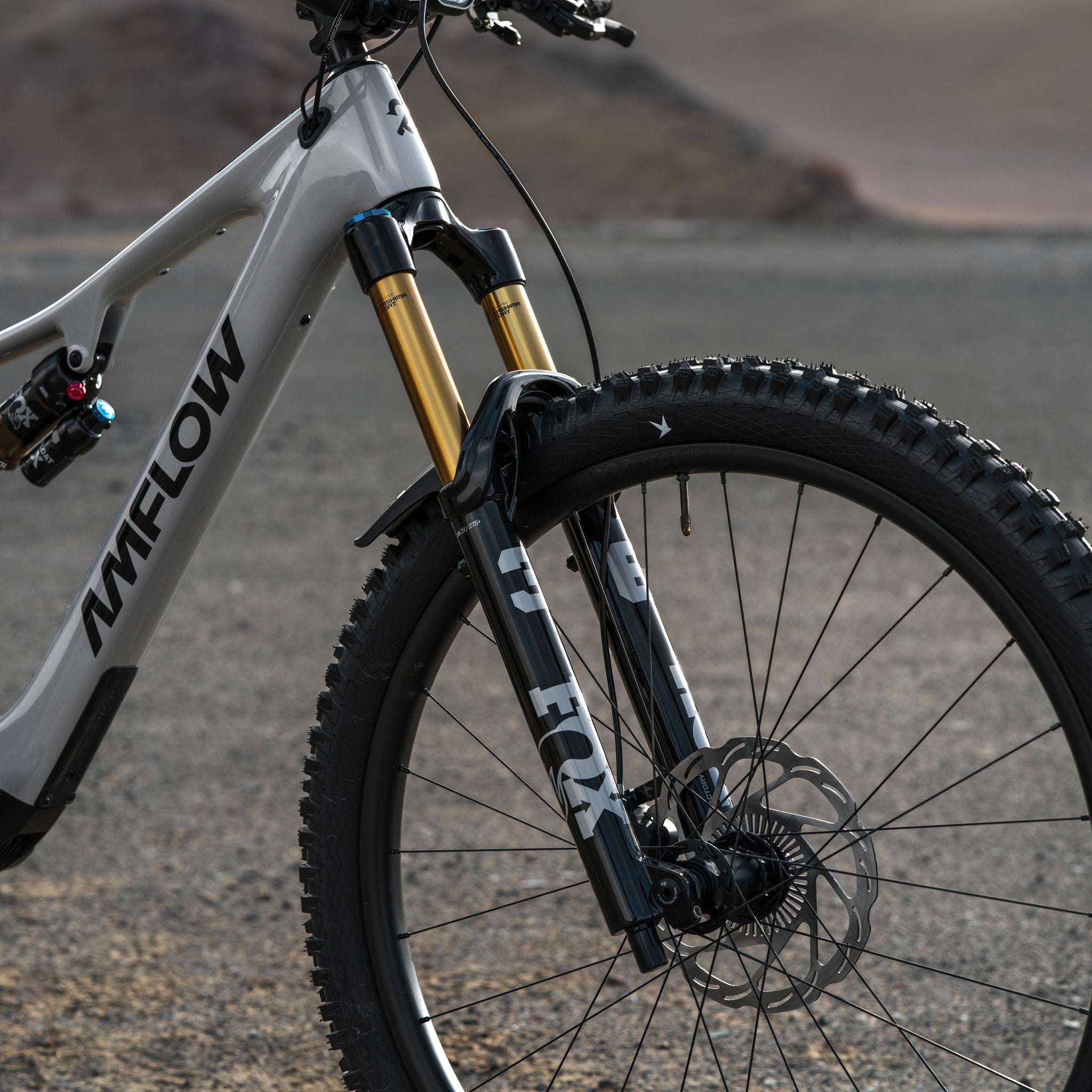

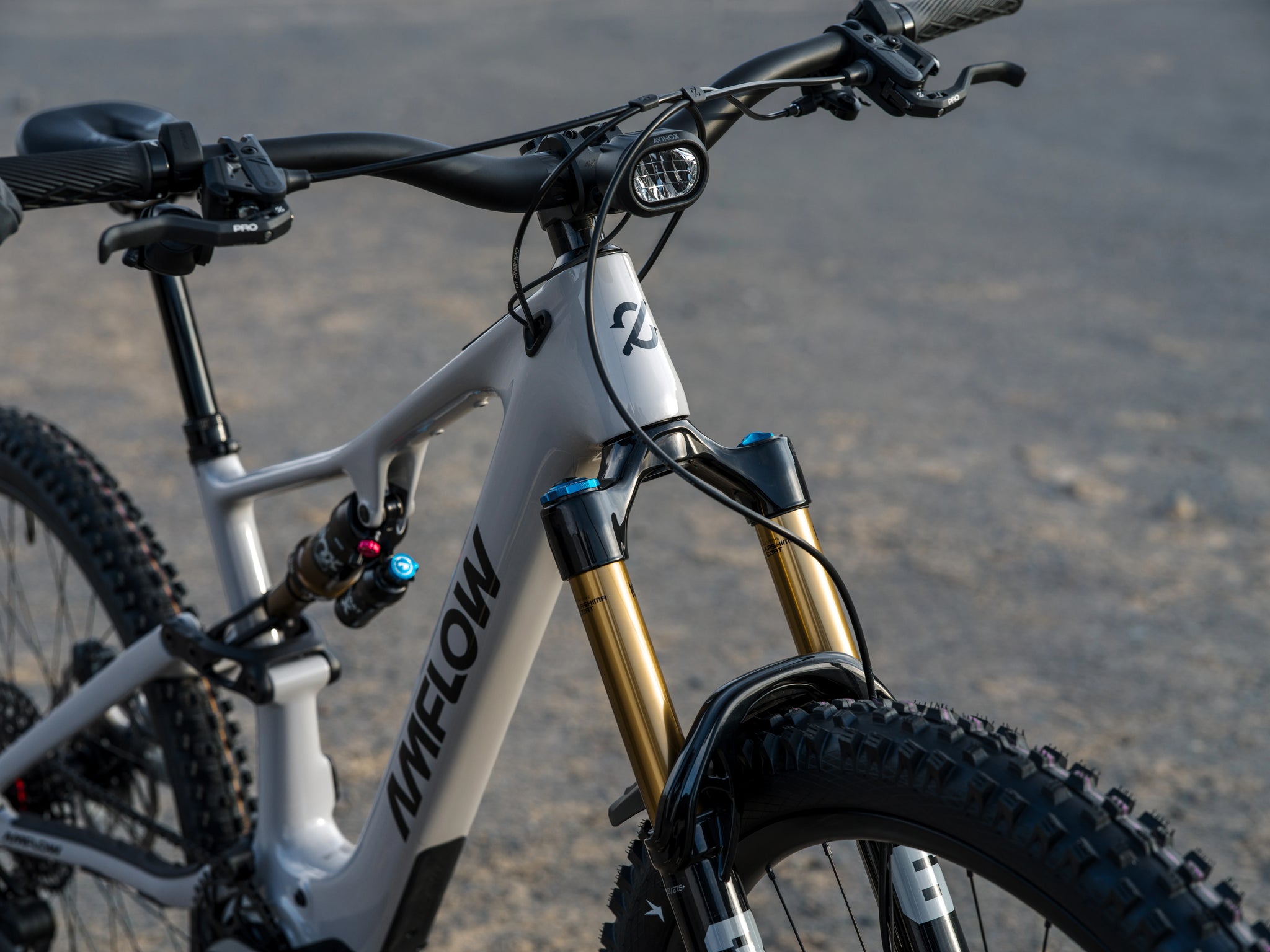

| Fork | Model | FOX 36 Factory (MY 2027) |
| Specs | 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset |

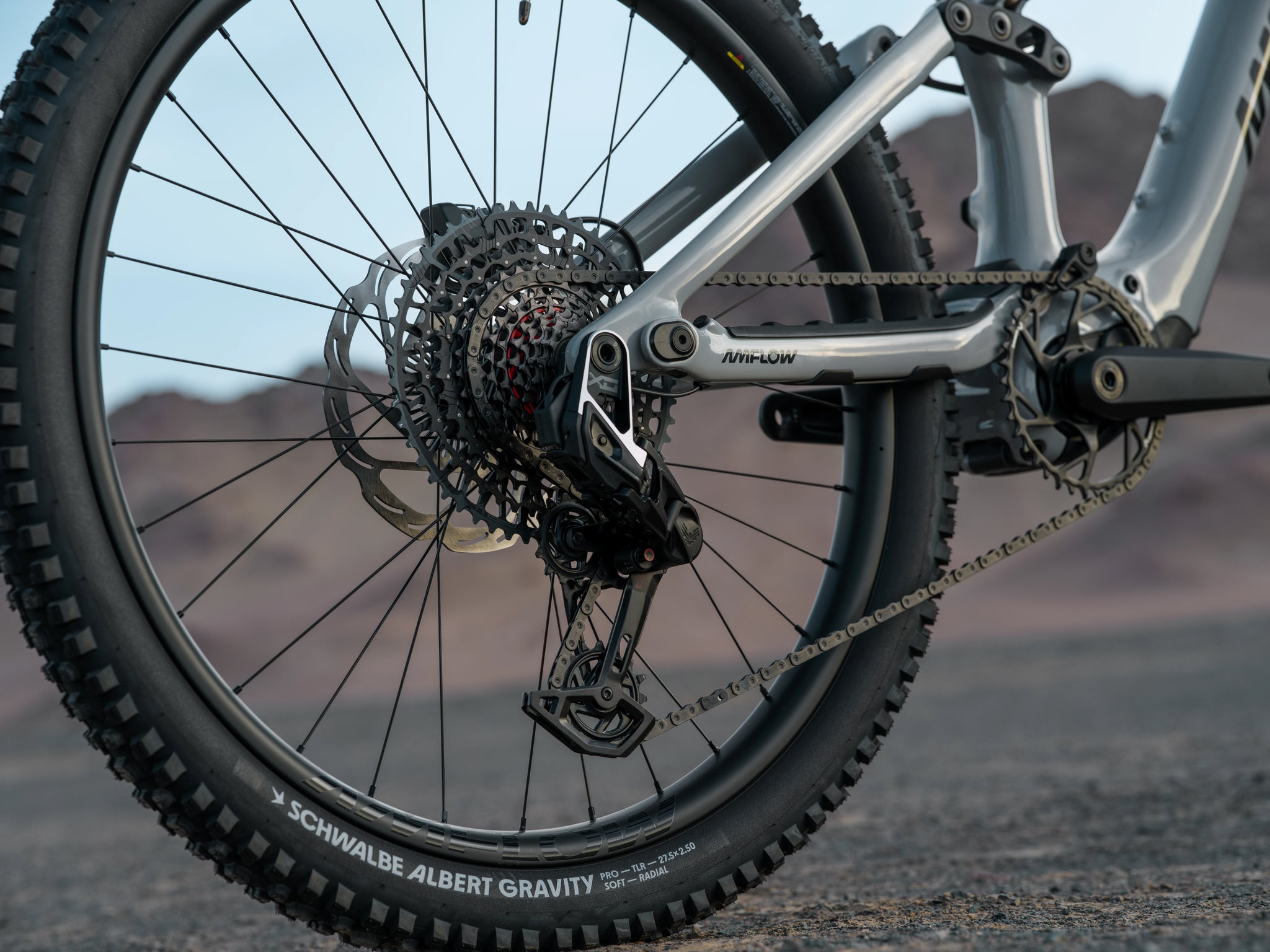

| Drivetrain | Rear Derailleur | SRAM X0 Eagle Transmission Derailleur |

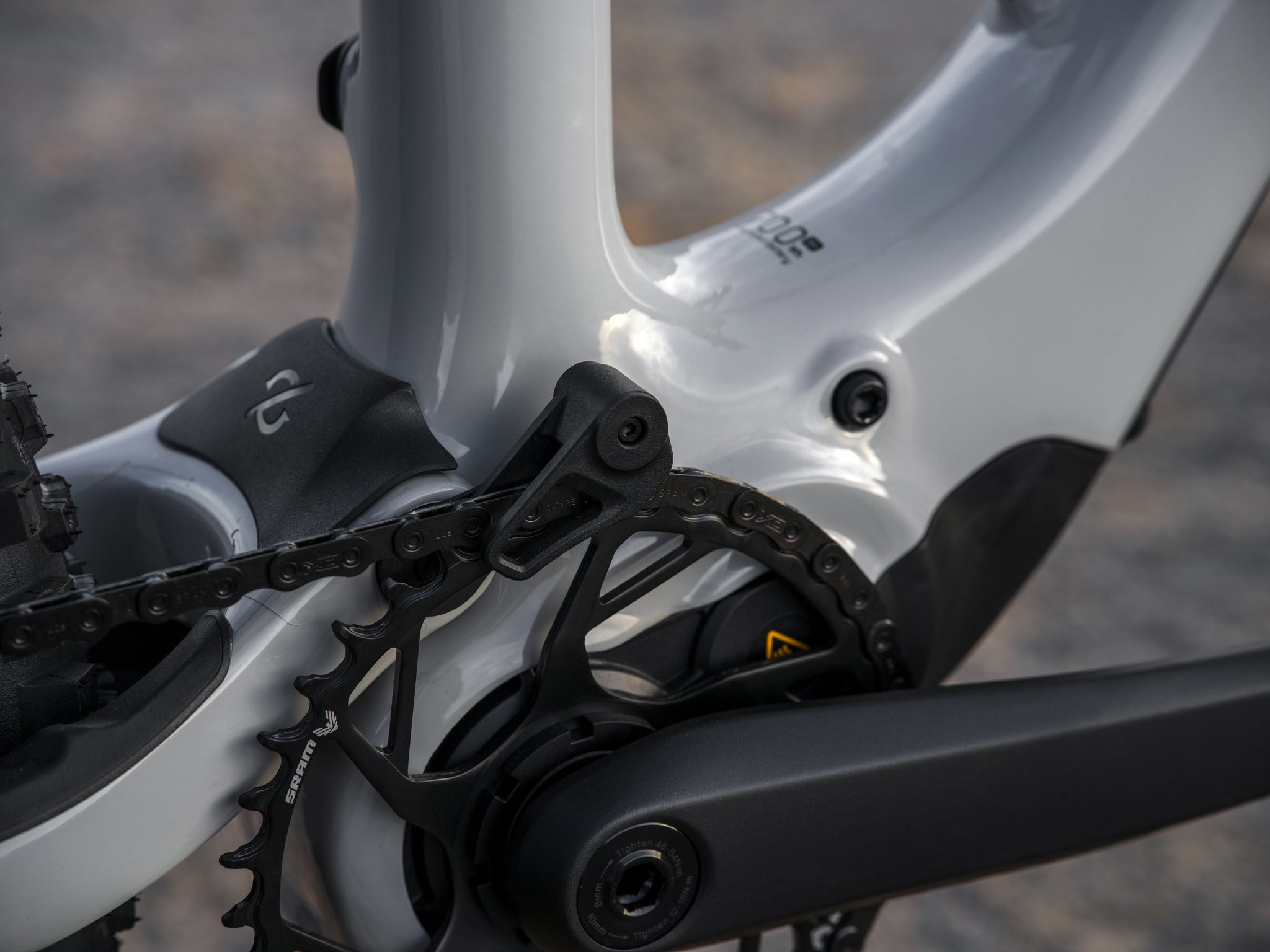

| Chainring | SRAM Eagle Transmission DM Chainring 38T for Avinox |
| Shift Levers | SRAM AXS Pod Rocker Controller |
| Cassette | SRAM XS-1295 Eagle Transmission Cassette 10-52T |
| Chain | SRAM X0 Eagle Transmission Chain |
| Power Supply | Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) |
| Crankset | Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |

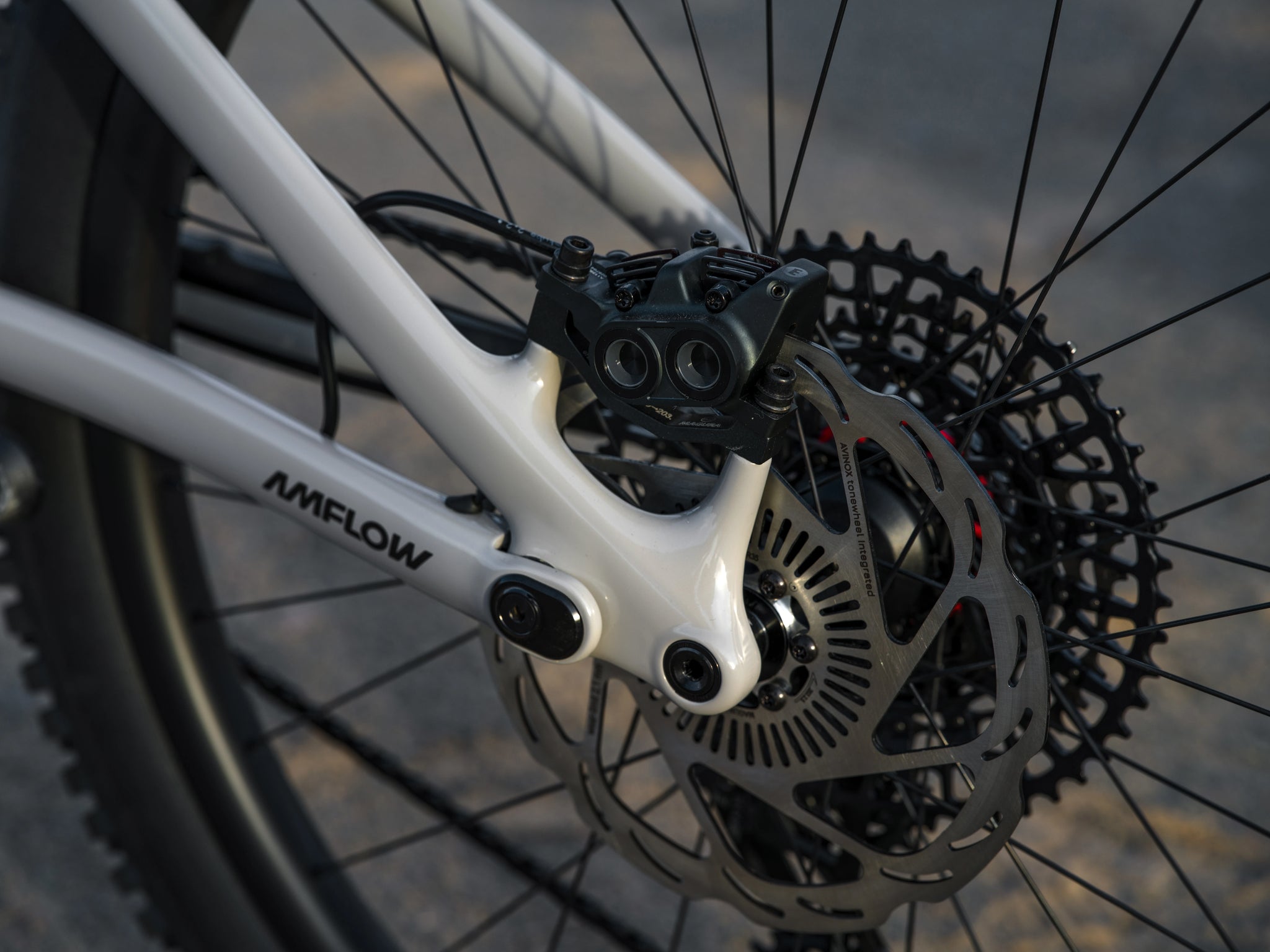

| Brakes | System | Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers |
| Rotor | Magura Sensor Rotor (203mm, 2.5mm) |
| Wheels | Model | Amflow XMA-30 Mullet Version |
| Front Rim | Carbon, 29″, 30mm inner width, 28H, tubeless ready |
| Rear Rim | Carbon, 27.5″, 30mm inner width, 32H, tubeless ready |
| Spokes | SAPIM E-Light |
| Front Hub | Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt |

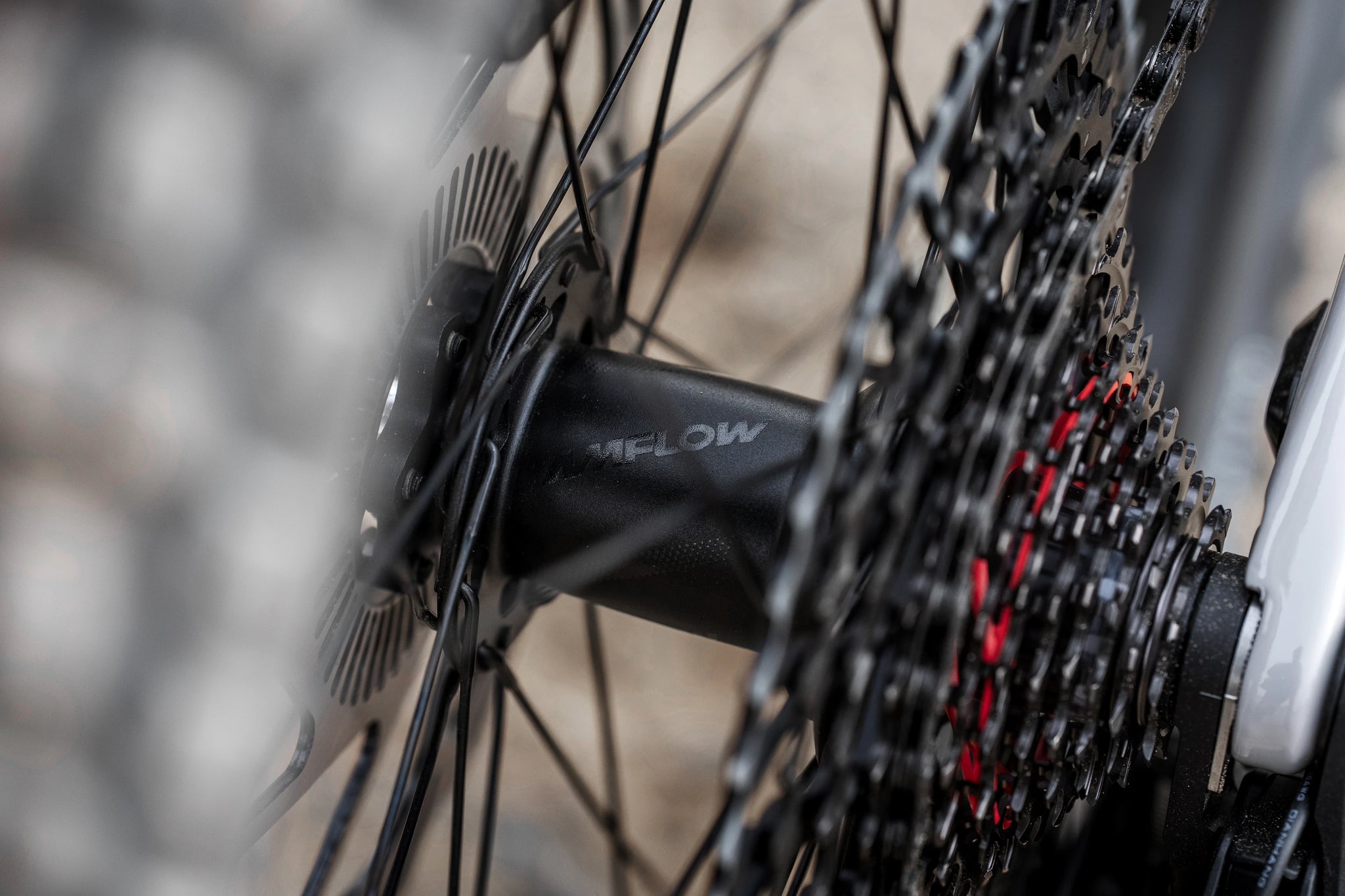

| Rear Hub | Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD |

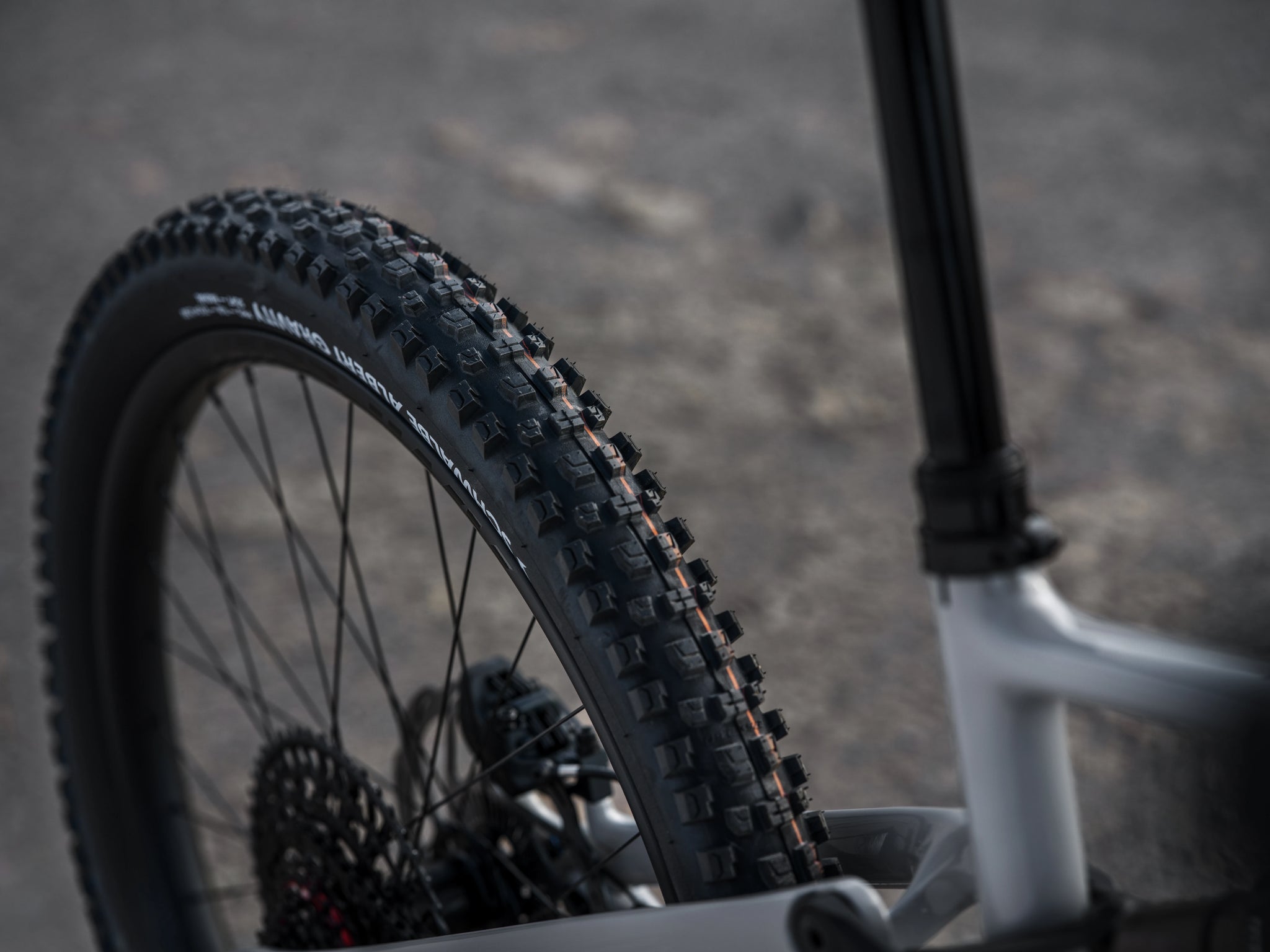

| Tires | Front | Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready |
| Rear | Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
| Handlebar | Model | Amflow Enduro Carbon Handlebar |
| Dimensions | 40mm Rise, 800mm Width, 35mm Diameter |
| Angles | 5° upsweep, 9° backsweep |
| Grips | Model | Amflow Enduro Grip 2 Lock-on Grips |
| Stem | Length | 35mm |
| Clamping Diameter | 35mm |

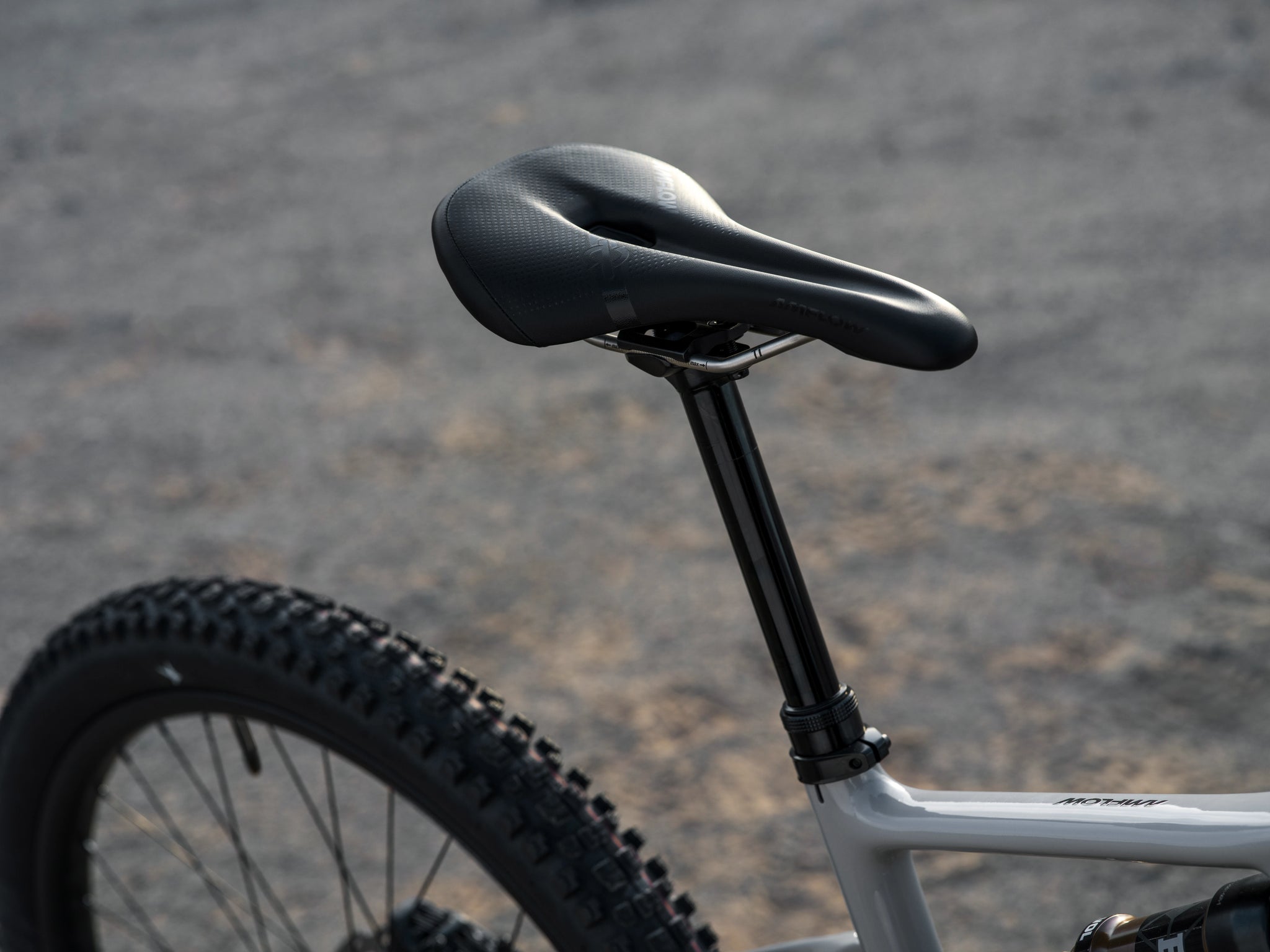

| Saddle | Model | Amflow Mountain Saddle Titanium |
| Dropper Post | Adjustment | Adjustable travel: 0/5/10/15/20/25mm |
| M/L Frame | 190mm |
| XL Frame | 210mm |
