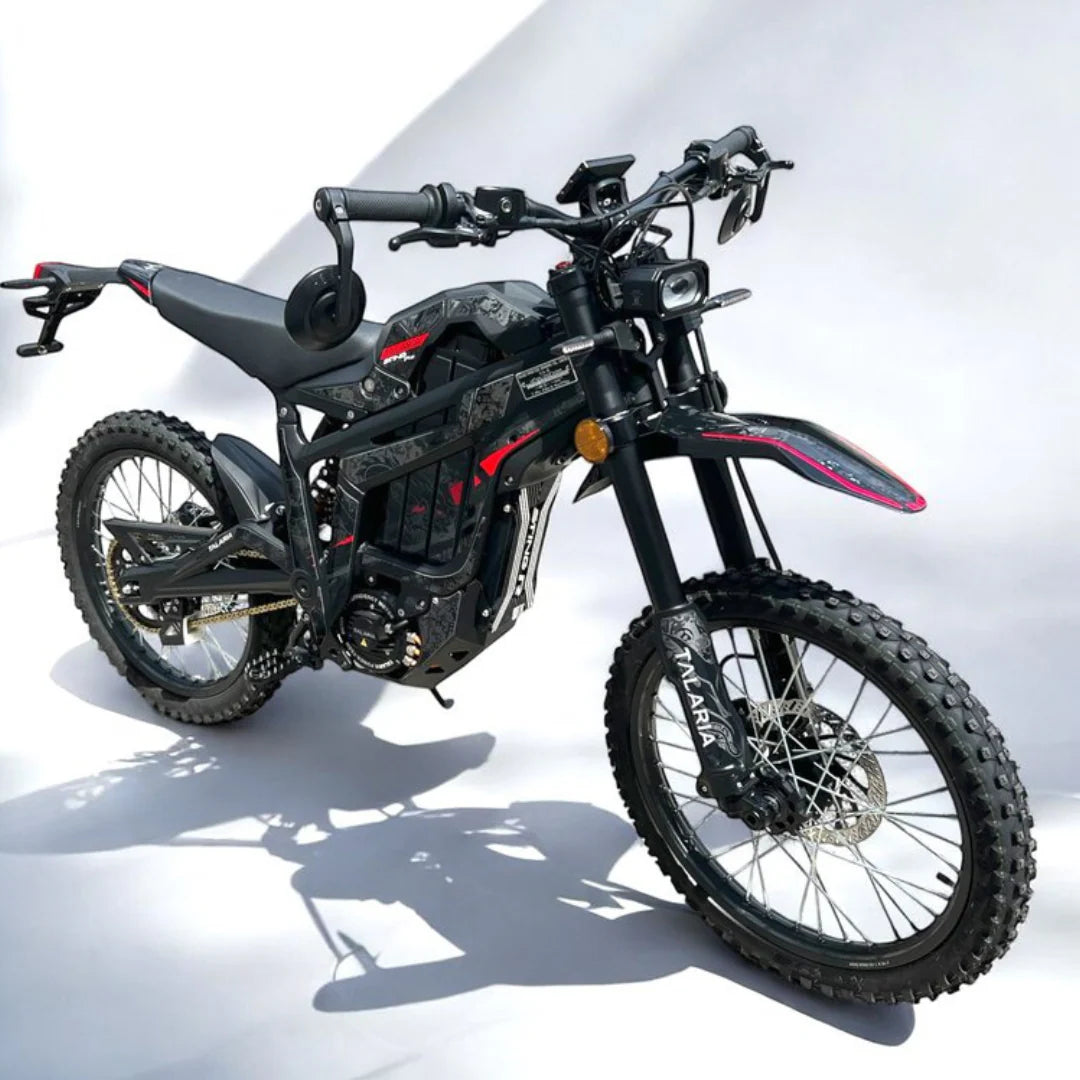

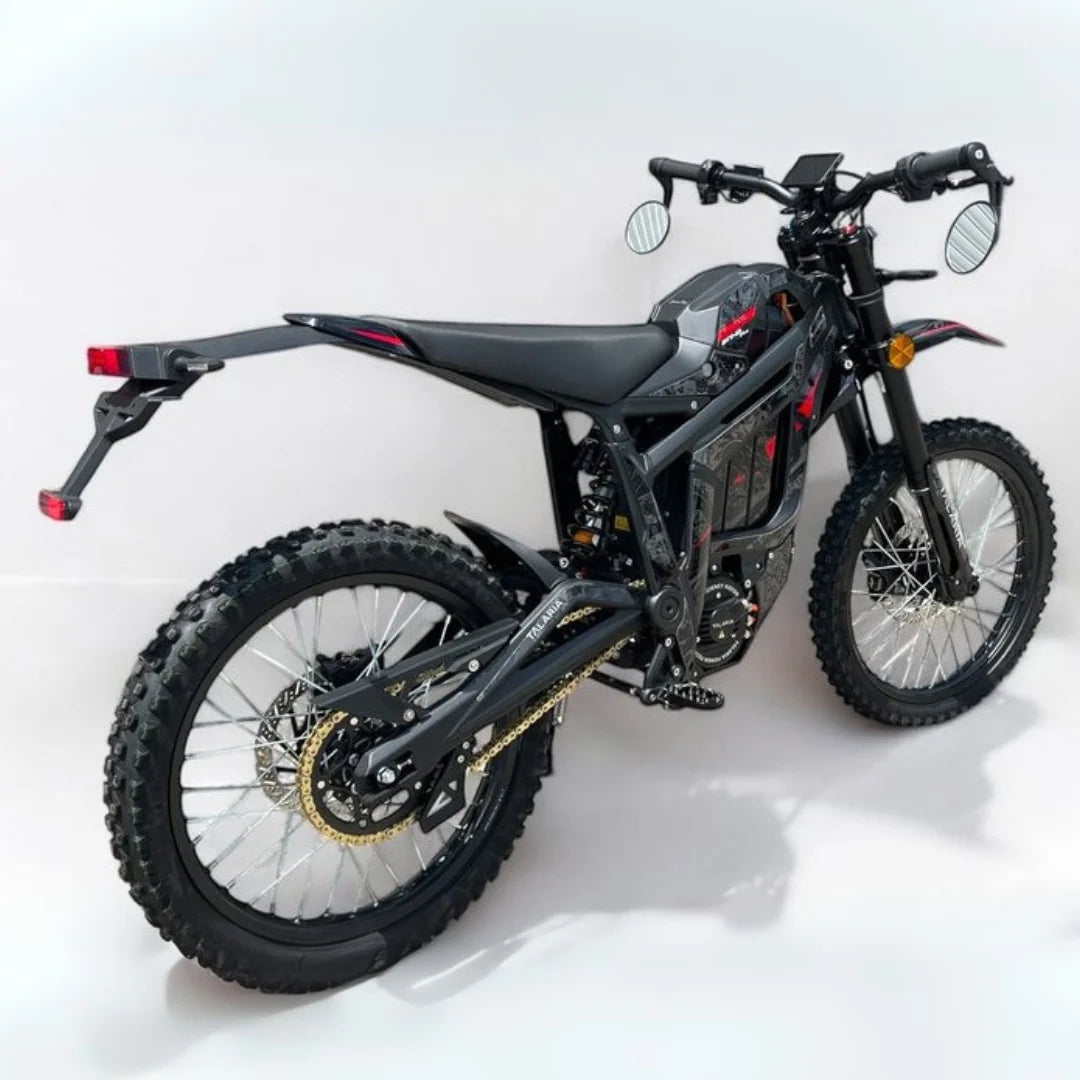

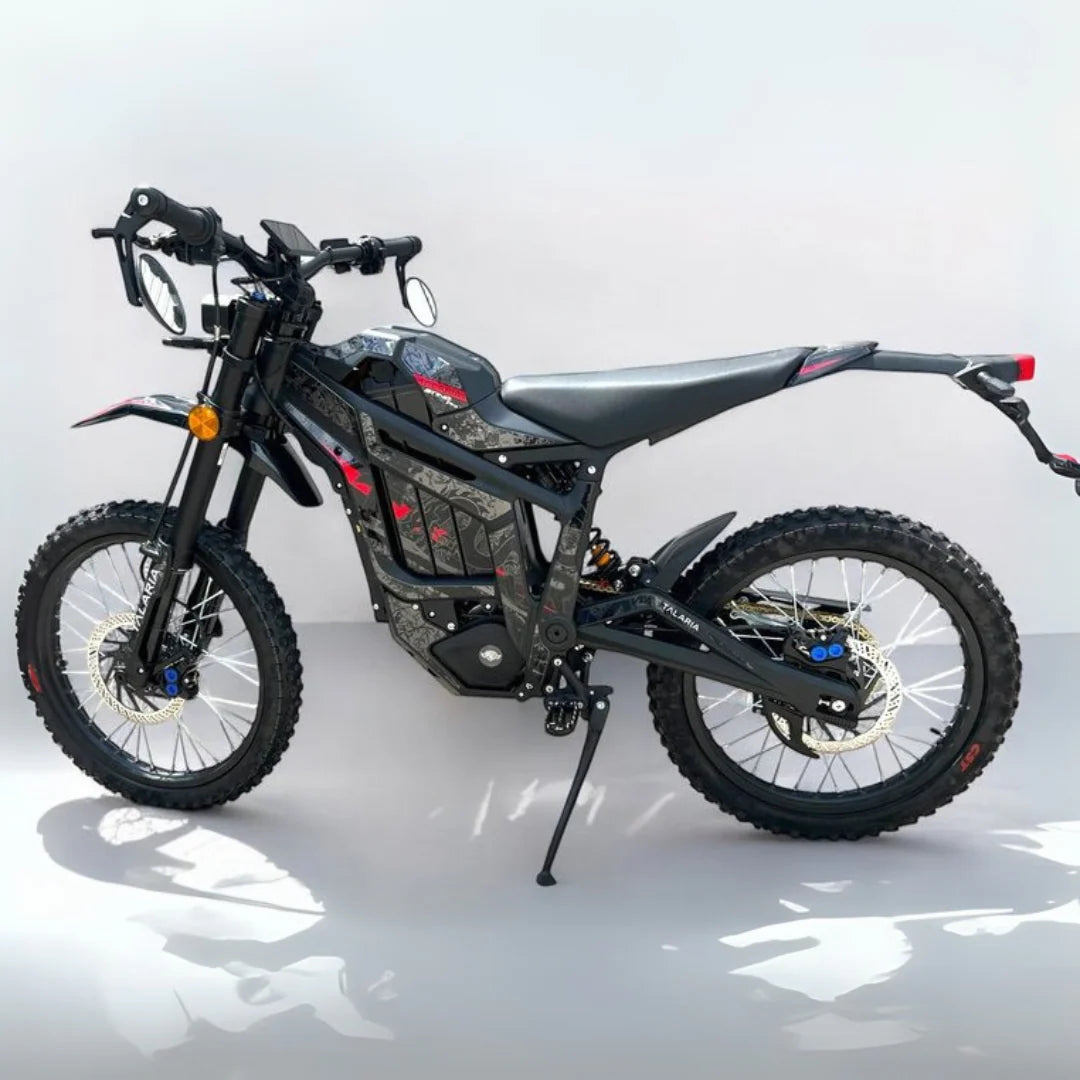

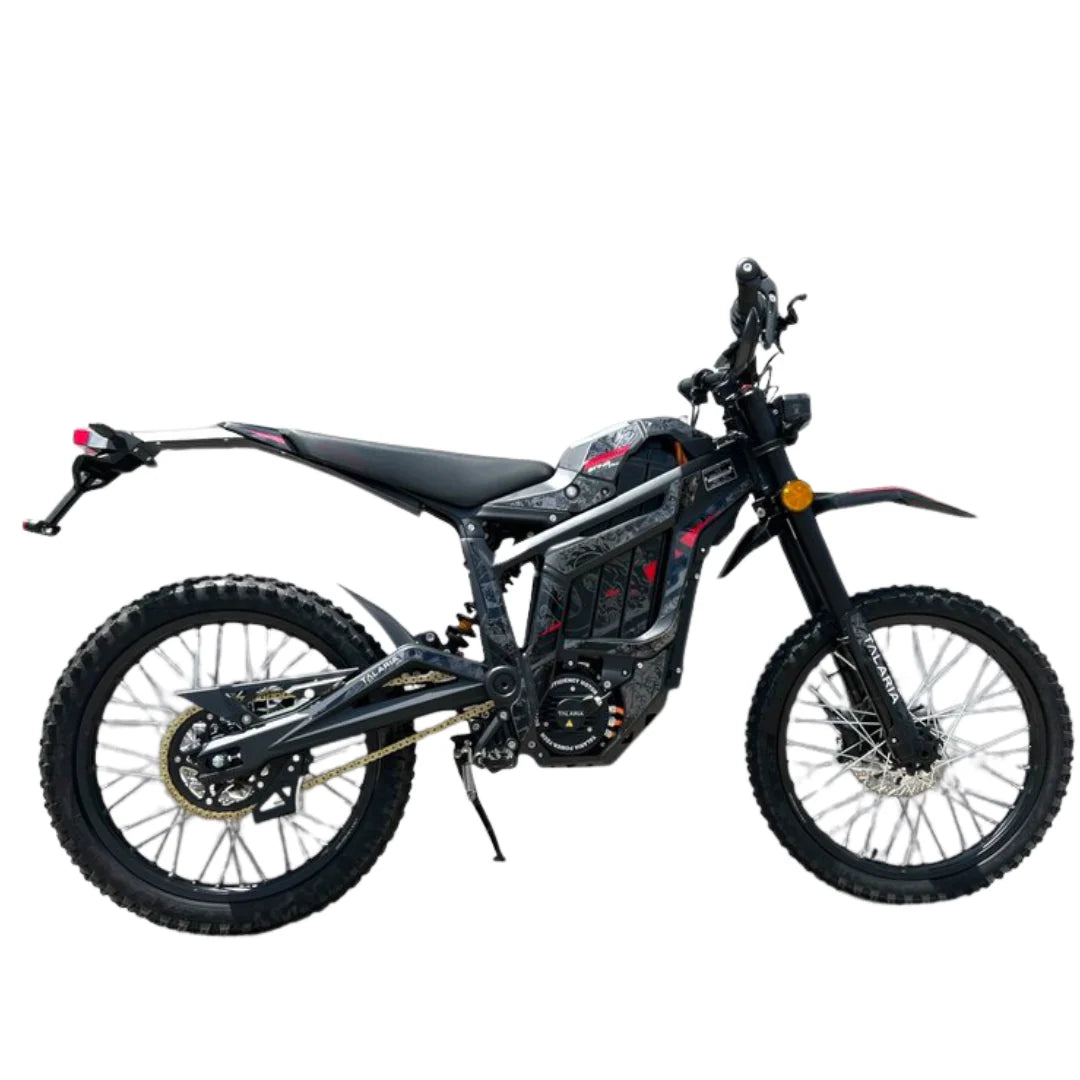

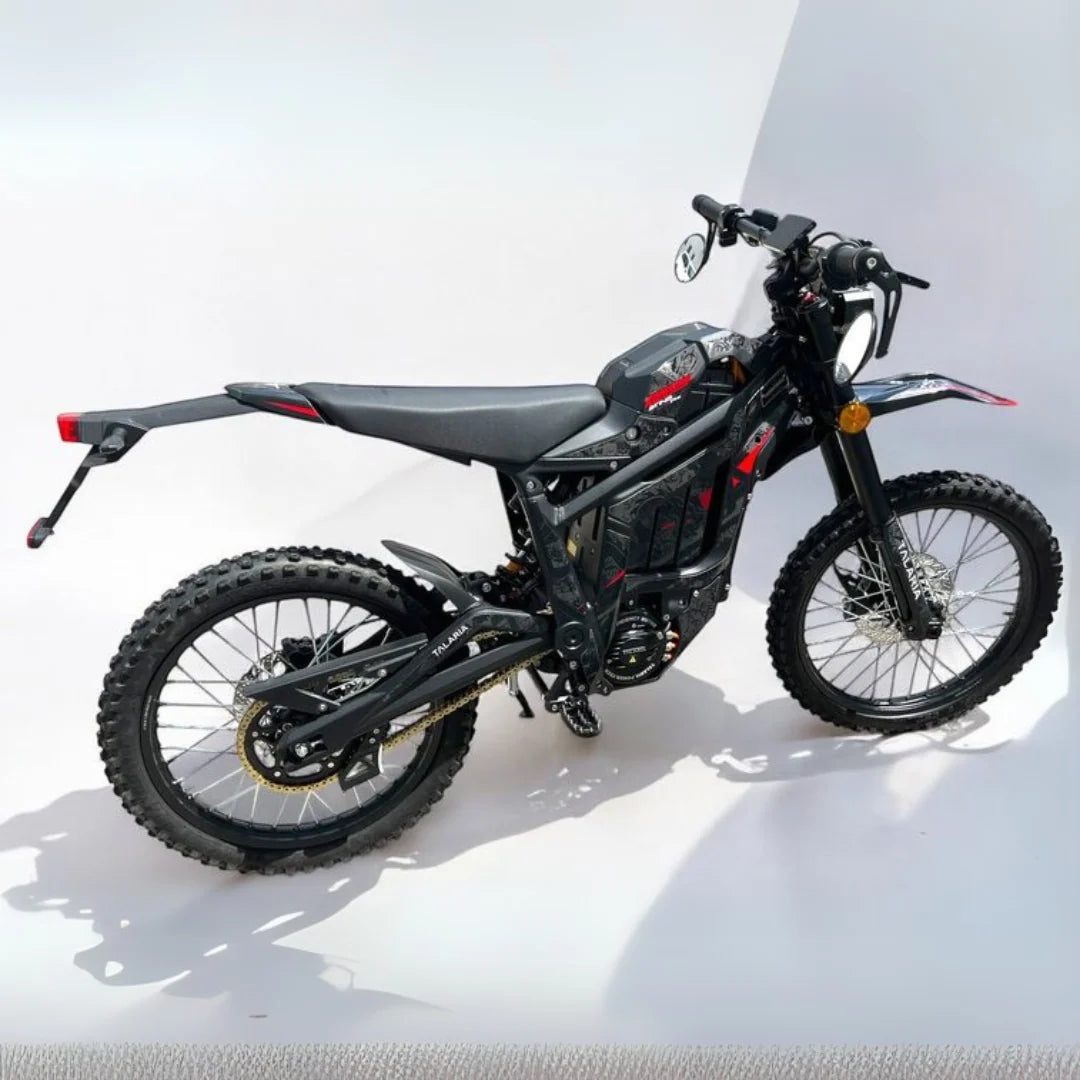

Talaria Sting PRO MX5 L1E – Unmatched Power & Performance
The road-legal Talaria PRO MX5 L1E features a 72V/40Ah battery, delivering high torque, fast acceleration, and top performance on and off-road.
KEY FEATURES & SPECIFICATIONS
| SPECS | STING PRO MX5 L1E | |
|---|---|---|
| MOTOR | 5500W Rated Power / Air-Cooled IPM | |
| BATTERY | 72V 40AH | |
| RANGE | >68km/h @ 45km/h | |
| SPEED | 45km/h | |
| DISPLAY | New Colourful TFT Display | |
| FRONT FORK | Dual Spring with Preload / Air / Compression / Rebound ADJ | |
| REAR ABSORBER | Spring with Preload / Compression / Rebound | |
| TYRES | CST Brand, FR: 70/100-19, RR:80/100-19 | |
| DIMENSIONS | 1890x815x1155mm | |
| WEIGHT | 78KG (Battery Included) | |
| GROUND CLEARANCE | 280mm | |
Powertrain (Motor & Controller)
-
MOTOR TYPE: AIR-COOLED IPM (INTERIOR
PERMANENT MAGNET) - CONTROLLER TYPE: FOC
- NOMINAL VOLTAGE: 72V (DC)
- NOMINAL POWER: 5500W PEAK POWER: 8.5KW
- PEAK TORQUE: 55N.m
-
TORQUE ON REAR WHEEL: 500N.m (48T
Sprocket) - PEAK EFFICIENCY: 92%
Transmission
- GEAR RATIO: 9.1 (48T Sprocket)
- Ist TRANSMISSION MODE: GEARBOX
- 2nd TRANSMISSION MODE: CHAIN
- ELECTRONIC COMPONENT BATTERY PACK: 72V / 40Ah / 208/8P
- BATTERY CELL: SAMSUNG 50S 21700 Cell
- DASH: LED MULTI-FUNCTION DISPLAY REGEN ADJUST USER ADJUSTABLE
- RIDING MODES: ECO / SPORT / HYPER
Vehicle
- CHASSIS MATERIAL: NO. 6061 T4 & T6 ALUMINUM ALLOY
- CHASSIS PROCESS METHOD: ALUMINUM PROFILE EXTRUSION & FORGED
- HEADLIGHT: LED
- FRONT FORK: DUAL SPRING WITH PRELOAD/AIR/COMPRESSION/REBOUND ADJ
- REAR ABSORBER: SPRING WITH PRELOAD / COMPRESSION / REBOUND
- TIRE BRAND & SIZE: CST BRAND, FR.: 70/100- 19; RR.: 80/100-19 OFF-ROAD
- TOP SPEED: 45KM/H
- MAX. RANGE: 268KM @ 45KM/H
- N.W: 78KG (BATTERY INCLUDED)
- VEHICLE DIMENSION: 1890MM x 815MM x 1155MM
- SEAT HEIGHT: 840MM
- WHEELBASE: 1250MM HANDLE BAR WIDTH: 760MM MIN. GROUND
- CLEARANCE: 280MM
- MAX GRADEABILITY: 45°
