TOP SPEED
25km/H
MOTOR POWER
250W
RANGE
50km
BATTERY
374Wh
CAPACITY
100kg
WEIGHT
20.5kg

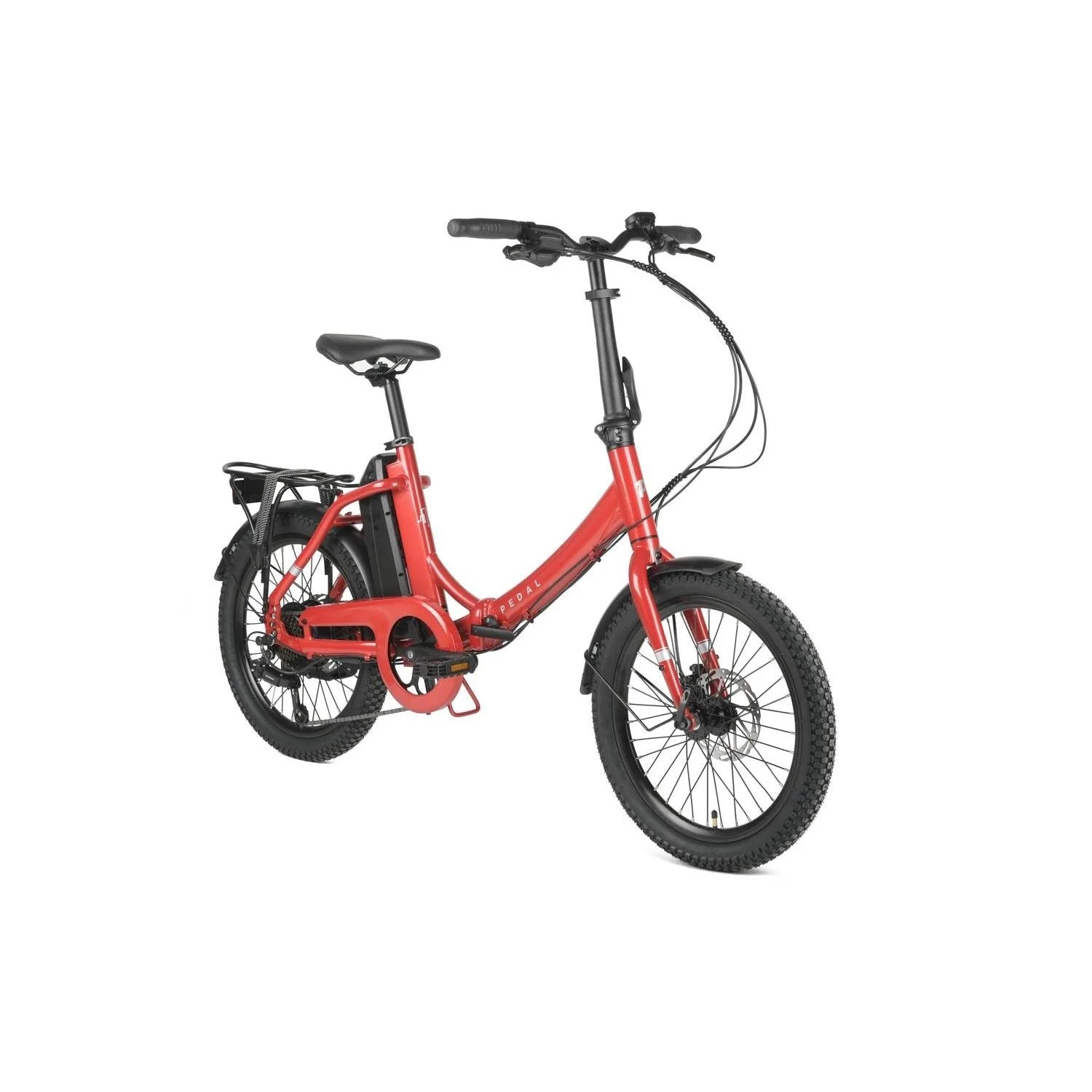

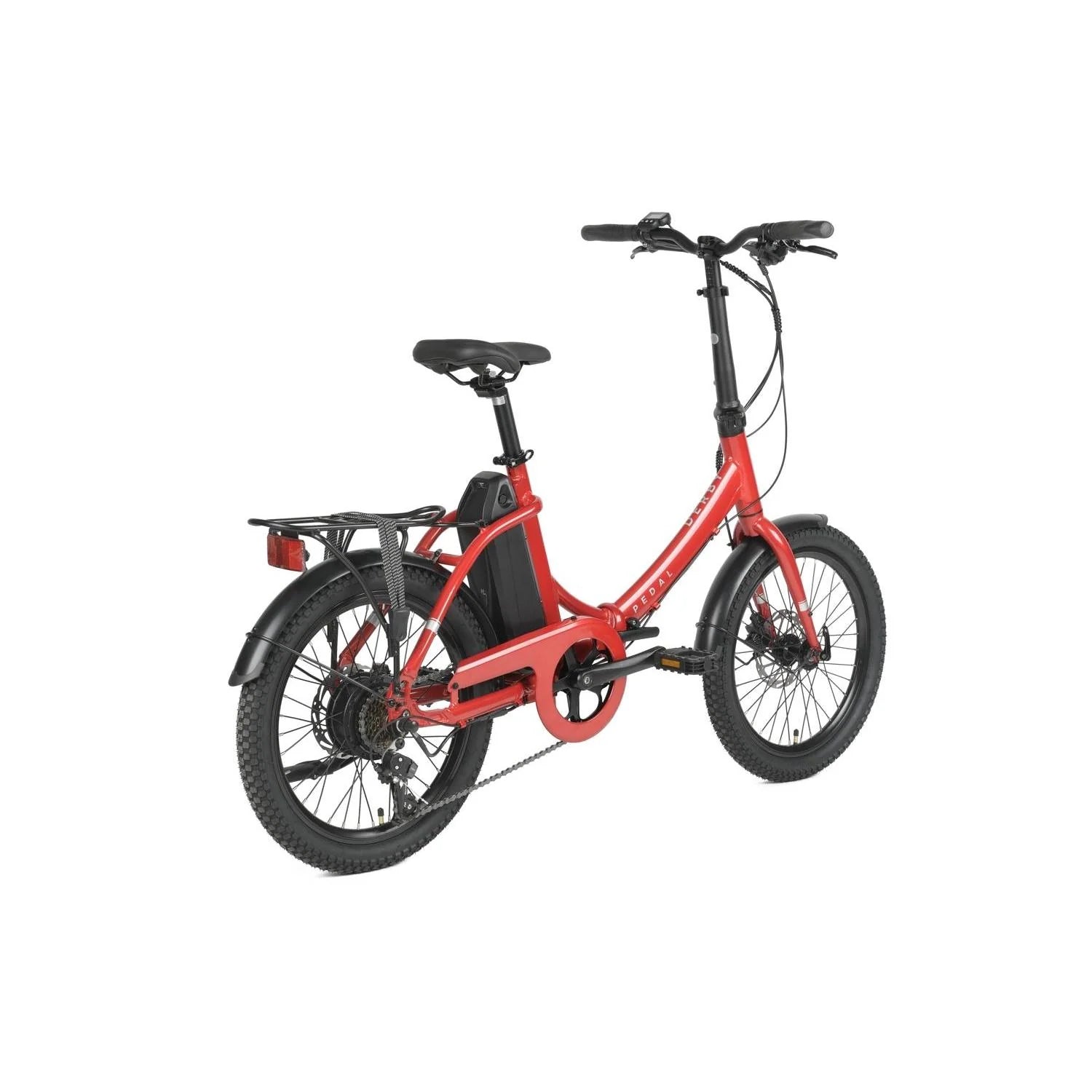

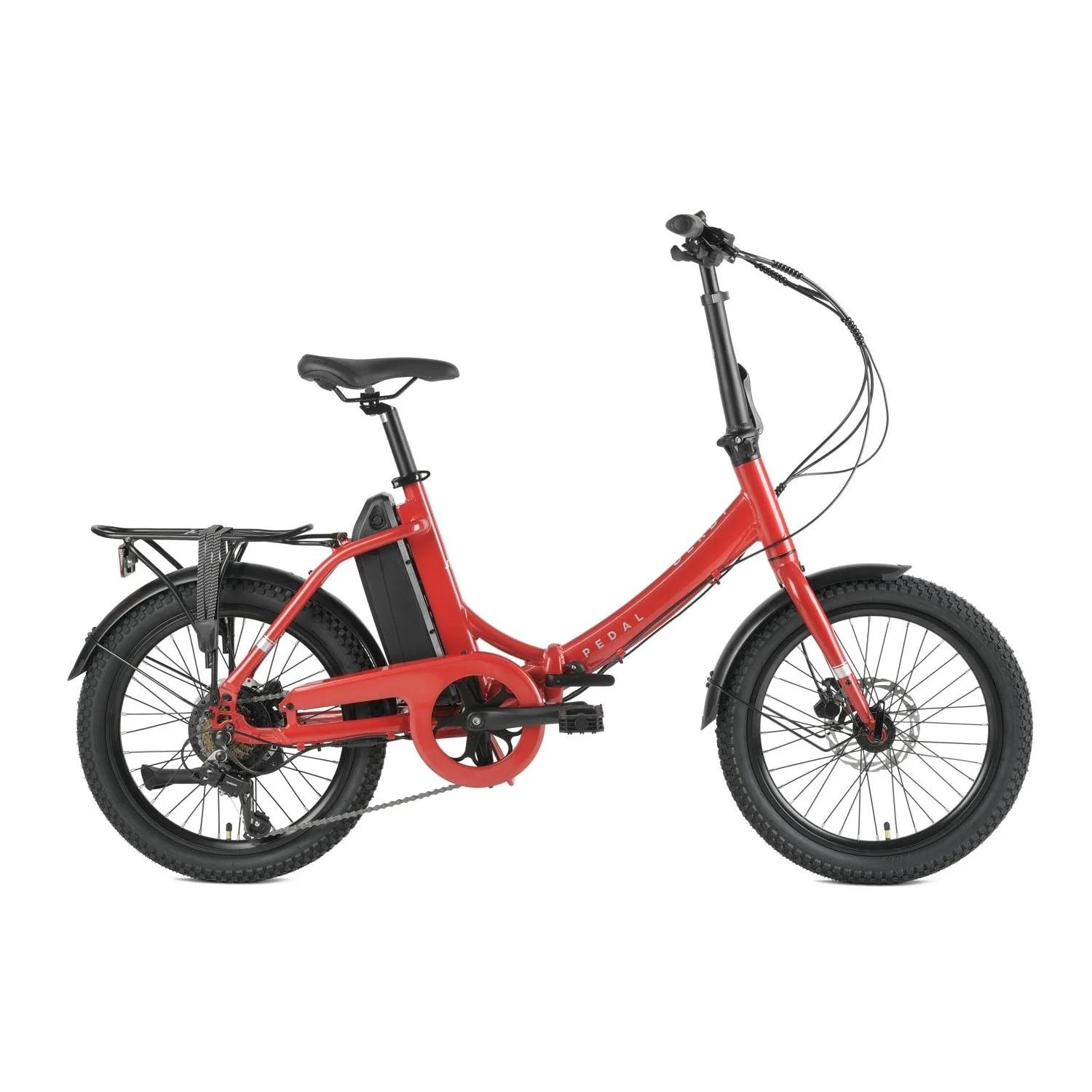

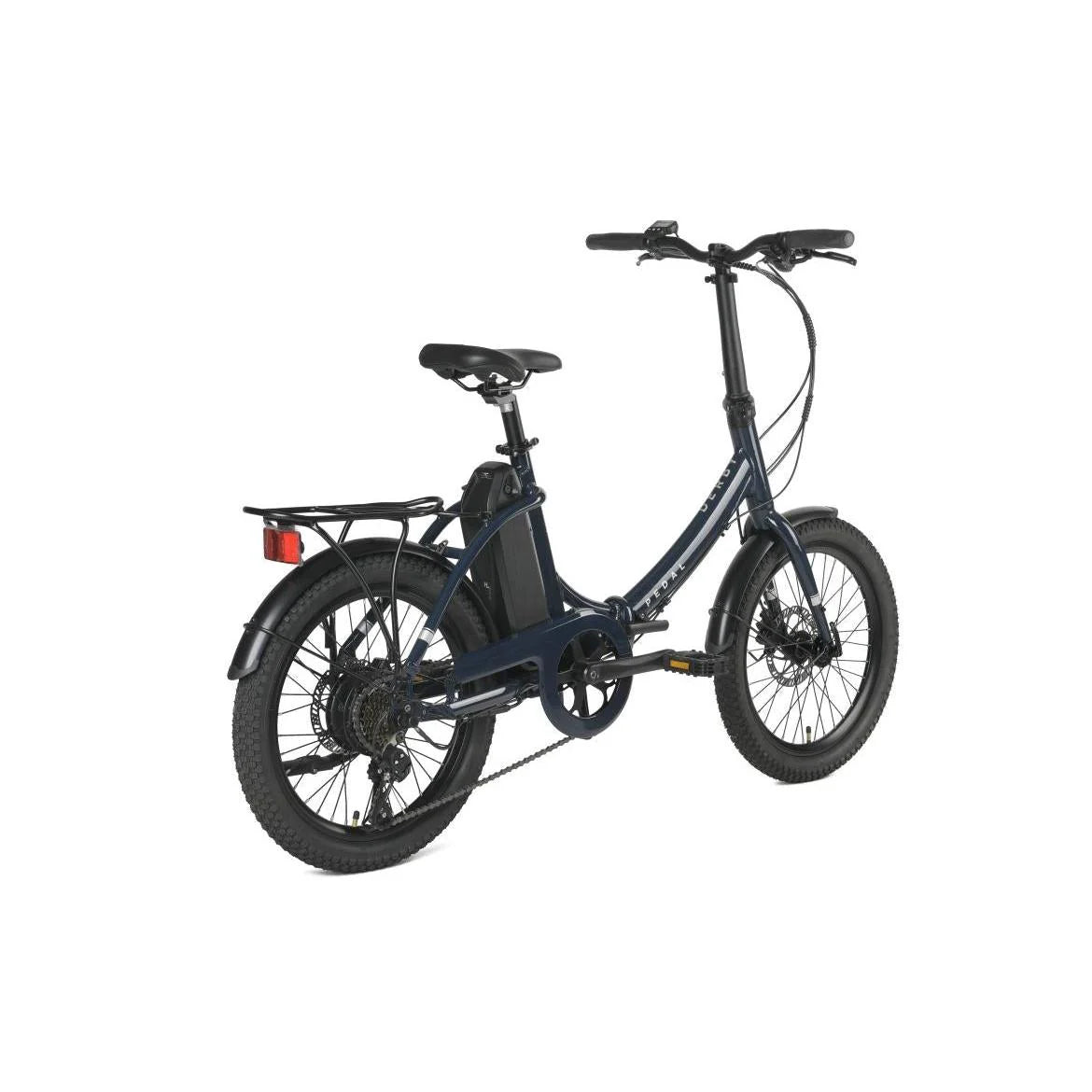

The Pedal Derby Electric Folding Bike features compact 20" wheels, making it easy to ride and store. It folds down to a space-saving size of 86L x 46W x 68H cm, allowing for convenient transport on trains or in the boot of a car.
Product Overview
| Product | Pedal Derby Electric Folding Bike |
|---|---|
| Brand | Pedal |
| Parent SKU | PedalDerbyRed |
| Size SKU | UNI: PDRDDB207400 |
| Barcode | UNI: 9356844007400 |
| Year Model | 2024 |
Product Features
| Frame Material | Alloy |
|---|---|
| Frame Style | Folding |
| Colour | Dark Navy, Red |
| Wheel Size | 20" |
| Brake Type | Hydraulic Disc Brake |
| Gears | 1 x 7 |
| Fork Material | Steel |
| Weight | 20.5kg |
| Charge Time | 5 Hours |
| Weight Limit | 100kg |
Motor and Battery System
| Drive Type | Rear Wheel |
|---|---|
| Motor | Rear Hub Geared Planetary Drive 250W 25KPH |
| Torque | 40 Nm |
| Motor Climbing Ability | Flat to Modestly Steep Hills |
| Battery Size | 374 Wh |
| Battery | Removable Pod Battery w/Internal BMS |
| Max. Range | Up to 50 km |
| Charge Time | 5 Hours |
| Display | KD-58C |
Build
| Frame | Folding Step Through Alloy 6061 |
|---|---|
| Fork | Steel Bladed |

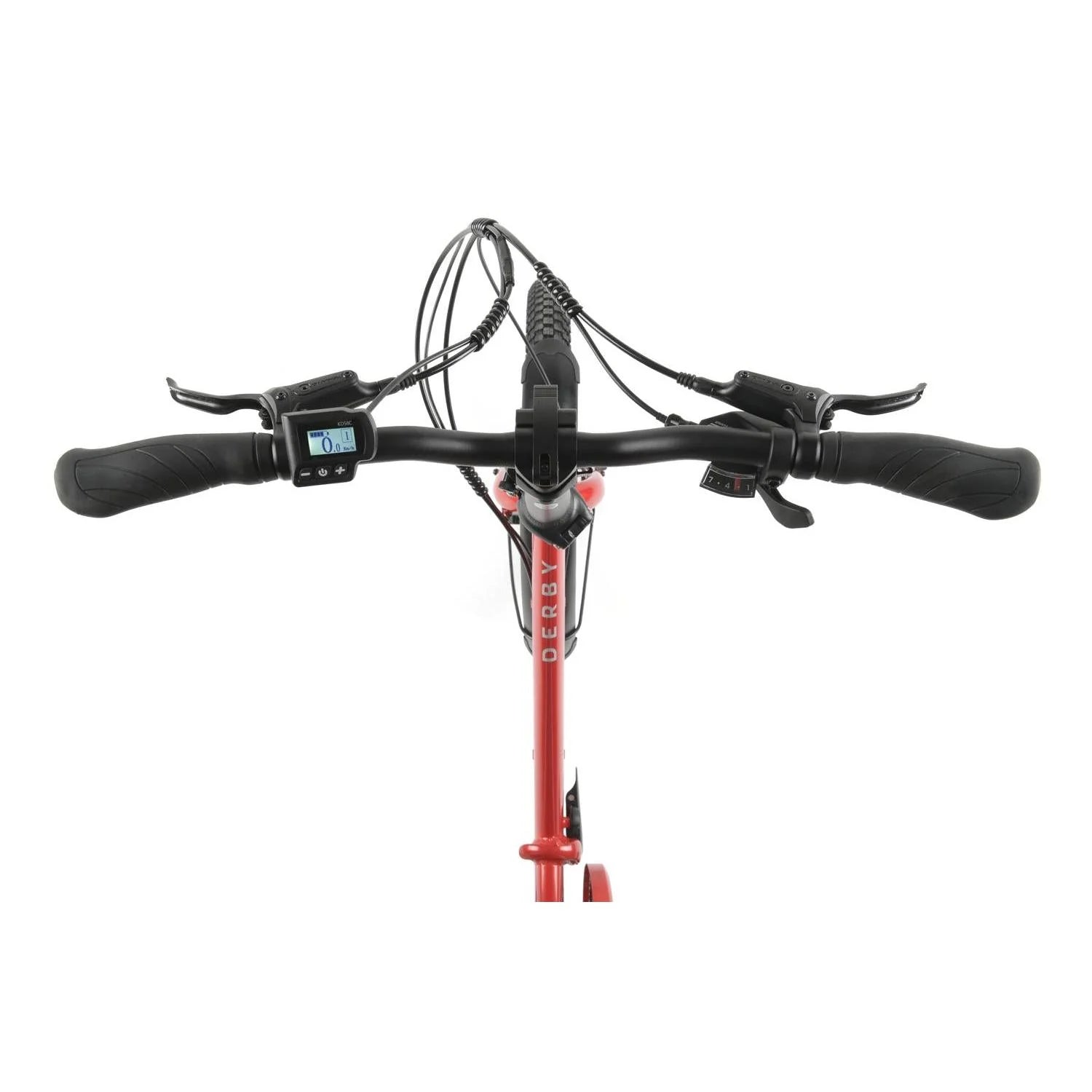

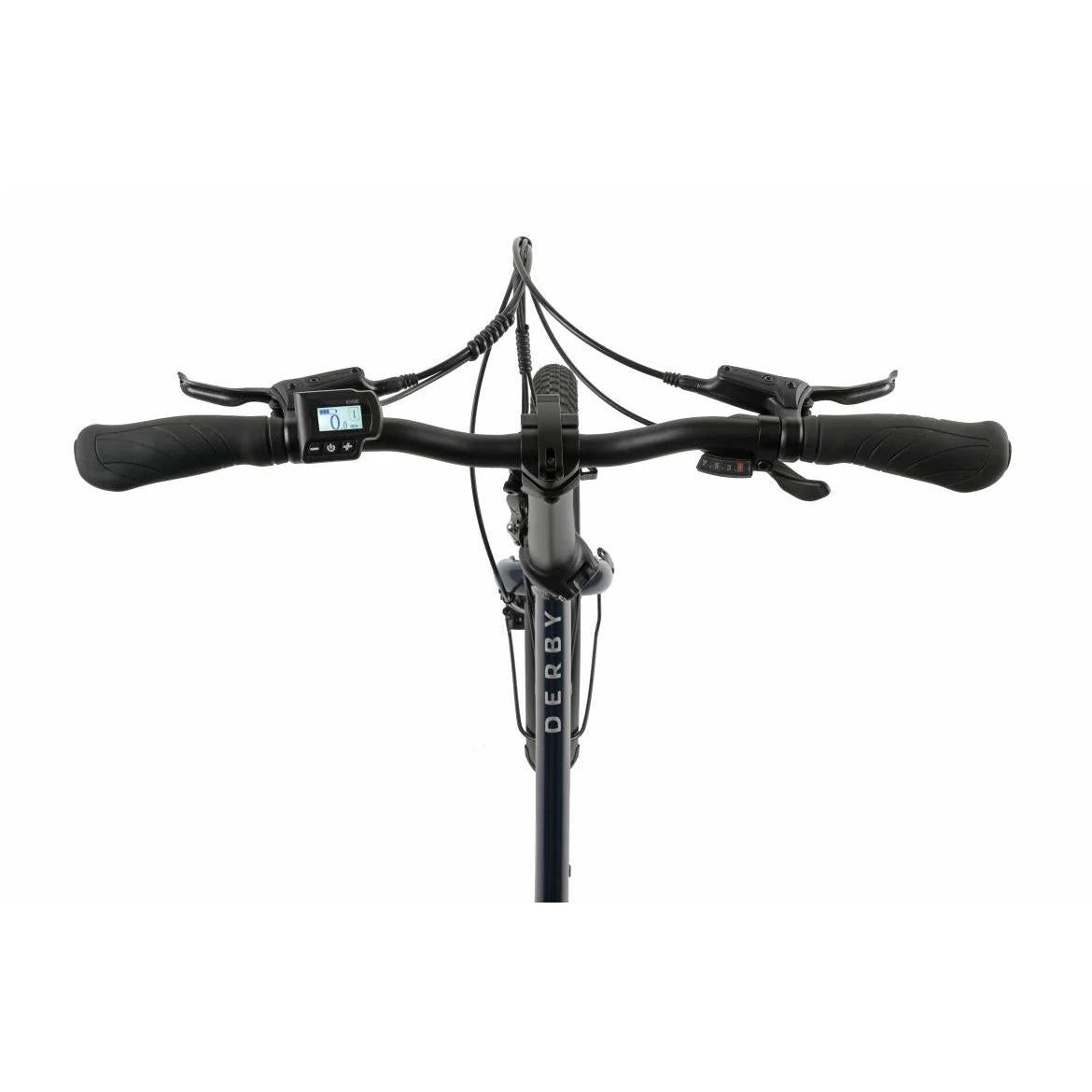

| Handlebars | DNF-A806 Alloy 600mm 30mm Rise 6° Sweep |
| Headset | Integrated 44mm |
| Grips | XL G78 125mm Ergo Rubber |
| Stem | FH05W Telescopic & Folding 160–240mm Alloy |
| Bottom Bracket | Sealed BSA Cartridge 119mm |
| Pedals | YH Folding Plastic 9/16" |
| Saddle | QF3103 Ergo Saddle |
| Seat Post | 350mm 30.9mm Alloy Single Bolt |
| Accessories | Kickstand + 42V 2A Charger (3 pin for 36V Battery) |
Wheels
| Wheel Size | 20" |
|---|---|
| Rims | Alloy Double Wall 20" 36h 13g |
| Hubs | Front: Alloy LBB w/Nutted 6 Bolt Rear: Electric Geared Hub Motor Nutted |
| Tyres | Kenda K1040 20x2.3 City Tyre |
Groupset
| Crankset | Prowheel 170mm Alloy w/ Steel 52T Chainring |
|---|---|
| Chain | KMC Z7 116L |
| Brakes | Tektro HD-M275 |
| Front Rotor | 160mm 6 Bolt |
| Rear Rotor | 160mm 6 Bolt |
| Shifters | Ltwoo Trigger 7 Speed |
| Rear Derailleur | Shimano Tourney 7 Speed |
| Cassette | 7 Speed |
