Technical data
- Input voltage: 100-240V AC
- Max. output voltage: 54.6V
- Max. output current: 2A
- Max. Output power: 50W
- Line frequency: 50-60Hz
- Efficiency (at 100% load): >=85%
- Ripple: <=1%*Vo
General specification
- 3-step charging control (pre-charge-CC-CV)
- Option :
- NTC inside
- 100% cut off when battery fully charged
- High efficiency and low power waste
Environmental specification
- Operating temperature: 0 - 45°C
- Storage temperature: -20 - 70°C
- Humidity < 65%
Protection
- Over voltage protection
- Over current protection

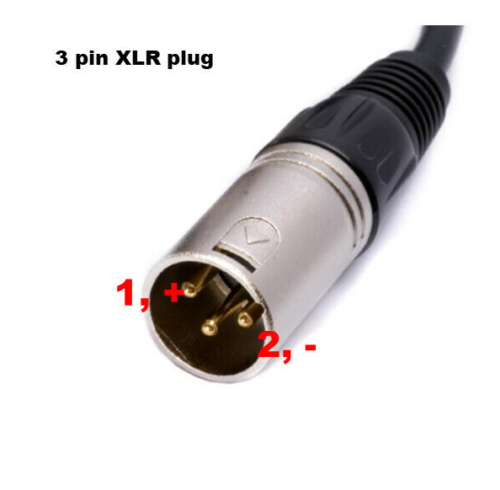

3 pin XLR plug (diamater 18mm, 0.7in) is commonly seen on such as Hailong2/3, Ecotric Hammer Electric Fat Tire, and Izip battery cases etc. If your battery is a 48V lithium/li-ion battery, and our plug fits, this charger will perfectly work. You would just need to plug it into the wall and charge it as long as you like. Please pay special attention: some batteries have positive wire (red) on position 2, which is different from industrial default, and you would need to make a switch to make it work.
ITEM SPECIFICS
| Condition | New |
| Brand | FlattenHill |
| Type | Battery |
| Manufacturer Part Number | Does Not Apply |
| UPC | Does not apply |
