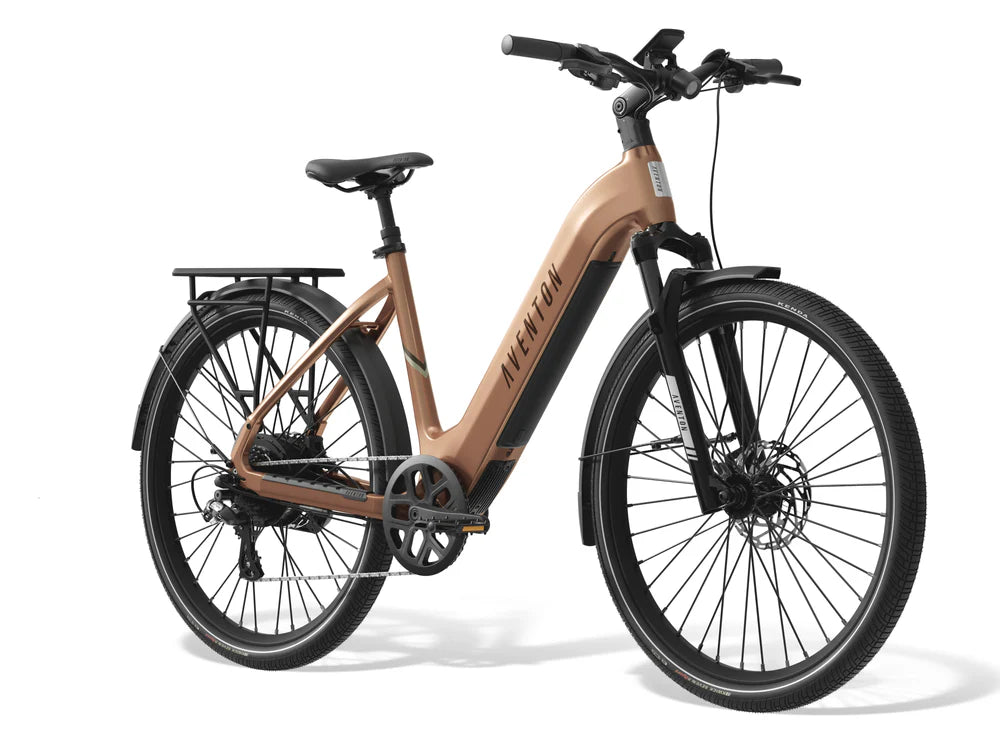

Level Up: Aventon’s Premium Commuter Now Smarter, Stronger, and More Secure

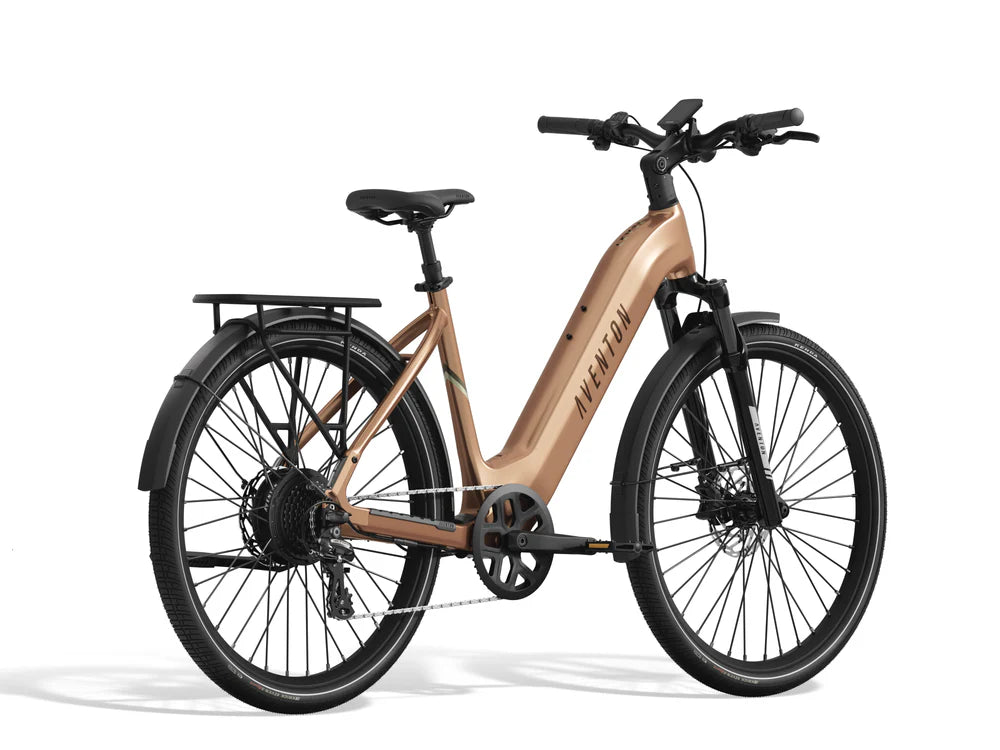

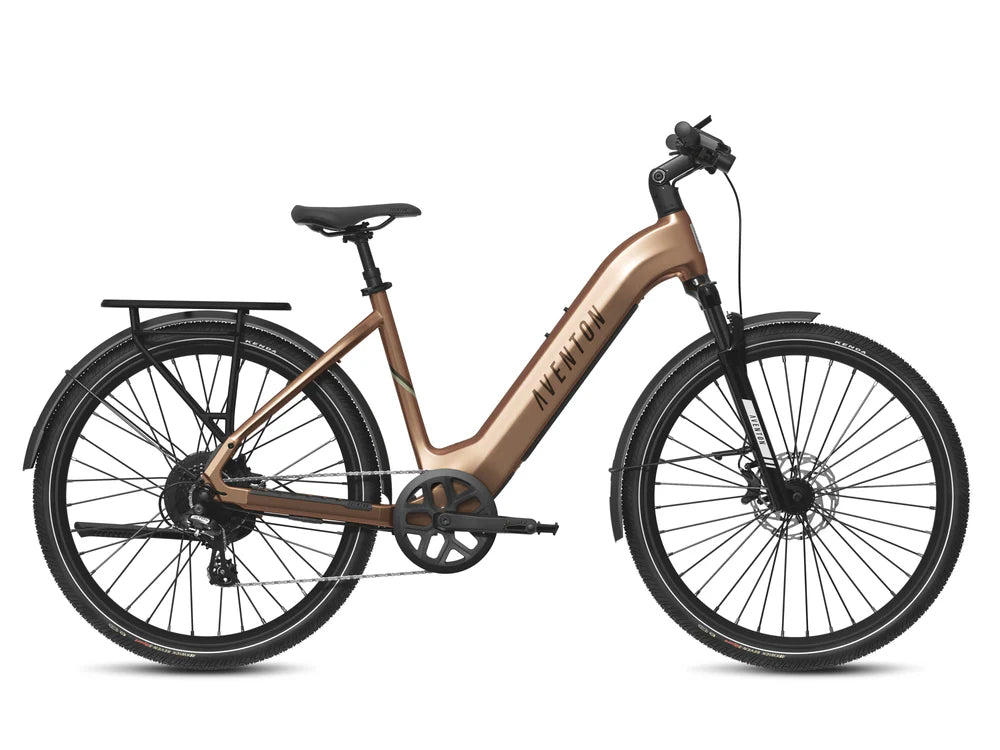

Take your commute to the next level with the Aventon Level 3 — the brand’s most advanced and capable commuter e-bike yet, engineered to make your daily rides smoother, safer, and more enjoyable than ever.
Now featuring ACU smart technology, the Level 3 delivers 4G connectivity, GPS tracking, automatic locking, motion alerts, and a built-in alarm system for top-tier security. With a front suspension fork, suspension seat post, adjustable stem, and rider-friendly design, it offers both comfort and control across any terrain.
With a powerful 500W motor, the Level 3 offers:
-
A top speed of 45 kph
-
60Nm of torque with 864W peak output
-
Up to 112 kilometres on a single charge
If you’re after a high-performance e-bike that does more than just commute, the Level 3 is ready to replace traffic with freedom.

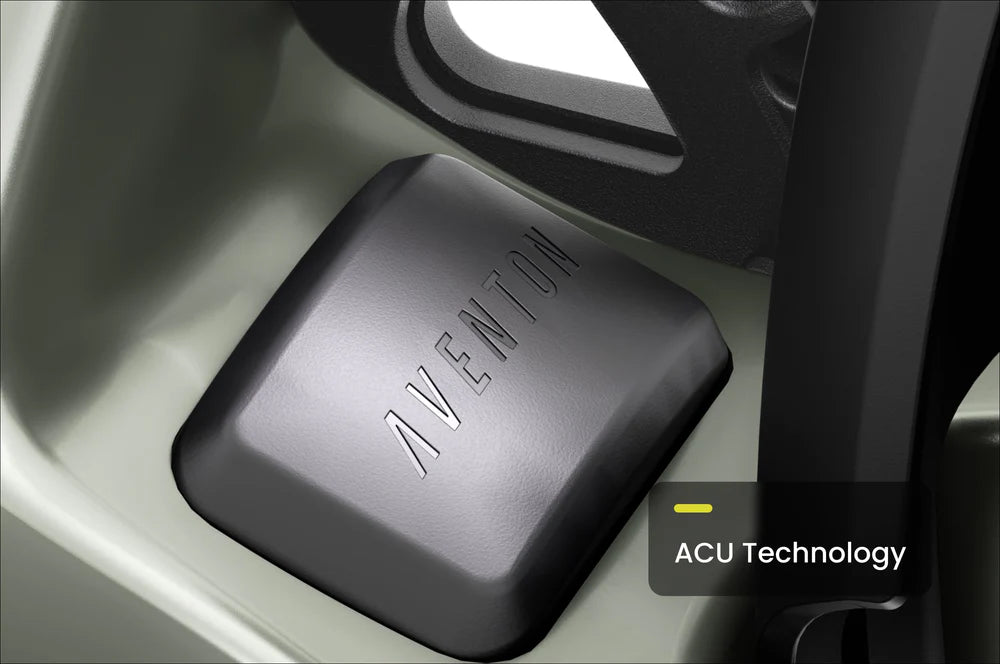

Smart ACU with Enhanced Anti-Theft Features

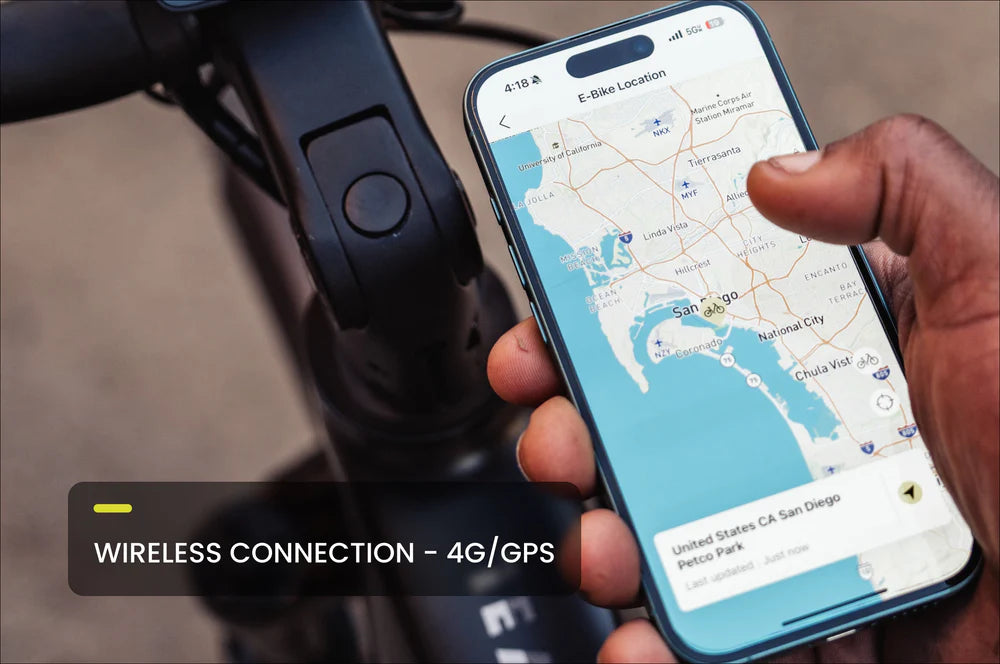

The new Aventon Control Unit (ACU) gives your Level 3 superior security and real-time connectivity. Through GPS tracking, a 4G signal, and cloud syncing, you can always keep an eye on your bike from anywhere via the Aventon app.
Use Remote Lock to secure your bike instantly or set Geofencing zones for alerts if it moves outside a defined area. Additional features such as auto-lock, motion detection, and a loud alarm give you peace of mind when you’re away.
You can also set a six-digit passcode for personalized security, while the Keyless Battery eliminates the need for keys — just power up and ride. Plus, the integrated rear wheel lock keeps your bike immobilized when parked.
With the ACU, your bike stays connected and protected at all times.
Upgraded Power and Performance

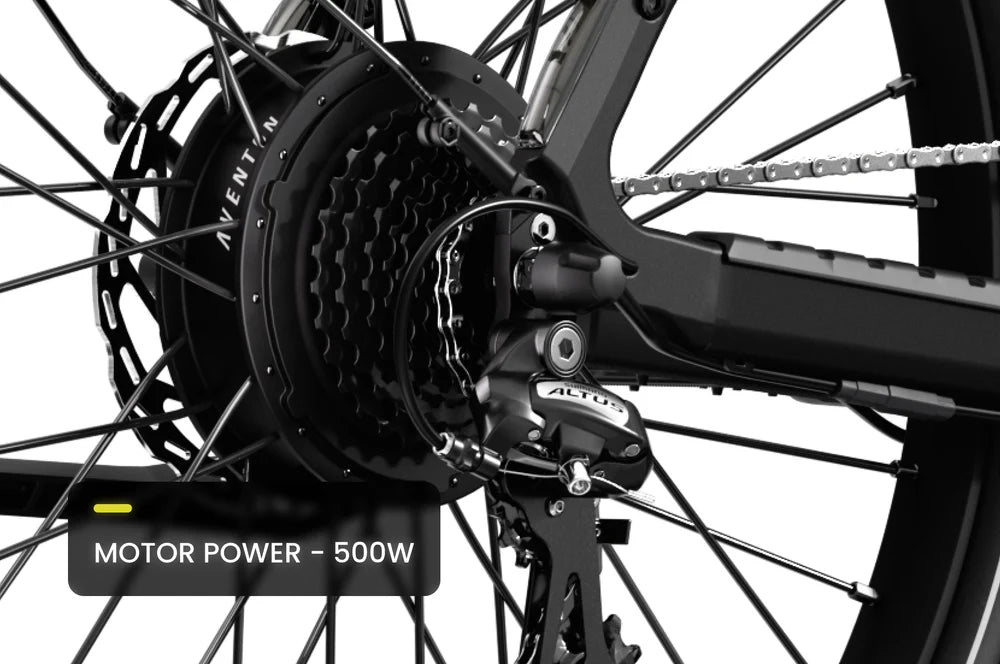

Maintain high speeds with 32 kph from throttle alone and up to 45 kph with pedal assist. The Level 3 keeps the same 500W rear hub motor from the Level 2 but now reaches a stronger 864W peak — up from 750W — for even better performance on any route.
Extended Range for More Adventures

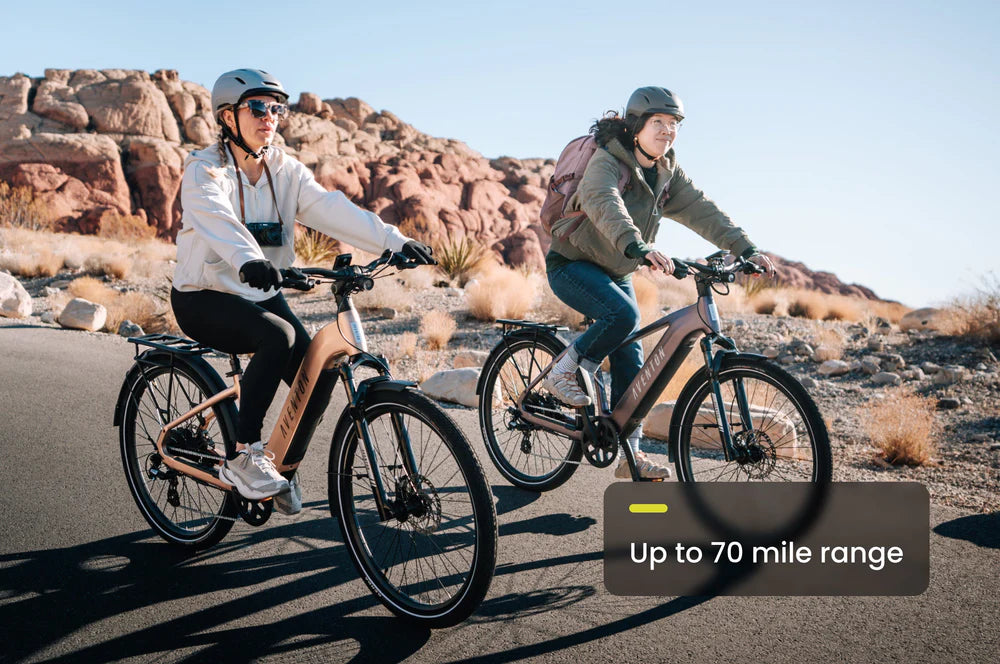

A larger 733Wh battery — up from 672Wh on the Level 2 — and optimized power use push your ride to 112 kilometres per charge, improving on the previous model’s 97 km.
Thanks to Aventon’s Ride Tune feature, you can also tweak motor settings to match your riding style and unlock the bike’s full potential.
Comfort for Every Journey
From city streets to rougher paths, the Level 3 is built for comfort. Front suspension and a suspension seat post reduce vibration and absorb bumps, giving you a smoother ride no matter the surface.
Its ergonomic frame and adjustable stem let you dial in the perfect riding position, ensuring every journey is both relaxed and enjoyable.
Prepared for the Road Ahead
Like its predecessor, the Level 3 includes pre-installed fenders to keep you clean and dry in all conditions. A durable rear rack makes it easy to haul your gear, whether it’s for work, errands, or a weekend outing. It’s ready to go straight out of the box.
Go Farther, Ride Smarter
The Aventon Level 3 redefines your ride with more range, more power, smarter security, and upgraded comfort. Whether commuting or adventuring, it’s built to make every ride simple, smooth, and stress-free. Just hop on and go.
Features
- 6061 Aluminium frame
- Aventon suspension fork
- Kenda Kwick Seven-5 Sport tyres
- Aventon BC280 display
- Removable Internal Lithium-ion battery
- Double Sided Bottom Bracket Torque Sensor
- Integrated front and rear lights
- Magura AT-2 hydraulic disc brakes
- Shimano Altus rear derailleur
- Shimano 8 Speed Trigger shifter
- Aventon saddle
- Fenders and rear rack included
Specs
AVENTON LEVEL 3 | |
TOP SPEED |
32 kph on Throttle 45 kph on Pedal Assist |
MAX. RANGE |
112 km |
MOTOR | 864W (Peak) 500W (Sustained) Motor, 60Nm torque |
THROTTLE | Aventon LH Handlebar Mounted |
BATTERY |
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
WEIGHT | 30 kg |
RIDER WEIGHT | 136 kg |
RIDER HEIGHT |
4'11" - 6'1" (150 - 185 cm) |
TYRES | Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 tyres |
BRAKES | Magura AT-2 Hydraulic disc brakes, front and rear |
WATER RESISTANCE | IPX6 |
CHARGER | 36V Output: 42V/ 4A, 5 hours charging time |

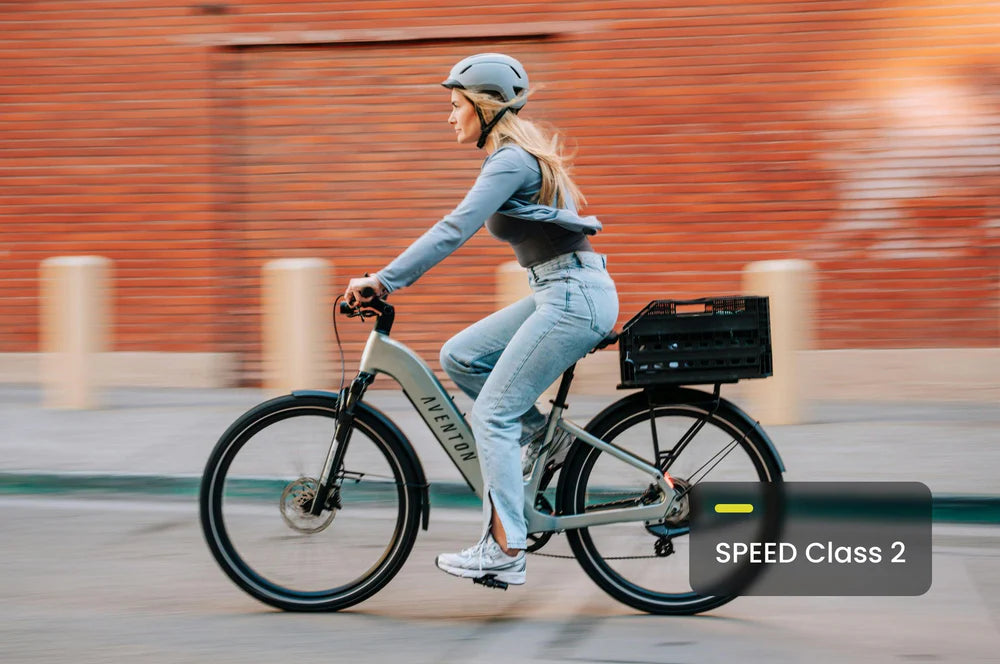

CLASS | Class 2 Ebike |
FRAME | 6061 Aluminum, Gravity Cast Front Triangle |
CHAIN | 7/8 speed 120L |
FORK | Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset |
REAR SPACING | 142mm |
FORK SPACING | 110mm |
FRONT WHEEL | 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black |
REAR WHEEL | 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black |
DISPLAY | Aventon BC280 |
BATTERY WEIGHT | 3.9 KG |
SENSORS | Double Sided Bottom Bracket Torque Sensor |
LIGHTS | Front and rear lights integrated |
REAR DERAILLEUR | Shimano Altus RD-M310 |
SHIFTER | Shimano 8 Speed Trigger SL-M315-8R |
CASSETTE | 12-32T / 8 Speed Shimano CS HG200-8 |
CHAINRING | 48T |
CRANKSET | 3pc, 170mm crank arm |
BOTTOM BRACKET | Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm |
PEDALS | 9/16" Composite Platform |
SADDLE | Aventon Saddle |
SEATPOST | 30.9mm Aventon Suspension Seatpost with 50mm travel |
HANDLEBARS | Aluminum 31.8mm, 680mm |
GRIPS | Aventon Lock on grips |
HEADSET | Sealed Bearing Headset |
FENDERS | Included |
REAR RACK | Included (27 KG weight limit) |
Geometry

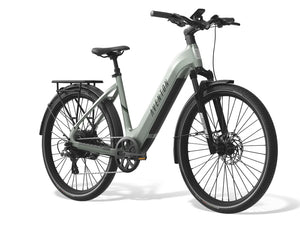

Aventon Level 3 Step Through Dimensions |
||
Frame Size |
Regular |
Large |
Height |
150 - 170 cm |
170cm - 185 cm |
Top Tube Length |
607mm |
634mm |
Reach |
423mm |
450mm |
Head Tube Length |
130mm |
130mm |
Standover Height |
442mm |
442mm |
Wheelbase |
1150mm |
1176.8mm |
Seat Tube Length |
400mm |
480mm |
Bottom Bracket Drop |
50mm |
50mm |
Head Tube Length |
130mm |
130mm |
Head Tube Angle |
70° |
70° |
Seat Tube Angle |
74° |
74° |
Rear Chainstay Length |
480mm |
480mm |
Front Wheel Centre |
675mm |
701mm |
Stack Height |
610mm |
610mm |
Fork Length |
480mm |
480mm |
Fork Offset |
43mm |
43mm |
Trail |
81mm |
81mm |
Wheel Size in Inches |
27.5" |
27.5" |
Aventon Level.3: Smarter, Stronger, Built for More
Advanced Technology, Enhanced Security
The new Aventon Control Unit (ACU) keeps your bike secure and connected with Remote Lock, Geofencing, Passcode protection, GPS tracking, 4G connection, and cloud sync.

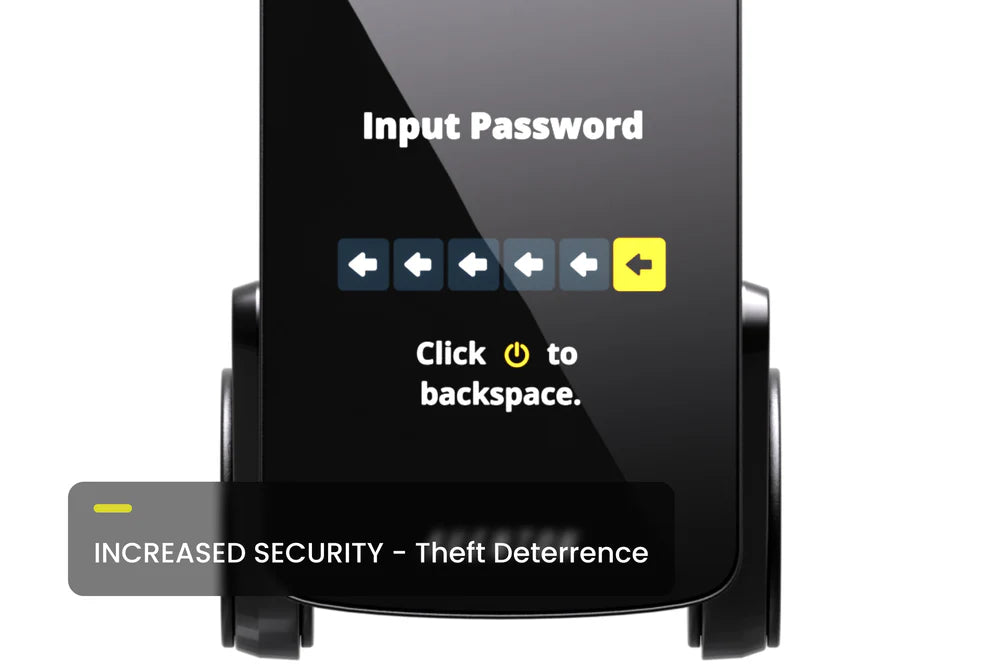

Startup Password and Keyless Battery
Create a custom passcode for extra security, and with the new Keyless Battery, you can unlock and ride without needing a key.
Remote Lock and Geofencing
With Remote Lock and Geofencing in the Aventon app, you can immobilise your bike and set custom ride boundaries for complete control.
Electronic Rear Wheel Lock
Activate the rear wheel lock to prevent it from rotating for an extra layer of security when you have to leave your bike unattended.

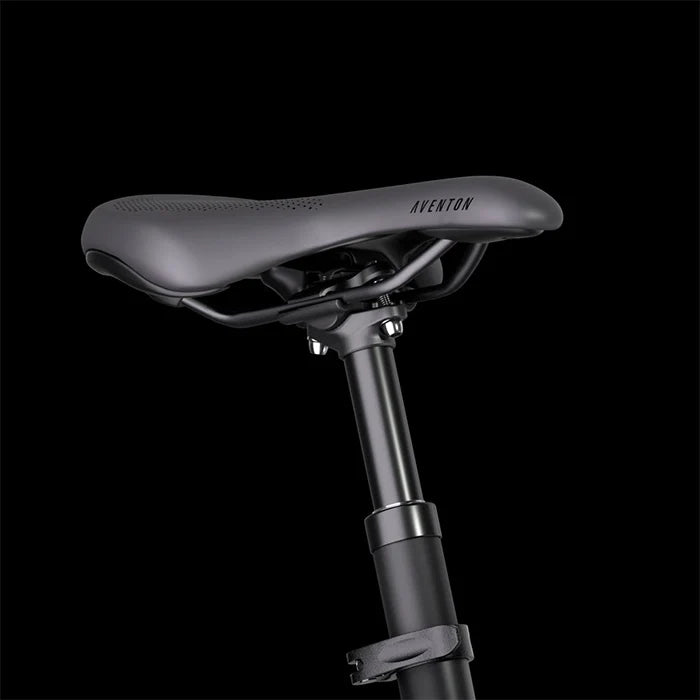

Suspension Seatpost
The suspension seatpost with adjustable preload lets you adjust your preferred level of impact absorption so you can enjoy smoother rides.
Ride Tune
Ride Tune in the Aventon App lets you personalise your riding style and keeps you in sync with your Level.3 for optimal performance.
Over The Air Updates
Get intelligent over-the-air updates through the Aventon app to keep your bike performing at its best without the need for plugs or shop visits.

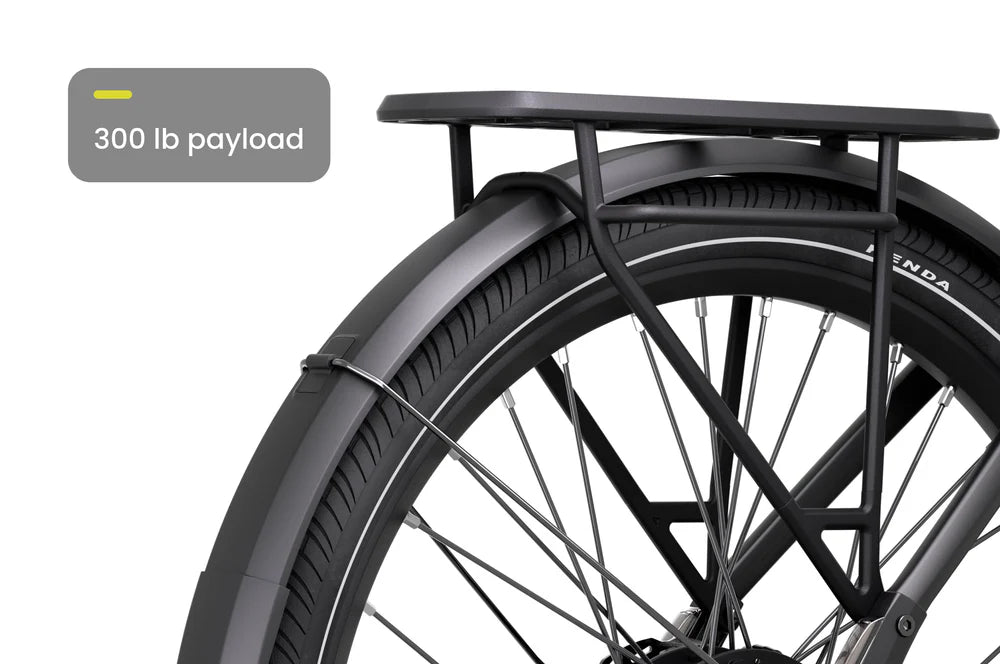

Integrated Rack and Fenders
Your Level.3 is ready to ride, with pre-installed fenders that shield you from the elements and a sturdy rear rack for carrying essentials.

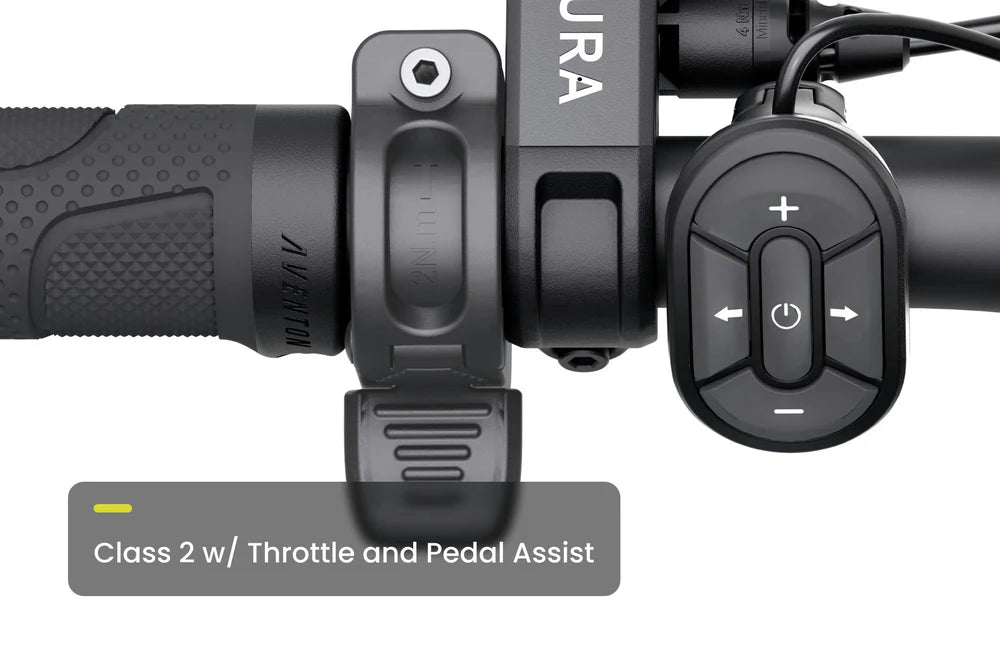

Operates on Pedal Assist and Throttle
Five levels of pedal assist let you control how much support you get, while the throttle can propel you up to 32 KPH for effortless riding when you need it.
