A New Breed
Meet your off-road sidekick: a powerhouse that fuses the nimble precision of a downhill mountain bike with the raw power of a lightweight dirt bike. It's ready for full-on trail domination yet light enough for hassle-free transport. xWhether you're a weekend warrior or a seasoned shredder, this ride delivers unparalleled off-road excitement and redefines what's possible on two wheels.
Overview
Intended use: Off-road
Front travel: 200
Rear travel: 170
Weight: 75 lbs [34kgs]
Range:12-37 mi [20-60 km]

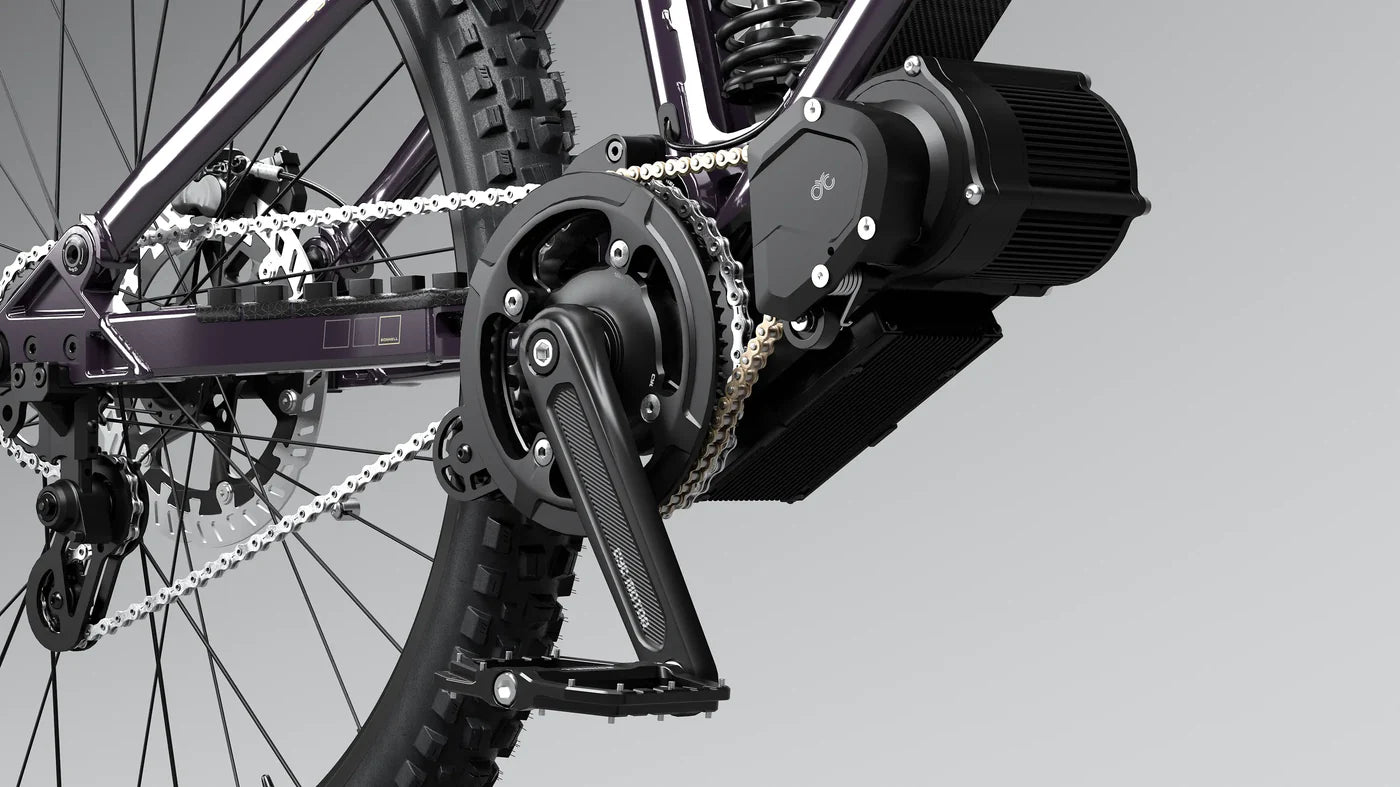

Maximum Power, Maximum Fun : The 775 MX Motor
Dial in your ride: cruise effortlessly with low power and pedal assist as an e-MTB, or ramp things up for impressive speed and performance as an e-Moto. With 6000 watts of power and 280 Nm of torque, it's built to smoothly transition from easy-going to high-adrenaline in a flash.

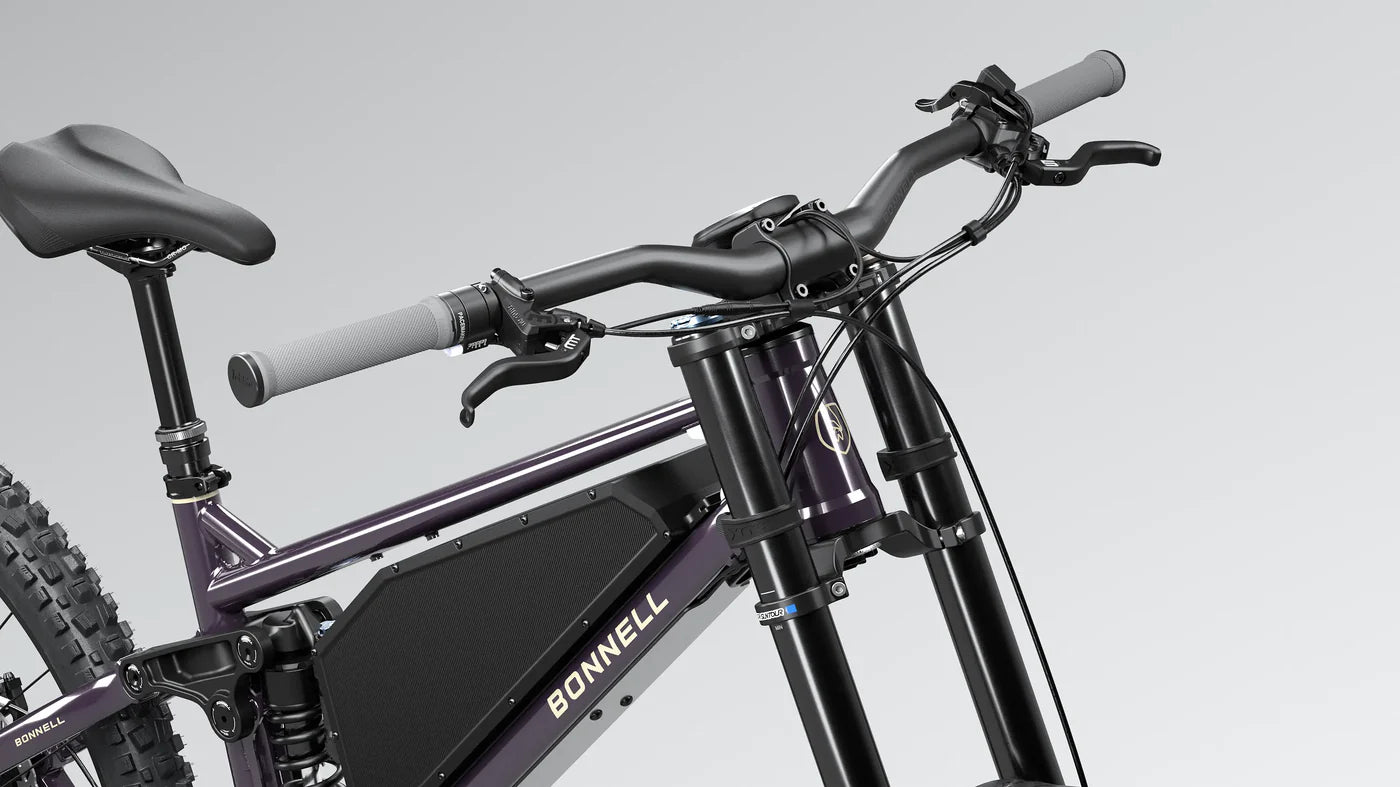

Elevate Your Ride: Intuition Display
Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.
Power Packed : The MX Battery
Optimized to bring out the motor’s full potential, the A65-series battery offers the versatility to prioritize either maximum power or maximum range, adapting to your riding style. Built for endurance, the A65 series provides unmatched performance, making it the ideal choice for those who love to explore without limits.
Engineered for Durability: The 775 Frame
The 775 MX boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Rux 38 RC+ fork and Suntour Voro Coil, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.
Components Highlights
Lekkie Pacemaker Twist Throttle
Bonnell Ride Control App

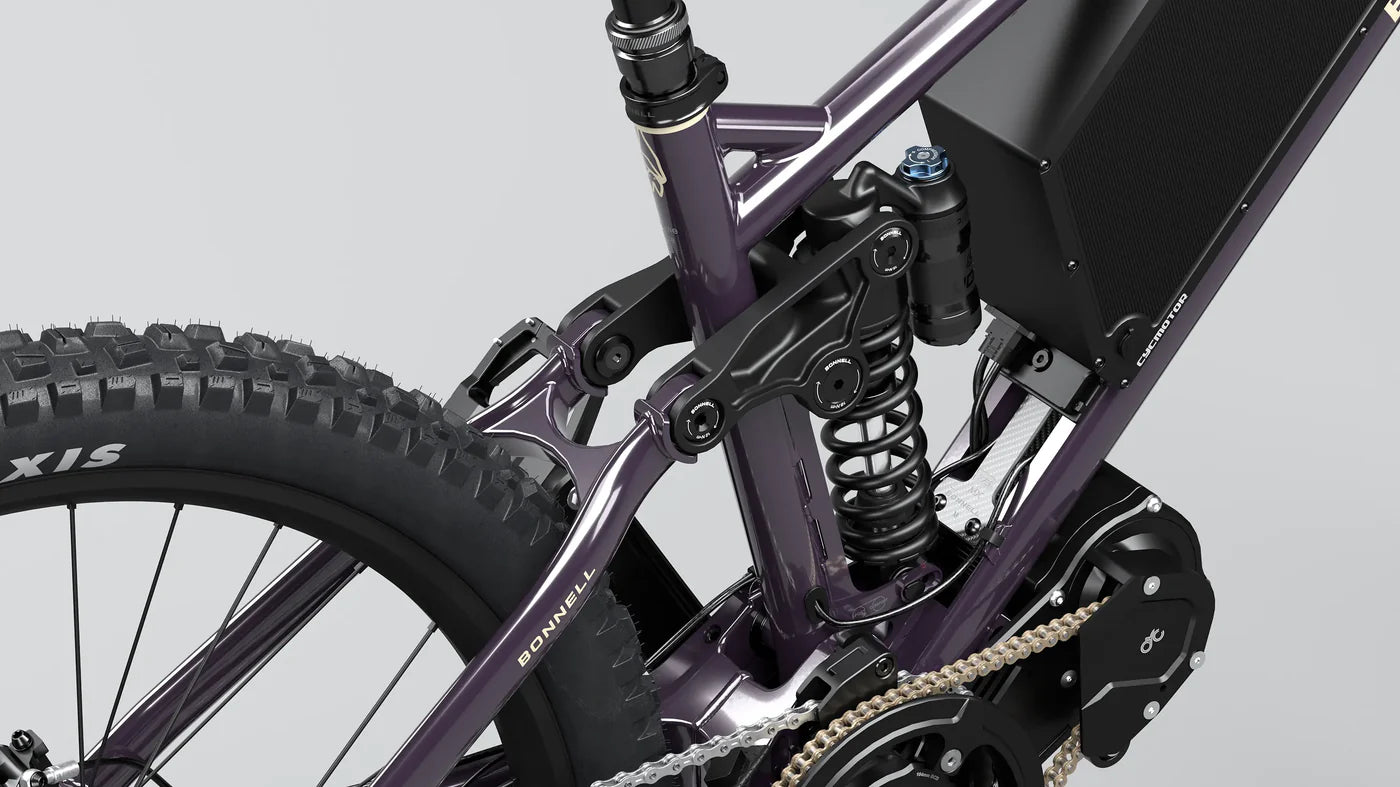

Suntour Voro Coil
Suntour Rux 38 RC+
Magura MT5
Custom Sprocket
All Components
| Specifications | |
|---|---|
| Frame | |
| Progressive single pivot linkage driven suspension design, 170mm travel. | |
| 4130 chromoly front triangle, twin down tube design, fully ED coated. | |
| 6061 Aluminium chainstay, forged yoke, adjustable forged dropouts with 203mm Postmount brake interface. | |
| UDH derailleur hanger. | |
| 6061 Aluminium seatstays with removable bridge and forged bearing eyelets. | |
| Forged rocker arm. | |
| Full complement stainless steel sealed bearing, marine grease. | |
| Double sealed suspension pivot system for maximum durability. | |
| Dual crown fork rating up to 615mm axle to crown. | |
| Durable powder coating. | |
| Rear Suspension | |
| Suntour Voro Coil, Trunnion 205*65. | |
| 5-position low speed compression adjustment (blue knob). | |
| Low speed rebound adjustment (red knob). | |
| Headset | |
| Tapered ZS44 top, ZS56 bottom sealed bearings. | |
| Fork | |
| Suntour Rux 38 RC+, tapered 1"1/8-1.5", 29". | |
| 200mm travel, 50 mm offset, Boost 20*110 mm thru axle. | |
| Short integrated fender included. | |
| E-System | |
| Drive Unit | CYC X1 Pro |
| Chainring | CYC steel narrow wide 38T |
| Bashguard | CYC Heavy duty 6061T6 aluminum MTB |
| Battery | CYC A65 Series 1300 Wh (~17 lbs, 7.6 kg) |
| Charger | CYC 5A charger |
| Display | CYC Intuition integrated smart display |
| Throttle | Lekkie Pacemaker full twist throttle |
| Drivetrain | |
| Rear Cogs | Single speed 24T Hardened Steel narrow wide sprocket |
| Chain Tensioner | Bonnell custom CNC, compatible 22 to 28T sprocket |
| Chain | KMC e1, EPT (anti rust) |
| Chainguide | Bonnell upper adjustable + bottom roller, compatible 32T–38T |
| Crank | CYC forged, 165mm |
| Brakes | |
| Brakes | Magura MT5, 4 Pistons, MDR-P floating 220F/203R rotors, moto style |
| Brake Levers | 2-finger aluminum, flip flop design for moto/regular setup |
| Adjustment | |
| Chainstay length: 440mm or 452mm | |
| 2 shock positions: comfort and sport mode | |
| Wheels | |
| Front Hub | Alex rims 20*110 Boost, 36H, E-bike hub, sandblasted finish |
| Rear Hub | Bonnell single speed sprag clutch 12*148 Boost, 36H |
| Spokes | Stainless Steel, 14g |
| Rims | Alex rims EMC 30, E-bike reinforced, tubeless ready, 30mm |
| Brake Type | Disc, 6 holes |
| Tire Size | 2.5" front and rear |
| Wheel Size | 27.5" rear, 29" front |
| Tires | Maxxis Assegai DH casing Maxx grip tubeless ready 2.5 (F/R) |
| Tubes | Maxxis welter weight 2.5 |
| Components | |
| Handlebar | Bonnell 780mm, 31.8mm, 50mm rise, 9° backsweep |
| Stem | Kalloy forged direct mount, 44mm long, 31.8mm clamp |
| Grips | Lekkie single lock-on, full twist throttle, soft rubber |
| Saddle | Bonnell by Velo, short nose, reinforced sides, cromoly rails |
| Seat Clamp | Bonnell 34.9, black stealth single bolt |
| Seatpost | Tranz-X 30.9mm, adjustable drop 140–200mm |
| Seatpost Lever | Tranz-X GL 1x lever |
| Connectivity | |
| Wheel Sensor | CYC Bluetooth speed sensor |
| Extra | |
| Pedals | Bonnell flat pedals aluminum, 110×98mm, sealed bearing |
| Tubeless Valves | 2 valves included |
| Multi Tool | Bonnell 13-function multi tool |
| Shock Pump | Included |
| Safety Information | |
| WARNING – INGESTION HAZARD: This product contains a button or coin battery. Death or serious injury can occur if ingested. Keep batteries out of reach of children and seek immediate medical attention if swallowed. | |
Geometry dimensions
What's in the box
The 775 MX: A New Breed - minimal assembly required.
- Battery Charger: Power up your ride with the included high-capacity battery and charger.
- Multi-Tool Kit: Compact but powerful, this kit has everything you need for quick adjustments on the go.
- Shock Pump: Easily set and fine-tune your suspension for smooth, epic rides every time.
