TOP SPEED
25km/H
MOTOR POWER
250W, 500W
RANGE
60-80km
BATTERY
48V 15Ah
CAPACITY
130kg
WEIGHT
22kg

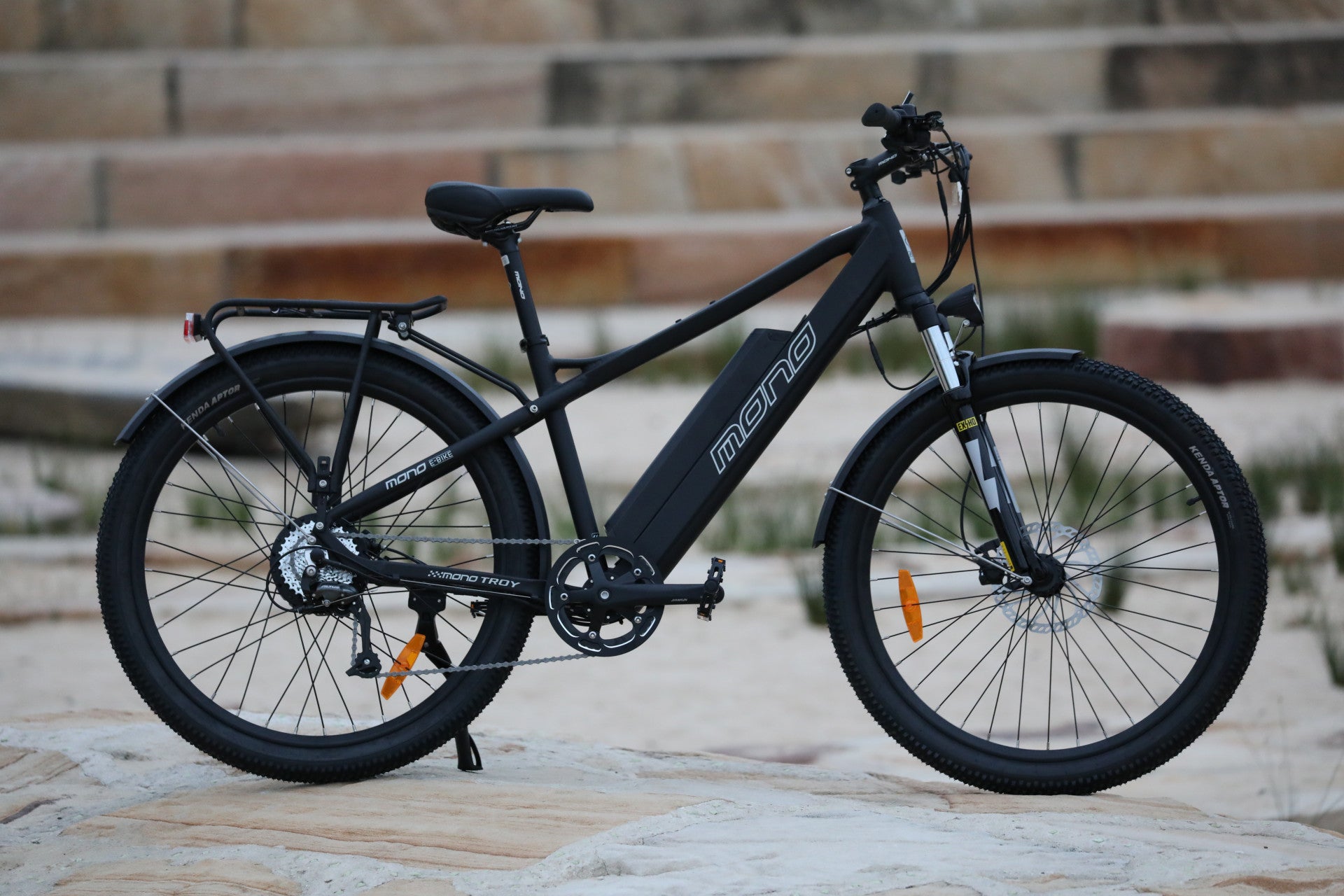

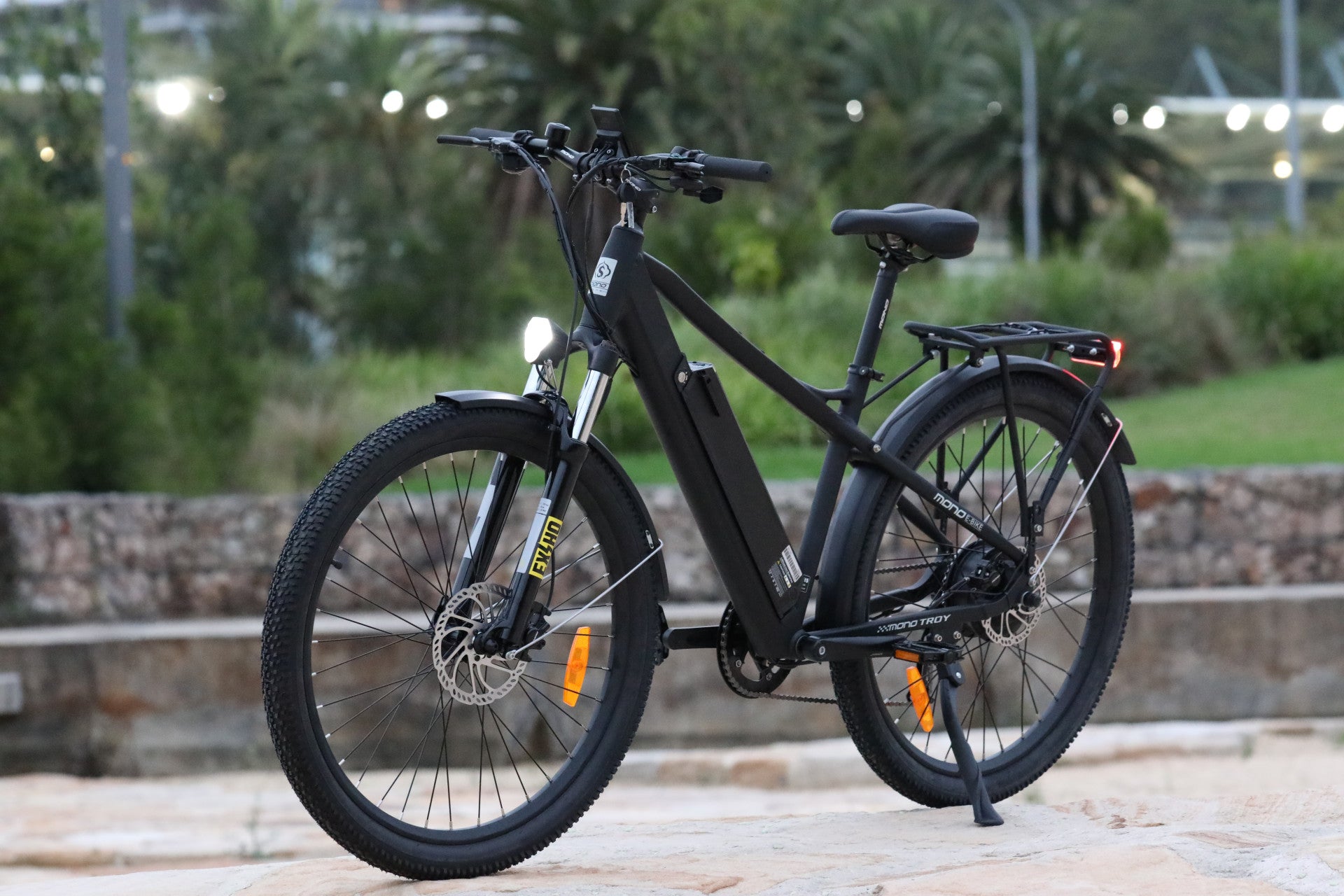

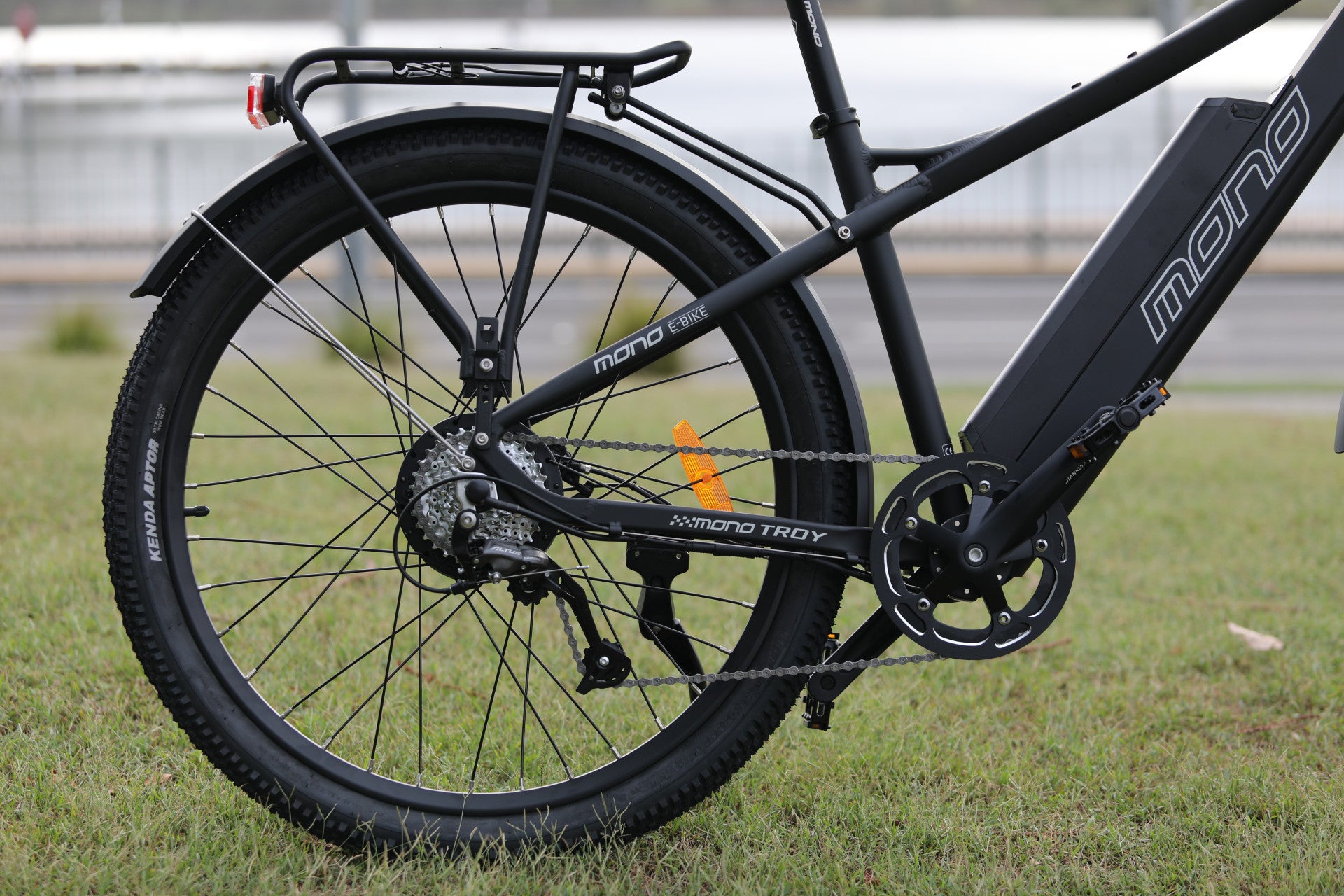

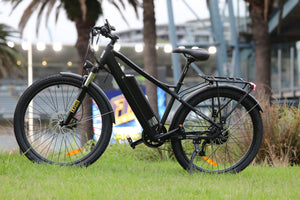

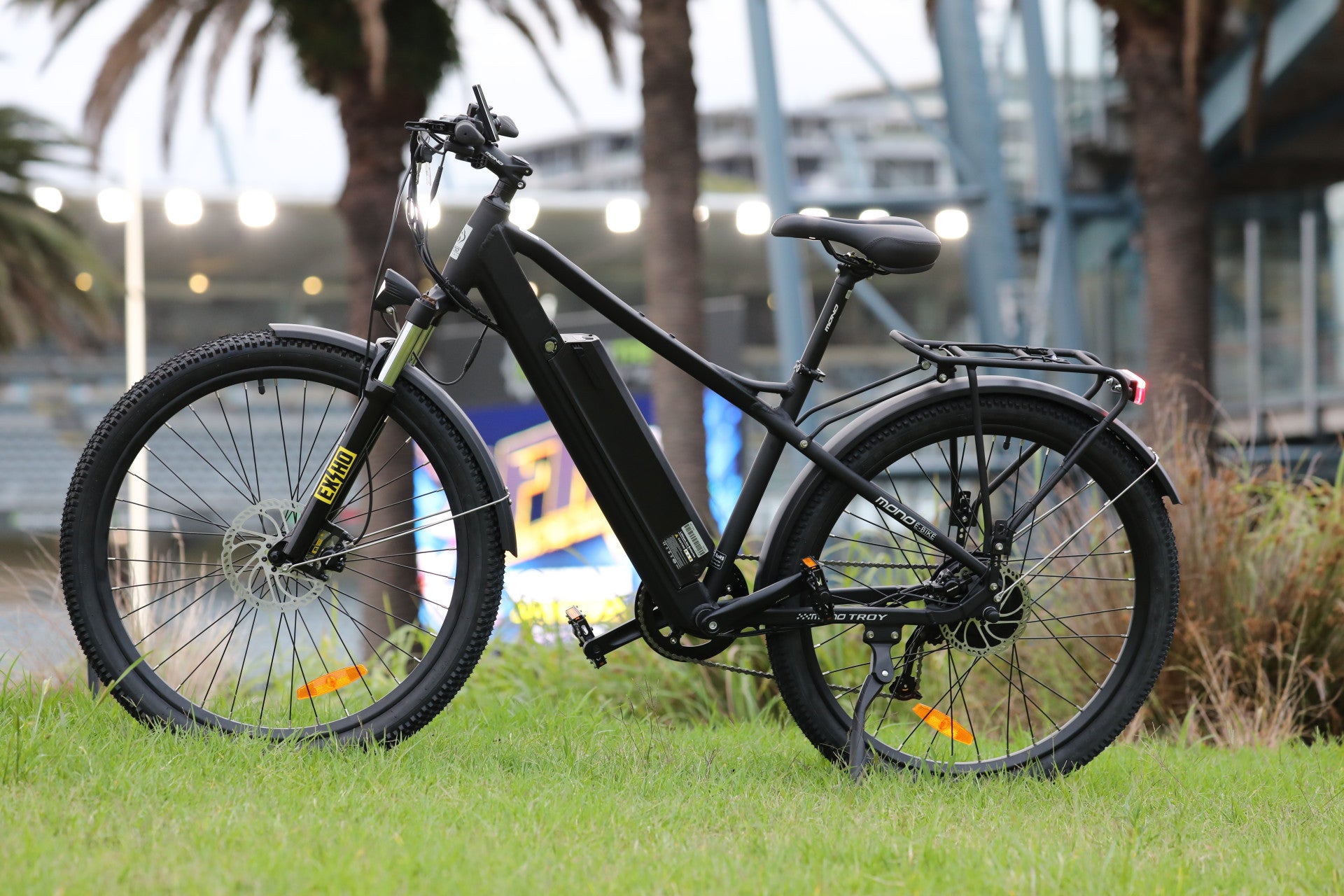

Discover the perfect blend of city convenience and off-road capability with the Troy EQP. More than just a commuter bike, it’s built to handle any terrain. With durable alloy mudguards, it’s equipped to conquer busy urban roads and rugged trails alike. An integrated lighting system keeps you visible and safe, whether you're cruising through cityscapes or venturing into nature. The rear rack adds extra practicality, while the 100mm front suspension delivers a smooth, confident ride across varied terrain. Ideal for riders who demand versatility, the Troy EQP is ready for everything from everyday commutes to weekend adventures.
Would you like a shorter version as well?

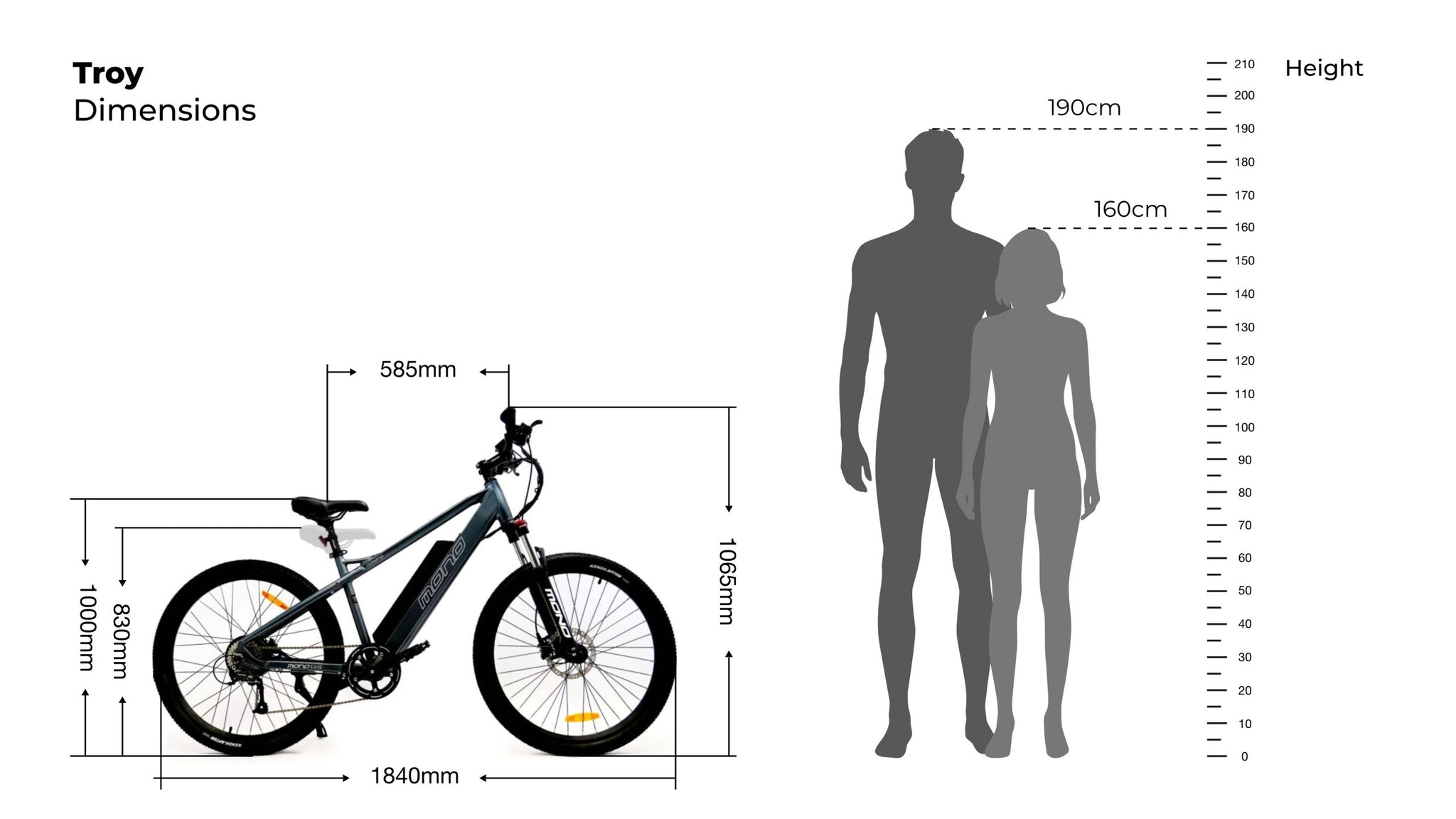

Sizing Chart:
A. Stand Over Height: 65mm
B. Wheel Bas
C. Frame Siz
D. Min/Max Seat Height: 830mm/1000mm
E. Reach: 585mm
F. Overall Length:1840mm
| Frame | Aluminum-Alloy Frame |
|---|---|
| Front Fork | Lockable 120mm Front Suspension |

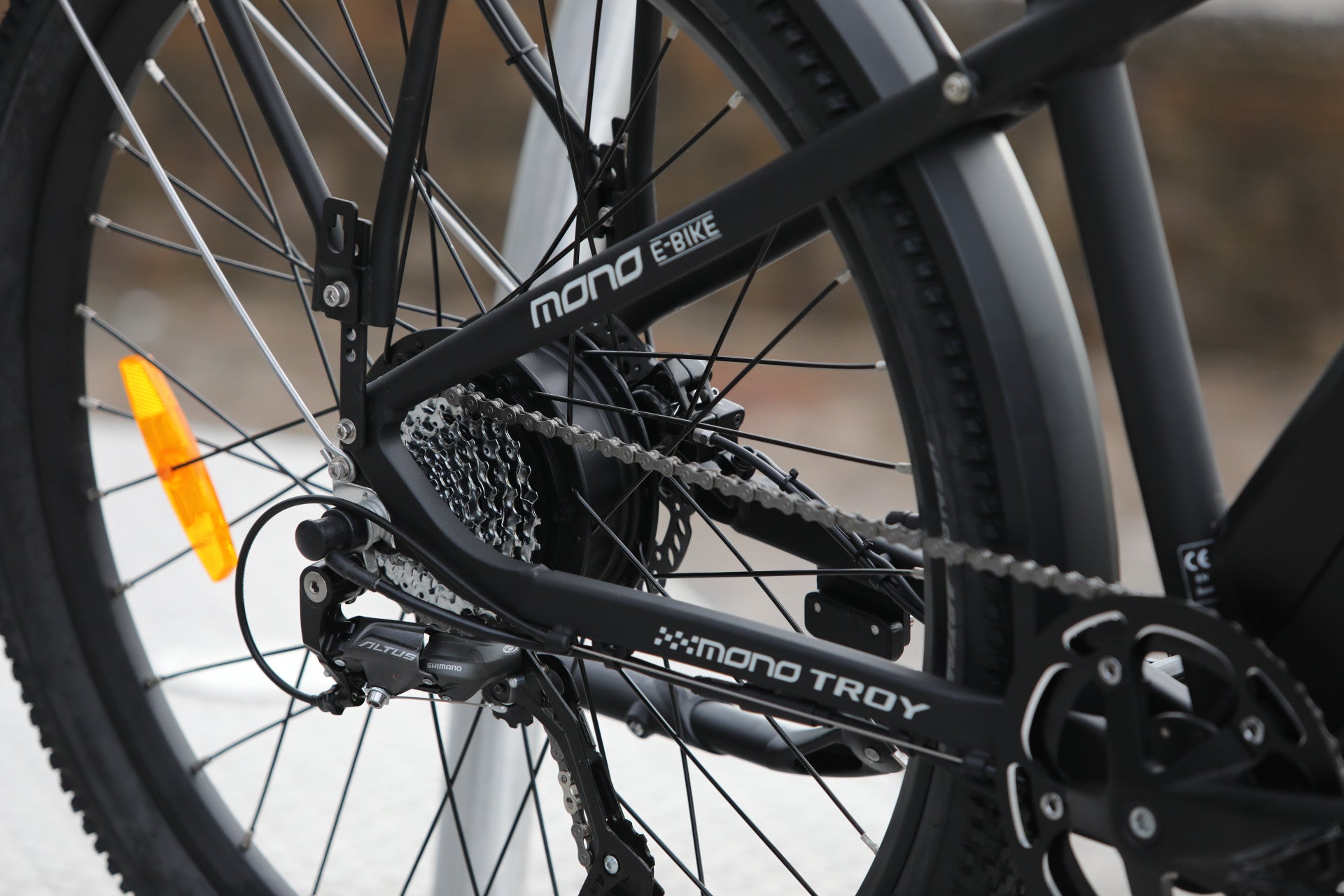

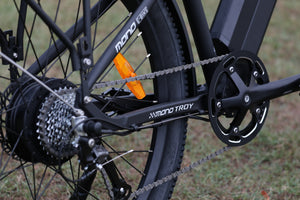

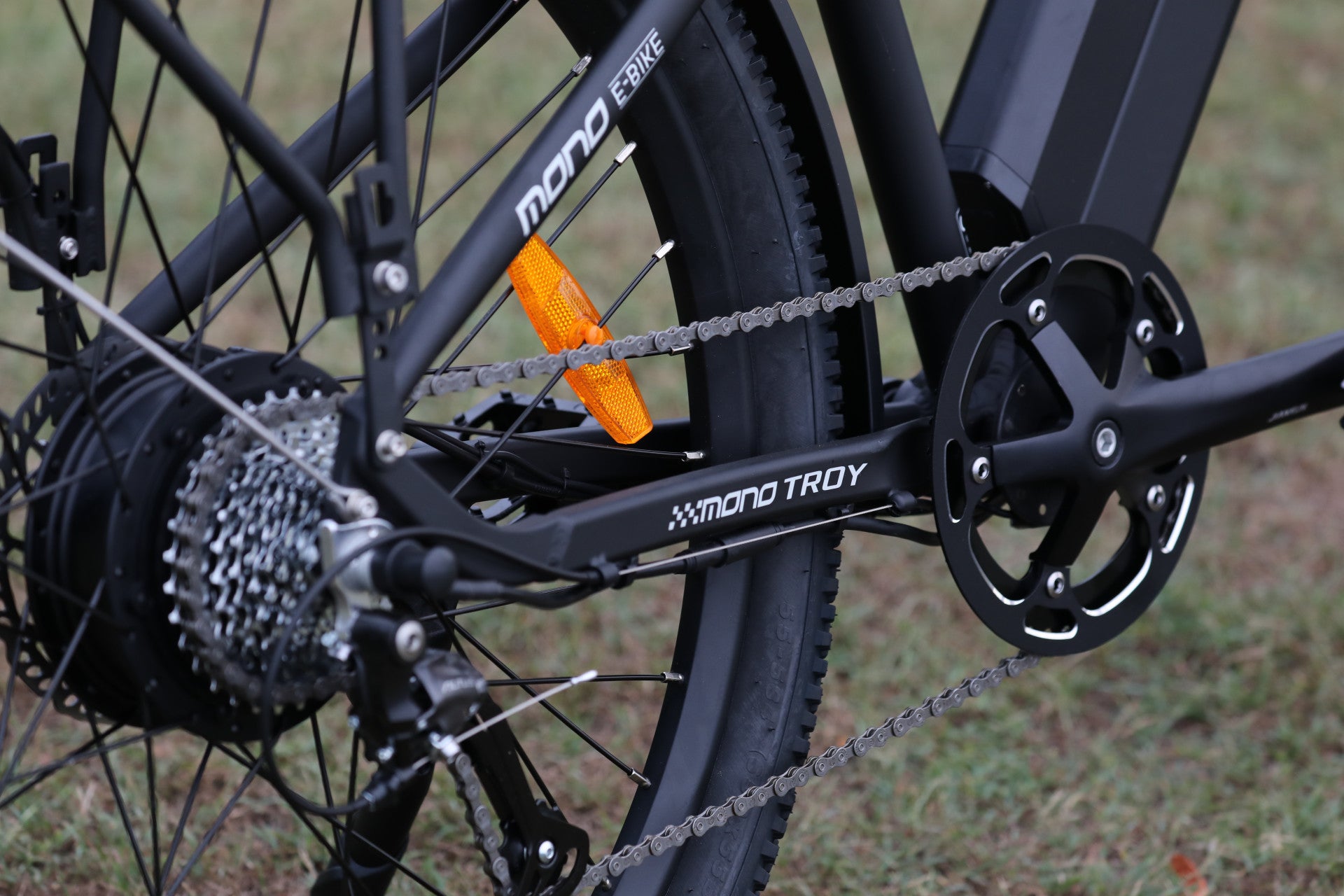

| Gears | Shimano Altus 9-Speed Cassette with Shifter |
| Brakes | Front & Rear Gemma Hydraulic Disc Brakes 180/160MM |
| Handlebar | 71 cm Aluminum-Alloy Bar |
| Load Capacity | 130kg |
| Weight | 22kg |
| Cranks | Cotterless Cranks |
| Saddle | Comfort Padded Leather Saddle |
| Seat Post | Quick Release 320mm Seat Post |

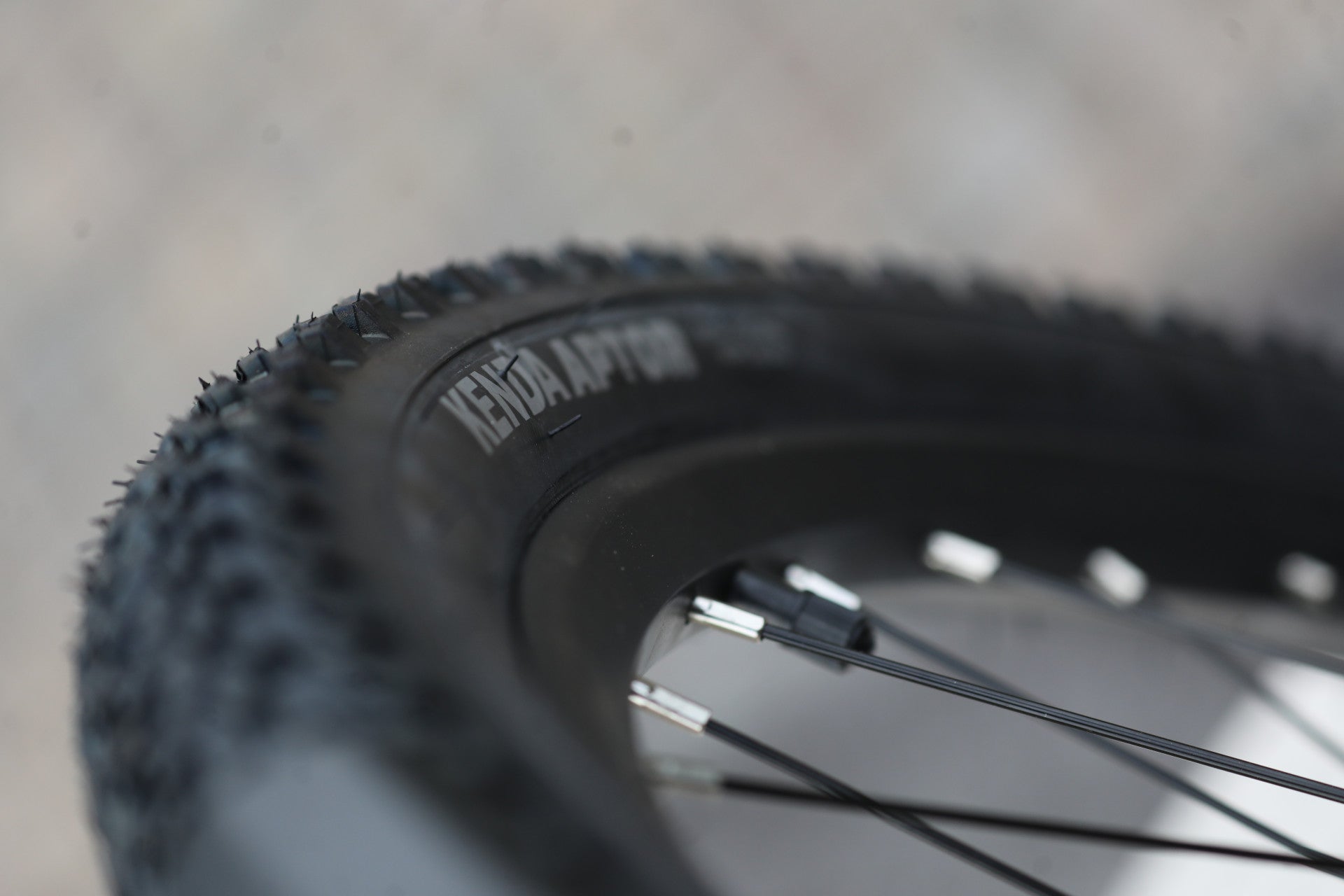

| Wheel & Tyre Size | 27.5″ x 2.1 KENDA |
| Mudguards | Alloy Mudguards |
| Lights | Integrated Front/Rear Lights with Brake Light System |
| Front Wheel | Quick Release Design |

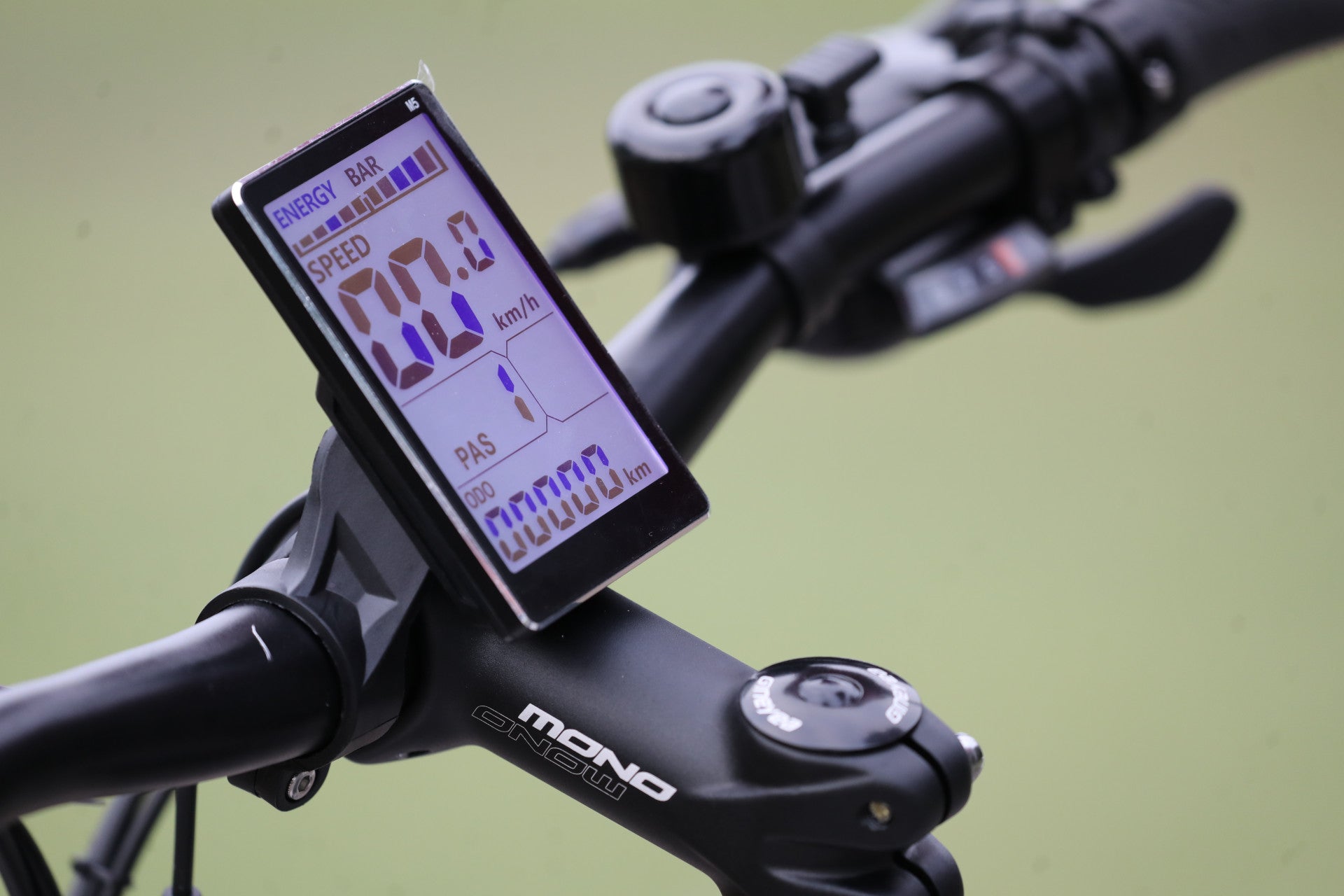

| Display | Multi-Function LCD Display Panel with 5 Level Pedal Assist |
| Electric Parts | |
| Motor | 48V Rear Hub 250W (Peaks 750W) or 500W Option Available |
| Controller | 48V 15A |
| Charger | Included 48V 2A – Mini Pin Plug |
| Battery | 48V 15Ah, 720Wh High Power Cells, USB Port (1A) |
| Battery Range | 60–80km (Depending on Assistance Level) |
| Pedal Assist / Throttle | Max Speed 25km/h (Australian Regulation) |
| Additional Information | |
| Weight (Shipping) | 23kg |
| Dimensions | 144 × 22 × 76 cm |
| Colour Options | Matt Black, Matt Grey |
| Motor Sizes | 250W, 500W |
- We offer FREE Shipping Australia-wide for orders over $100.
- Excludes WA, Regional Remote Areas And Islands.
- Note: Some Bulk Items may require an extra shipping charge.
- You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s).
- Our products are sent directly from our Redfern, Sydney Warehouse.
- All orders are processed within 2-4 business days.
- Shipping charges for your order will be calculated and displayed at checkout.
- In-store pickup is available for online orders.
- Choose the pickup option at checkout.
- For 24 hours hour click & collect, please give us a call to confirm your arrival time: 02 9171 7860
- PedL will allow a return for store credit, exchange product or refund provided the item in question is returned within 7 days.
- All our E-Bikes and E-Scooters come with 12 months warranty on all electronic and mechanical parts (including battery, motor, controller, display, suspension, wheels) and also 1-2 year warranty on the bike or scooter frame.
- If the product is damaged you can let us know at contact@pedl.com.au.
- Please ensure that you keep the box/packaging for your product in case the item needs to be returned.
- Full Shipping & Returns details: https://www.pedl.com.au/pages/shipping
- All products that are shipped are checked by the manufacturer and by Pedl mechanics however it is important that all bolts and screws on products are checked and tightened during assembly and before embarking on your first ride. This is the responsibility of the rider and Pedl will not be liable for any injury caused by improper assembly which includes misalignment and bolts not being checked for the correct tightness.
- It is the responsibility of the user to read and fully understand the literature provided by Pedl via email at sale for this product when purchased. This information includes, Battery care, Maintenance information and Warranty Information.
- Range and speed of this product will vary based on variables such as weight, terrain, degree of incline, wind, battery age, battery charge, speed reached and all other variables that would affect travel.
- Pedl advertises and sells its products for the purpose of recreational use. Each state and territory in Australia maintains a different set of rules and regulations for the usage of our products. It is the responsibility of users to ride with caution, wear a helmet and protective gear during use, and ensure compliance with local by-laws including requirements of use. Any information or representation provided by Pedl is of a general nature and may vary between users depending on individual circumstances.
- Please note that while we ensure all our bikes are carefully assembled and inspected before shipment, some minor adjustments may still be required. It is not uncommon for gears to be slightly misaligned, brake discs to rub, mudguards to be misaligned, or other adjustments to be needed after assembly. These issues are typically due to the natural settling of components during shipping and are considered a normal part of the assembly process. As such, these adjustments are not covered under Pedl’s warranty.
For best performance, we recommend that you have your bike assembled or inspected by a professional bike technician.
