Description:

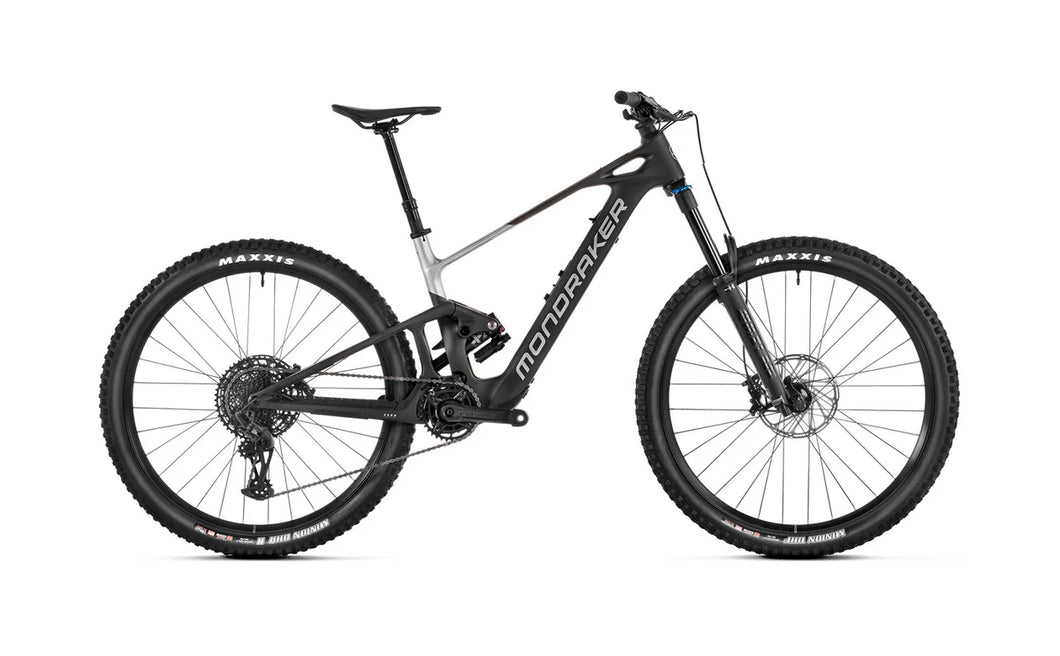

The first model in the line-up is the NEAT R, with a Fox 36 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM G2 R brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size) and Mavic E-Crossride 29 wheels.
Specification:
|
01. FRAME |
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery. |
|
02. REAR SHOCK |
Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
|
03. SHOCK SETTINGS |
Medium compression, medium rebound, air volume spacer 0.4 |
|
04. FORK |
Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
|
05. HEADSET |
Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing |
|
06. STEM |
Onoff Krypton FG 30mm, CNC, 31.8mm diameter |
|
07. HANDLEBAR |
Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm diameter |
|
08. GRIPS |
Onoff Desert, single lock-on, 135mm |
|
09. SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
|
10. SADDLE |
Fizik Terra Aidon Slim X5 |
|
11. FRONT BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm 6 bolt one-piece rotor, organic pads |
|
12. REAR BRAKE |
Sram G2 R, 4-piston caliper, Centerline 200mm 6 bolt one-piece rotor, organic pads |
|
13. BRAKE LEVER |
Sram G2 R, tool-free reach adjust, lever pivot bushings |
|
14. RIMS |
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
|
15. SPOKES |
Mavic J-bend double butted, contactless lacing |
|
16. FRONT HUB |
Mavic, Boost 15x110mm, 6-bolt |
|
17. REAR HUB |
Mavic, Boost 12x148mm, ID360 Ratched system, 6-bolt, HG freehub |
|
18. FRONT TYRE |
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
|
19. REAR TYRE |
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
|
20. CRANKSET |
E.13 E*Spec Plus,, S/M: 165mm L/XL: 170mm |
|
21. RINGS |
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
22. CHAIN |
Sram NX Eagle, 12s, Powerlock |
|
23. REAR DERAILLEUR |
Sram GX Eagle 1x12 |
|
24. SHIFT LEVER |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
|
25. CASSETTE |
Sram PG-1230, 11-50T, 12s |
|
26. MOTOR |
TQ HPR-50 |
|
27. BATTERY |
TQ HPR-50 360Wh integrated and removable |
|
28. DISPLAY |
TQ HPR display V01 |
|
29. DERAILLEUR HANGER |
Sram UDH |
|
30. OTHERS |
Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version |
|
31. MAX RIDER WEIGHT |
150 kg |
|
32. SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
