Estimated to ship out by early August 2026 or earlier. Learn more
An SUV e-bike built for multiple scenarios, Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.
Appearance & Suspension
Full Suspension for All-Terrain Riding
A 2.9kg full-carbon frame keeps the bike exceptionally agile and durable, bringing the complete bike weight down to just 22.6kg
Full Suspension Co-Developed With FOX
With 120mm of front travel and 105mm of rear travel, the full suspension system absorbs bumps in the city, stabilizes cargo on loaded rides, and stays supple over roots and rocks while holding strong on bigger hits.
Both front and rear wheels can be switched from 27.5-inch to 29-inch [7] to match different terrain needs.
FOX AWL and FLOAT suspension are optimized for the Amflow TL platform, delivering confident handling, comfort, and control across a wide range of terrain.
Ergonomic Design for Long-Ride Comfort
Outstanding geometry and anti-squat performance make every stroke count, keeping you efficient on long rides and in control on descents.
| Category | Specification | Details |
|---|---|---|
| Frame | Frame | Amflow TL Carbon Frame |
| Colour | Silica Beige | |
| Suspension | Full Suspension, Removable Battery, Compatible with 27.5″ and 29″ Front and Rear Wheels | |
| Accessories Compatibility | Compatible with Front and Rear Mudguards | |

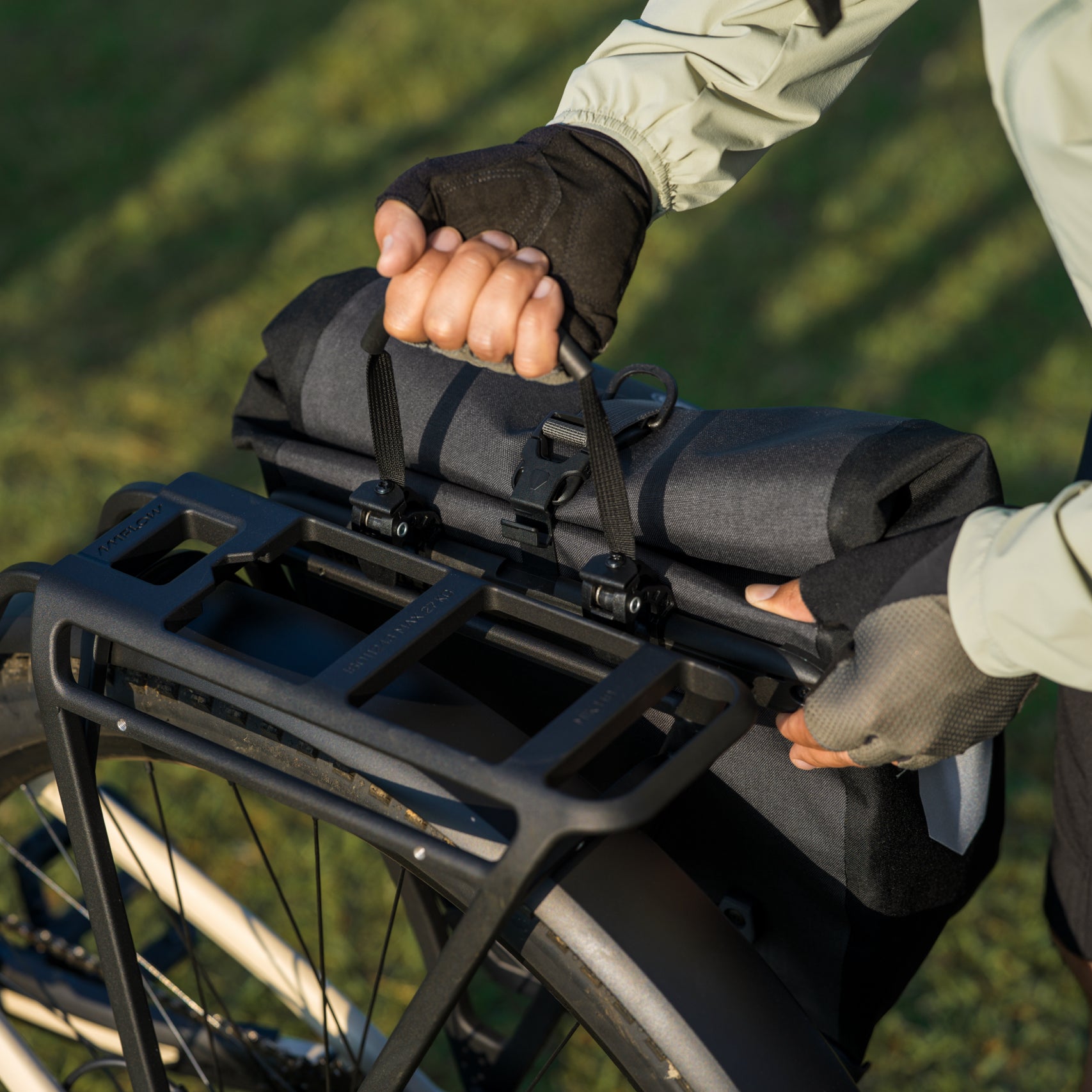

| Rack & Trailer Compatibility | Compatible with Rear Rack, Front Rack, and Bike Trailers (Requires Trailer Thru-Axle) | |

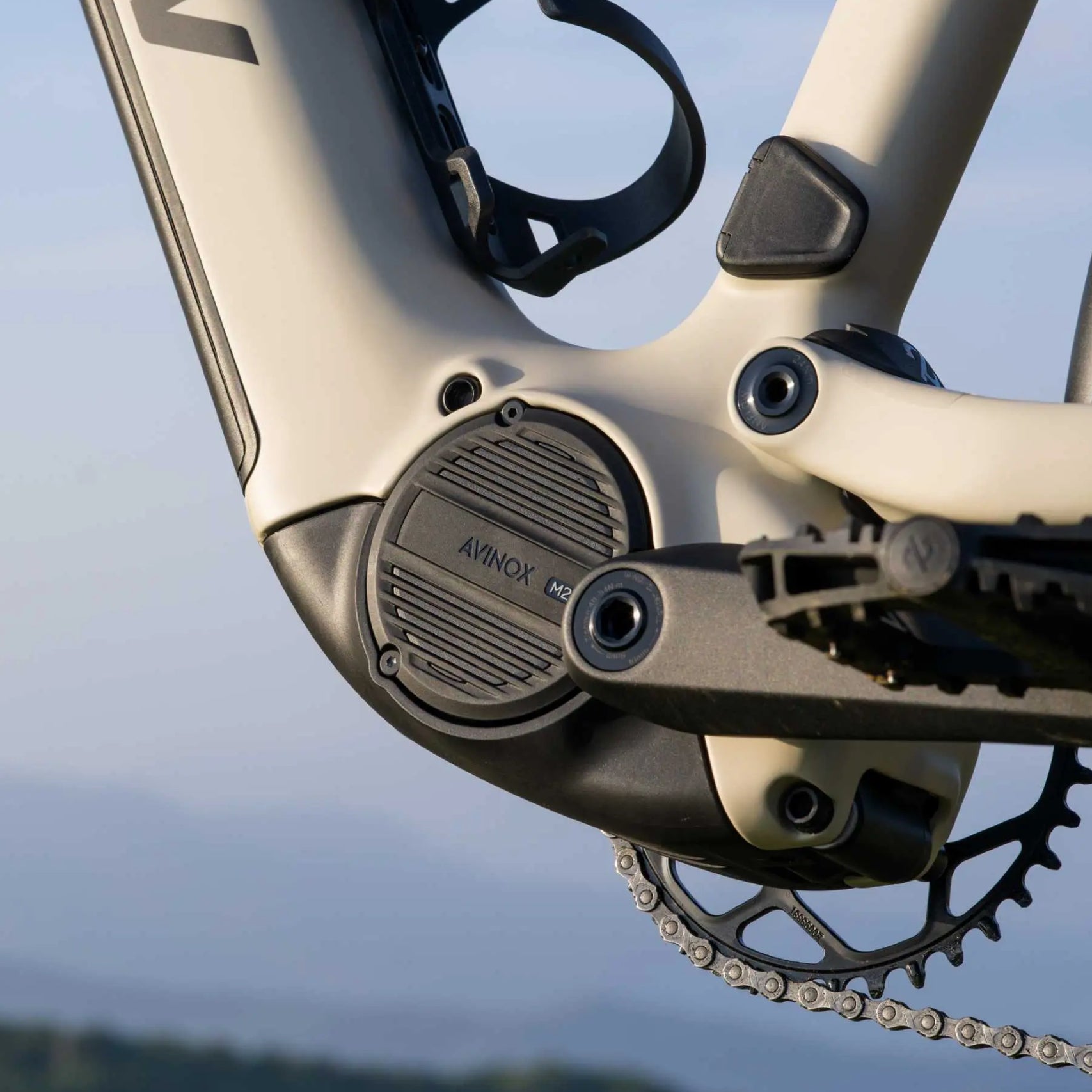

| Drive System | Motor | Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m |

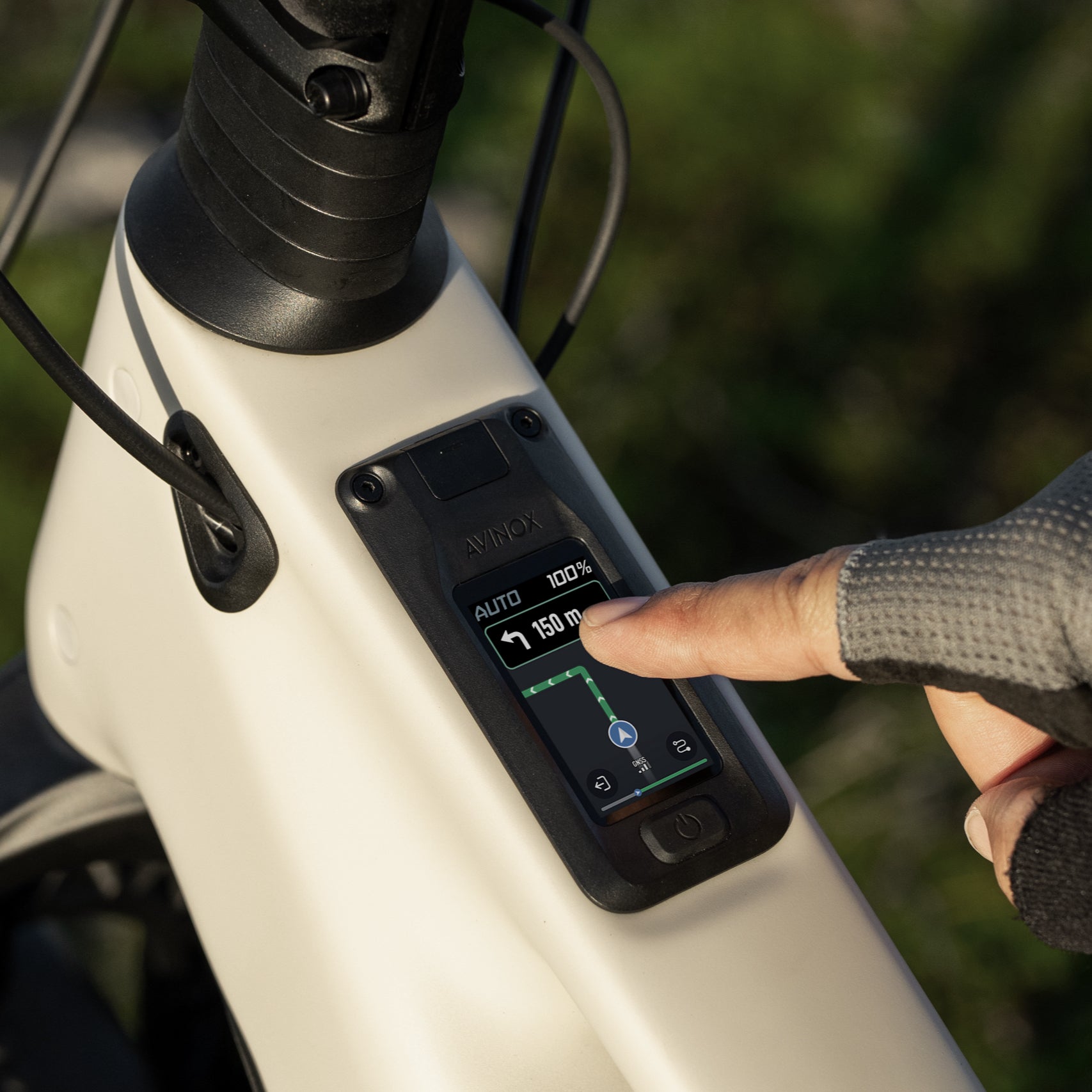

| Display | Avinox DPC100, 2-inch OLED Control Display | |
| Battery | Avinox RS800 Battery (Removable) | |
| Wireless Controllers | Avinox Wireless Controller × 2 (One on each side of the handlebar) | |
| Charger | Avinox 4A Charger | |
| Charger Output | 168W | |
| Suspension | Rear Shock | FOX FLOAT Rhythm, LSR Adjustment, Amflow TL Tuned, 190 × 45mm |

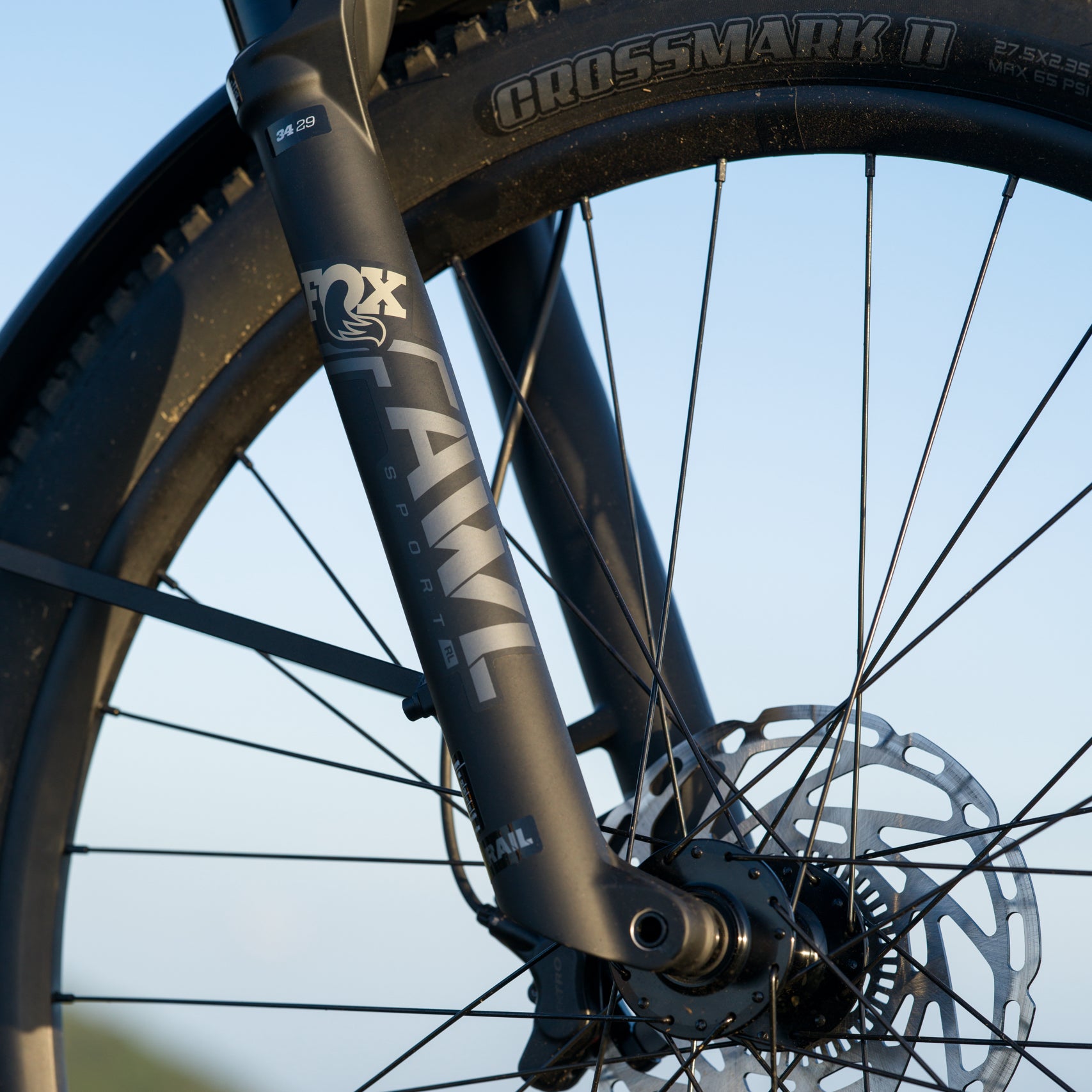

| Fork | FOX AWL Sport, 120mm Travel, RAIL 2.0 Damper, LSR Adjustment, 15 × 110mm Kabolt, 44mm Offset | |
| Drivetrain | Rear Derailleur | TRP E.A.S.I. RD-T7010E-L, 10/11-Speed Electronic Rear Derailleur |
| Cassette | CS-M5243, 10-Speed, 11-43T | |
| Chainring | Avinox Direct Mount Chainring (38T) | |
| Chain | Avinox eGlide T Chain (10S/11S, 118 Links) | |
| Crankset | Avinox SL Crankset (S/M: 155mm; L/XL: 160mm) | |
| Brakes | Brake System | Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow |
| Brake Rotors | Tektro TR180-61E, Ø180mm, 2.3mm Thickness, Integrated Tonewheel for Avinox | |
| Wheels | Front Wheel | Amflow HTA-25 Front Wheel (27.5″) |
| Front Tire | Maxxis 27.5 × 2.35 Crossmark II, Wire Bead / Clincher / EXO / 60TPI | |
| Front Rim | Alloy, 27.5″, 25mm Inner Width, 32H | |
| Front Hub | Alloy, 15 × 110mm Thru-Axle, 32H, 6-Bolt | |
| Rear Wheel | Amflow HTA-25 Rear Wheel (27.5″) | |
| Rear Tire | Maxxis 27.5 × 2.35 Crossmark II, Wire Bead / Clincher / EXO / 60TPI | |
| Rear Rim | Alloy, 27.5″, 25mm Inner Width, 32H | |
| Rear Hub | Alloy, 12 × 148mm Thru-Axle, 32H, 6-Bolt, 6 Pawls, HG Freehub | |
| Tires | Tire Specification | Maxxis 27.5 × 2.35 Crossmark II Wire Bead / Clincher / EXO / 60TPI |
| Cockpit | Handlebar | Amflow Touring Handlebar |
| Handlebar (S/M) | 720mm Width, 35mm Diameter, 93mm Rise | |
| Handlebar (L/XL) | 740mm Width, 35mm Diameter, 93mm Rise | |
| Grips | Amflow Enduro Grip 2 | |
| Stem | Amflow Touring Bike Split Stem (35mm Clamp Diameter, 35mm Length, 0° Angle) | |
| Seating | Saddle | Amflow Touring Saddle |
| Dropper Post | Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0 / -10 / -20mm) | |
| Dropper Post (S/M) | 150mm Travel | |
| Dropper Post (L/XL) | 170mm Travel |
