| Frame |
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5" – 1.8" tapered headtube, 40mm two-bolt kickstand compatible |
| Fork |
Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |
| Headset |
Acros ICR, 1.5" to 1.8", sealed bearings |
| Rear Shock |
Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm |
| Drive Unit |
Bosch Performance Line CX |
| Battery |
Bosch PowerTube, 800Wh |
| Charger |
Bosch 4A |

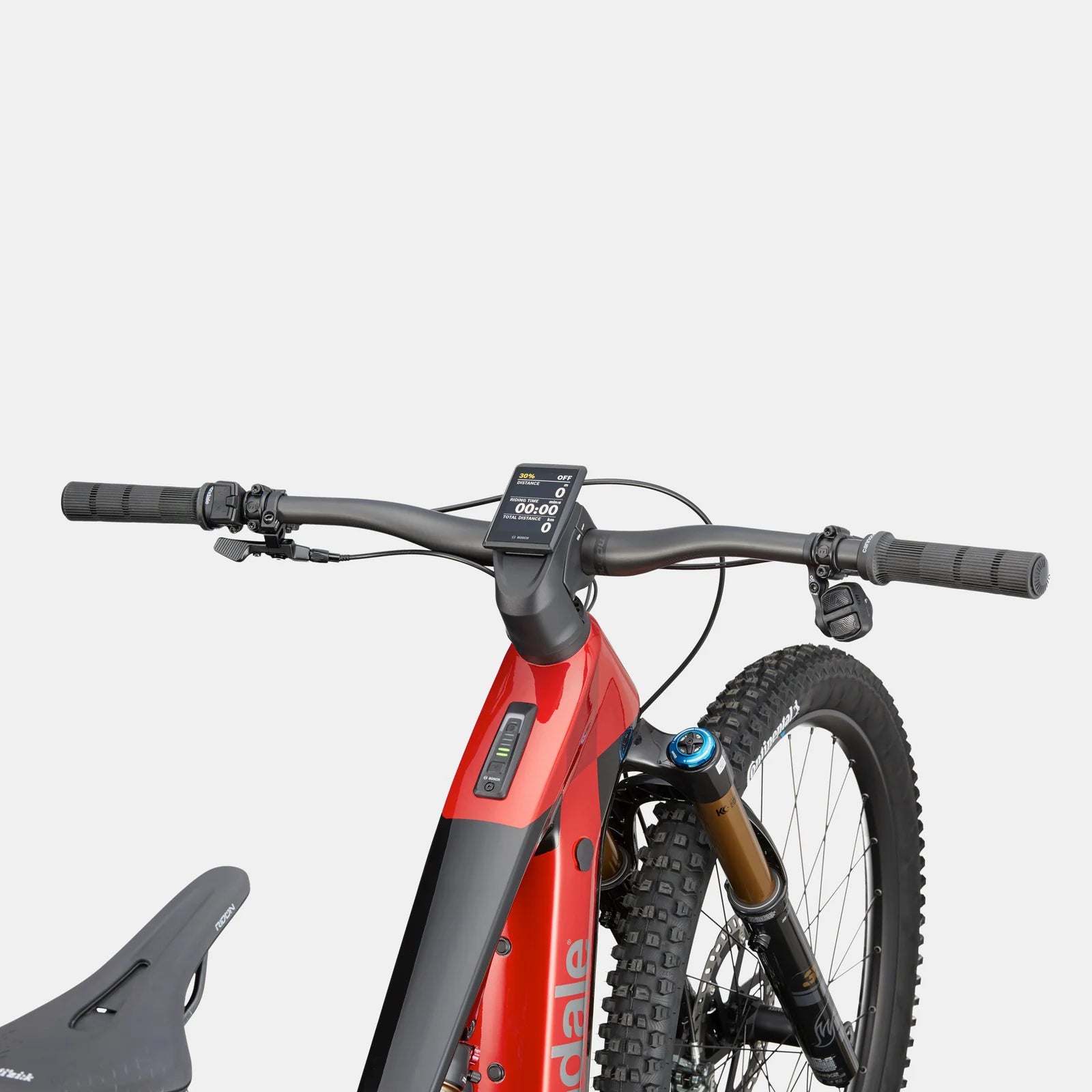

| Display |
Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote |
| Rear Derailleur |
SRAM XO Eagle AXS, T-Type |
| Shifters |
SRAM Eagle AXS T-Type Pod Controller |
| Chain |
SRAM GX T-Type, 12-speed |
| Crank |
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T |
| Rear Cogs |
SRAM GX Eagle T-Type, 10-52, 12-speed |
| Brakes |
Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors |
| Brake Levers |
Magura MT7 hydraulic disc |
| Rims |
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready) |
| Spokes |
DT Swiss Competition, straight pull |
| Hubs |
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt |
| Wheel Size |
29" |
| Tire Size |
2.4" |
| Front Tire |
Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable |
| Rear Tire |
Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Handlebar |
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Stem |
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0° |
| Grips |
Cannondale TaperRidge |
| Saddle |
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
| Seatpost |
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Included |
Tubeless Valves, Bosch PowerMore range extender compatible |
