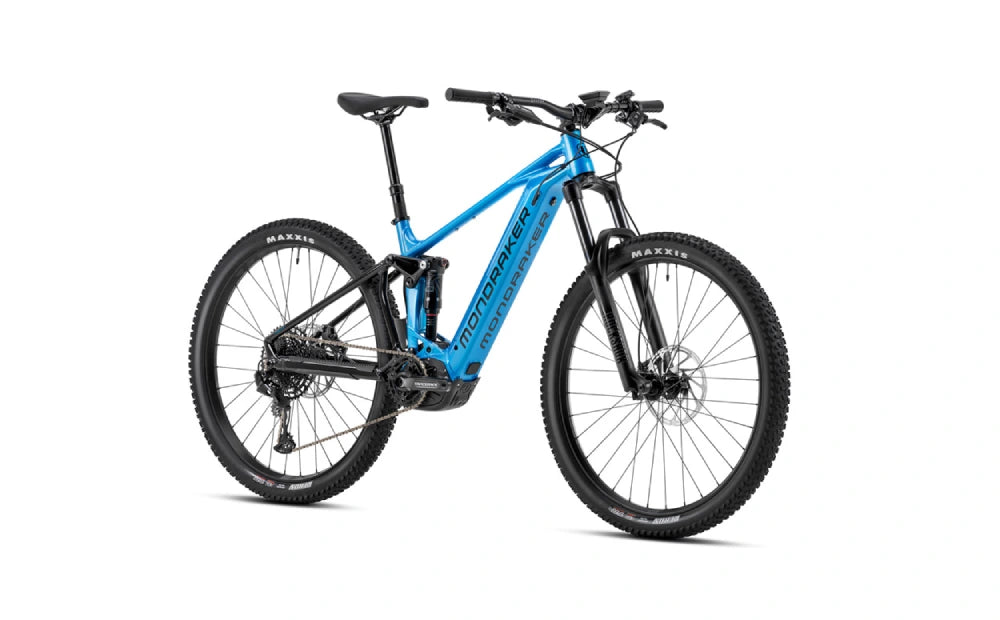

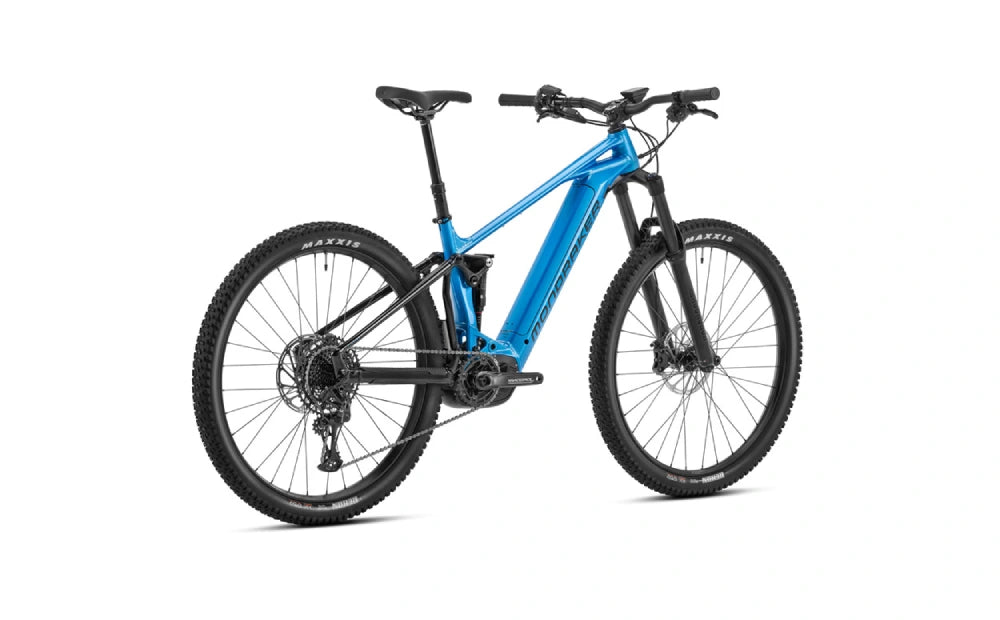

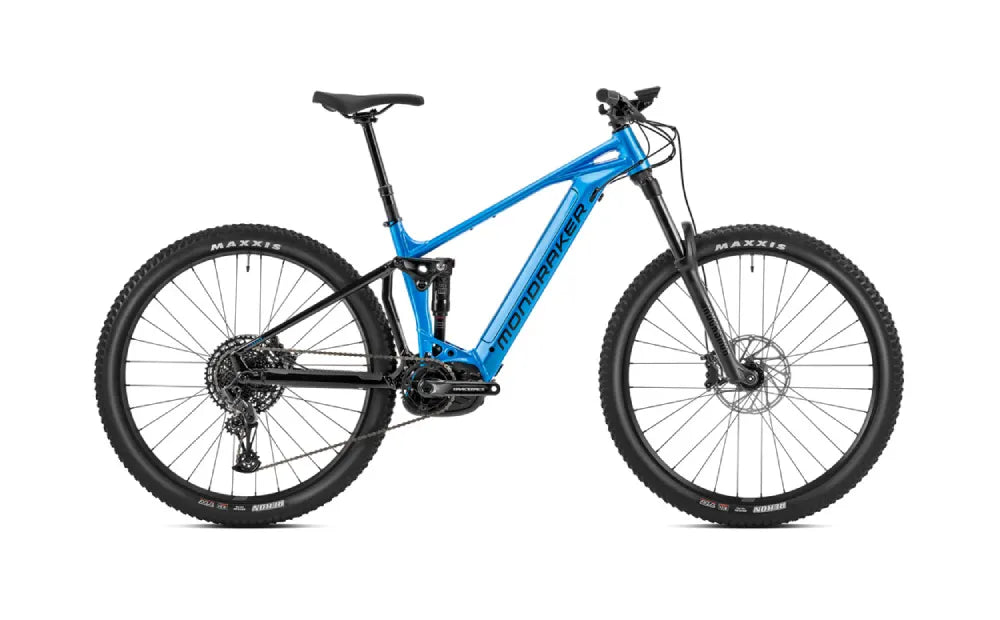

The Mondraker Chaser – Blue/Black is the perfect e-mountain bike for your off-road adventures! This bike is equipped with a 6061 Alloy Stealth Evo frame, 150mm travel, and a RockShox 35 Silver TK 29 fork with 160mm of travel. It also features a Bosch Performance Line CX Cruise motor and a Bosch Powertube 625Wh battery, so you can ride for longer. With its Boost 12x148mm rear axle, tapered head tube, and integrated dropout speed sensor, you’ll be able to tackle any terrain with ease. Get ready to explore the great outdoors with the Mondraker Chaser – Blue/Black!
Specifications
| 01. FRAME | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery |
| 01A. FRAME | Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p |
| 02. FORK | RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air p |
| 03. REAR SHOCK | RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| 04. SHOCK SETTINGS | DebonAir Progressive, Light compression, Linear rebound, 1 Token |
| 05. HEADSET | Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree |
| 06. STEM | Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore |
| 07. HANDLEBAR | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore |
| 08. GRIPS | Onoff Twin, 1lock-on, 135mm |
| 09. SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm |
| 10. SADDLE | MDK ebike black |
| 11. FRONT BRAKE | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 12. REAR BRAKE | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 13. BRAKE LEVER | Sram DB8, tool-free reach adjust |
| 14. FRONT HUB | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| 15. REAR HUB | Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
| 16. FRONT TIRE | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| 17. REAR TIRE | Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| 18. CRANKSET | Race Face Aeffect ebike, 165mm |
| 19. RINGS | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| 20. PEDALS | N/A |
| 21. CHAIN | Sram SX Eagle, 12s, Powerlock |
| 22. REAR DERAILLEUR | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| 23. CASSETTE | Sram PG-1210, 11-50T, 12s |
| 24. MOTOR | Bosch Performance Line CX Cruise (25Km/h) Smart System |
| 25. BATTERY | Bosch Powertube 625Wh |
| 26. DISPLAY | Bosch Intuvia 100 / Bosch Led Remote |
| 27. DERAILLEUR HANGER | Mondraker M068 |
| 28. SIZES | S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
