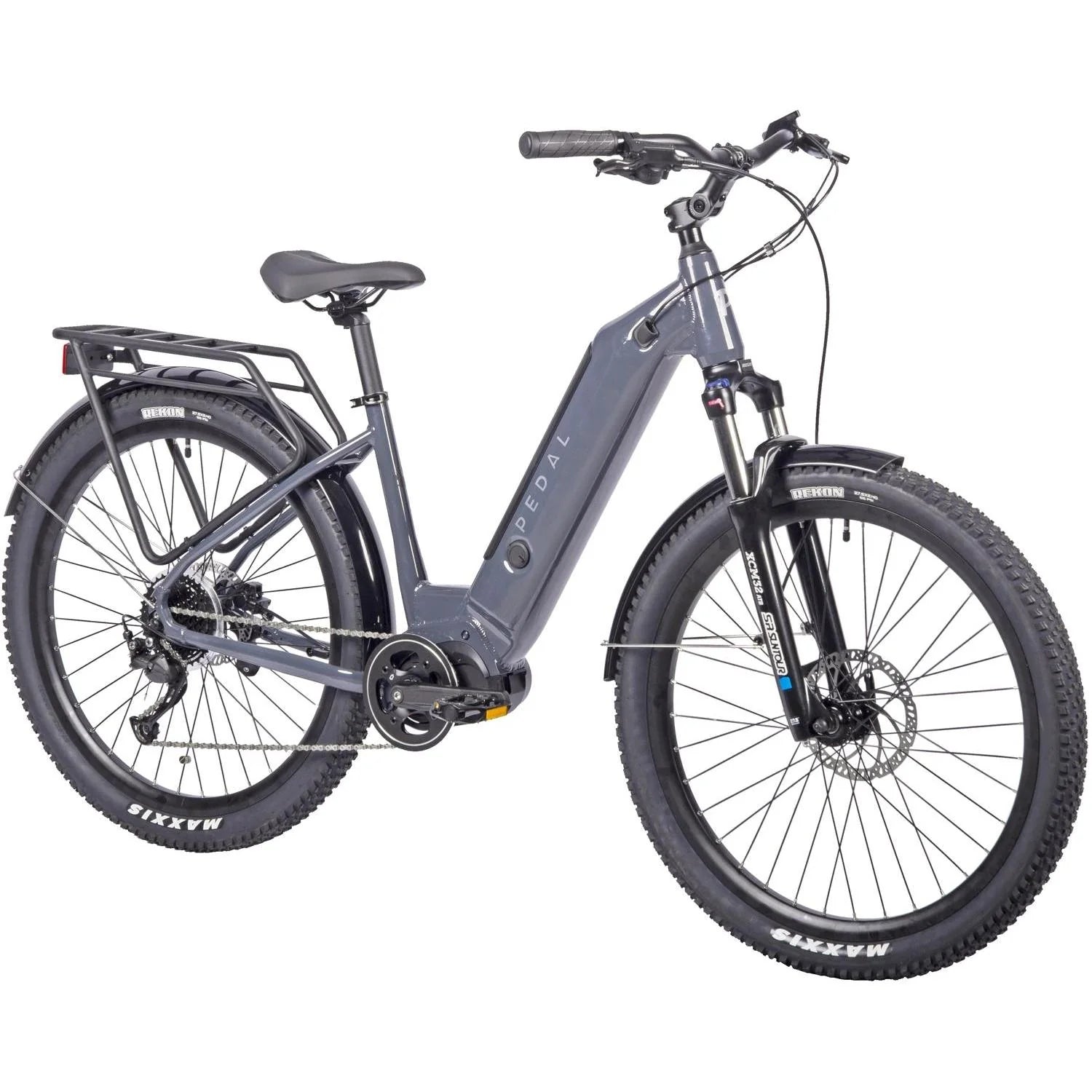

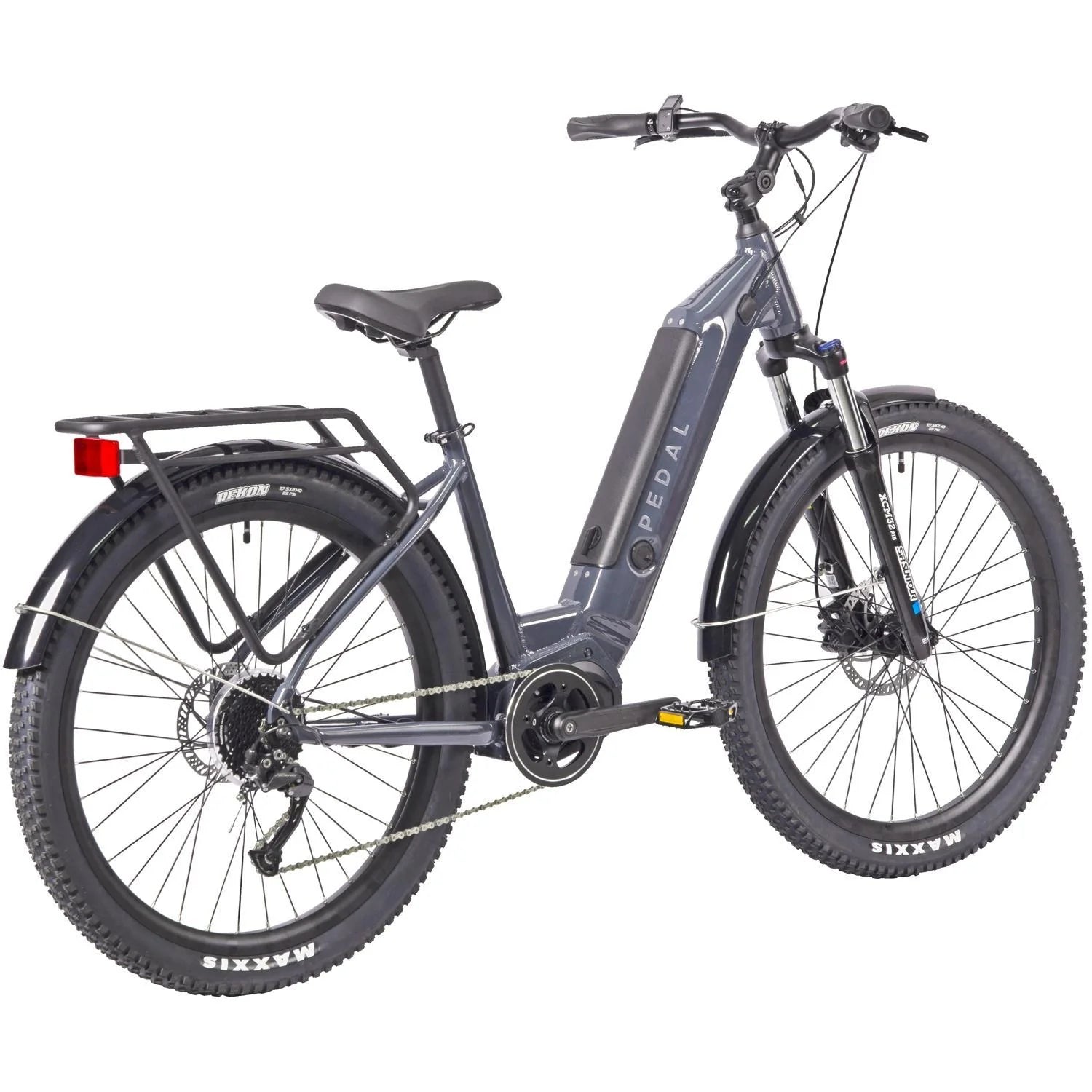

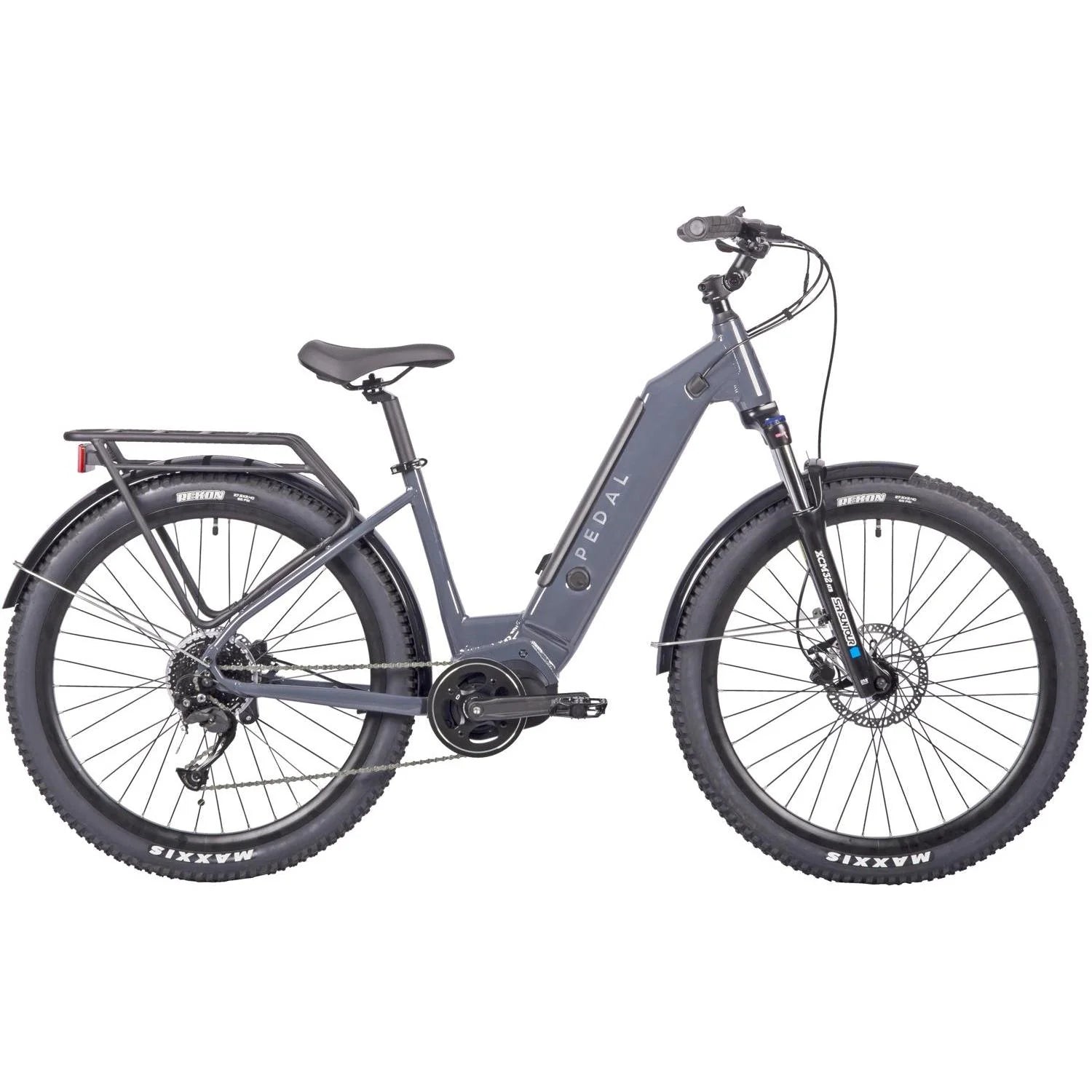

The Pedal Lynx 3 ST is a versatile electric hardtail mountain bike which is great for off-road adventures as well as being a capable daily commuter. Powered by a 250W Ananda M81 mid-drive motor with 5 assist modes and a removable 468Wh battery, this bike ensures you can tackle any terrain with ease. With a range of up to 70km, the Lynx 3 ST is perfect for extended rides through rugged trails or for your daily commute. Weighing approximately 25kg this hardtail is equipped with a Suntour XCM32 fork, Tektro hydraulic disc brakes, Maxxis Rekon tyres and a convenient step-through frame, providing exceptional control and comfort. The Shimano 1x9 drivetrain allows for smooth gear transitions, making climbs and descents effortless.
| Specification | Details |
|---|---|
| PRODUCT FEATURES | |
| Frame Material | Alloy |
| Frame Style | Step-Through |
| Colour | Grey |
| Wheel Size | 27.5" (650b) |
| Brake Type | Hydraulic Disc Brake |
| Gears | 1 x 9 |
| Front Travel | 100mm |
| Charge Time (hrs) | 6 |
| Weight Limit | 102 |
| MOTOR AND BATTERY SYSTEM | |
| Drive Type | Mid Drive |
| Motor Brand | ANANDA |
| Motor | Ananda M81 CAN Mid Drive 250W 25KPH 36V 25KPH |
| Torque (Nm) | 80 |
| Motor Climbing Ability | Steep Hills & Heavy Loads |
| Battery Size (Watt-Hours) | 468 |
| Battery | Removable Downtube style CANBUS w/Internal BMS |
| Max. Range (KMs) | 70 |
| Charge Time (Hours) | 6 |
| Display | D18 + CAN |
| Approved for sale in NSW | true |
| Declared Article Number (NSW) | SGS-260179-EA |
| BUILD | |
| Frame | Step Through Alloy 6061 Removable Battery |
| Fork | Suntour XCM32 Coil QR |

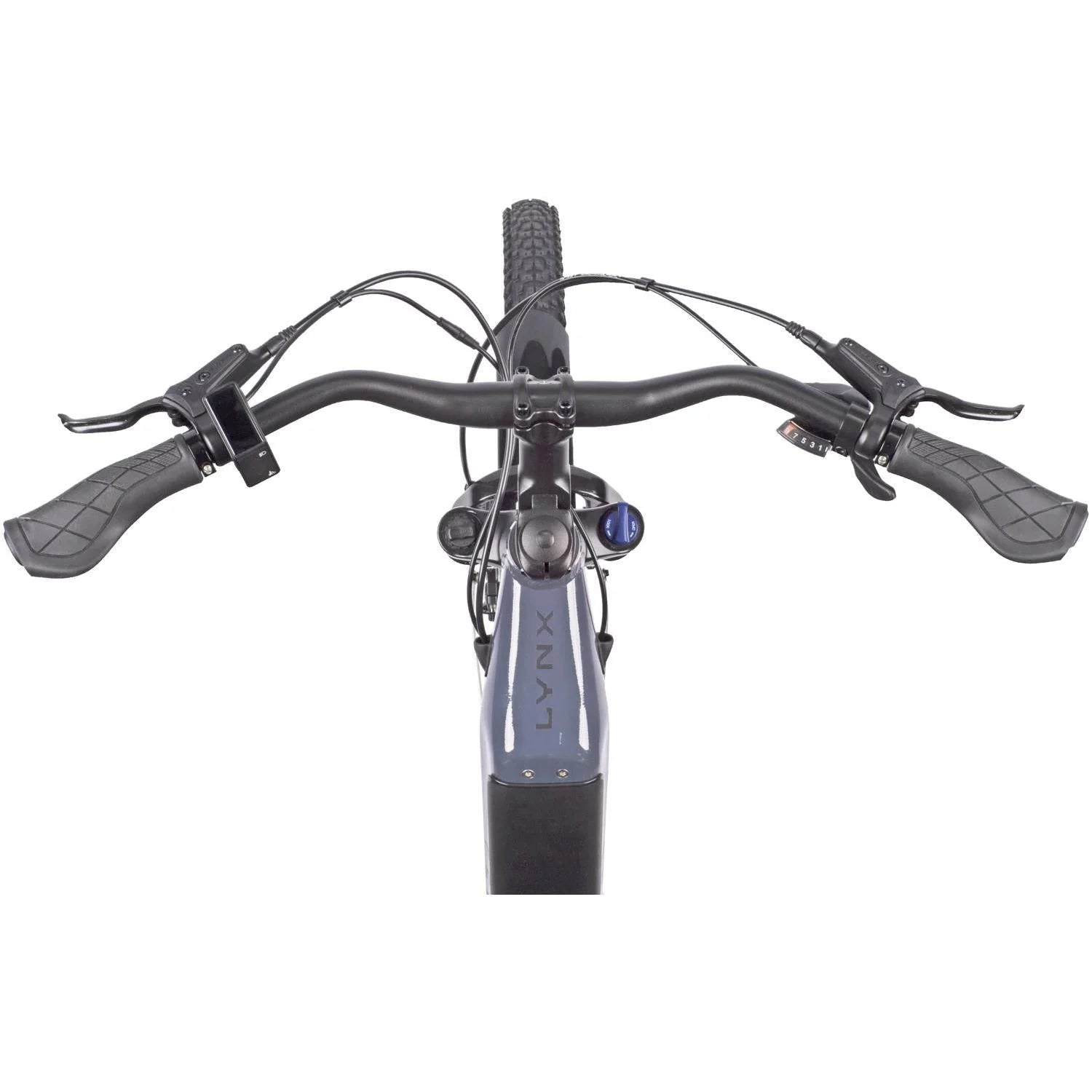

| Handlebars | W:680MM, R:28MM, BACKSWEEP:30D, BARBORE:31.8MM |
| Headset | A HEAD, 28.6MM, 44*56MM, W/15MM RESIN BLACK CONE, H=20MM |
| Grips | HL-G315 L/R:136.5MM, CLOSED END, ALLOY LOCK |
| Stem | A HEAD, EXT:105MM H:41MM, BAR BORE:31.8MM, ED BOLT |
| Bottom Bracket | Ananda |
| Pedals | 9/16 Platform Resin |
| Saddle | SELLE ROYAL 4007HRN SPORT ERGO |
| Accessories | Kickstand, 42V 2A Charger (3 pin for 36V Battery), HD 4 bolt pannier rack |
| WHEELS | |
| Wheel Size | 27.5" (650b) |
| Rims | RD-H30 27.5"*36H*14G, DOUBLE WALL, F/V W/EYELETS |
| Hubs | F: SF-A262F 36h QR 100mm 6 bolt LBB / R: SF-A262R 36h QR 135mm 6 bolt LBB |
| Tyres | Maxxis Rekon 27.5 x 2.4" |
| GROUPSET | |
| Crankset | Ananda 38T Narrow Wide 170mm Square Taper Alloy |
| Chain | Shimano 9 Speed |
| Brakes | Tektro HD-M275 |
| Front Rotor | 180mm 6 bolt |
| Rear Rotor | 160mm 6 bolt |
| Shifters | Shimano 9 Speed Trigger |
| Rear Derailleur | Shimano 9 Speed |
| Cassette | 9 Speed |
| Cassette Model | Shimano Wide Ratio 9 Speed |
- We offer FREE Shipping Australia-wide for orders over $100.
- Excludes WA, Regional Remote Areas And Islands.
- Note: Some Bulk Items may require an extra shipping charge.
- You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s).
- Our products are sent directly from our Redfern, Sydney Warehouse.
- All orders are processed within 2-4 business days.
- Shipping charges for your order will be calculated and displayed at checkout.
- In-store pickup is available for online orders.
- Choose the pickup option at checkout.
- For 24 hours hour click & collect, please give us a call to confirm your arrival time: 02 9171 7860
- PedL will allow a return for store credit, exchange product or refund provided the item in question is returned within 7 days.
- All our E-Bikes and E-Scooters come with 12 months warranty on all electronic and mechanical parts (including battery, motor, controller, display, suspension, wheels) and also 1-2 year warranty on the bike or scooter frame.
- If the product is damaged you can let us know at contact@pedl.com.au.
- Please ensure that you keep the box/packaging for your product in case the item needs to be returned.
- Full Shipping & Returns details: https://www.pedl.com.au/pages/shipping
- All products that are shipped are checked by the manufacturer and by Pedl mechanics however it is important that all bolts and screws on products are checked and tightened during assembly and before embarking on your first ride. This is the responsibility of the rider and Pedl will not be liable for any injury caused by improper assembly which includes misalignment and bolts not being checked for the correct tightness.
- It is the responsibility of the user to read and fully understand the literature provided by Pedl via email at sale for this product when purchased. This information includes, Battery care, Maintenance information and Warranty Information.
- Range and speed of this product will vary based on variables such as weight, terrain, degree of incline, wind, battery age, battery charge, speed reached and all other variables that would affect travel.
- Pedl advertises and sells its products for the purpose of recreational use. Each state and territory in Australia maintains a different set of rules and regulations for the usage of our products. It is the responsibility of users to ride with caution, wear a helmet and protective gear during use, and ensure compliance with local by-laws including requirements of use. Any information or representation provided by Pedl is of a general nature and may vary between users depending on individual circumstances.
- Please note that while we ensure all our bikes are carefully assembled and inspected before shipment, some minor adjustments may still be required. It is not uncommon for gears to be slightly misaligned, brake discs to rub, mudguards to be misaligned, or other adjustments to be needed after assembly. These issues are typically due to the natural settling of components during shipping and are considered a normal part of the assembly process. As such, these adjustments are not covered under Pedl’s warranty.
For best performance, we recommend that you have your bike assembled or inspected by a professional bike technician.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
