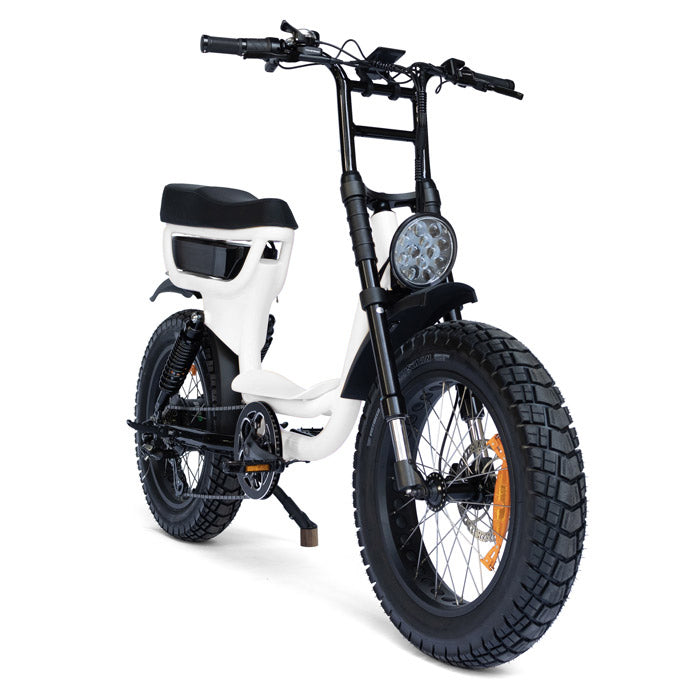

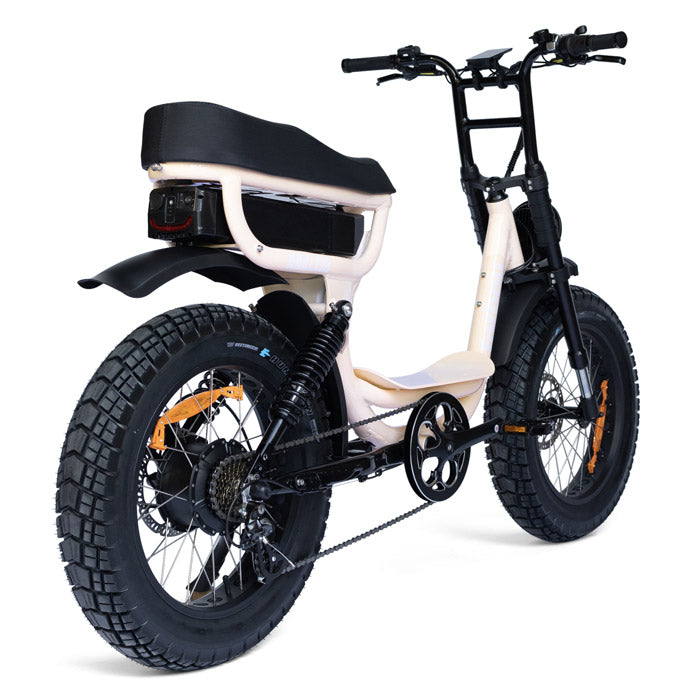

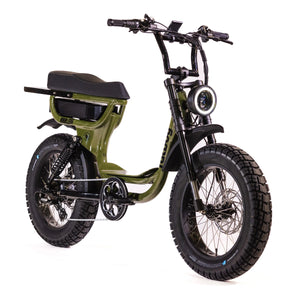

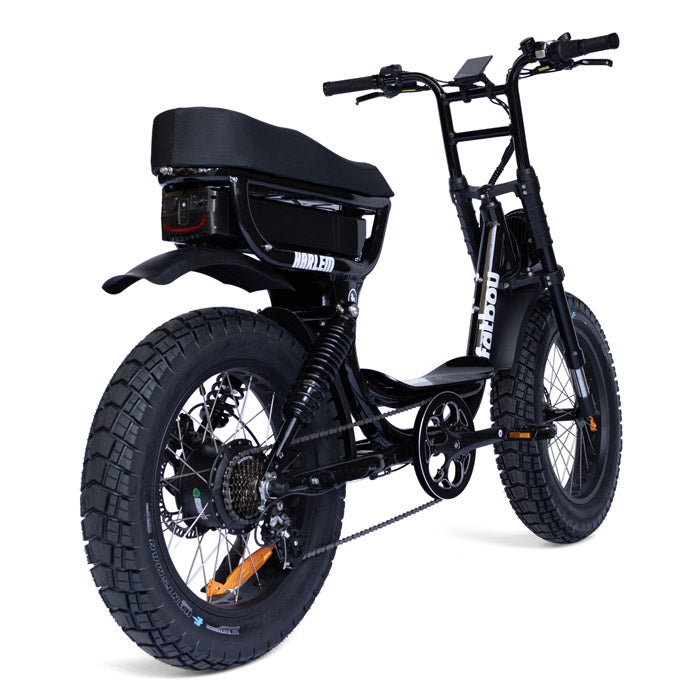

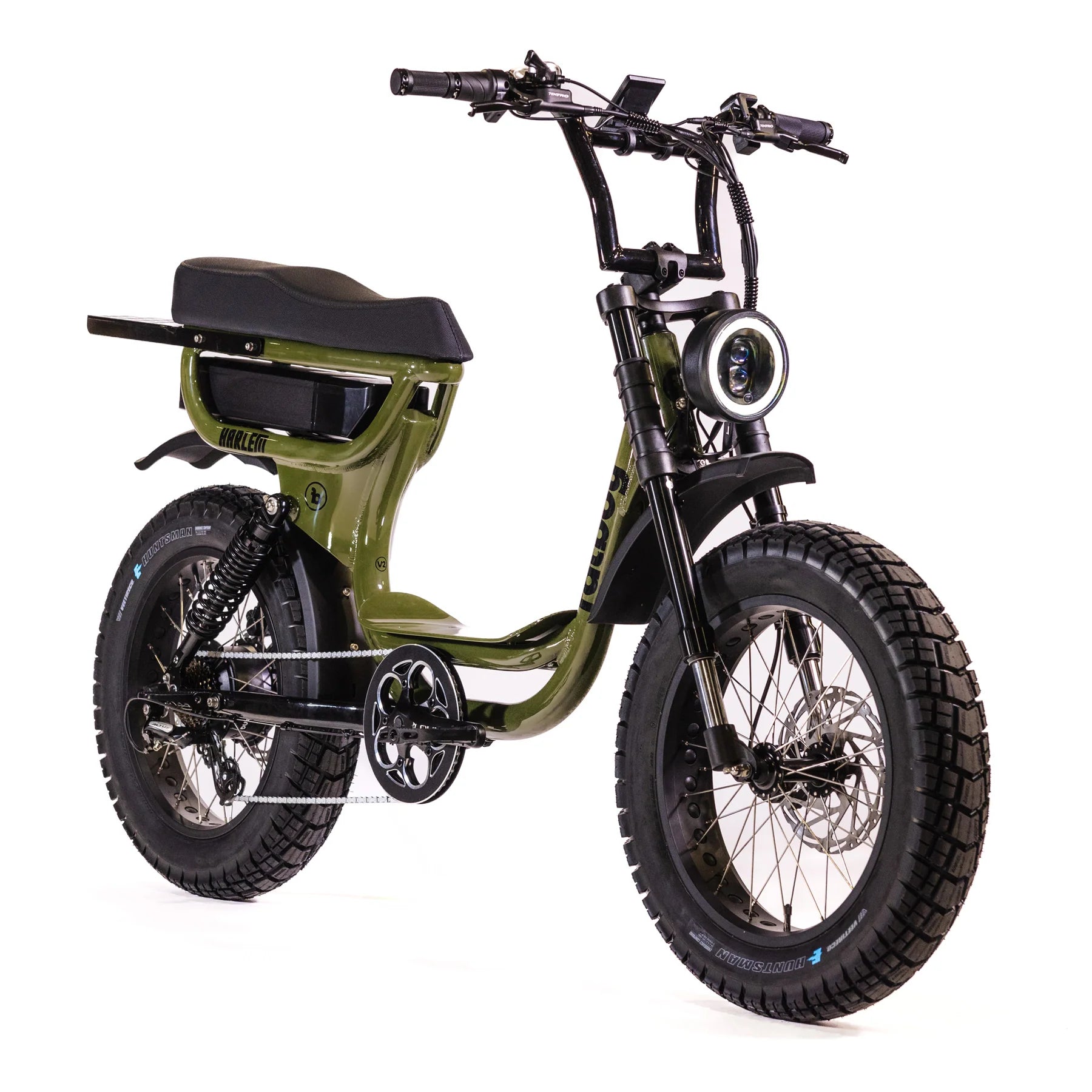

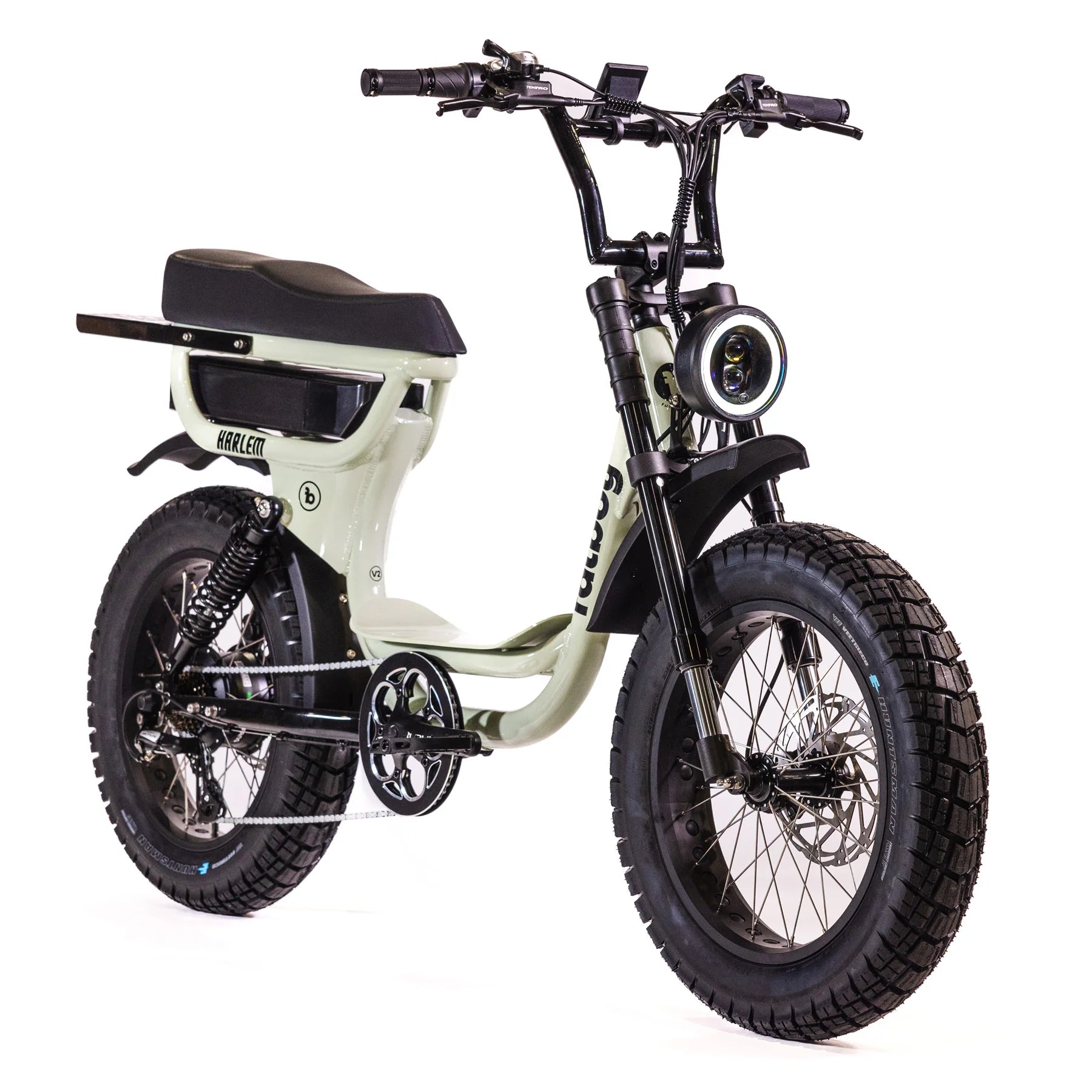

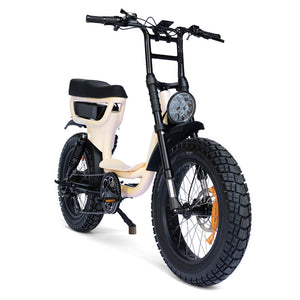

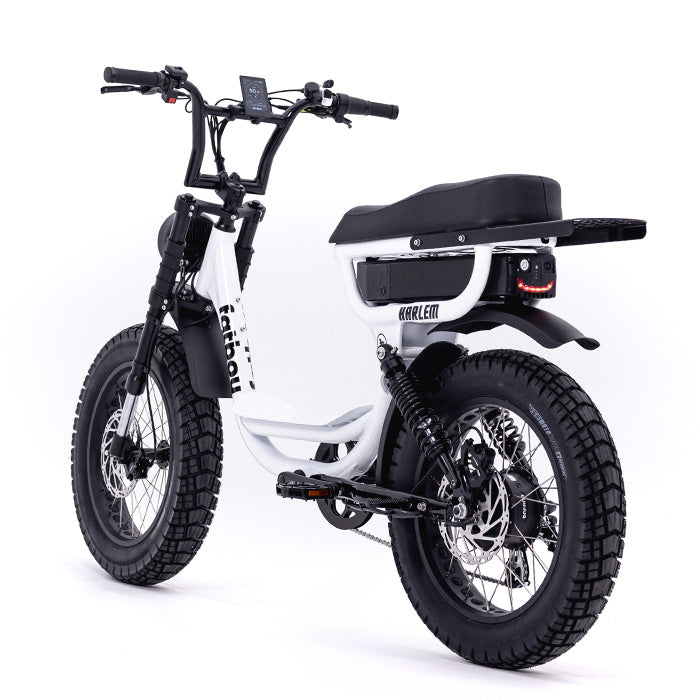

The Fatboy Harlem is our step through two-seater eBike and comes standard with class leading features including BAFANG HUB Motor with peak power capability of 1440Watts, 960Wh SAMSUNG Battery, 180mm TEKTRO Hydraulic Disc Brakes, 7 Speed Shimano Gearing, Super bright colour LCD Display, front independent and rear adjustable suspension, 2 seater gripper seat with rear passenger foot pegs, 180kg rating and finally our all inclusive 2 year warranty.
Bikes are sold restricted to meet legislation max continuous output 500watts at 25Km/h
Our Fatboy philosophy is simple – have fun, get outdoors, reduce your carbon footprint and feel the breeze on your knees. Do yourself a favour and jump on a Fatboy eBike today.
Standard Inclusions:
- Throttle with isolator

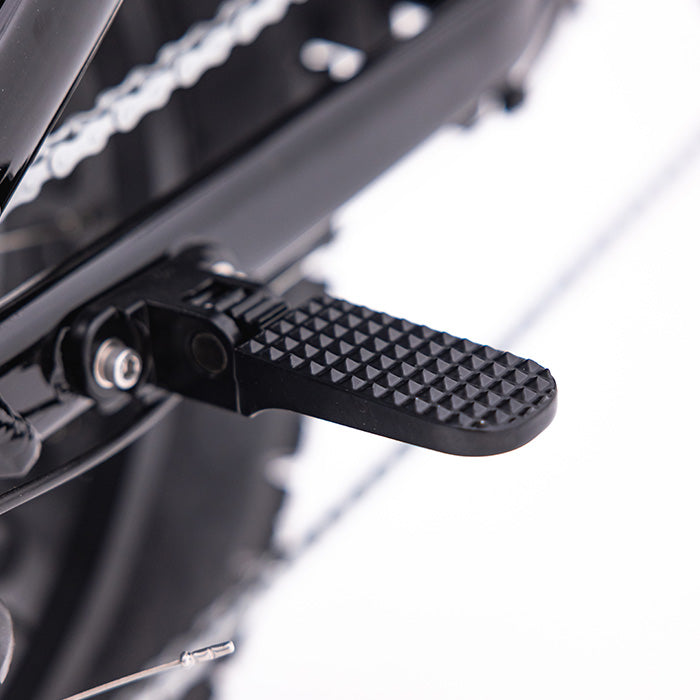

- Rear passenger footpegs
- Super bright headlight

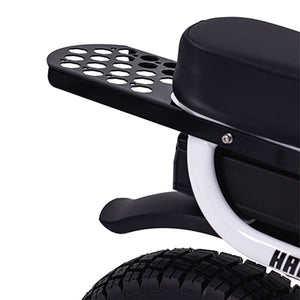

- Rear cargo rack
- Vee rubber puncture resistant tyres
- Bright LCD colour display w. charging capability
- Front & rear adjustable suspension
Specifications
| Model Name | The Harlem – by Fatboy Bikes |

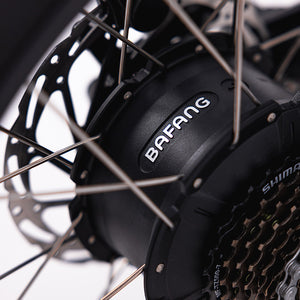

| Motor | 48V 1000W BAFANG Rear-Mounted Brushless Hub |

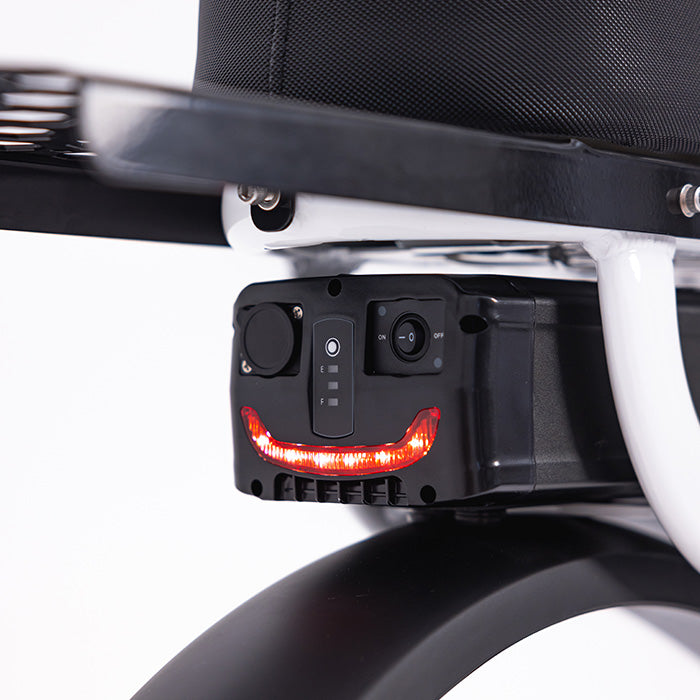

| Battery | 48V 20AH SAMSUNG Lithium-ion |
| Charge Time | 4-6 hours |
| Charger | 48V 2A |
| Controller | 48V 30A |
| Estimated Range | 90km Max on full charge |

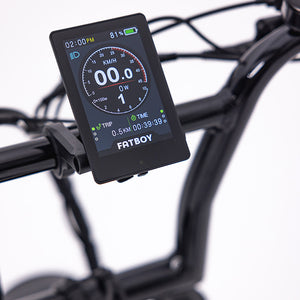

| Display | Water & Dirt Resistant LCD Colour display w. phone charging |
| Drive Mode | Cadence Sensing Pedal Assist 1:9 + Twist Throttle w. Isolator |
| Top Speed | Public Use Speed Restricted to 25 km/h (50km/h unlocked for private use only) |
| Frame | Premium Quality Lightweight Aluminium Alloy |
| Fork | Suspension Fork |

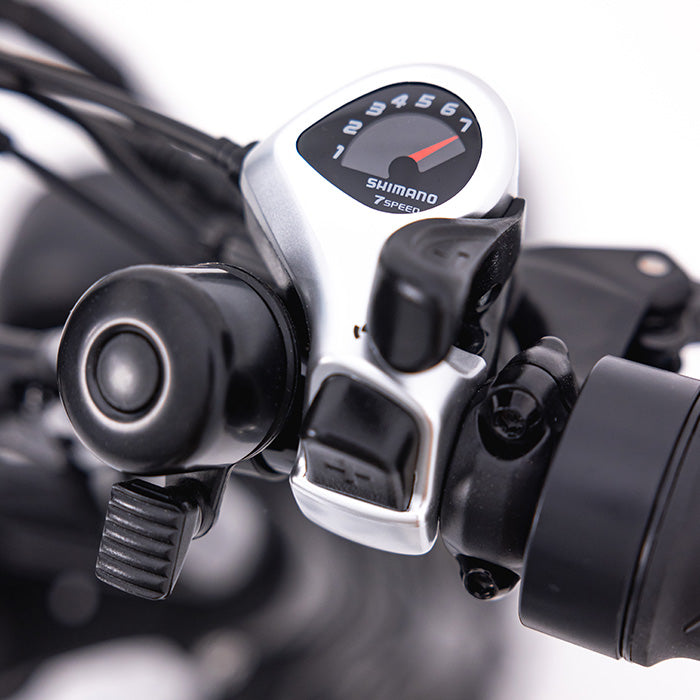

| Gearing | SHIMANO 7 Speed |
| Shift | SHIMANO 7 Speed |

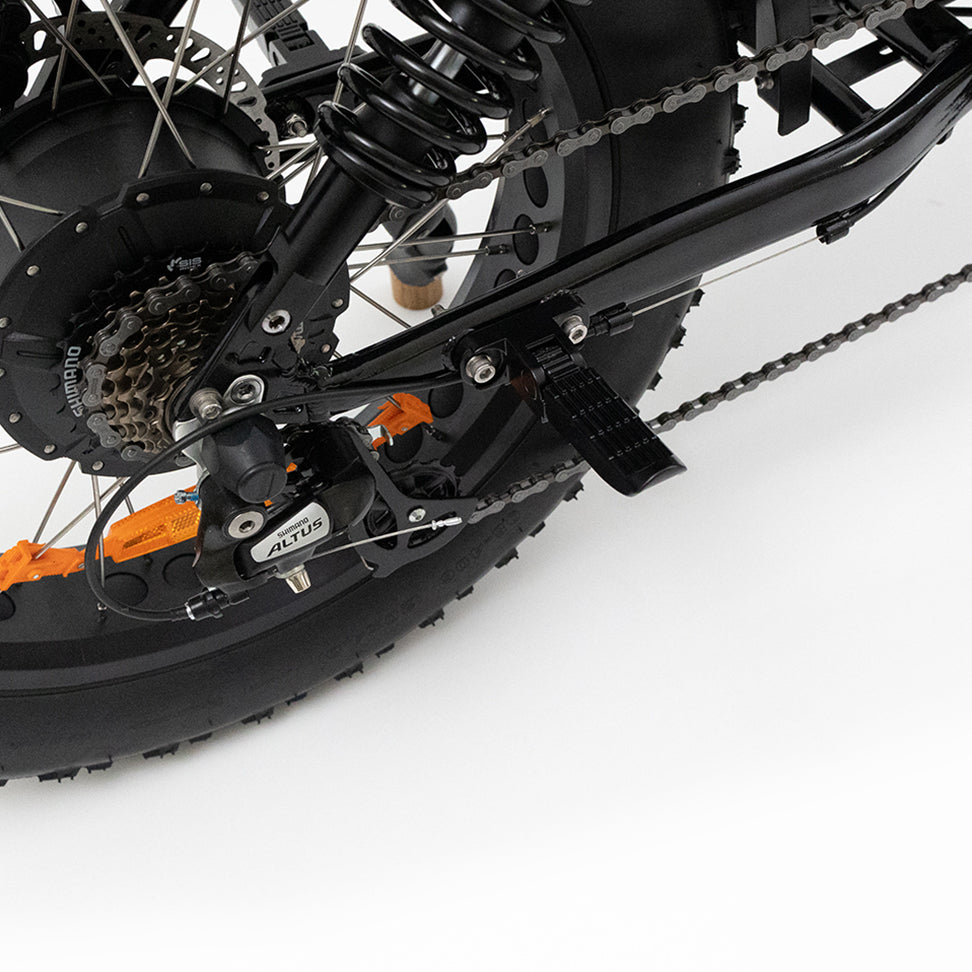

| Derailer | SHIMANO Atlus |

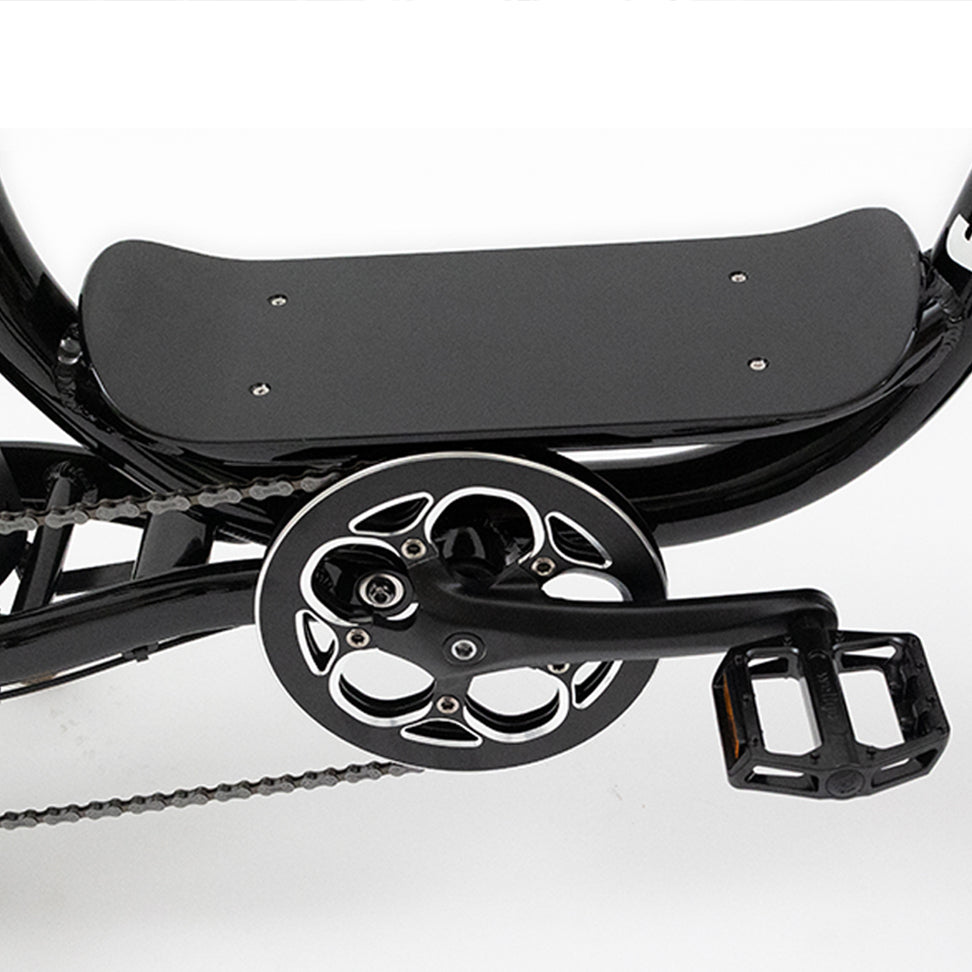

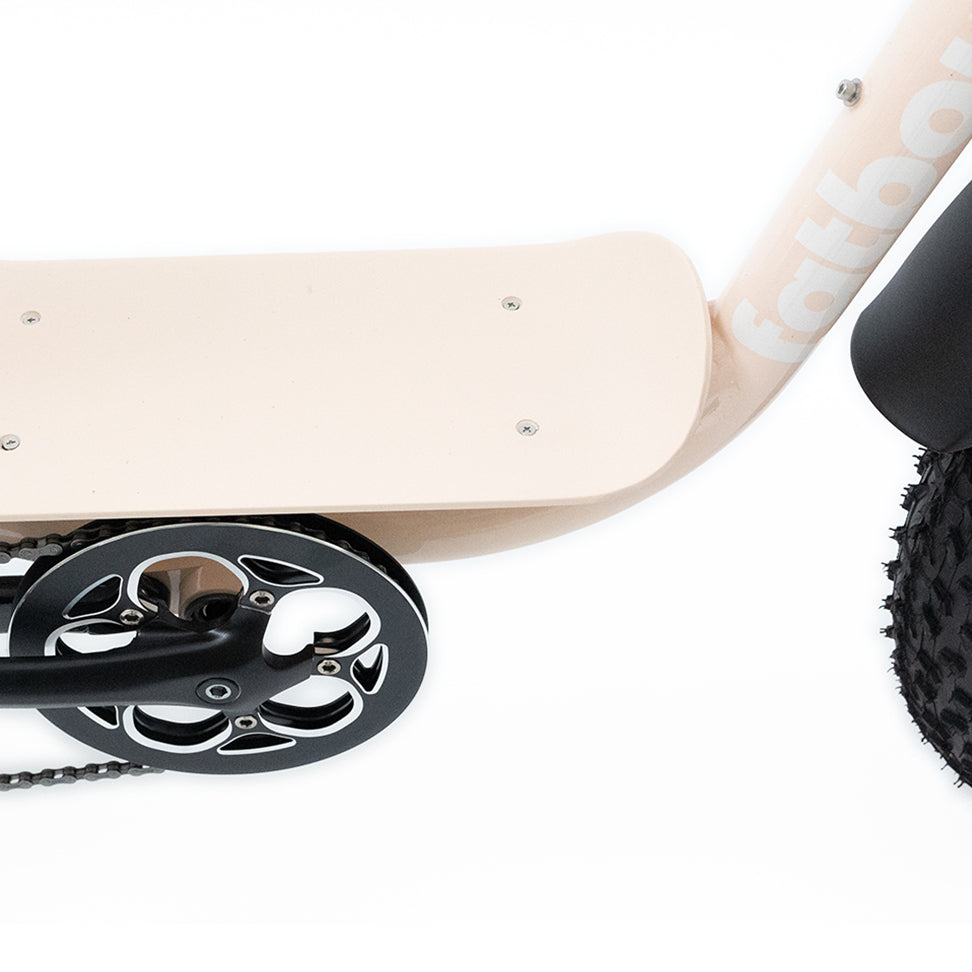

| Cranks | High Quality Ounce Alloy Crank |
| Pedals | Wellgo |
| Footpegs | Alloy |
| Headset | Sealed Bearing |
| Stem & Handlebar | Aluminium Alloy |

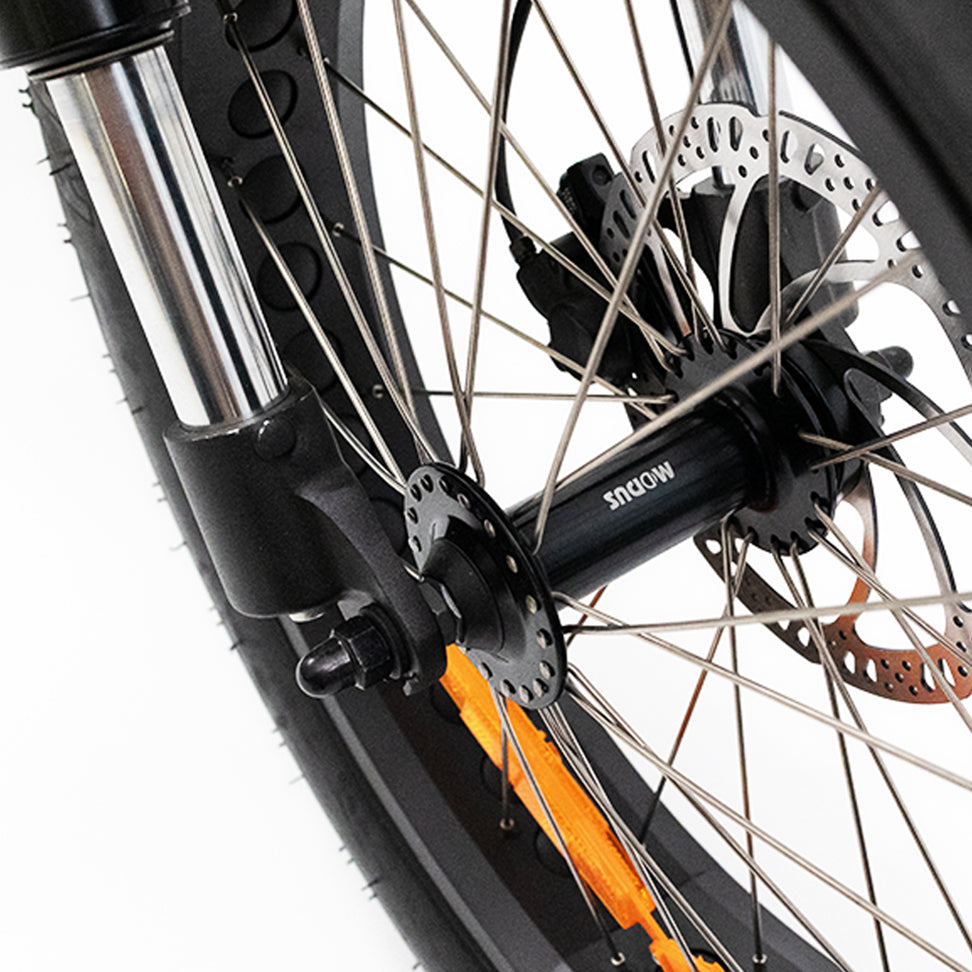

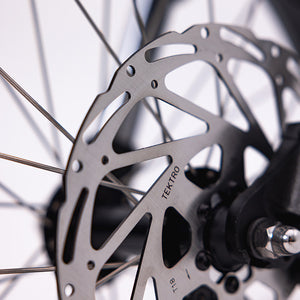

| Brake | Large diameter 180mm TEKTRO Hydraulic Disc Brake |

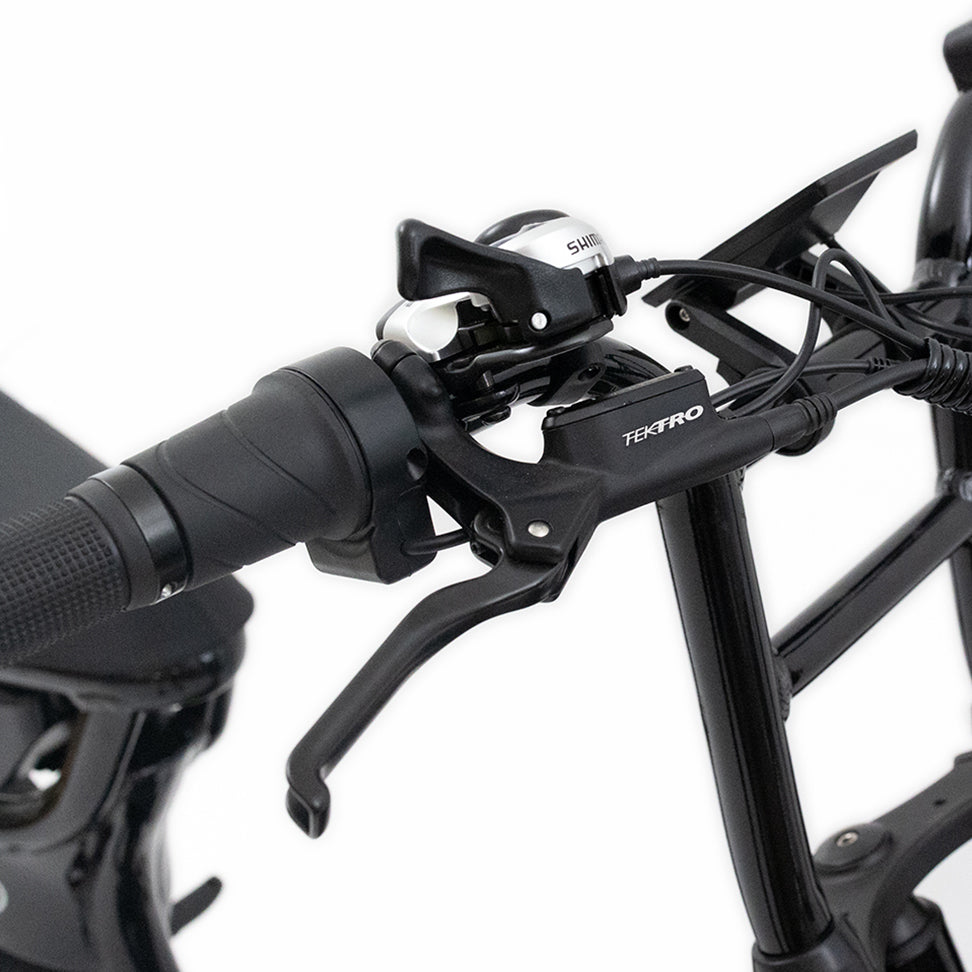

| Levers | TEKTRO Levers and Motor Inhibitor |

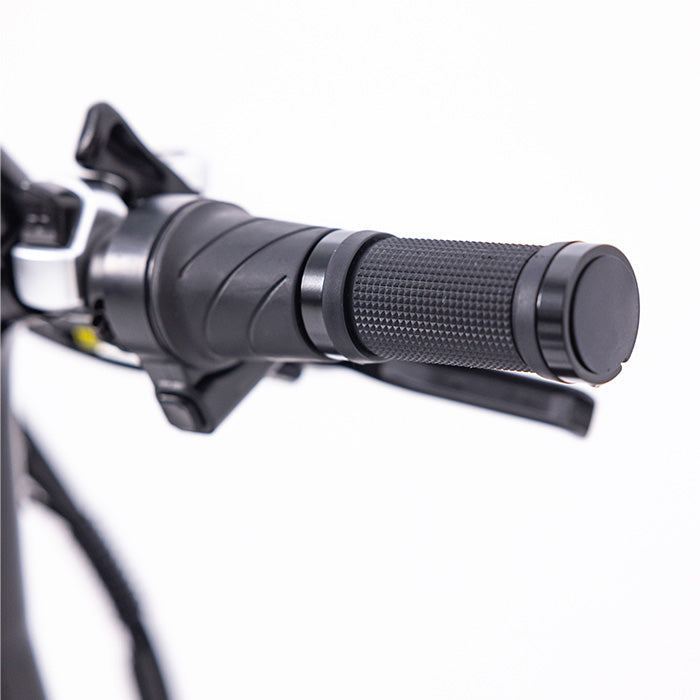

| Grips | Rubber Grips |

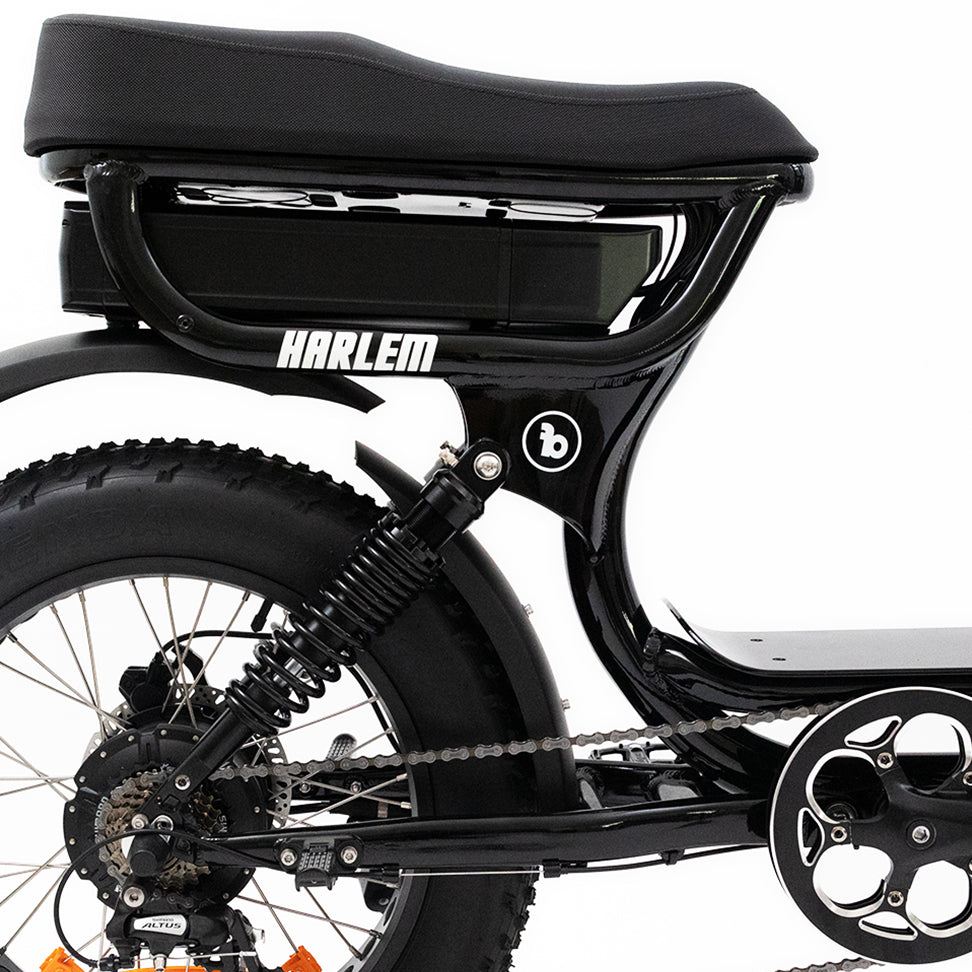

| Saddle | Custom 2 Seater Gripper Seat |
| Rim | Aluminium Alloy w. Holes |
| Spokes | Stainless Steel, 36H |
| Tire | Vee Rubber Puncture Resistant Tyres |
| Fenders | Moulded Plastic |
| Kickstand | Alloy Kickstand |

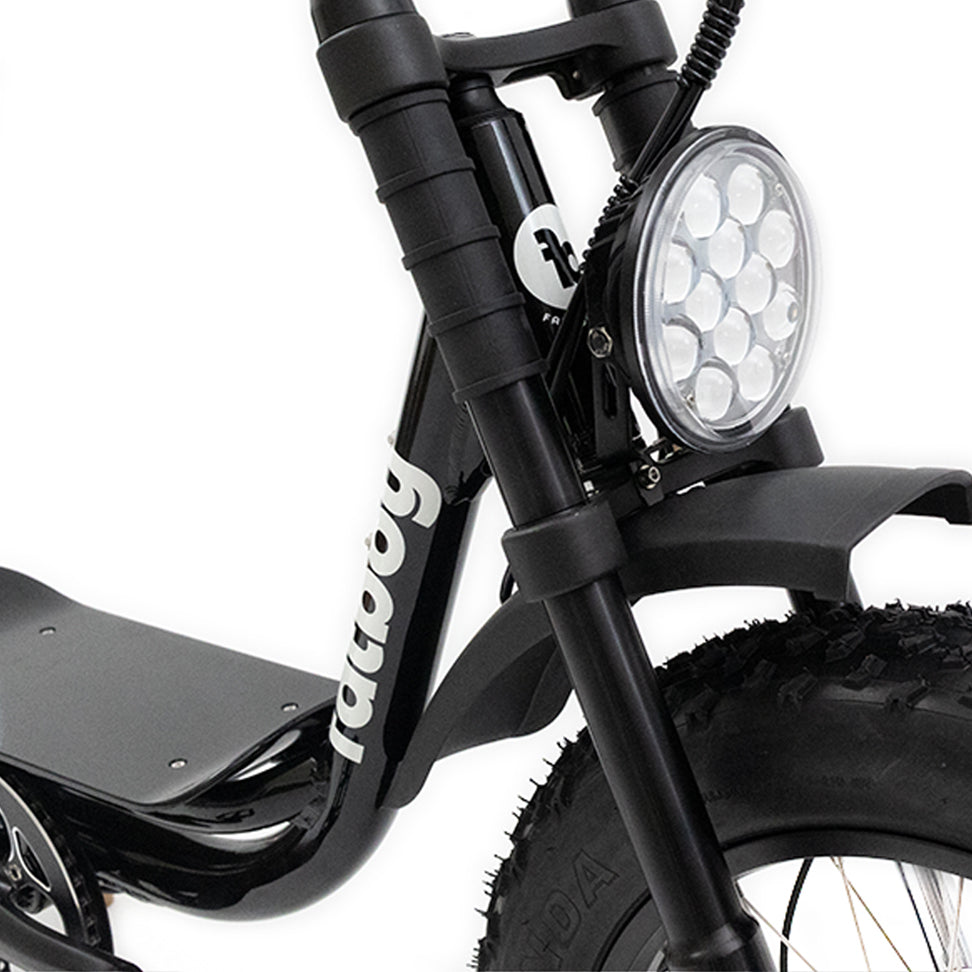

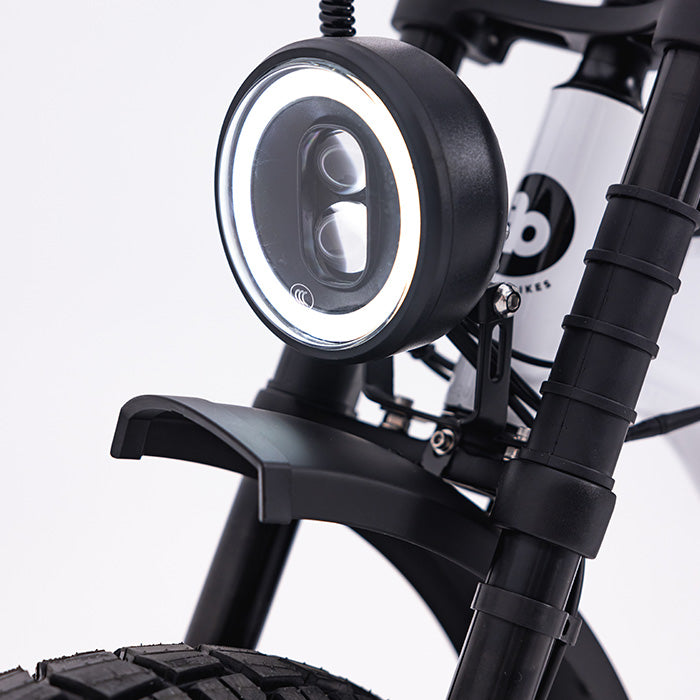

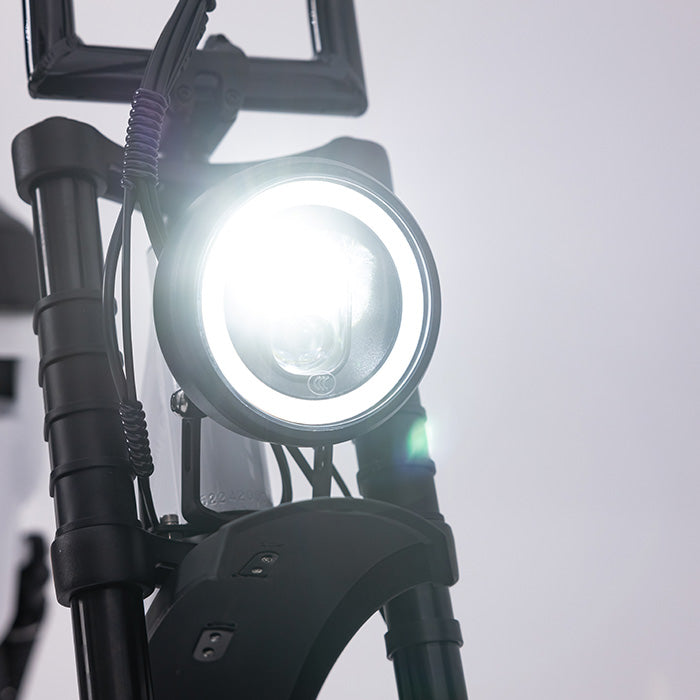

| Head Light | Light Sensing Bright LED |
| Tail Light | Light Sensing Bright LED |
| Included Accessories | Light Sensing LED Headlight & Tail Light, Passenger Footpegs, Mudguards, Hand Throttle w. Isolator |

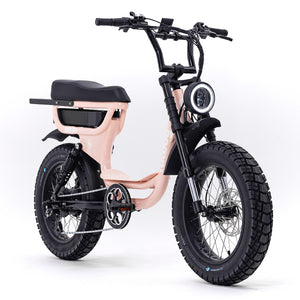

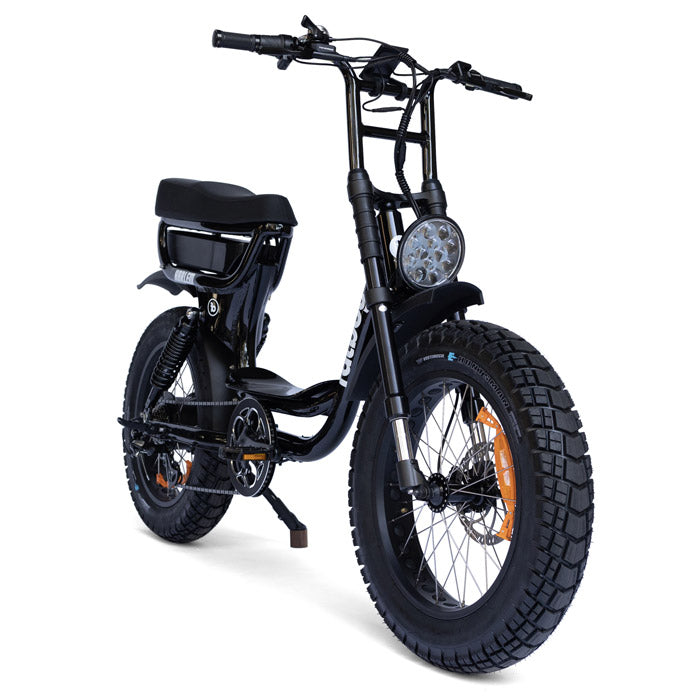

| Colour | Gloss Black | Blush Pink |
| Bike Weight | 38KG bike only |
| Package Size | 190cm x 26cm x 90cm | 48KG boxed |
OPTIONAL ACCESSORIES:

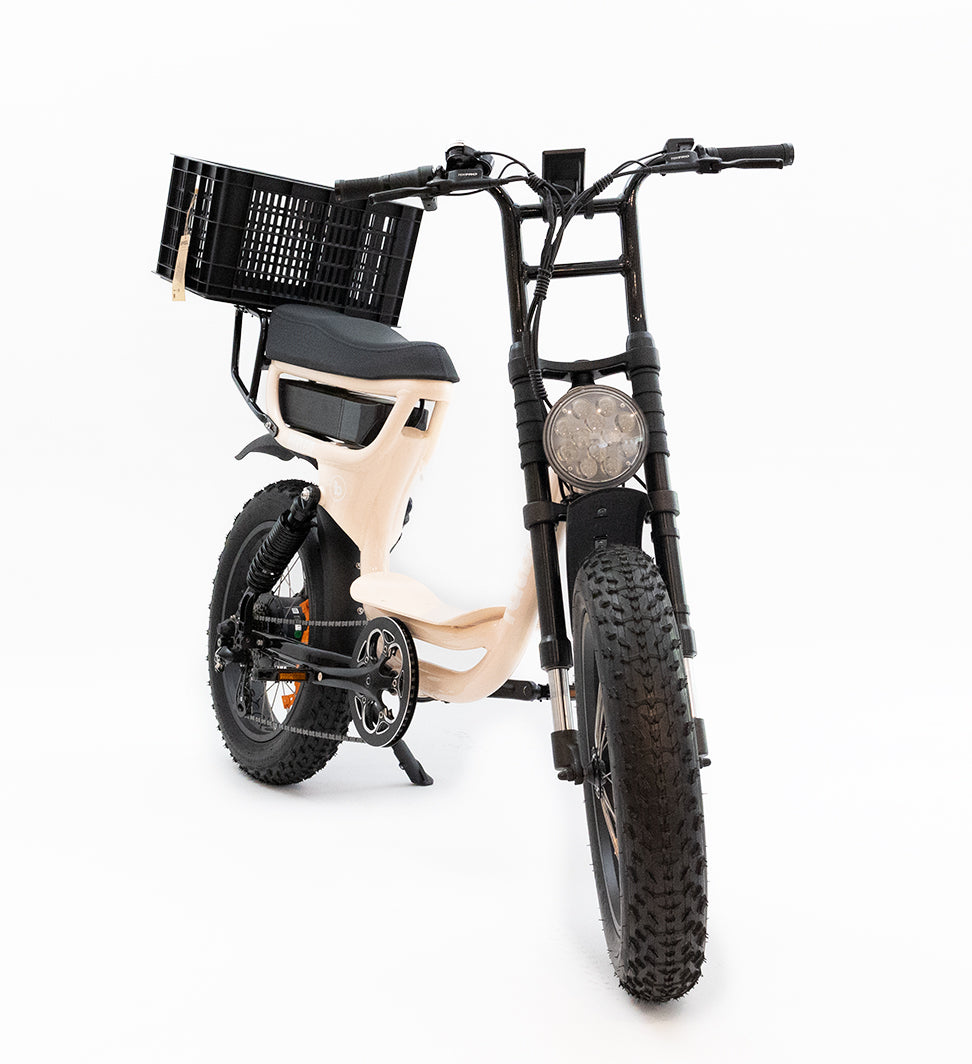

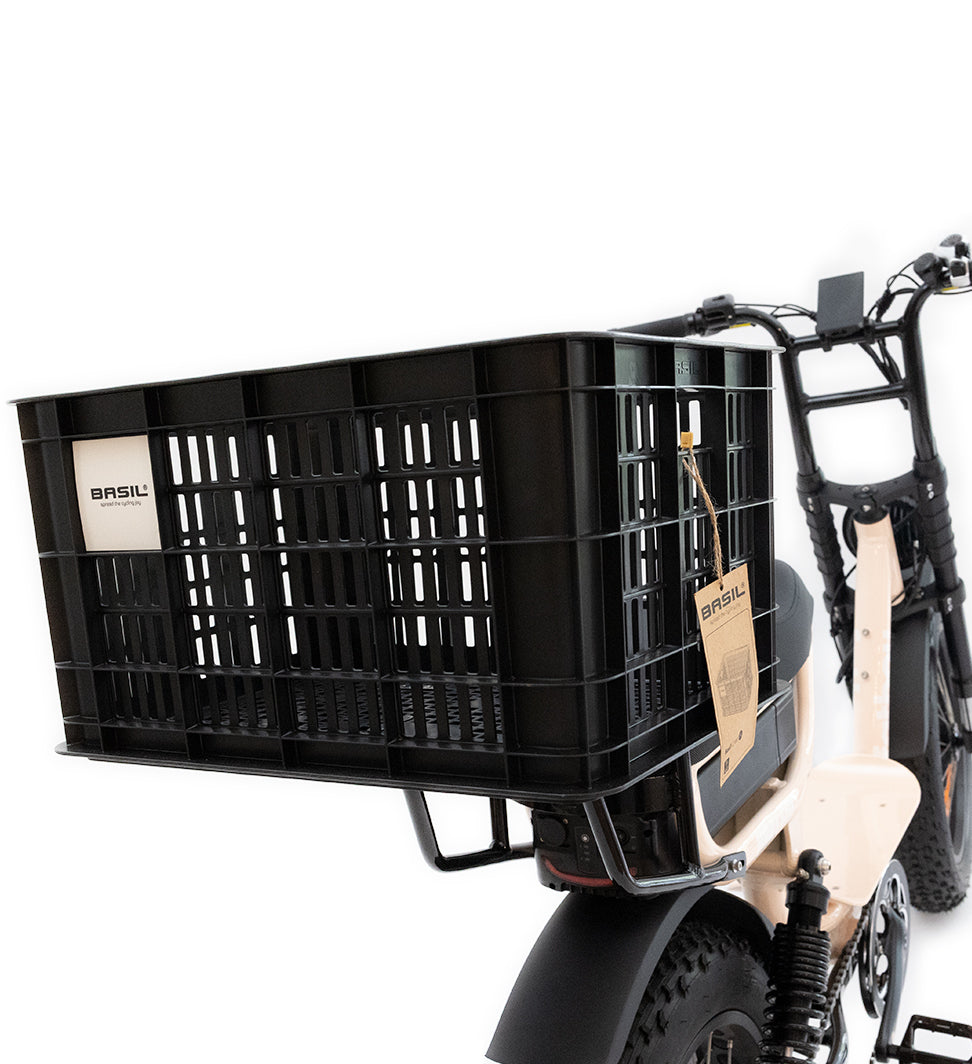

Rear cargo basket, bike lock, handlebar mirror, phone holder, surf rack and more!
