DESCRIPTION

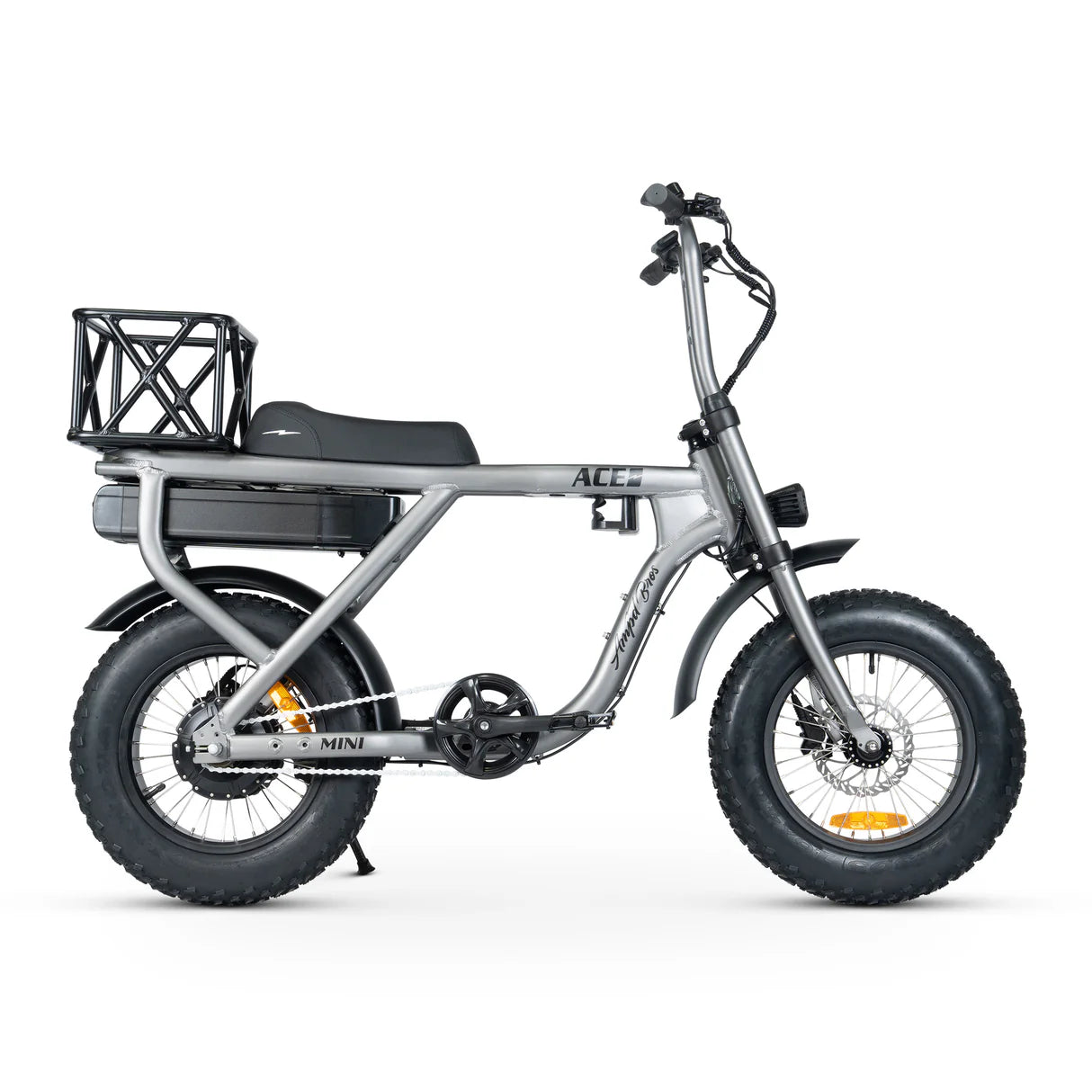

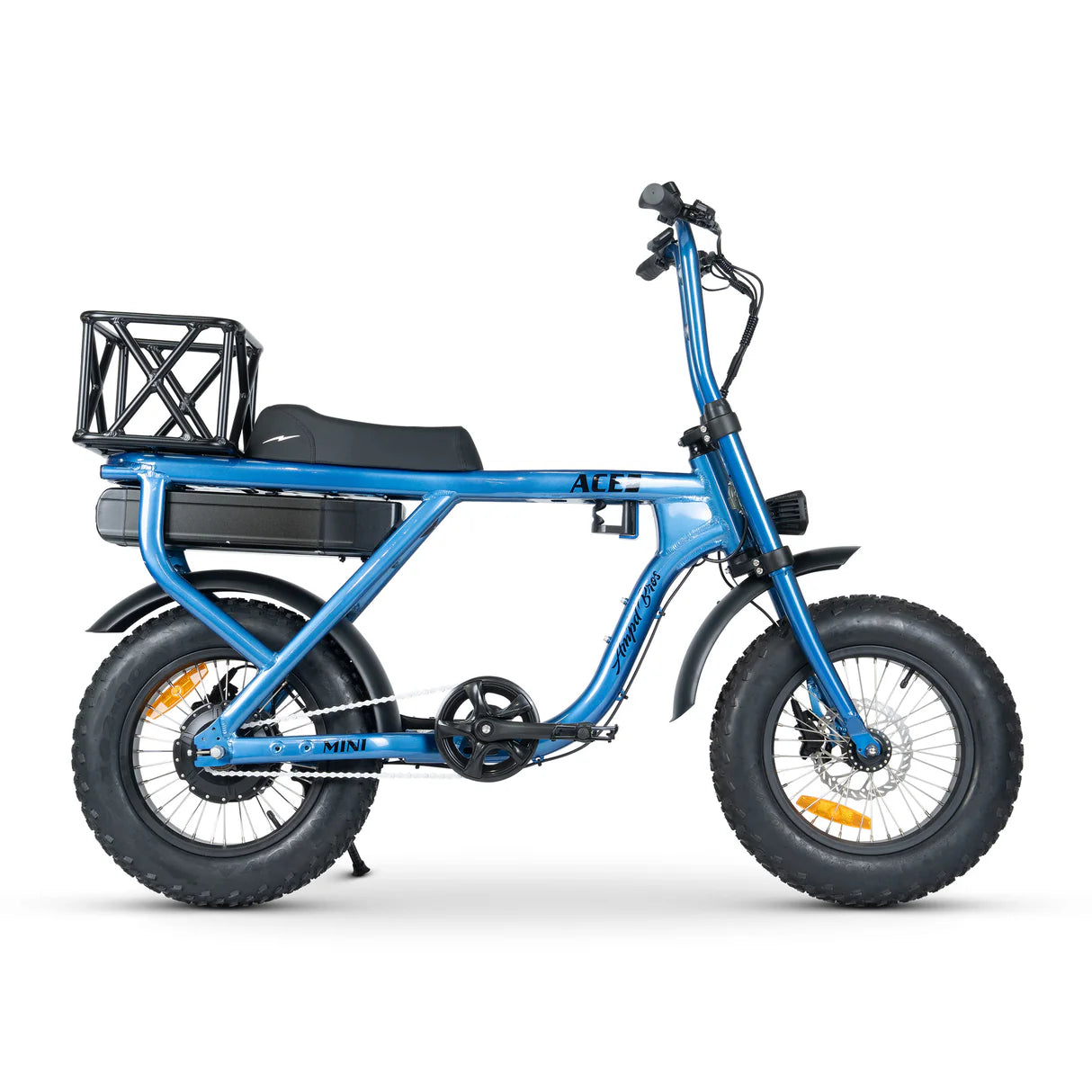

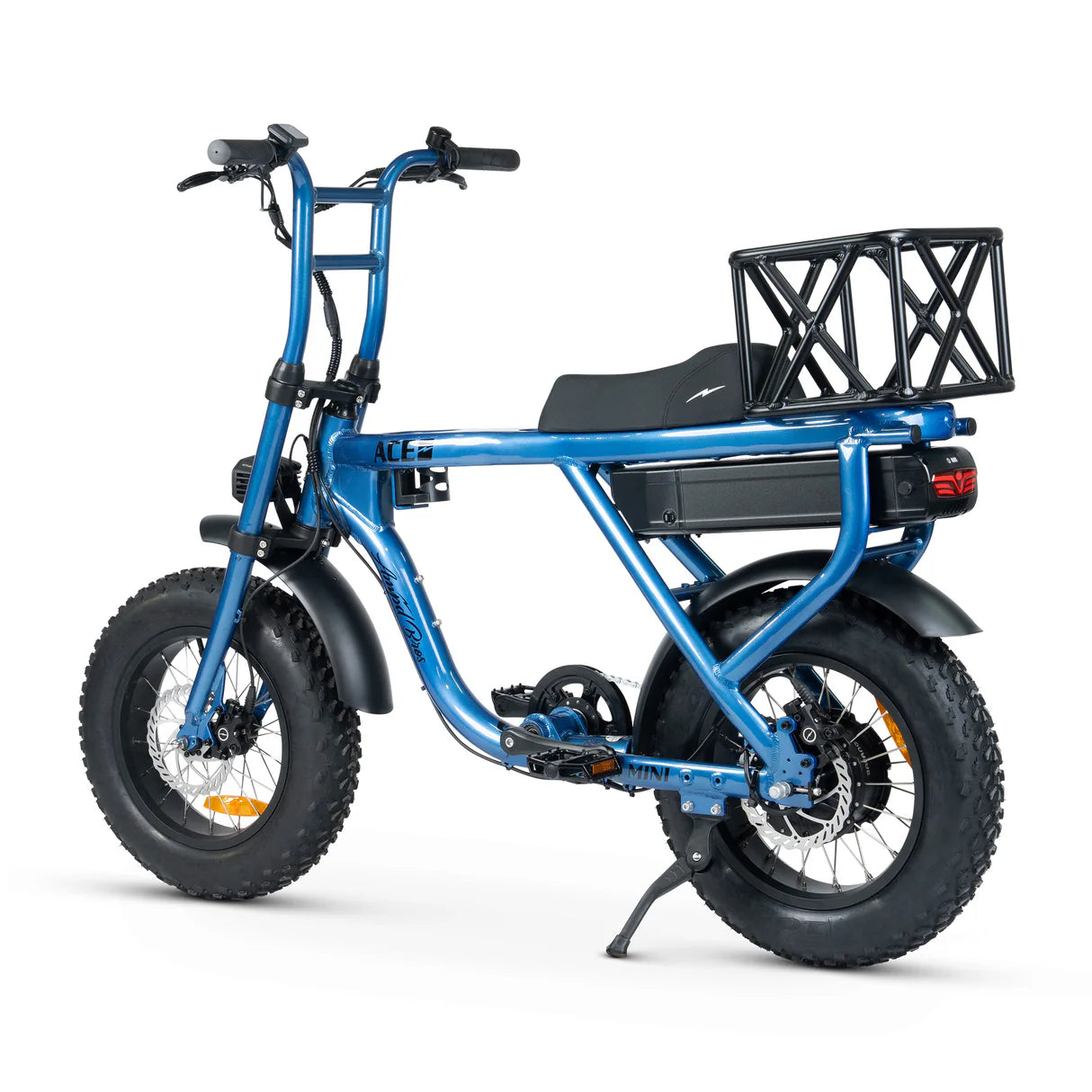

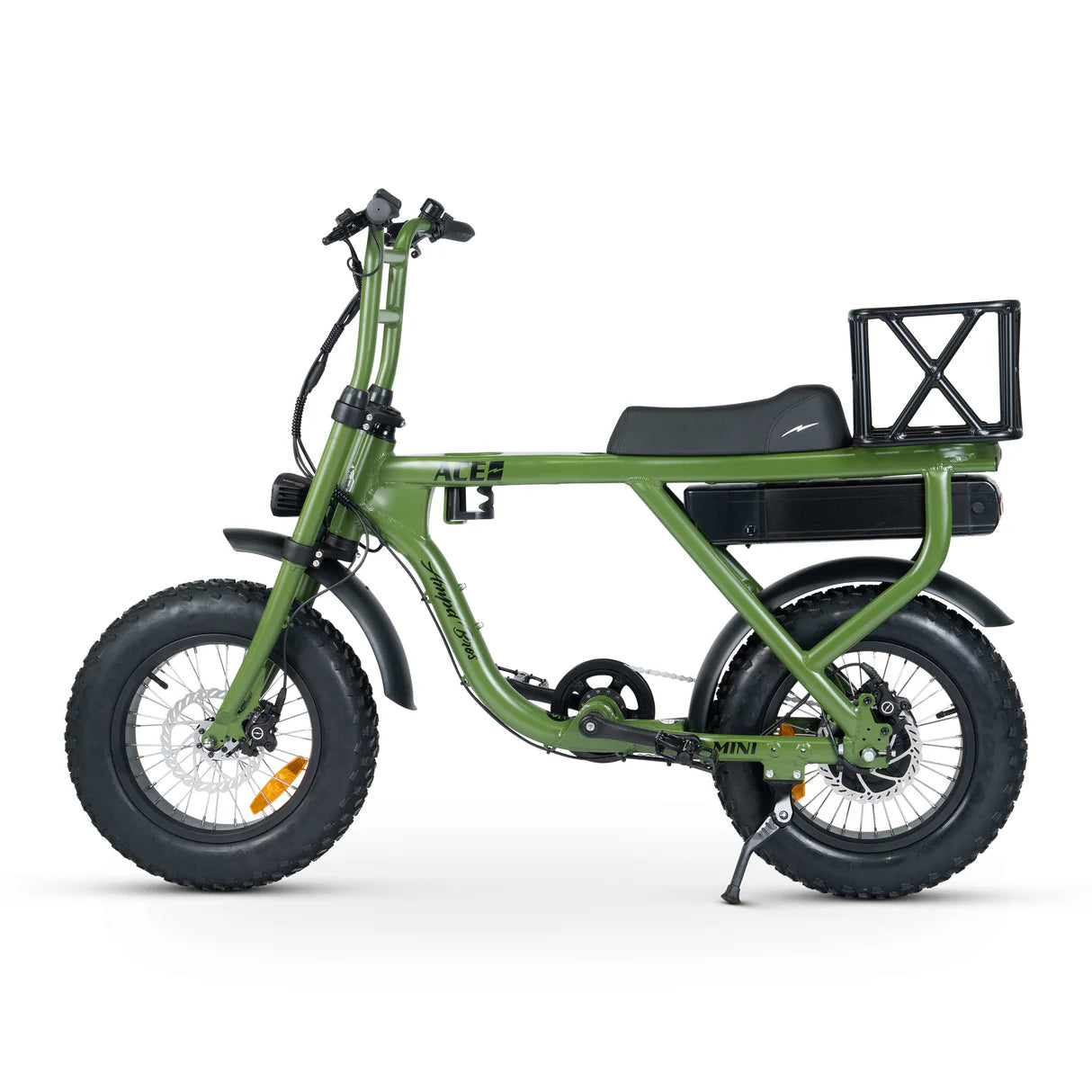

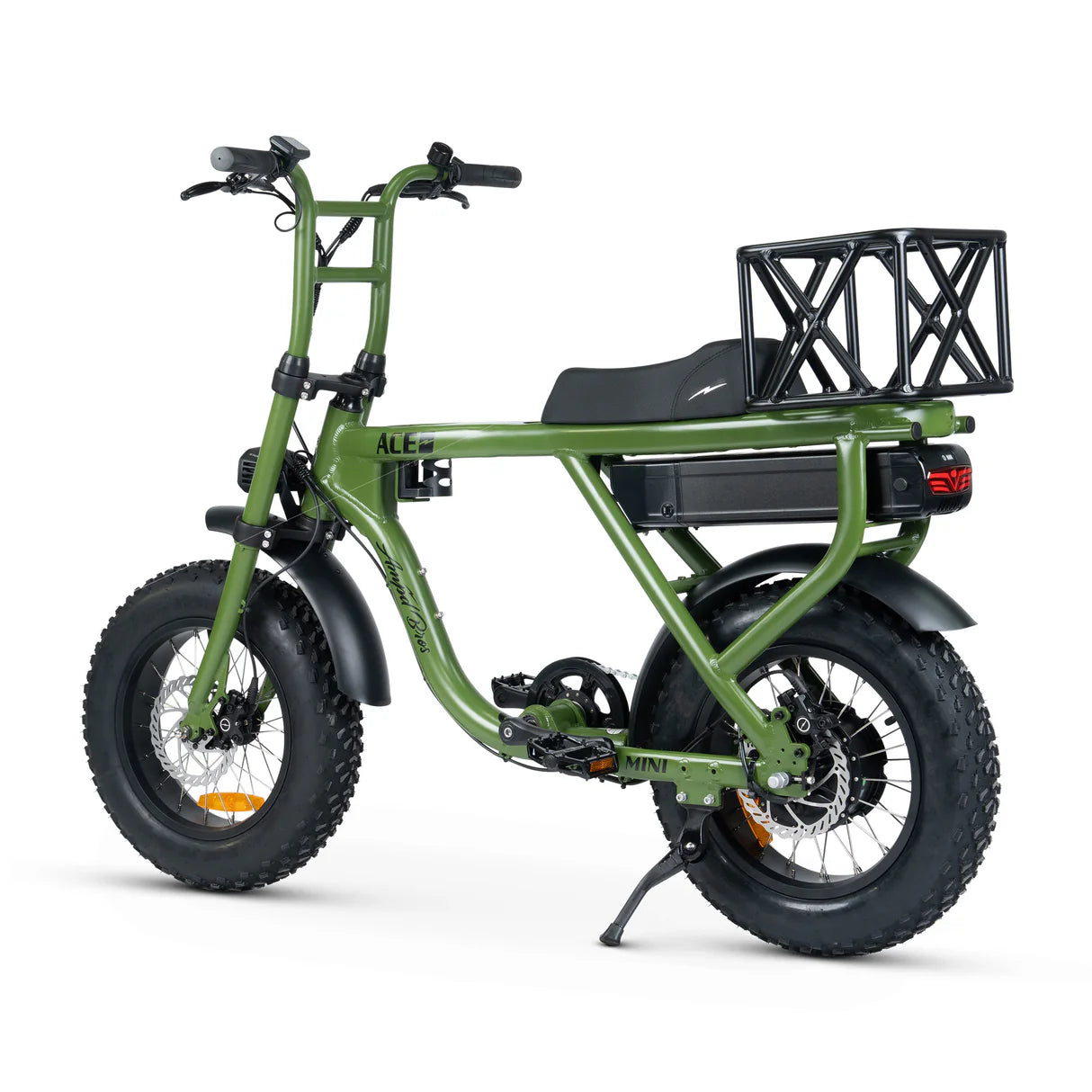

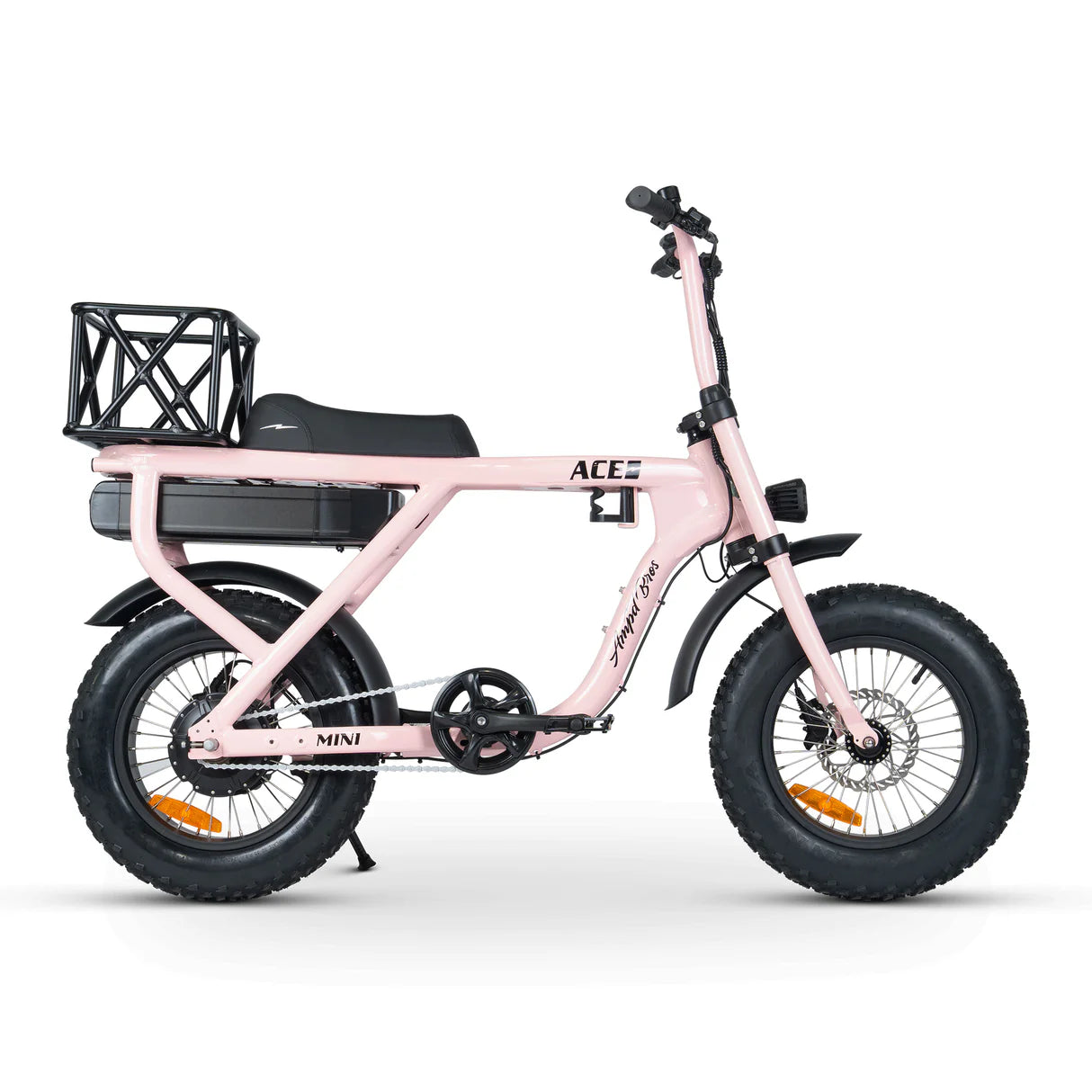

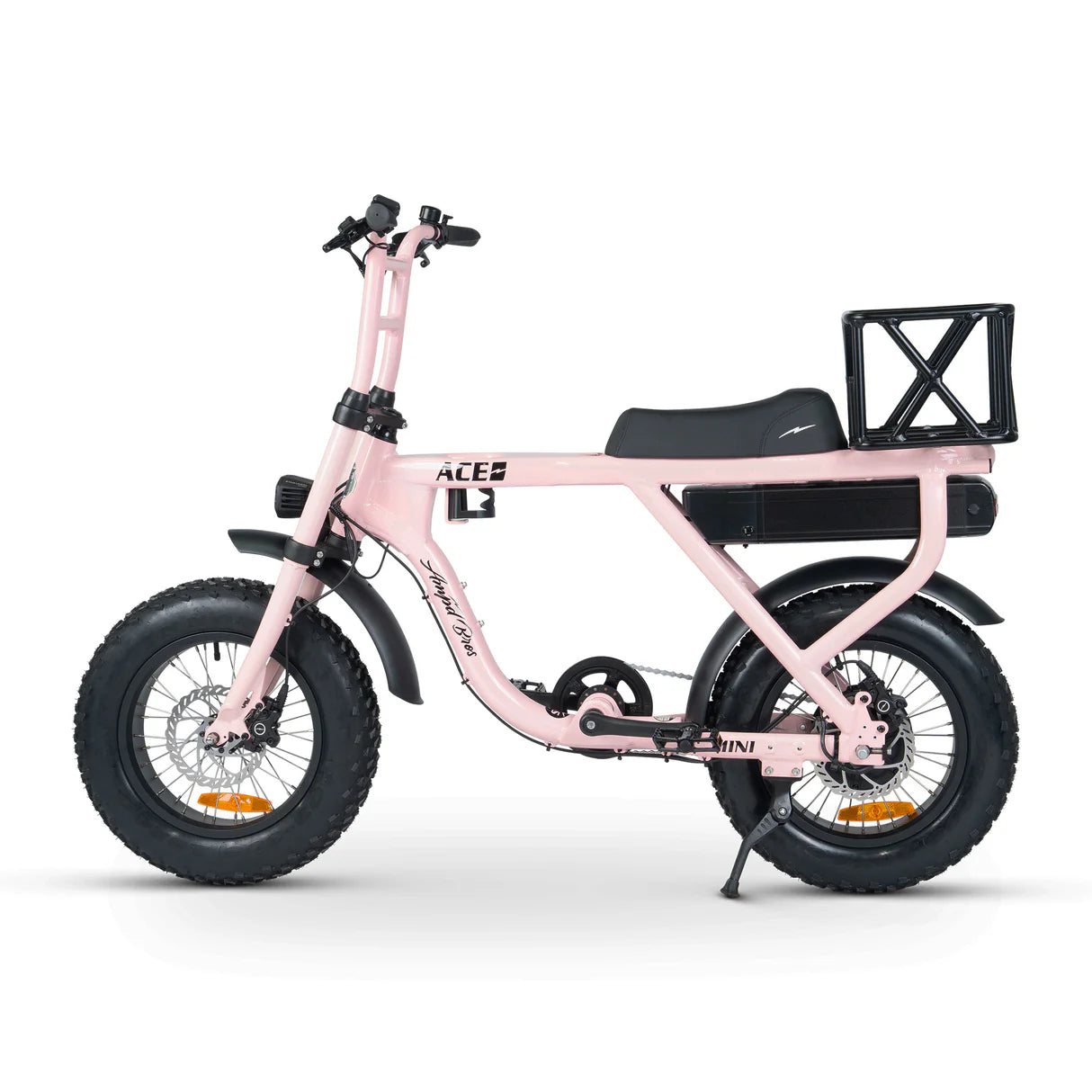

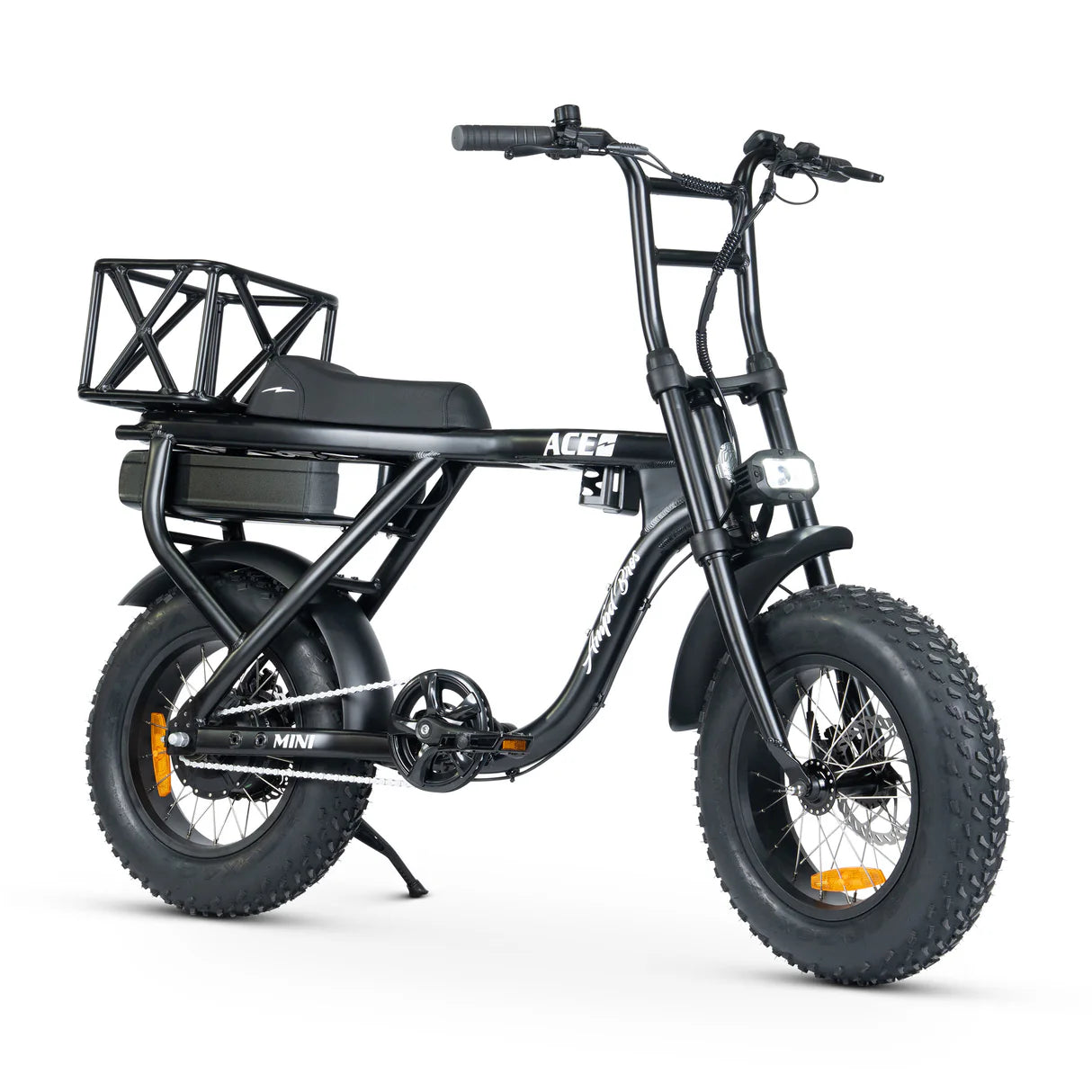

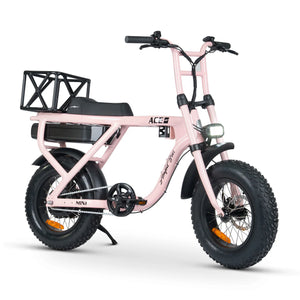

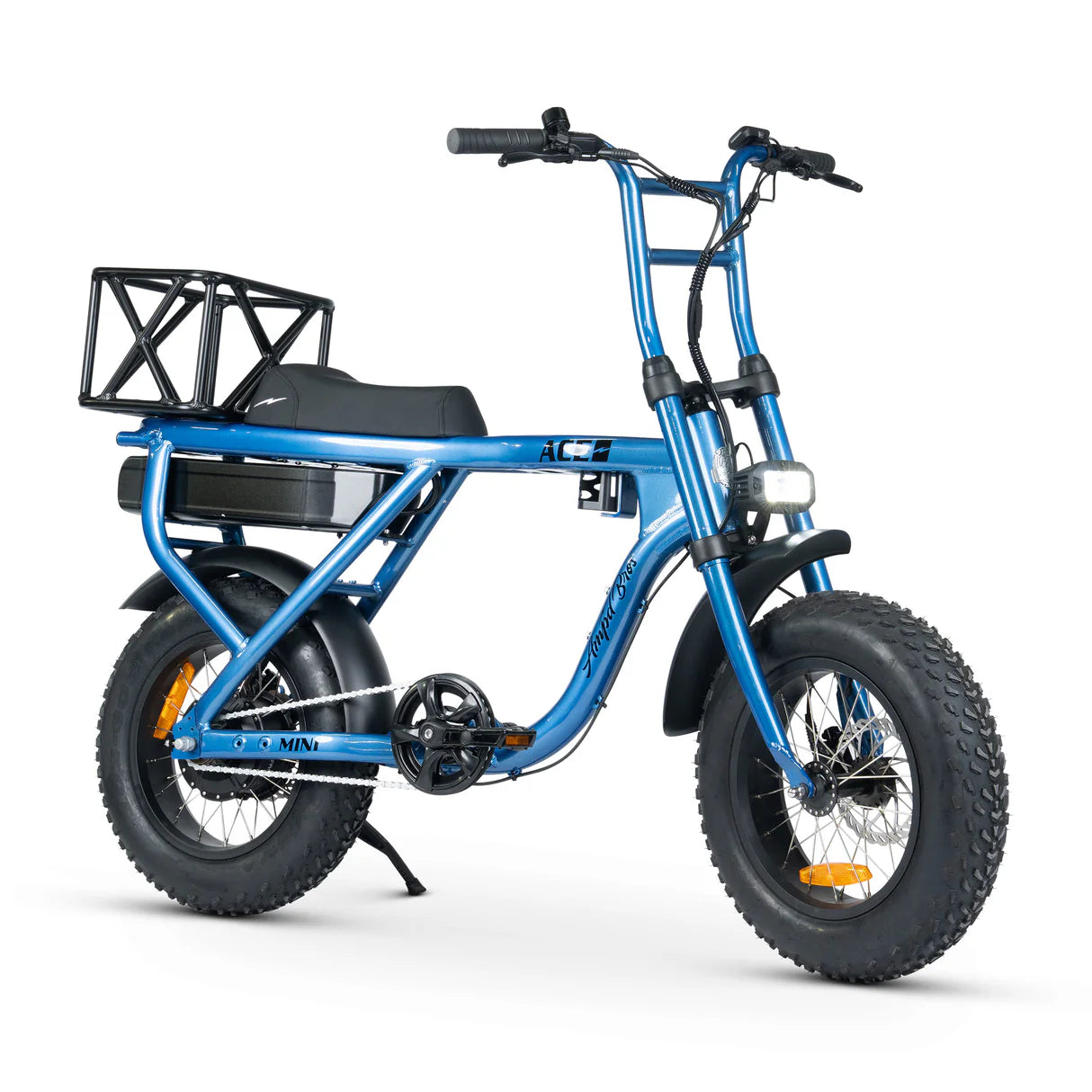

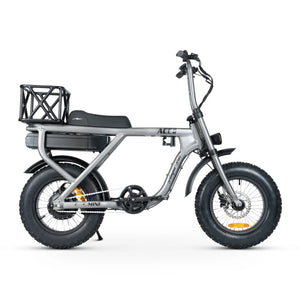

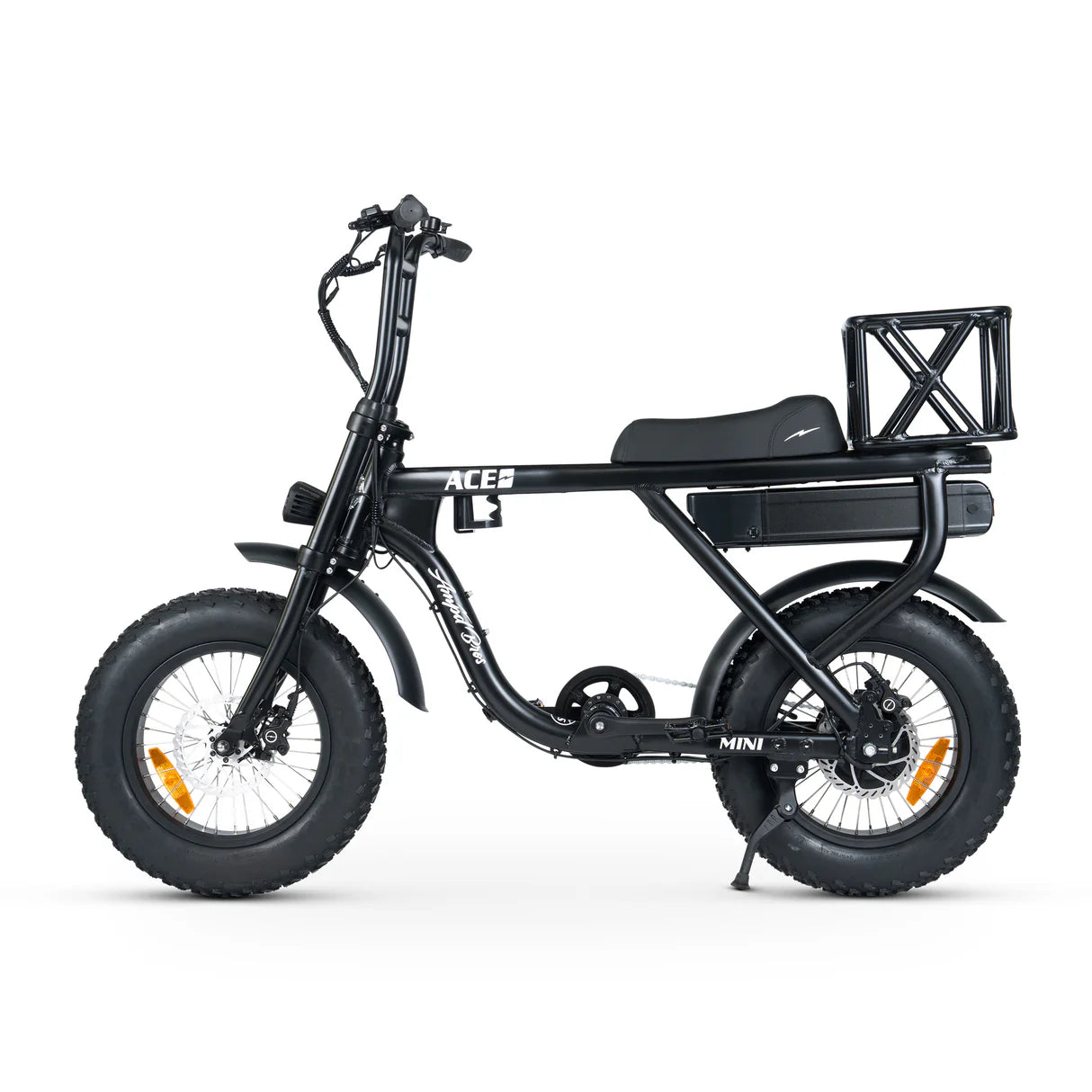

Big Performance in a Small Package – Meet the ACE Mini
Say hello to the ACE Mini – the compact electric cruiser that proves great things come in small sizes. Whether you're commuting to work, cruising the streets, or riding for fun, this small-framed e-bike delivers big on power, character, and performance.
Small Frame, Big Features
Don’t be misled by its name—the ACE Mini is compact, but it’s packed with attitude. Perfect for teens and adults, this lightweight cruiser is ideal for beach trips, city rides, and weekend adventures. Its low-profile design and nimble frame make it easy to store, carry, and handle, whether you’re living in an apartment, travelling in a caravan, or always on the move.
Power That Goes the Distance
The ACE Mini comes with a high-torque Bafang rear hub motor, reaching speeds of up to 25km/h—or 30km/h when adjusted for private off-road use—giving you quick acceleration and smooth control. It runs on a removable 48V 10AH Samsung lithium battery, offering up to 40km of range per charge, so you can ride longer without constantly recharging.
Built for All Terrains

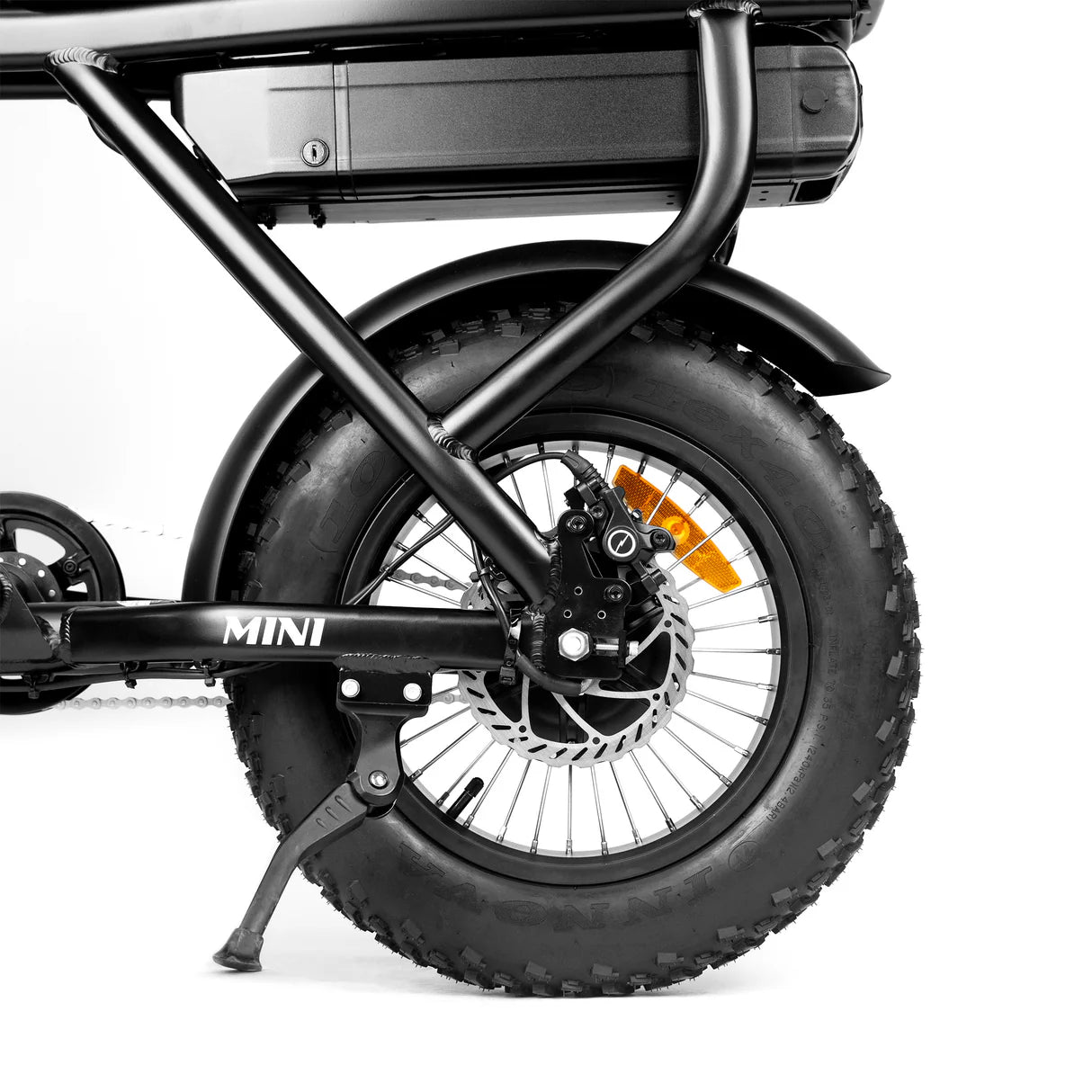

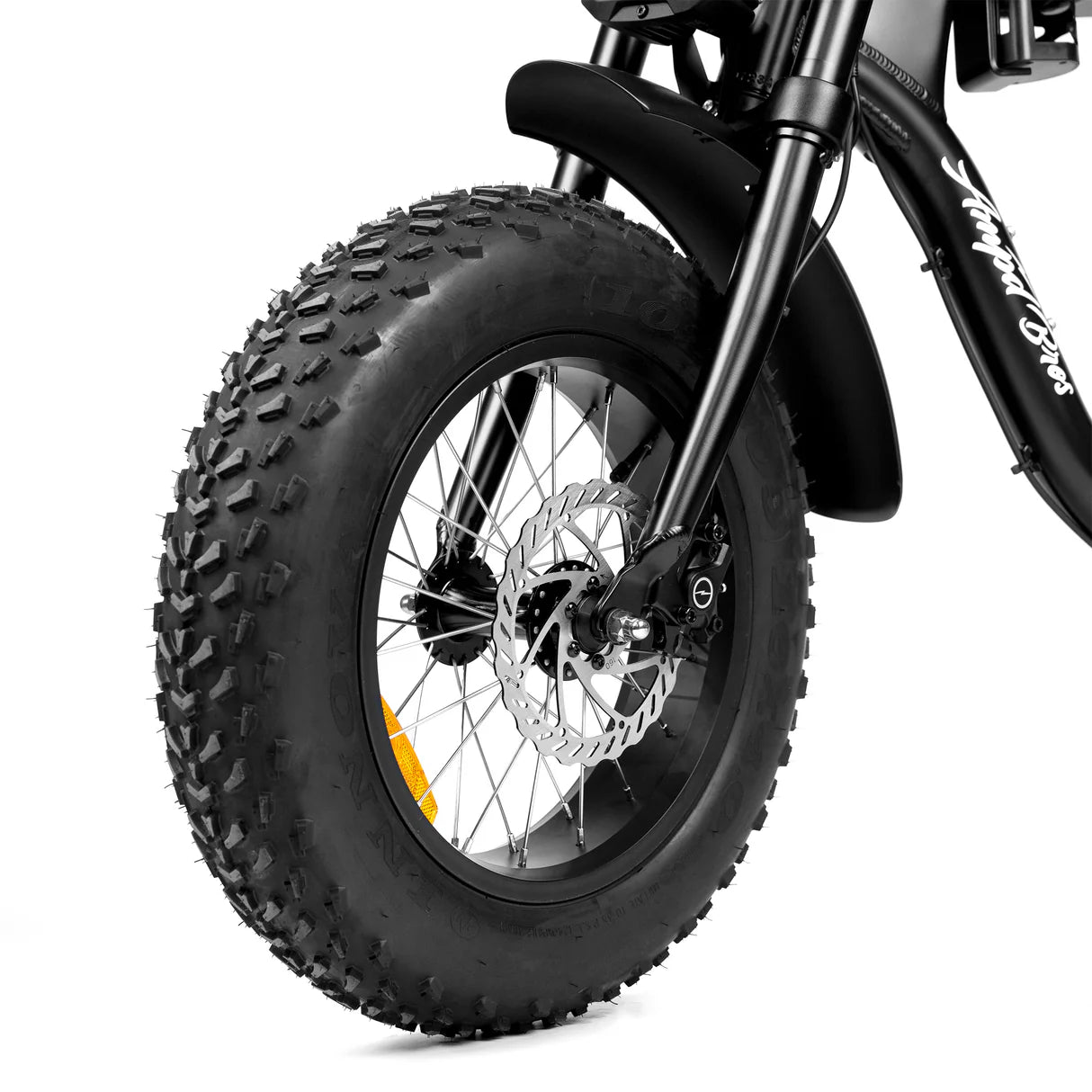

Whether you're riding along paved paths or sandy tracks, the ACE Mini offers stability and control thanks to its rugged 16x4” fat tyres. Powerful hydraulic disc brakes deliver reliable stopping power, and the high-intensity LED headlight along with the colour Micro LCD Display keep you visible and informed, even during evening rides.
Practical and Customisable

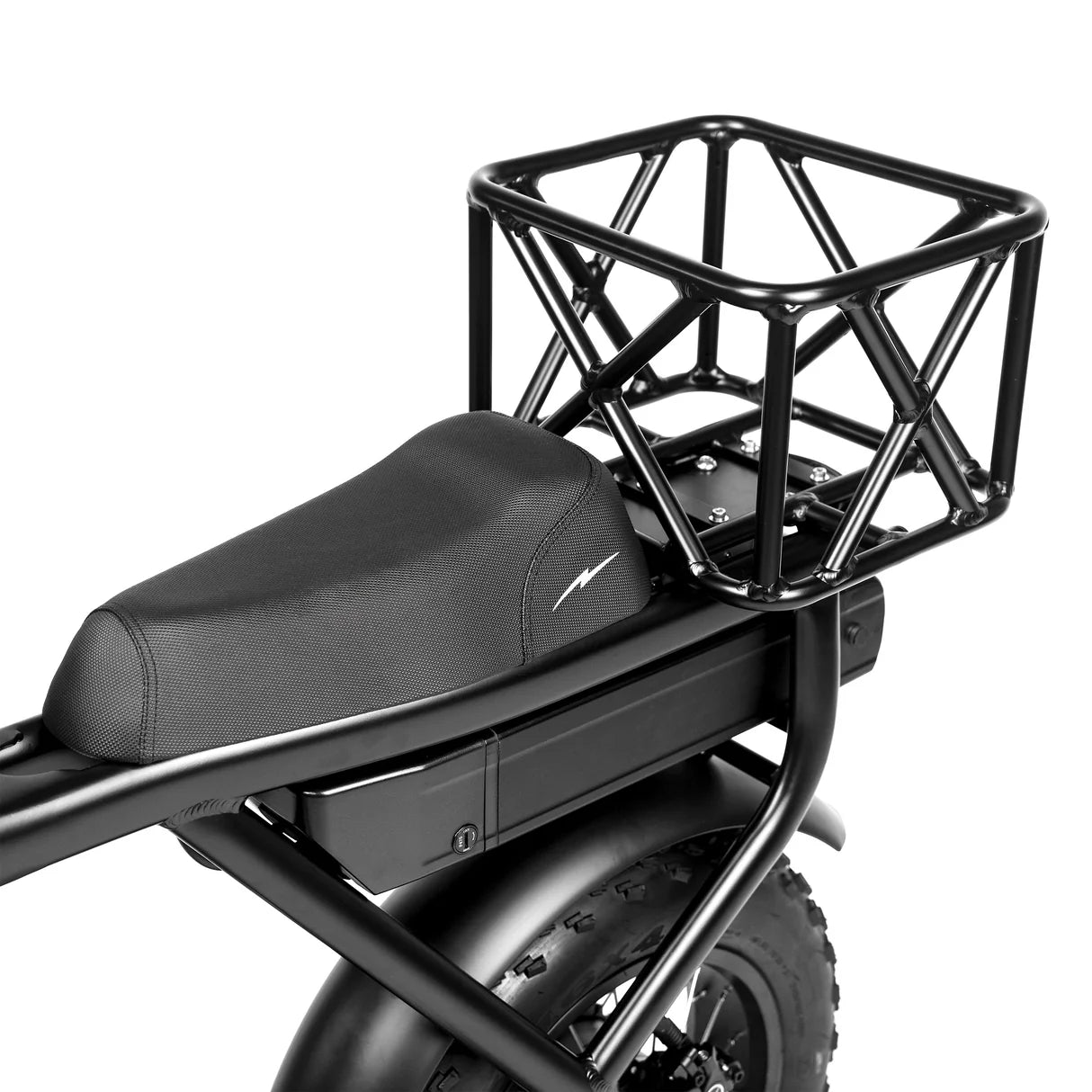

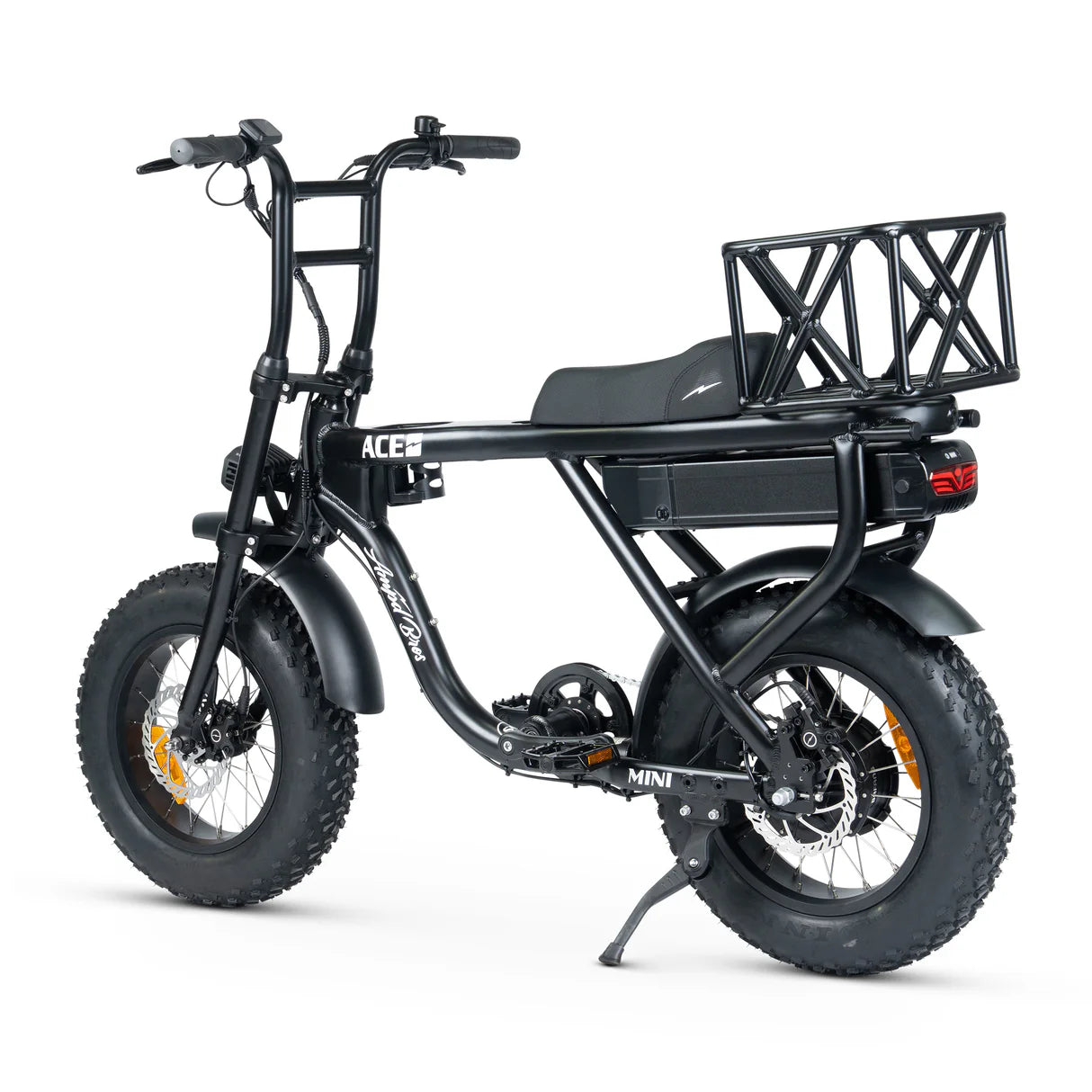

Each ACE Mini includes a durable, lightweight rear aluminium basket—perfect for groceries, gear, or everyday essentials. Planning to carry a passenger? You can easily swap the basket for an optional extended dual seat, adding even more flexibility to your ride.
Ready for Everyday and Adventure Use
Thoughtfully built with a sturdy frame and sleek, minimalist design, the ACE Mini is as stylish as it is functional. Whether you’re grabbing a coffee, riding along the coast, or just enjoying some weekend freedom, this cruiser is the perfect ride for everyday explorers and casual adventurers alike.
Note: Be sure to check local laws and regulations regarding where and how electric bikes like the ACE Mini can be used safely and legally in your area.
SPECIFICATION
ACE SERIES 4
Range
- Ace Mini Models 40km+
- Ace Standard Models 60km+
- Ace Plus/Cargo Models 80km+
Top Speed (Off Road Private Property)
- All Models Restricted to 25km/h
- Ace Mini Up to 35km/h (When modified for Private Property Use)
- Standard Up to 40km/h (When modified for Private Property Use)
- Ace Plus/Cargo 45km/h (When modified for Private Property Use)
Battery
- Ace Mini 48V / 480Wh, 10AH
- Standard 52V / 780Wh, 15AH
- Plus/Cargo 52V / 1,040Wh, 20AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Motor
- All Models Bafang Rear Hub Restricted to 250W High Torque Motor
- Ace Mini 500W / Peak 750W+ (When modified for Private Property Use)
- ACE Standard 500W / Peak 750W+ (When modified for Private Property Use)
- ACE Plus/Cargo 750W / Peak 1,000W+ (When modified for Private Property Use)
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- Ace Mini Ampd Bros Hydraulic with 160mm Disc
- Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance & Rust Resistant
Construction
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs

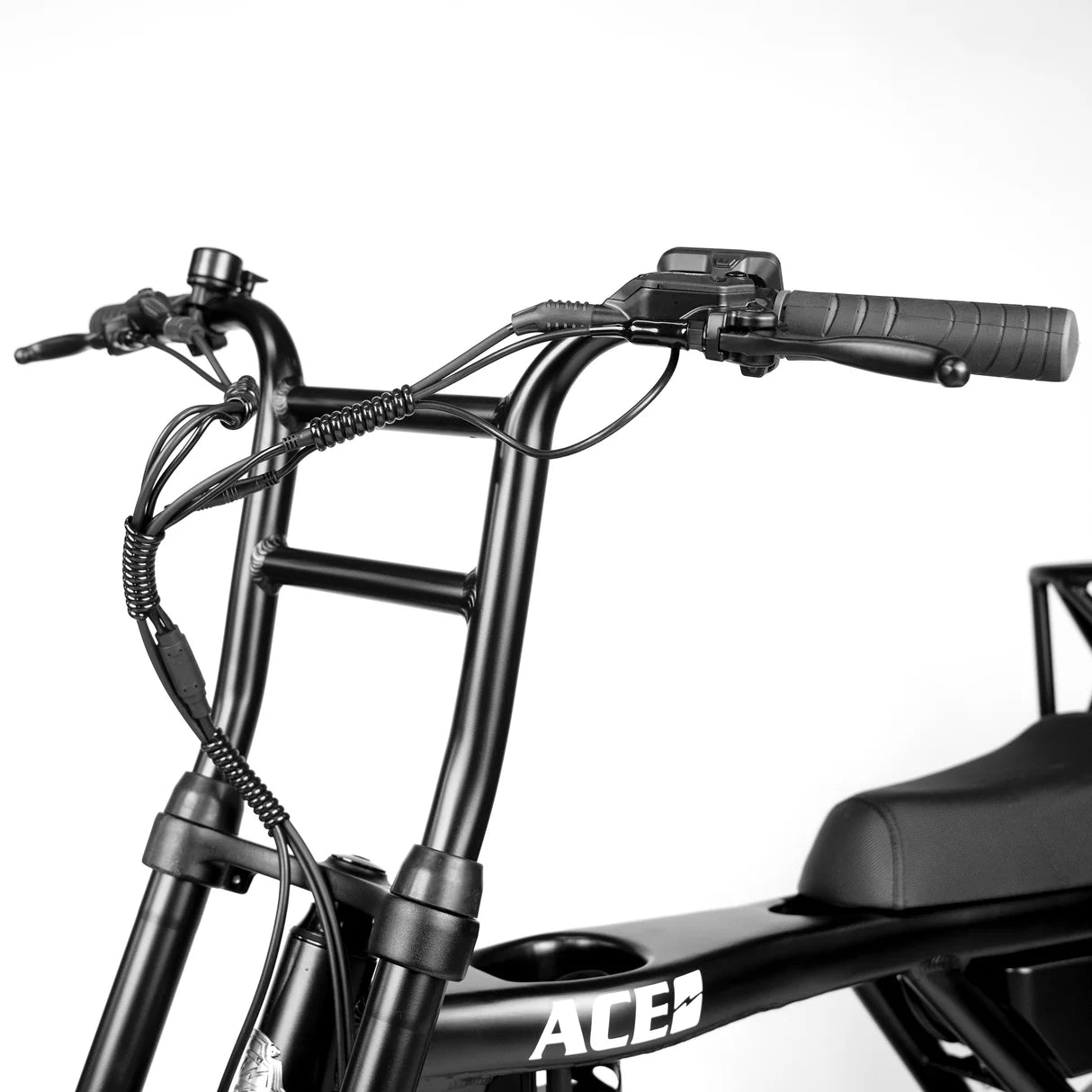

- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Mini & Standard Models No Suspension
- Plus+ Models Front Custom Tuned Adjustable Fork
- Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
- Ace Mini 16x.40" Innova Mud Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 5-6hrs 10Ah Batteries with Standard 2A Charger
- 7-8hrs 15Ah Batteries with Standard 2A Charger
- 9-10hrs 20Ah Batteries with Standard 3A Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall

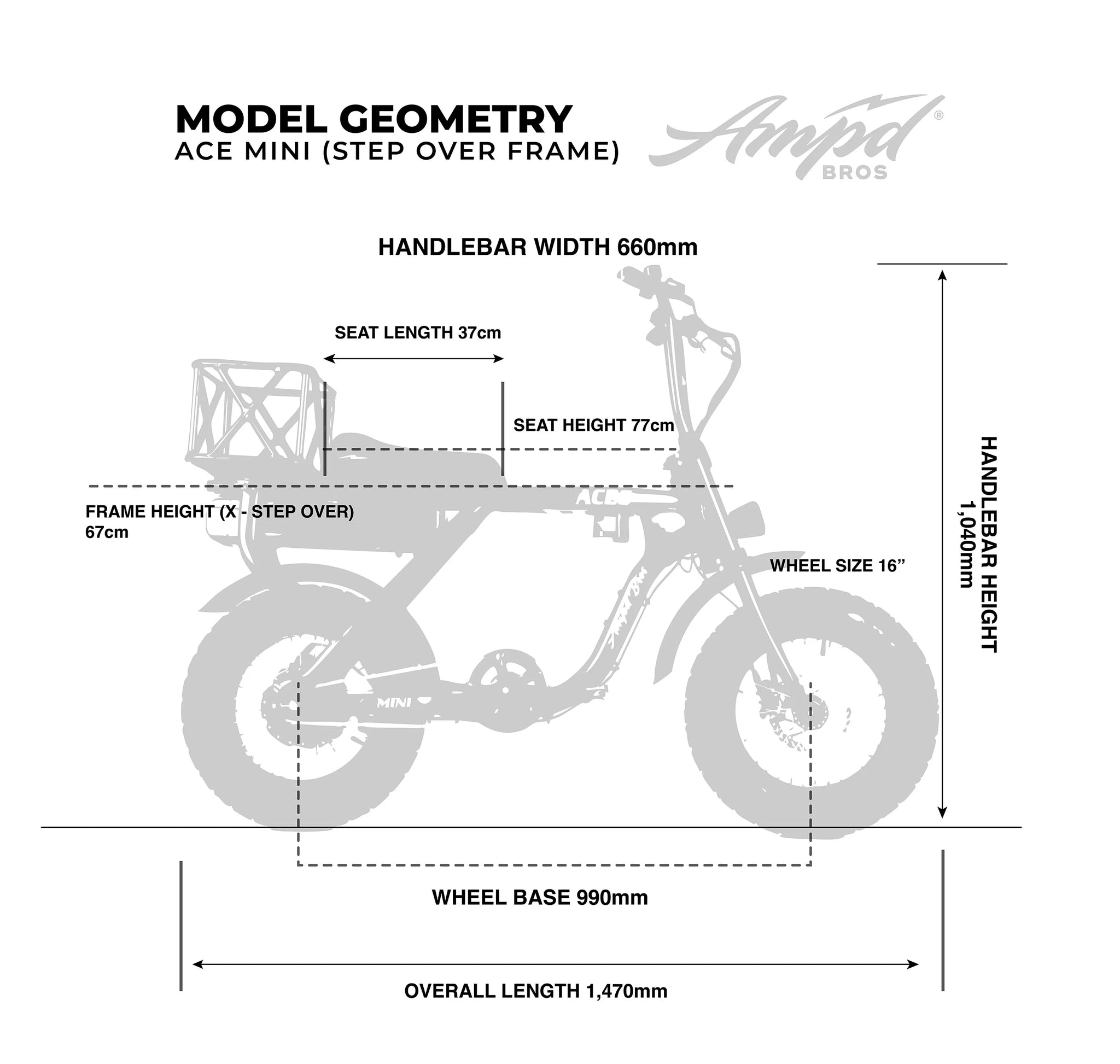

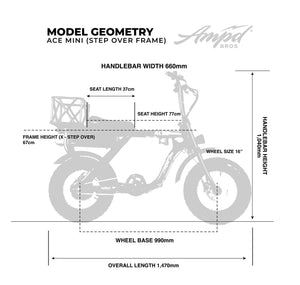

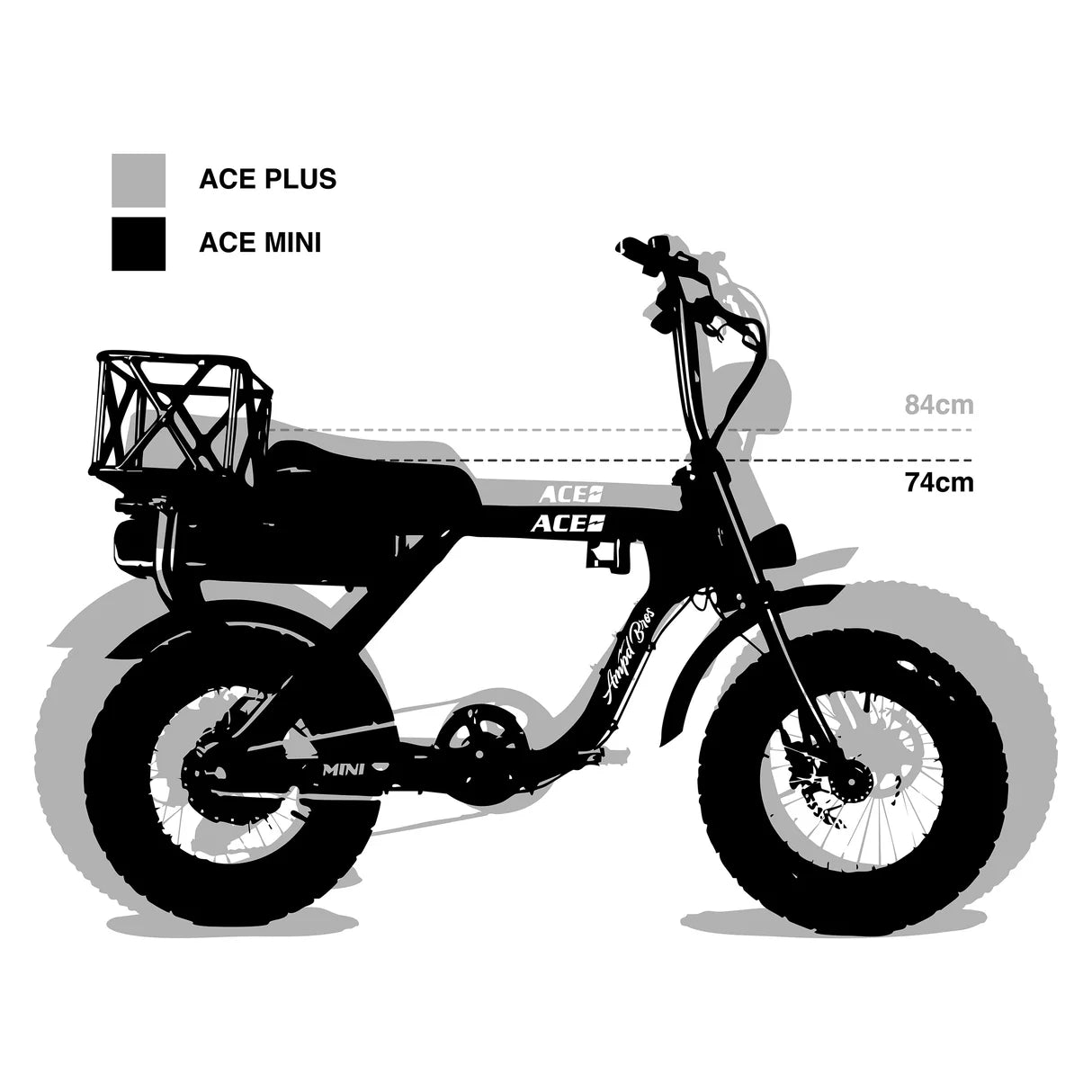

Ace Mini Dimensions
- Overall Length 1,470 mm
- Handlebar Height 1040 mm
- Handlebar Width 660 mm
- Seat Height 770 mm Fixed Height
- Seat Length 370 mm
- Ground Clearance 190 mm
- Wheel Base 990 mm
- Rider Height Ideal for Riders up to 170cm Tall
Weights
- N.W of 10Ah Battery 3.2kg
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- N.W of ACE Mini + Battery 29 kg
- N.W of ACE Cargo + Battery 40.5 kg
- Max Loading 180 kg
- ACE Mini Max Loading 100 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
