Description
Without limits
An e-mountain bike with infinite qualities. Nothing can stop you, go where you have never dared to go. Never stop you. Excellent on challenging uphill and downhill trails, designed for traction, speed, handling. Cyclists have different builds. Proportional Response is the only design that takes this into account, adapting the suspension layout to the ideal size, thus offering each rider optimal traction, agility and control.
Features
- A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Smooth and rugged RockShox suspension – 160mm ZEB Select 38 fork and Deluxe Select+ air shock
- Light and durable WTB ST i30 Tough rims, 30mm inner width, with Shimano hubs and Continental Kryptotal tires
- Flawless shifting from Shimano’s high-end XT / CUES U8000 LinkGlide blended drivetrain
- Powerful, controllable stopping from Magura’s MT5 4-piston stoppers with 203mm rotors
| Component | Specification |
|---|---|

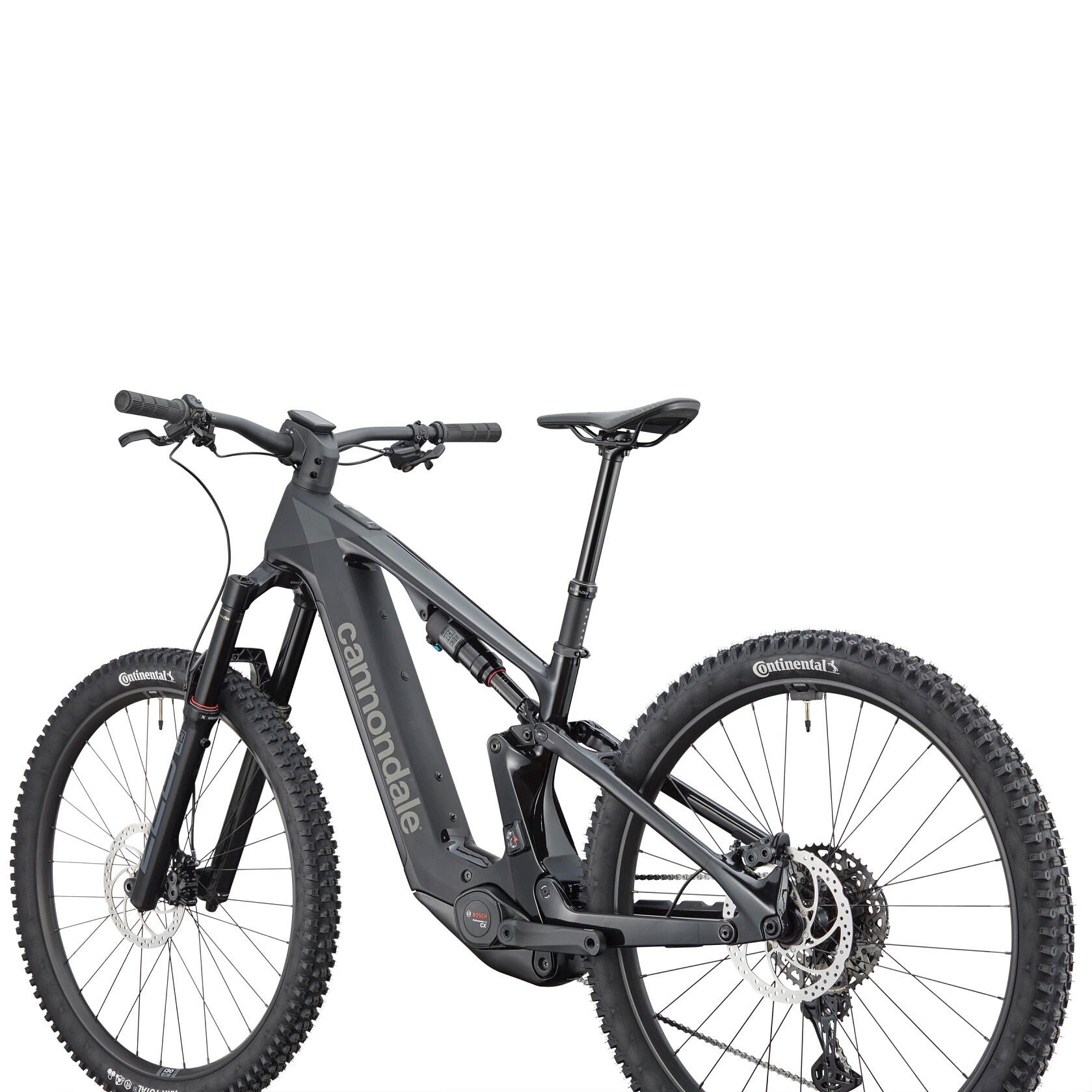

| Frame | Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible |
| Fork | RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset |
| Rear Shock | RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm |
| Rims | WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless compatible |
| Hubs | (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock |
| Spokes | DT Swiss Champion 2.0 |
| Tires | (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
| Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Rear Cogs | Shimano CUES LG700, LinkGlide, 11-50, 11-speed |

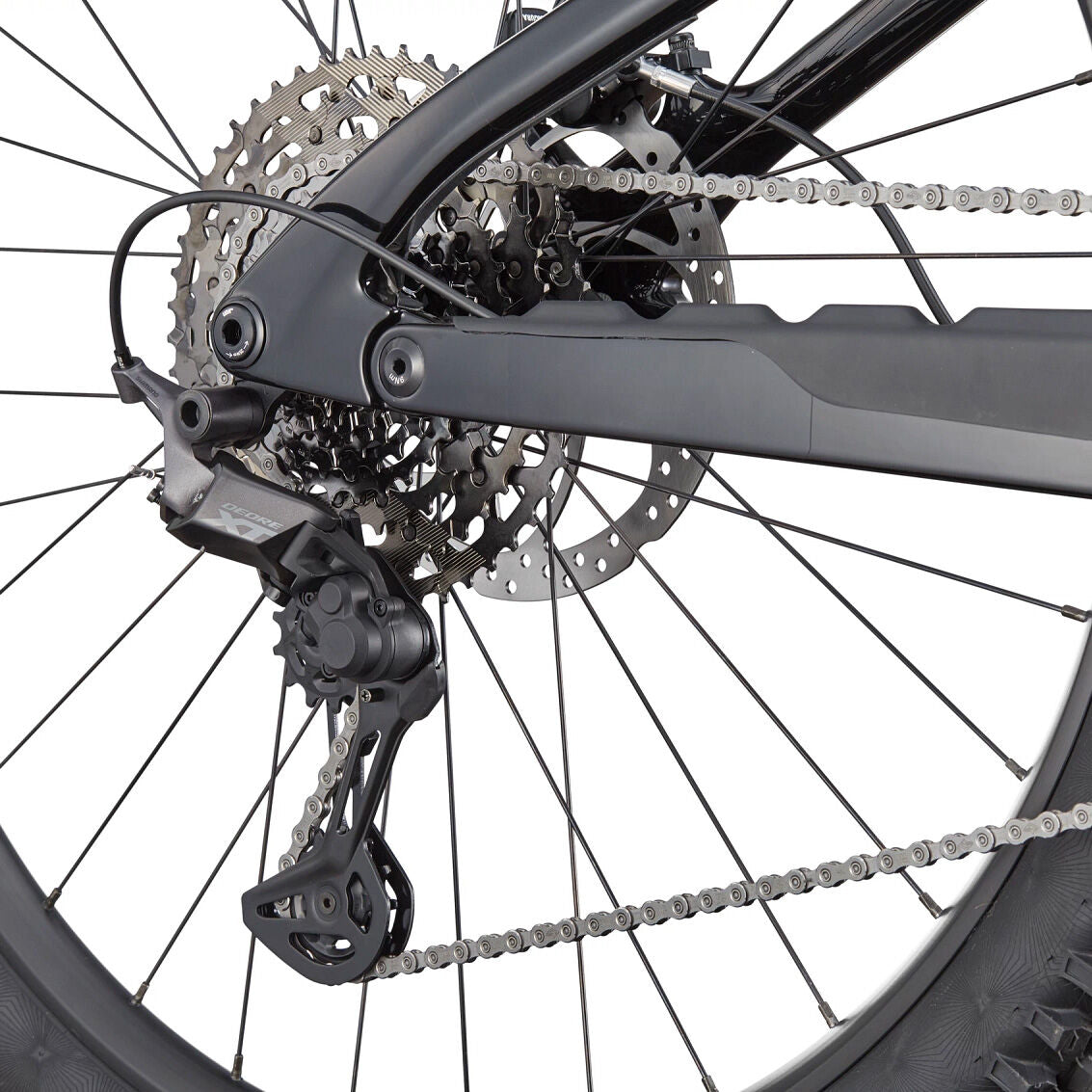

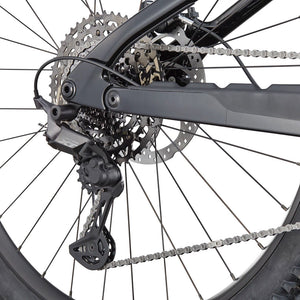

| Rear Derailleur | Shimano XT M8130, LinkGlide |
| Shifters | Shimano CUES U8000, 11-speed, LinkGlide |
| Handlebar | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Grips | Cannondale TaperRidge |
| Stem | Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0° |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Brakes | Magura MT5 4-piston hydraulic disc, 203mm Storm rotors |
| Brake Levers | Magura MT5 hydraulic disc |

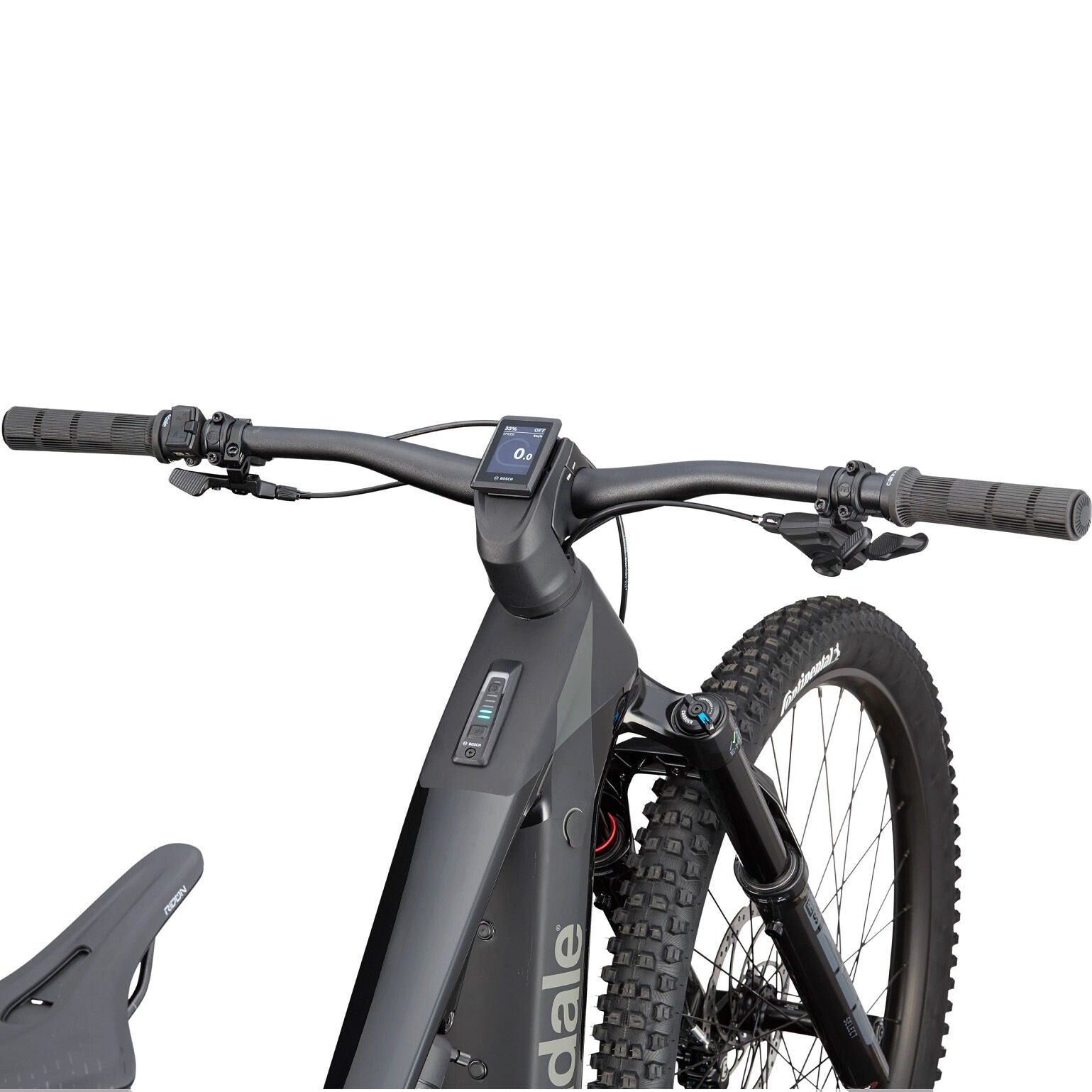

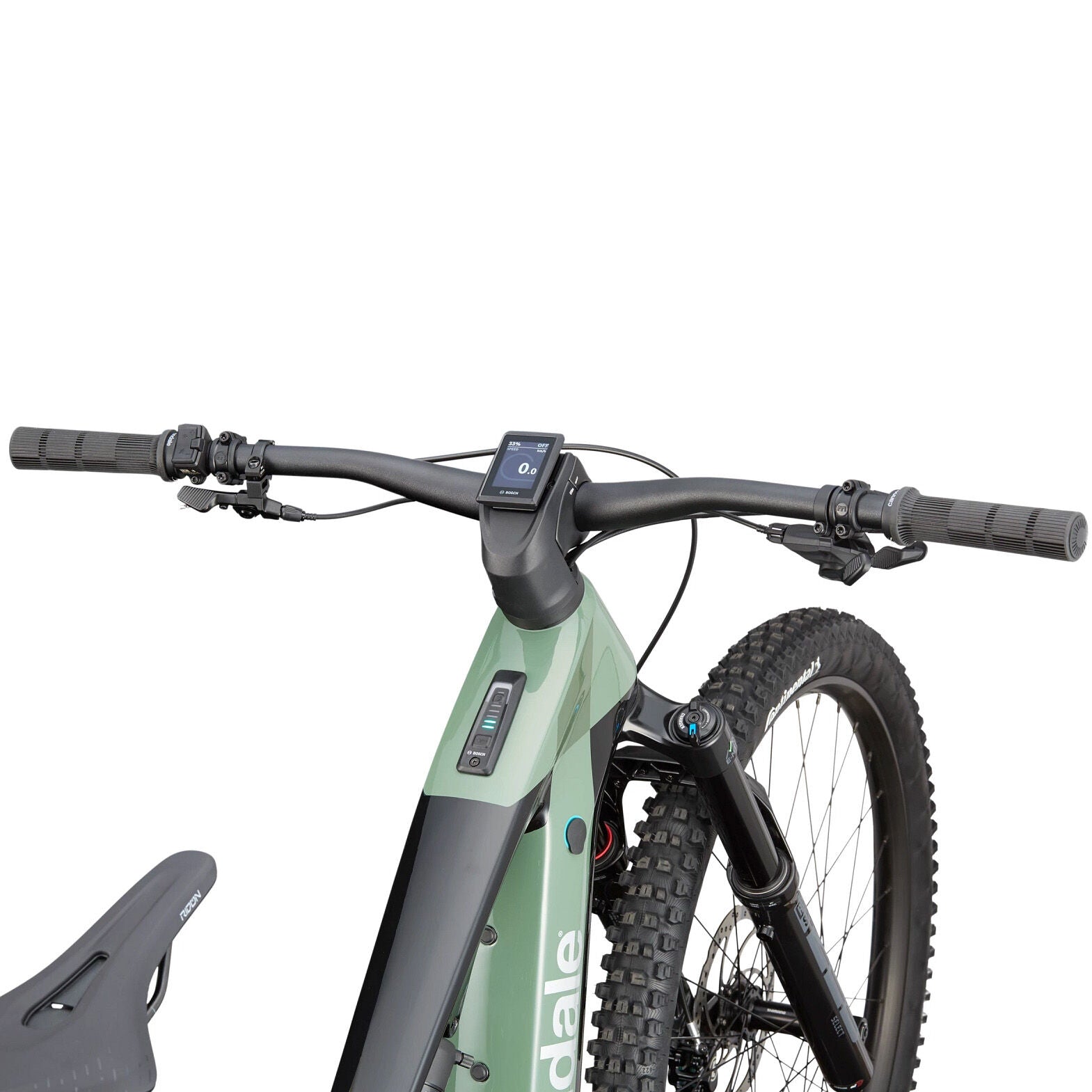

| E-Bike Display | Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote |
| E-Bike Battery | Bosch PowerTube, 800Wh |
| E-Bike Charger | Bosch 4A |

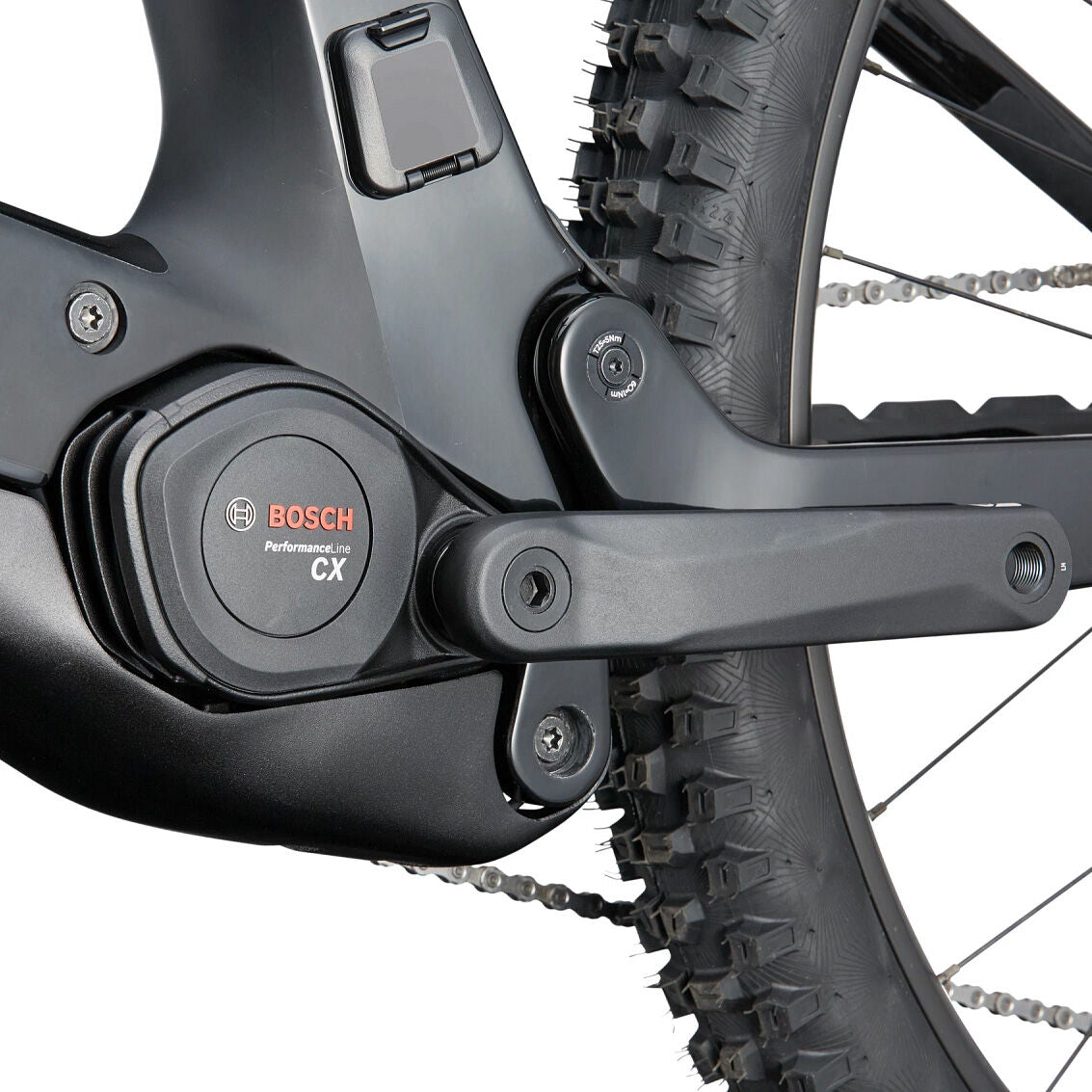

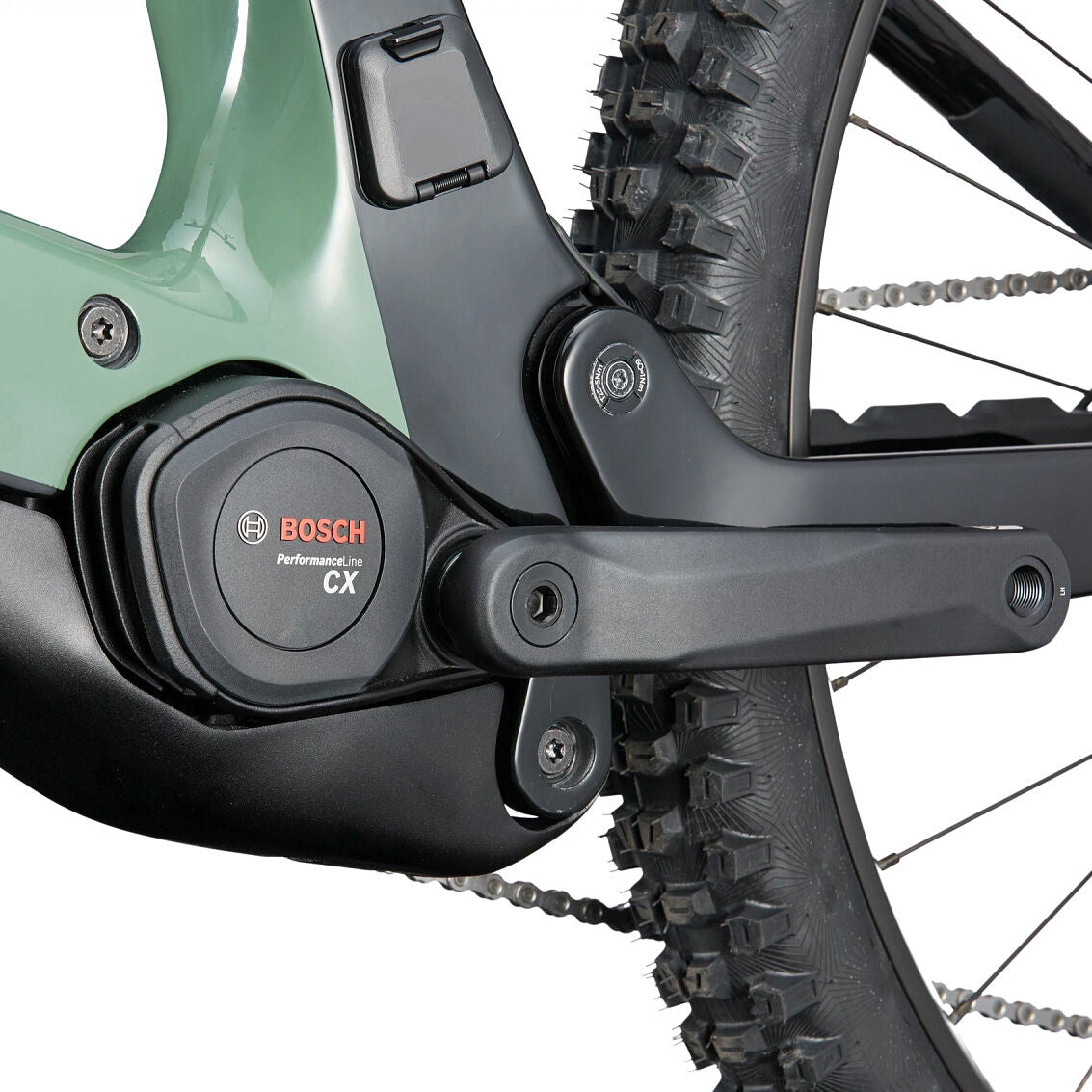

| E-Bike Drive Unit | Bosch Performance Line CX |
| Saddle | Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Speeds | 11 |
| Extras | Bosch PowerMore range extender compatible |
