Note:"Kindly contact us before visiting the store to confirm if this product is available for display. Thank you."
Point and Play
The Moterra LT transforms every trail into a never ending playround. Power up climbs, flatten bumps, and tear through descents like a moshpit in motion.
Model Description

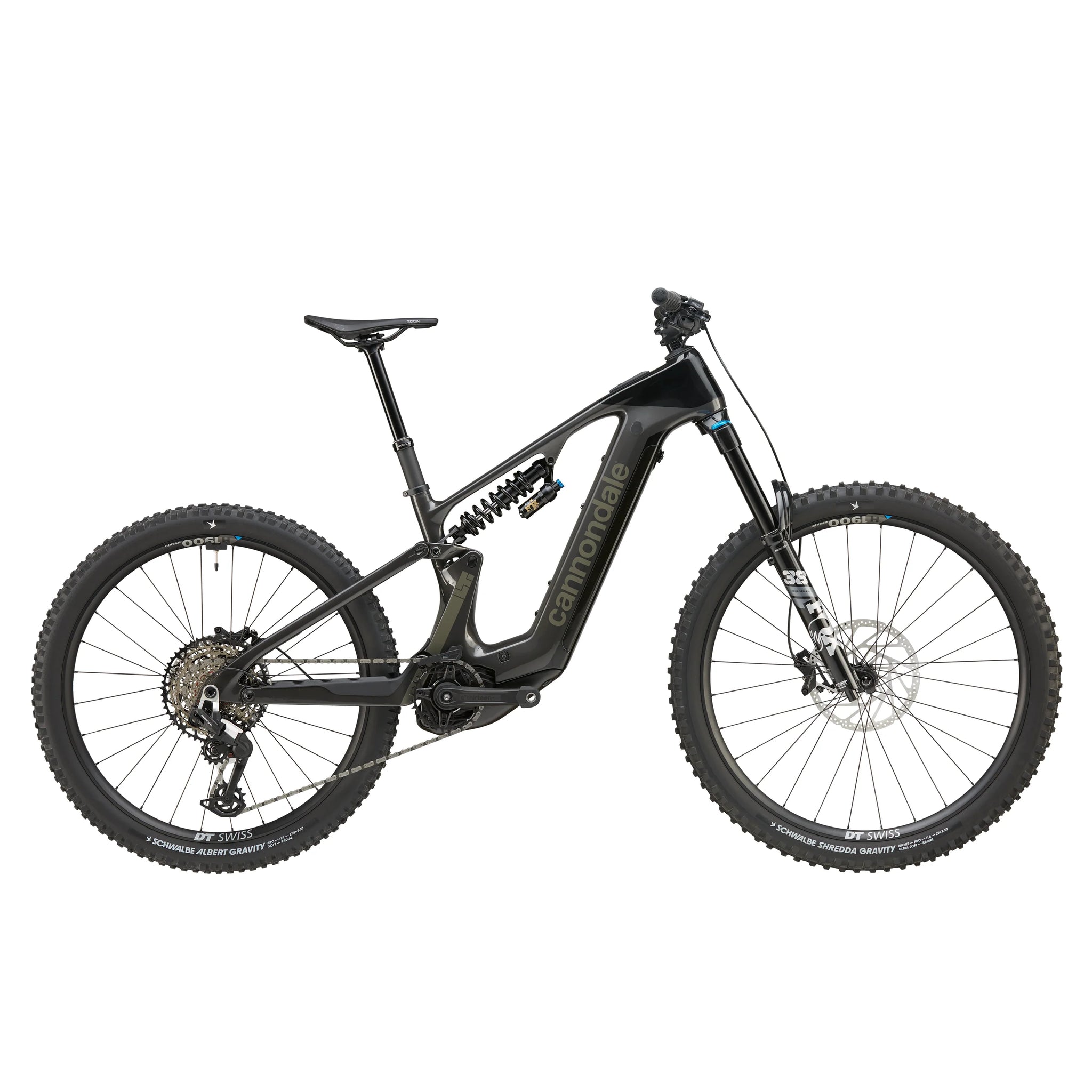

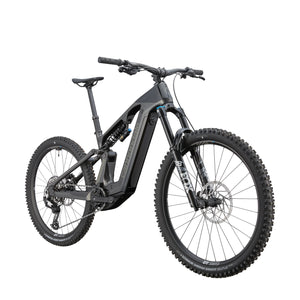

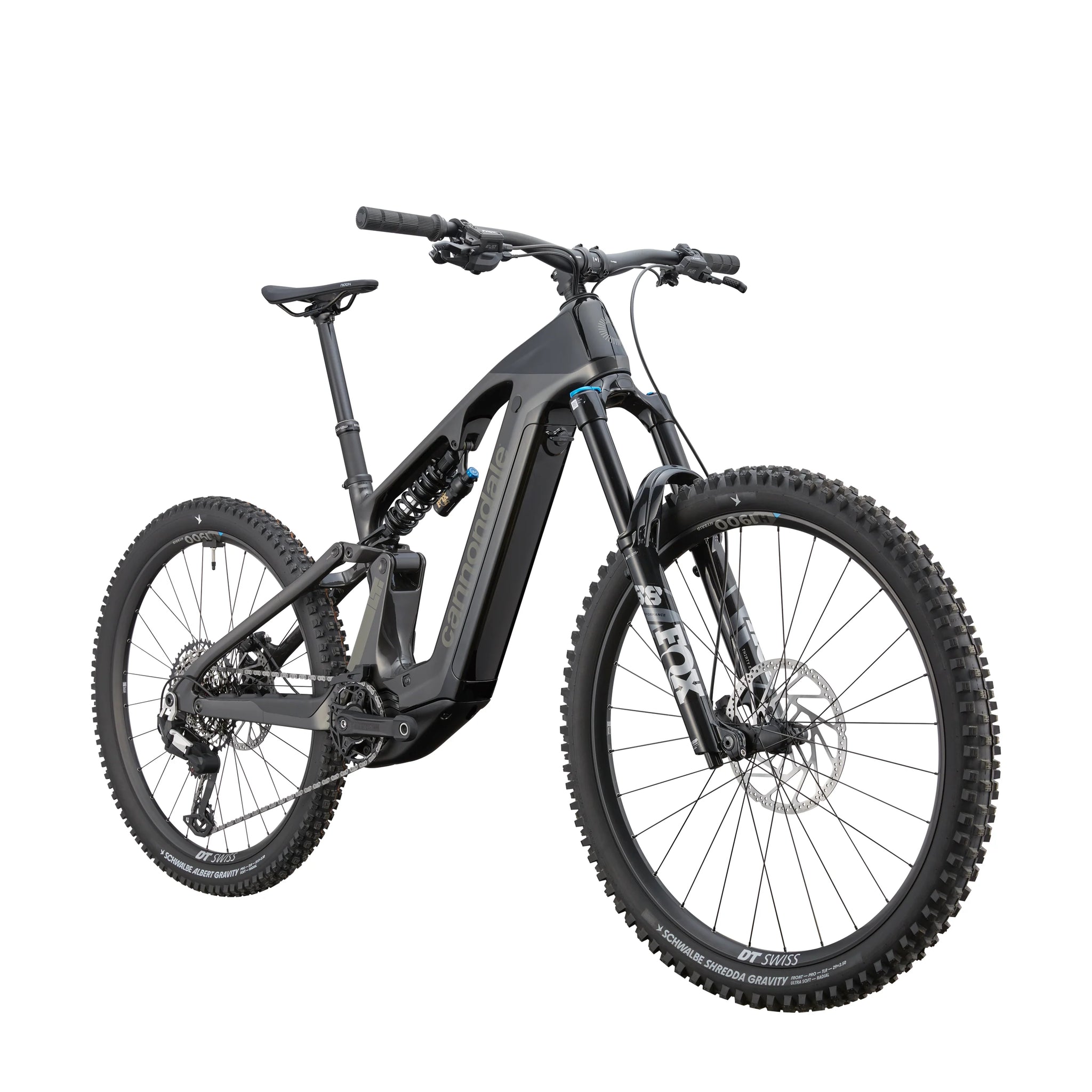

The Moterra LT is where agility meets audacity. With a new full carbon frame, 170mm of front and 165mm of rear travel, and a mullet wheel setup, this bike lunges up brutal climbs and down nasty descents with unshakable confidence. The Bosch CX motor and 800Wh battery deliver lasting power, while the Fox 38 Performance fork and DHX coil shock provide a plush, controlled ride. SRAM Eagle 90/70 shifting and TRP EVO Pro brakes ensure you stay in control, no matter how wild things get.
What it's for
Getting after it on the wilder side. Steep climbs, fast descents, big hits, and endless laps
Highlights
- A light yet burly carbon fiber frame - Proportional Response size-specific kinematics, tuned for specifically for the coil shock and mullet wheels
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Hard-hitting Fox Suspension – 170mm Float Performance 38 fork and supple DHX Performance coil piggyback shock
- Rugged DT Swiss H 1900 Spline EMTB Wheelset – Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
- Tough, reliable SRAM Eagle 90/70 12-speed shifting
- Powerful braking from TRP EVO Pro 4-piston stoppers with 220/203mm rotors
| Frame & Suspension | |
|---|---|
| Frame | Moterra LT Carbon, 27.5"/29", 165mm travel, removable battery, internal cable routing, alloy skid plate |
| Fork | Fox Float Performance 38, 170mm, Grip Damper 3Pos, Kabolt axle |
| Rear Shock | Fox DHX Performance Coil, 2-pos adj, 230x65mm |
| Headset | Acros ICR, 1.5"–1.8", sealed bearings |
| E-System | |
|---|---|
| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 800Wh |
| Charger | Bosch 4A |
| Display | Top Tube System Controller with Mini Remote |
| Drivetrain | |
|---|---|
| Rear Derailleur | SRAM Eagle 90, T-Type |
| Shifters | SRAM Eagle 90, T-Type, 12-speed |
| Chain | SRAM Eagle 70 T-Type, 12-speed |
| Crank | e*thirteen e*spec Helix Core, 160mm, 34T, 55mm chainline |
| Rear Cogs | SRAM Eagle 70 T-Type, 10-52, 12-speed |
| Brakes | |
|---|---|
| Brakes | TRP EVO Pro 4-piston hydraulic disc |
| Rotors | 220mm (Front), 203mm (Rear) |
| Brake Levers | TRP EVO Pro hydraulic disc |
| Wheels & Tires | |
|---|---|
| Rims | DT Swiss H 1900 Spline, 30mm inner width, tubeless ready |
| Spokes | DT Swiss Competition, straight pull |
| Front Hub | DT Swiss 370, 15x110mm thru-axle |
| Rear Hub | DT Swiss 370 Ratchet System 18, 12x148mm |
| Wheel Size | 29" Front / 27.5" Rear |
| Tire Size | 2.5" |
| Front Tire | Schwalbe Shredda Front, 29x2.5", Addix Ultra Soft, tubeless ready |
| Rear Tire | Schwalbe Albert, 27.5x2.5", Addix Soft, tubeless ready |
| Components | |
|---|---|

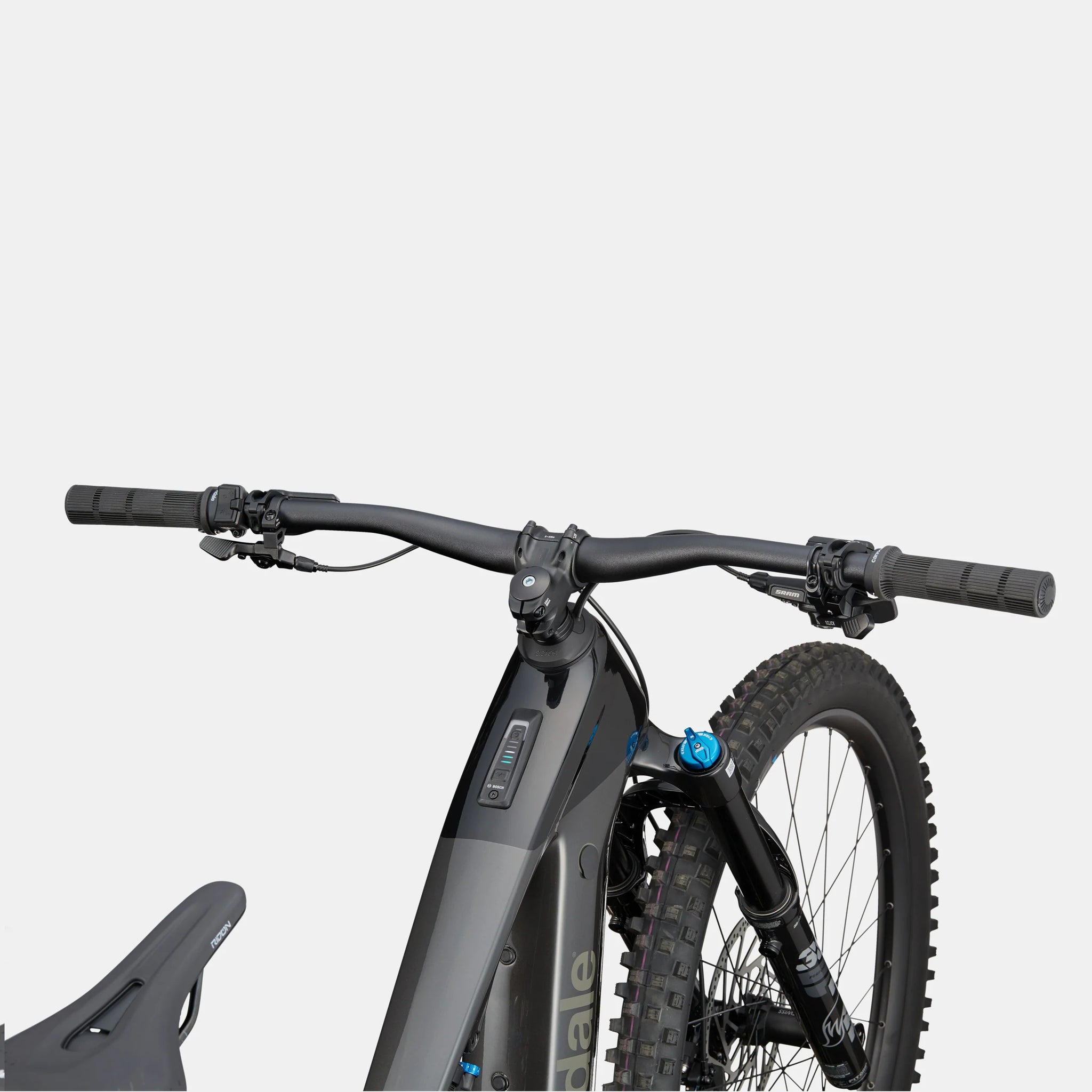

| Handlebar | Cannondale 3 riser, 800mm, 25mm rise, 8° sweep |
| Stem | Cannondale 1, 40mm, 0°, 35.0 clamp |
| Grips | Cannondale TaperRidge |
| Saddle | Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
| Seatpost | Cannondale DownLow Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Extras | Tubeless valves, Bosch PowerMore range extender compatible |
