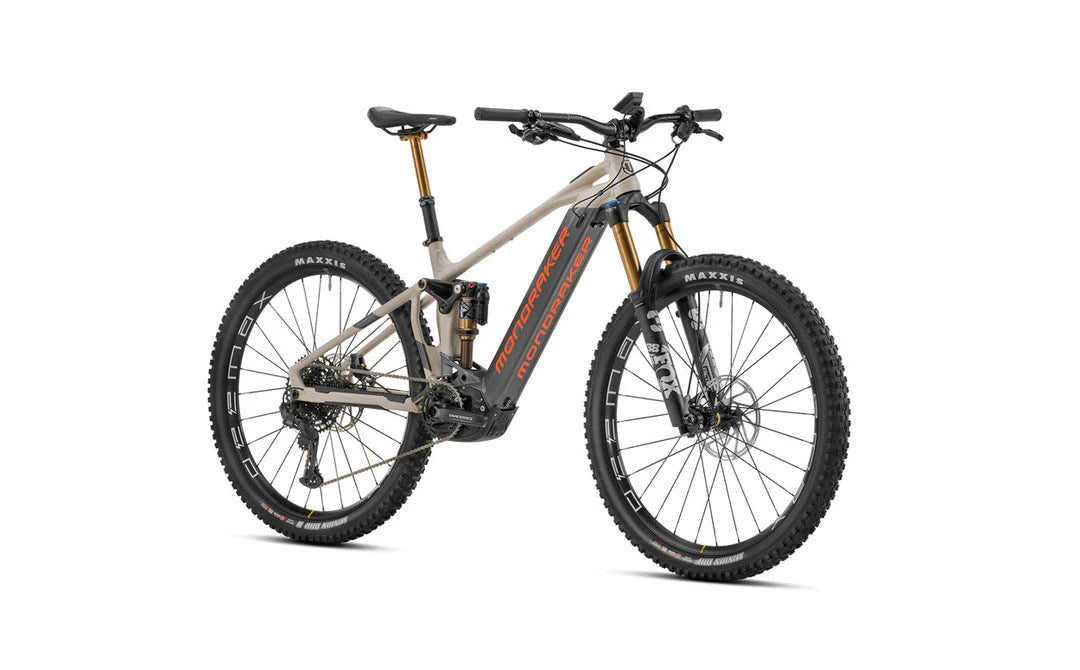

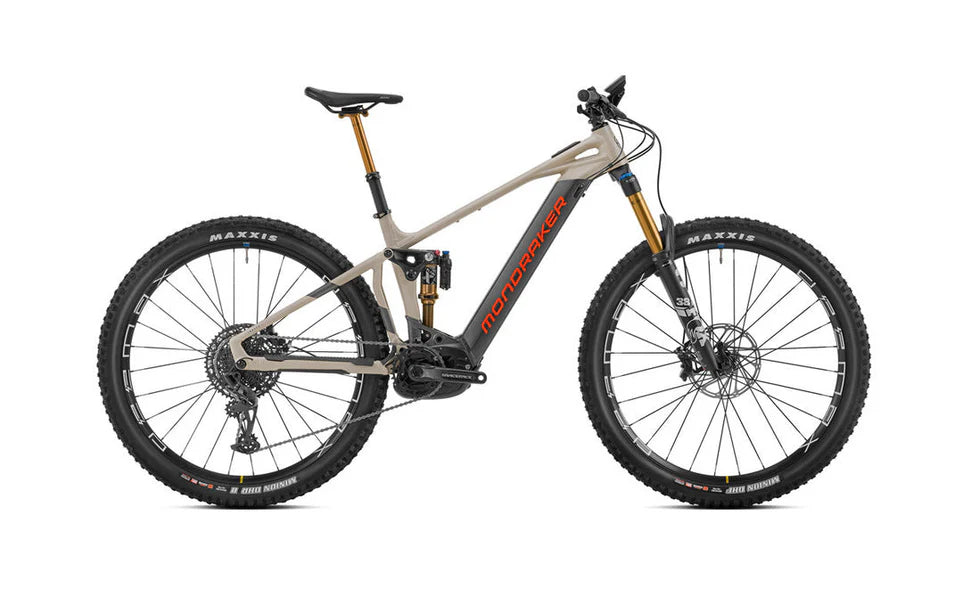

Product Information
01. FRAME Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery
01A. FRAME Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive p
02. FORK Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
03. REAR SHOCK Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
04. SHOCK SETTINGS medium compression, medium rebound, air volume spacer 0.2
05. HEADSET Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree
06. STEM Onoff Sulfur FG 30mm 0 degree, 6061 forged alloy, 31.8mm barbore
07. HANDLEBAR Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore
08. GRIPS Onoff Desert, 1lock-on, 135mm
09. SEATPOST Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
10. SADDLE FIZIK Terra Aidon X5 145mm
11. FRONT BRAKE Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
12. REAR BRAKE Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
13. BRAKE LEVER Sram Code R, tool-free reach adjust
14. FRONT HUB Mavic, Boost 15x110mm, IS 6 bolts
15. REAR HUB Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
16. FRONT TIRE Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
17. REAR TIRE Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
18. CRANKSET Race Face Aeffect ebike, 165mm
19. RINGS Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
20. PEDALS N/A
21. CHAIN Sram NX Eagle, 12s, Powerlock
22. REAR DERAILLEUR Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
23. CASSETTE Sram XG-1230, 11-50T, 12s
24. MOTOR Bosch Performance Line CX Cruise (25Km/h) Smart System
25. BATTERY Bosch Powertube 750Wh
26. DISPLAY Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
27. DERAILLEUR HANGER Mondraker M068
