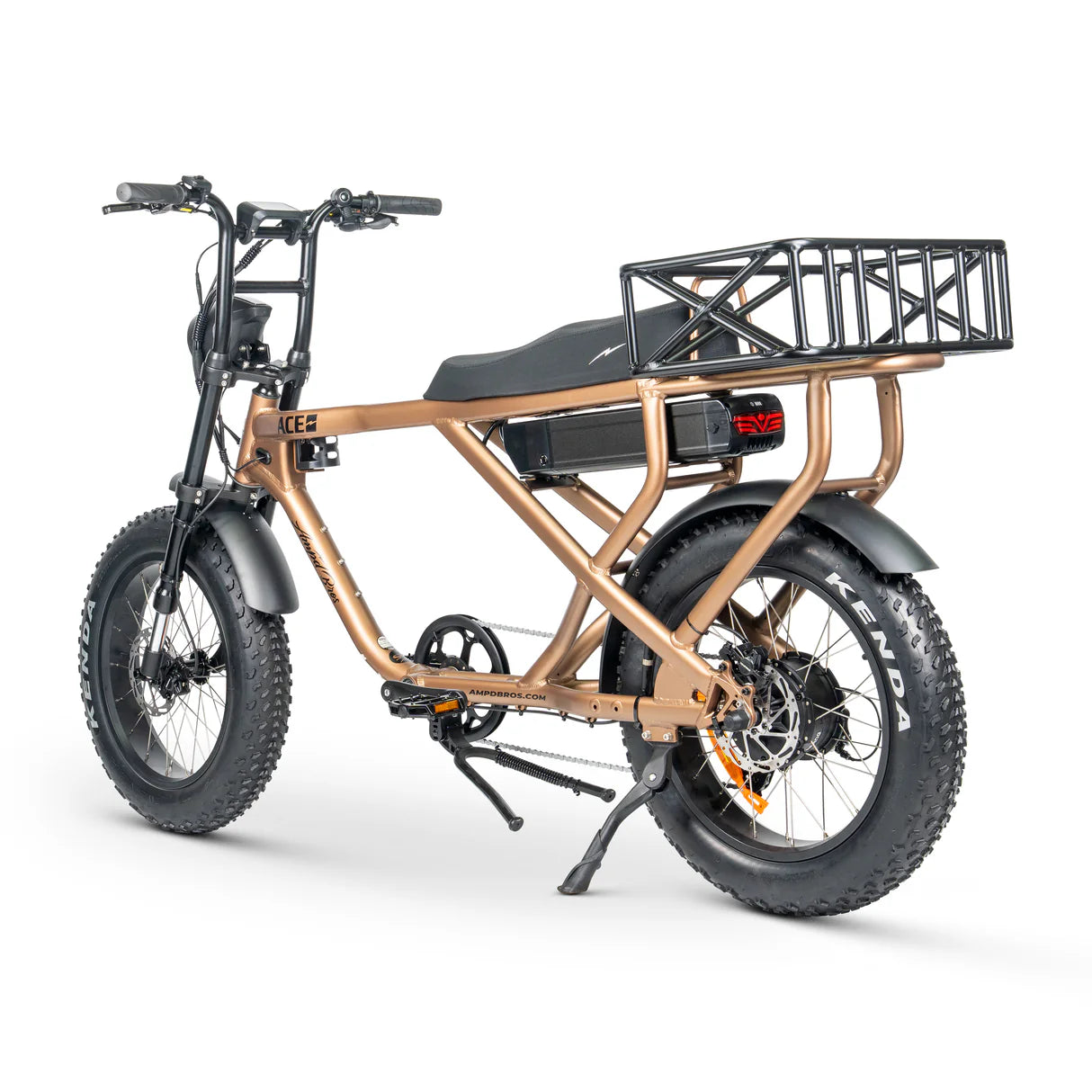

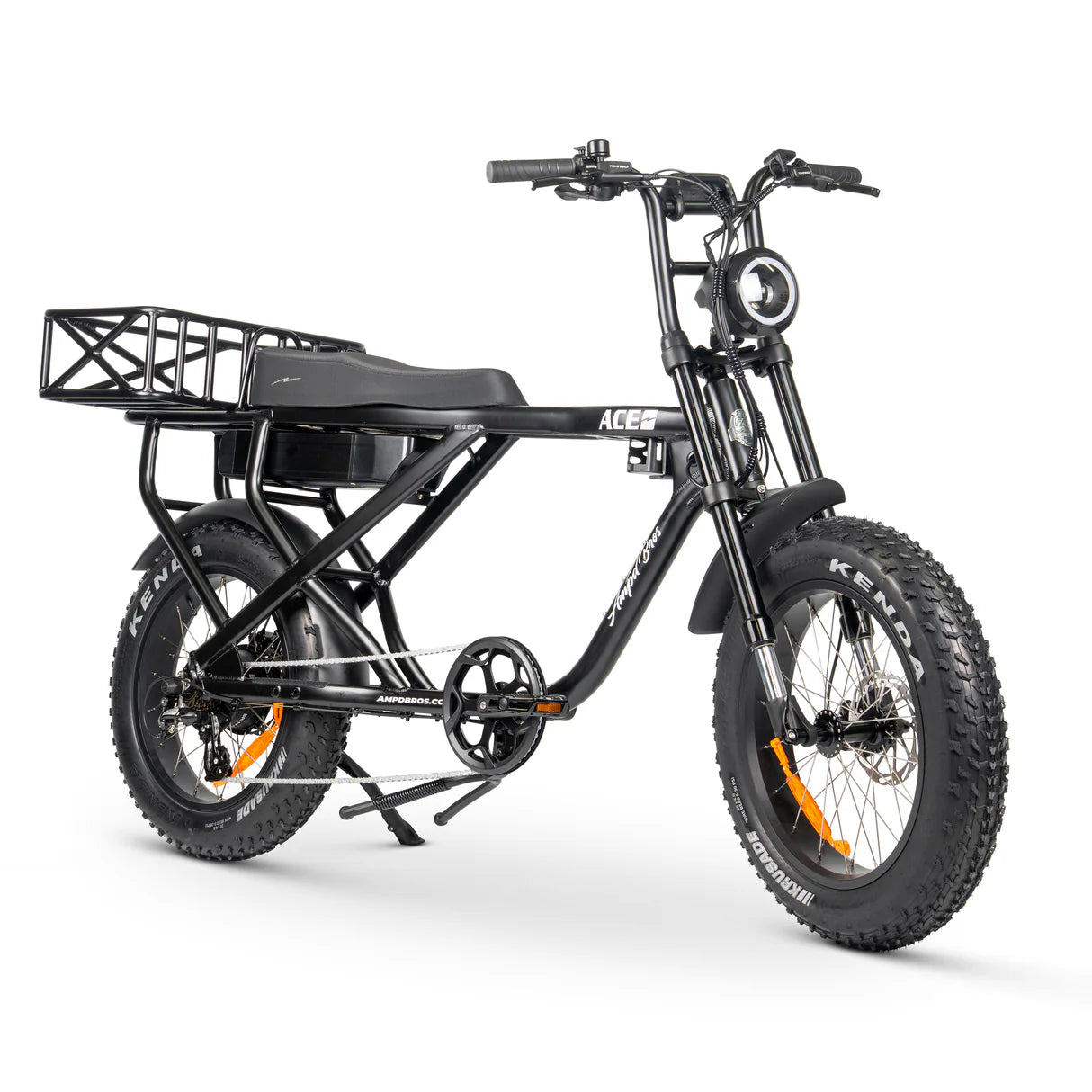

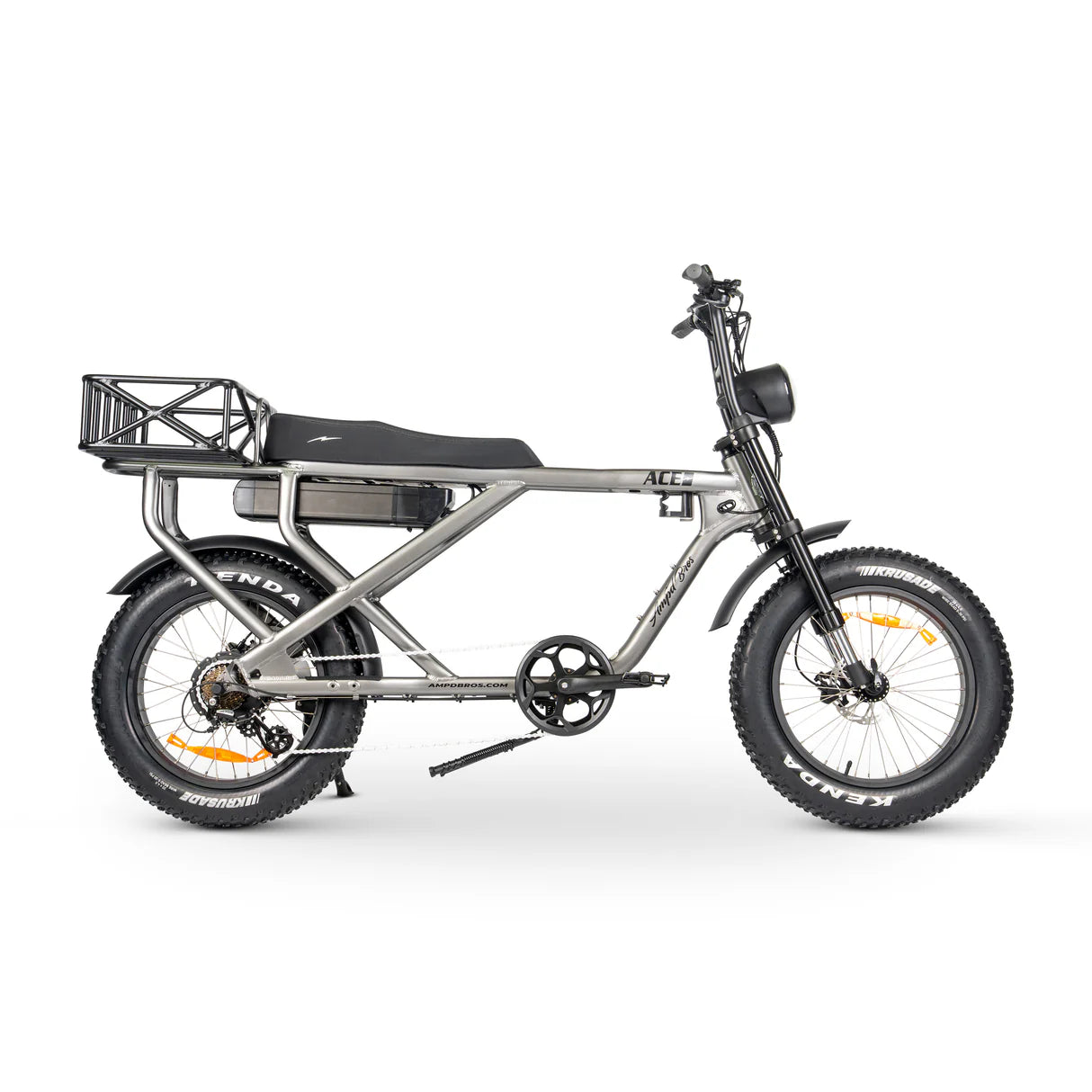

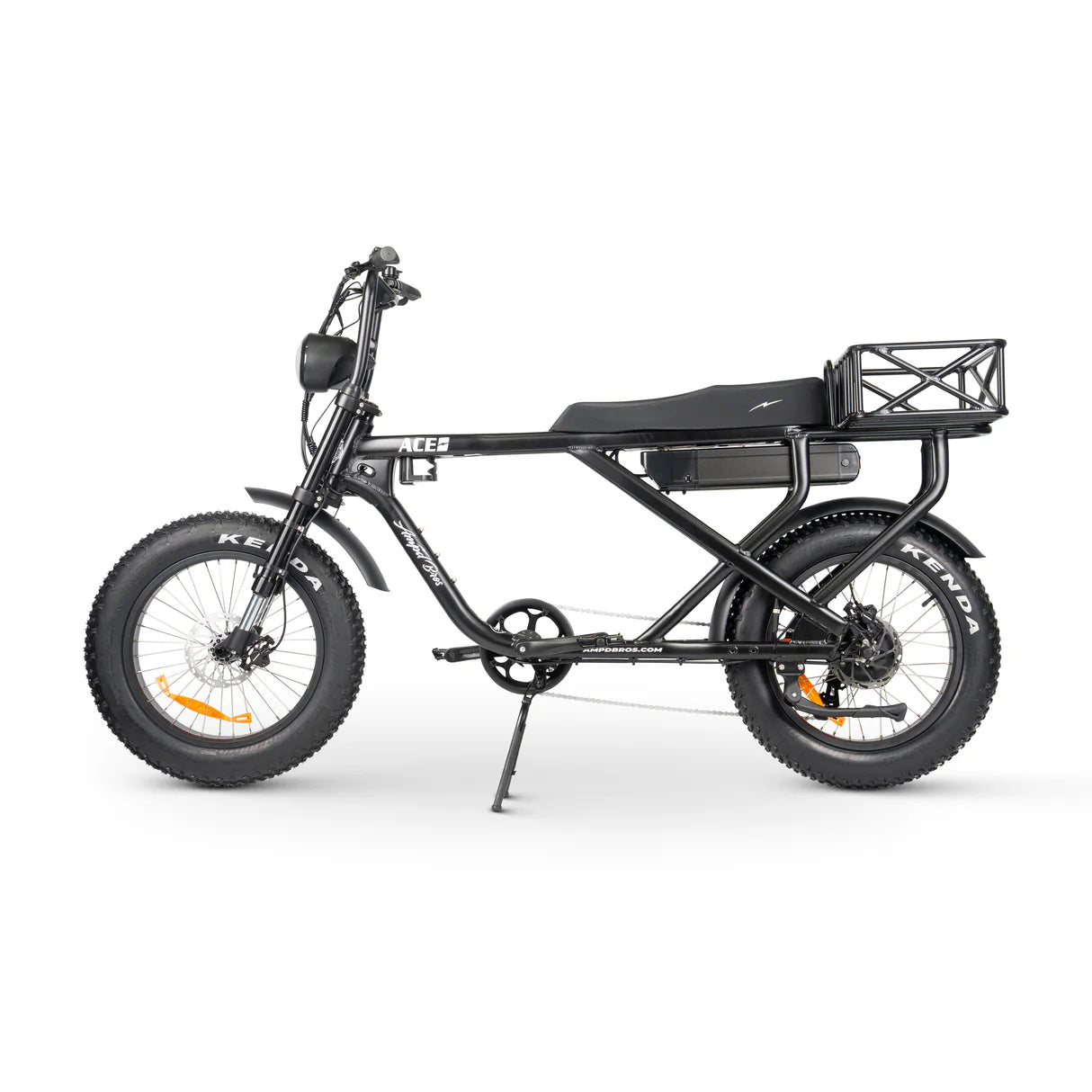

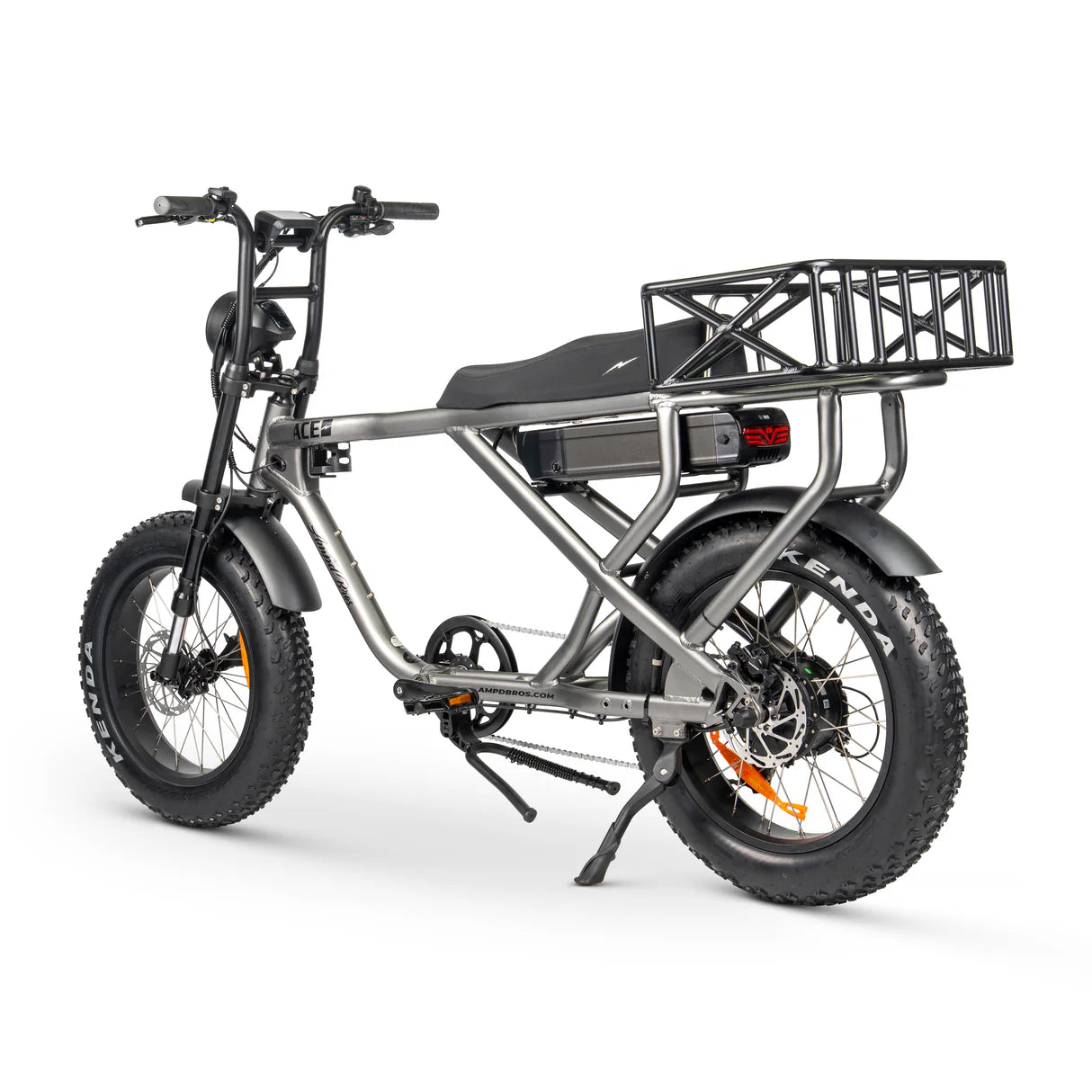

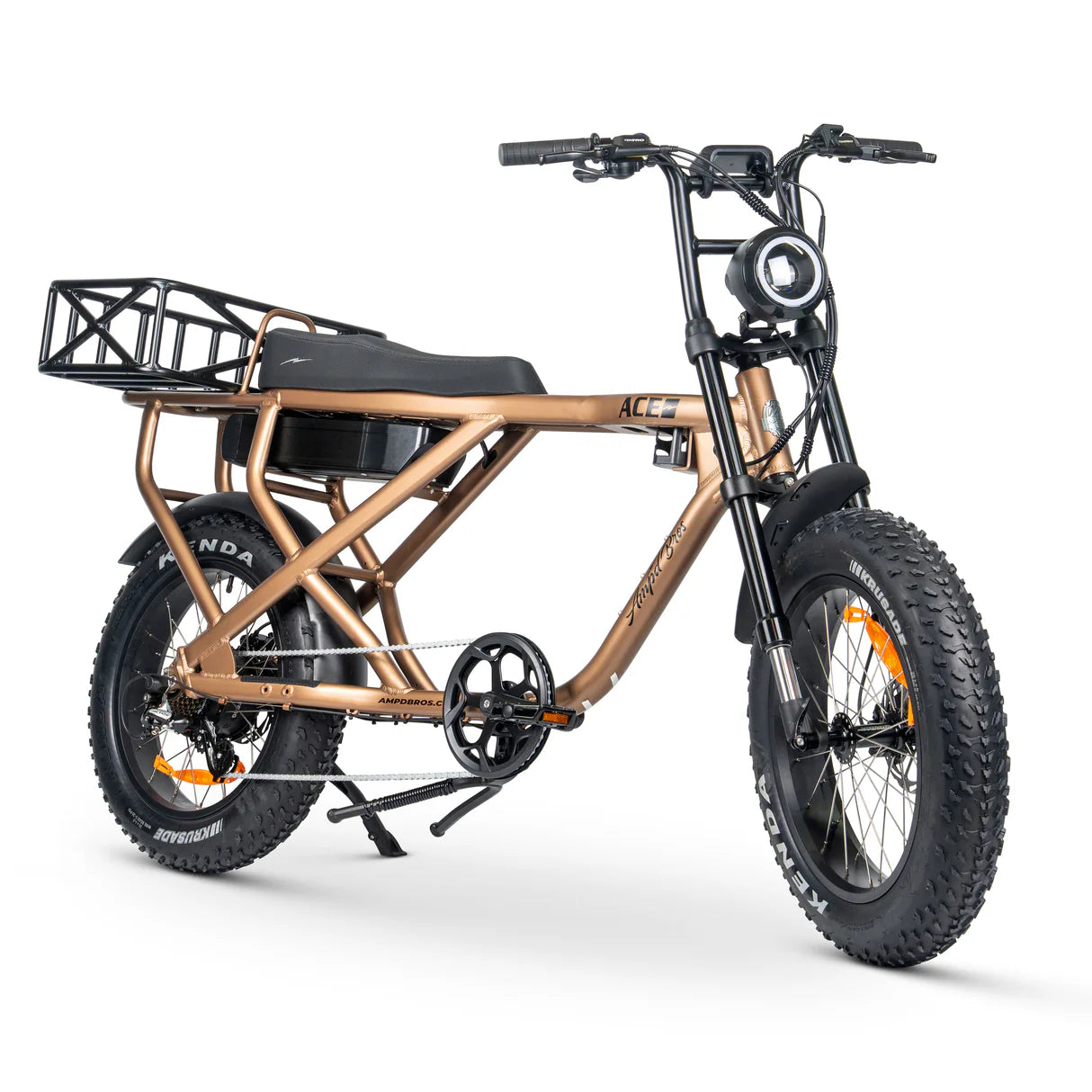

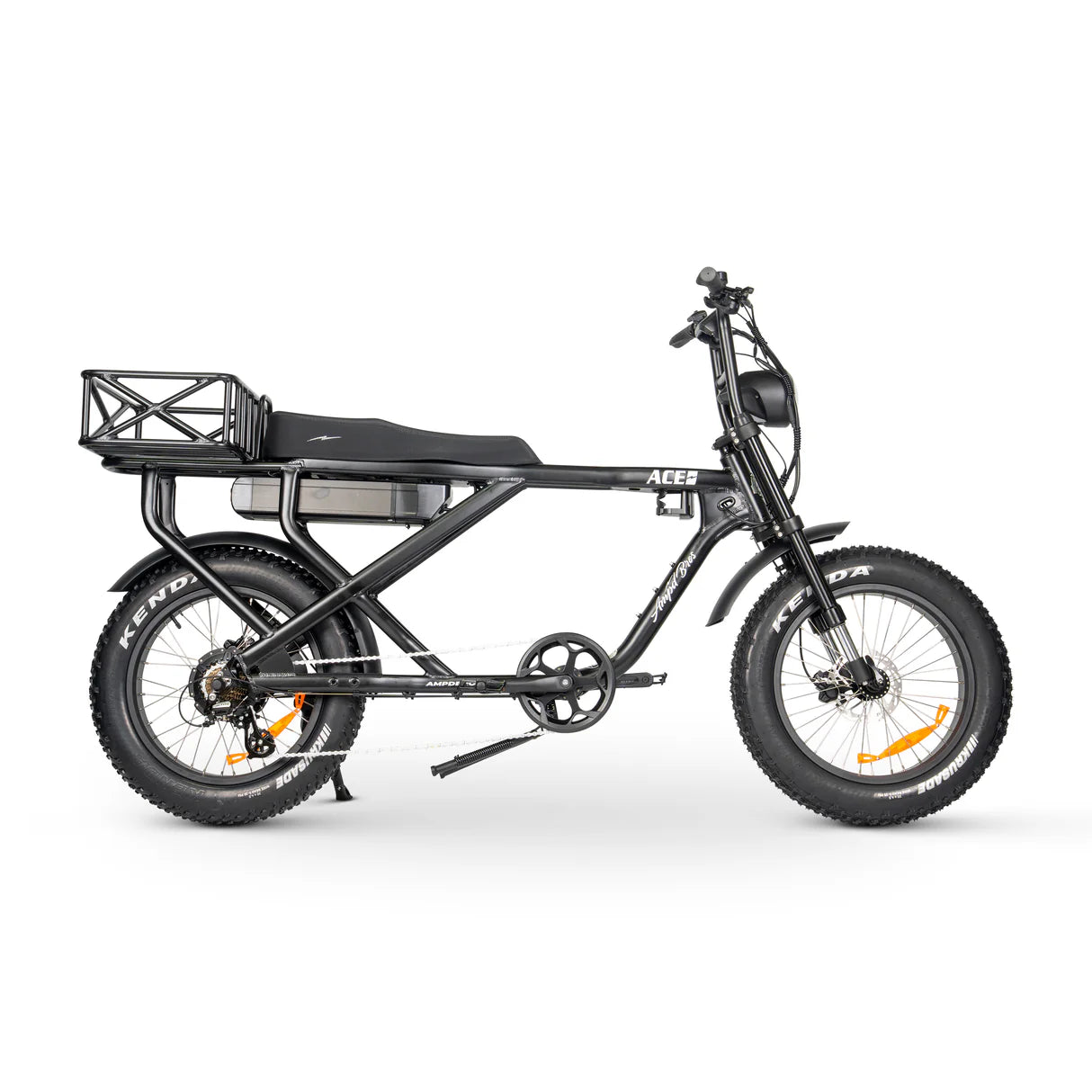

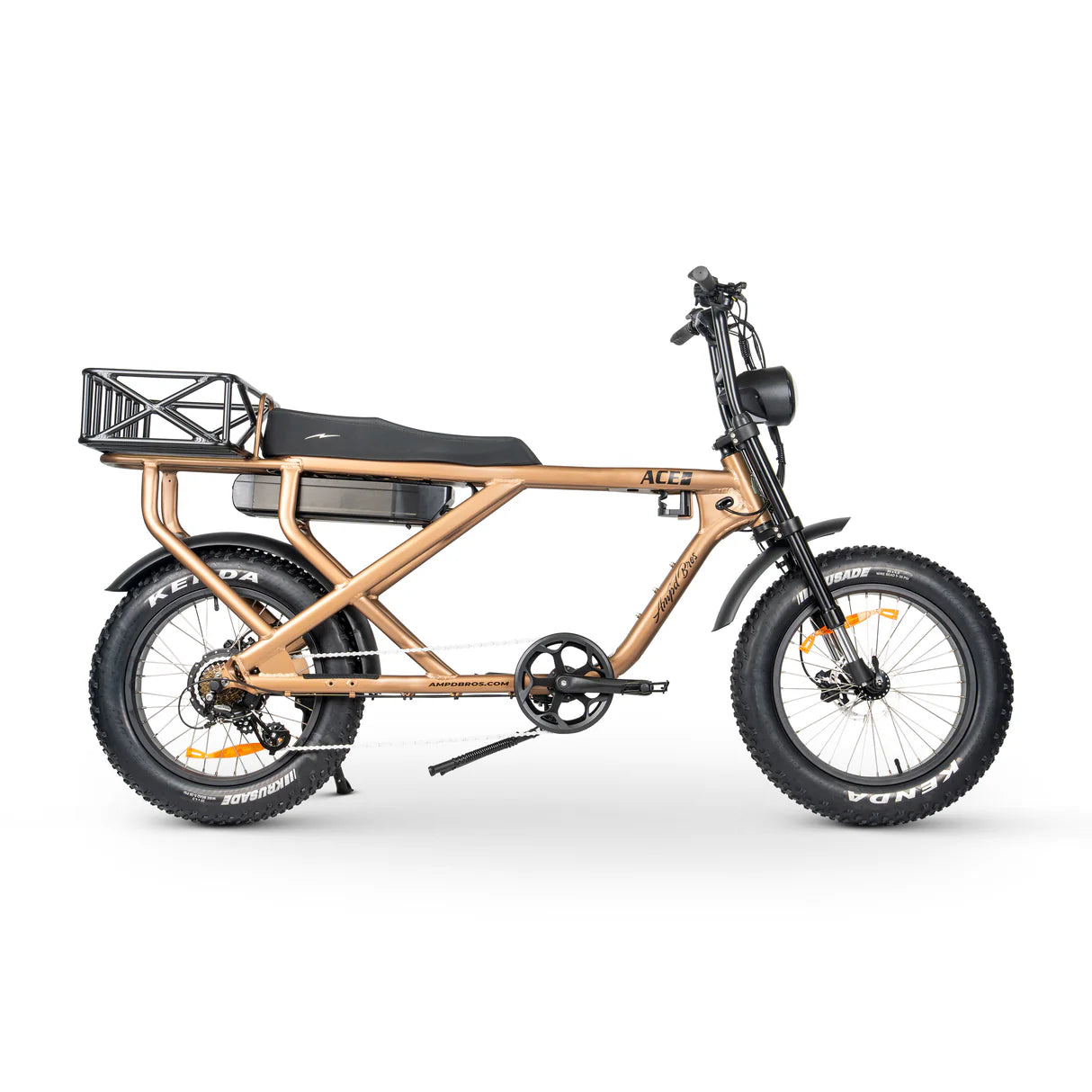

Introducing the ACE-X Cargo MAX – Built to Carry More!
The ACE-X Cargo MAX is the ultimate evolution of our legendary ACE-X, now redesigned with an integrated heavy-duty rear rack to haul more gear, more weight, and even extra passengers. Whether you’re commuting, adventuring, or running errands, this powerhouse e-bike is built to handle it all with ease.
Equipped with front suspension forks, the ACE-X Cargo MAX delivers a smooth, stable ride across any terrain. At its core, the high torque 80N.M Bafang Rear Hub Motor provides the power you need to cruise faster and conquer tougher trails without breaking a sweat.
Designed for durability and versatility, this bike is ready for whatever you throw at it.
Since 2019, the ACE Bike series has been Australia’s most sought-after fat tyre e-bike, and the Cargo MAX takes it even further. Featuring a Shimano 7-Speed Derailleur, bold colour options, and our GEN3 Aluminium Battery with 21700 cells (30% larger than competitors), it’s built for maximum power, efficiency, and reliability.
The Custom Master Control unit enhances performance with advanced motor algorithms, seamless light controls, and improved diagnostics. Powered by Bafang’s High Torque Motor, the ACE-X Cargo MAX is engineered to handle big loads, big adventures, and big expectations.
More Cargo. More Power. More Possibilities.
The ACE-X Cargo MAX is ready. Are you?
What's New for ACE Cargo MAX?

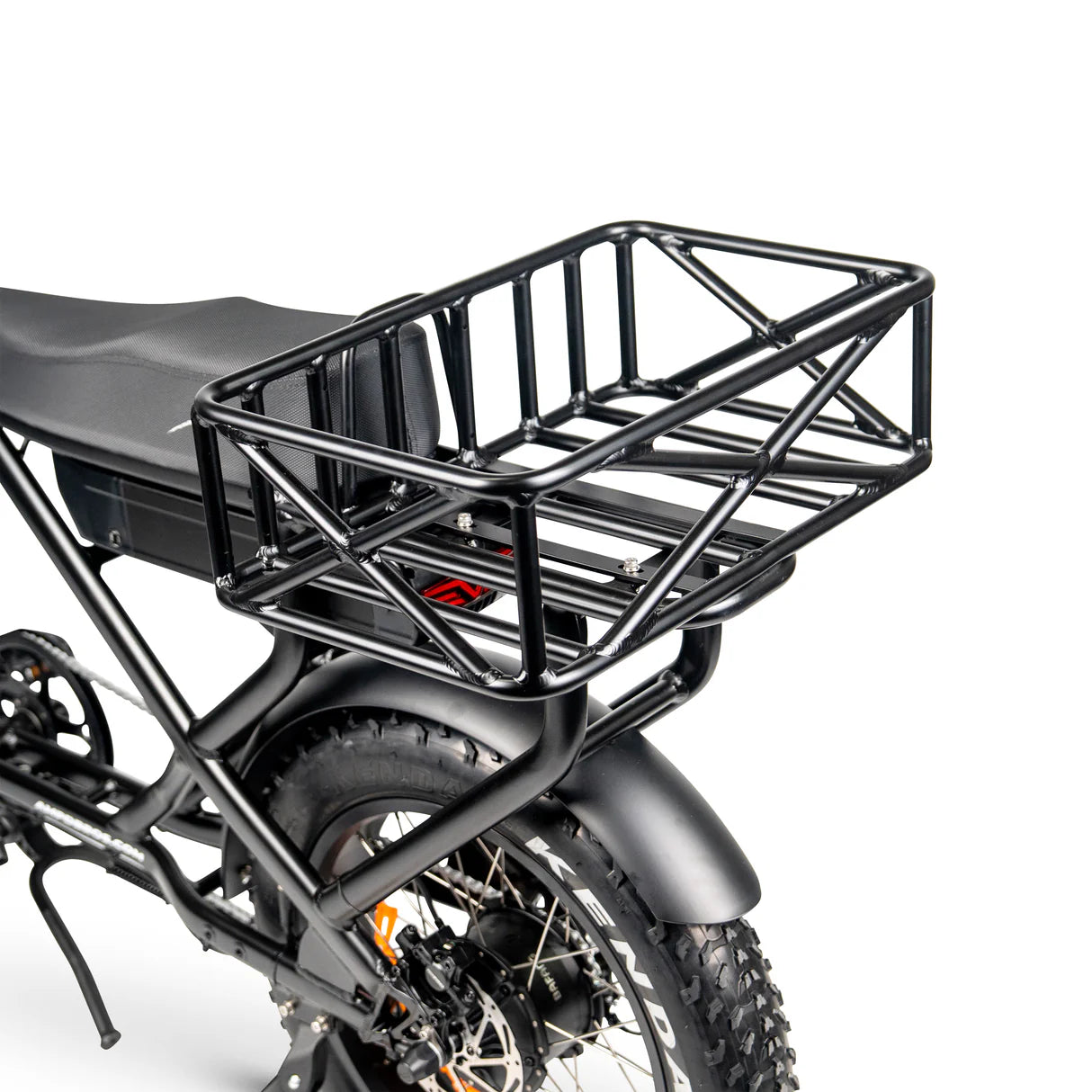

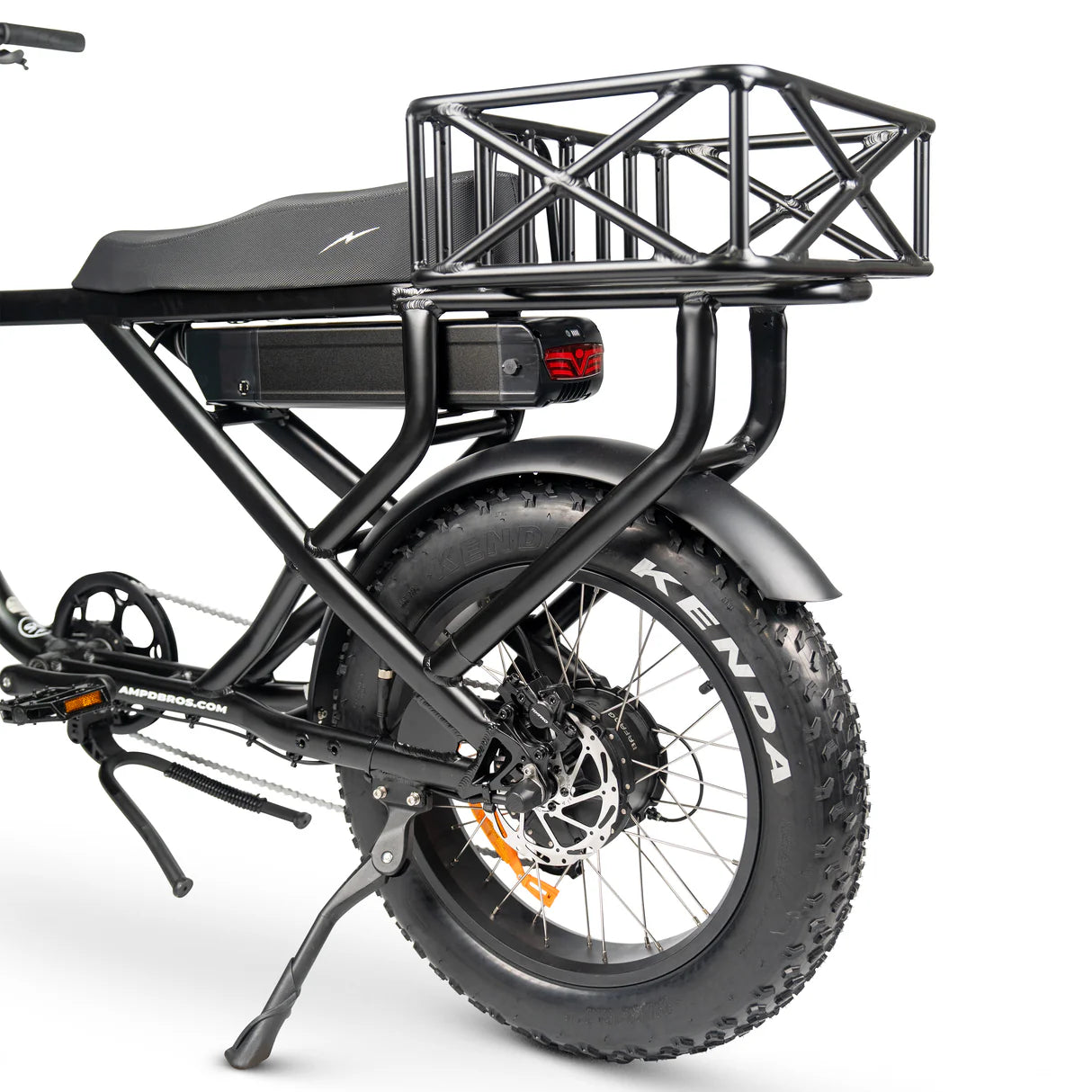

- Extended to Integrate a Large Rear Rack
- 52V 20AH Battery

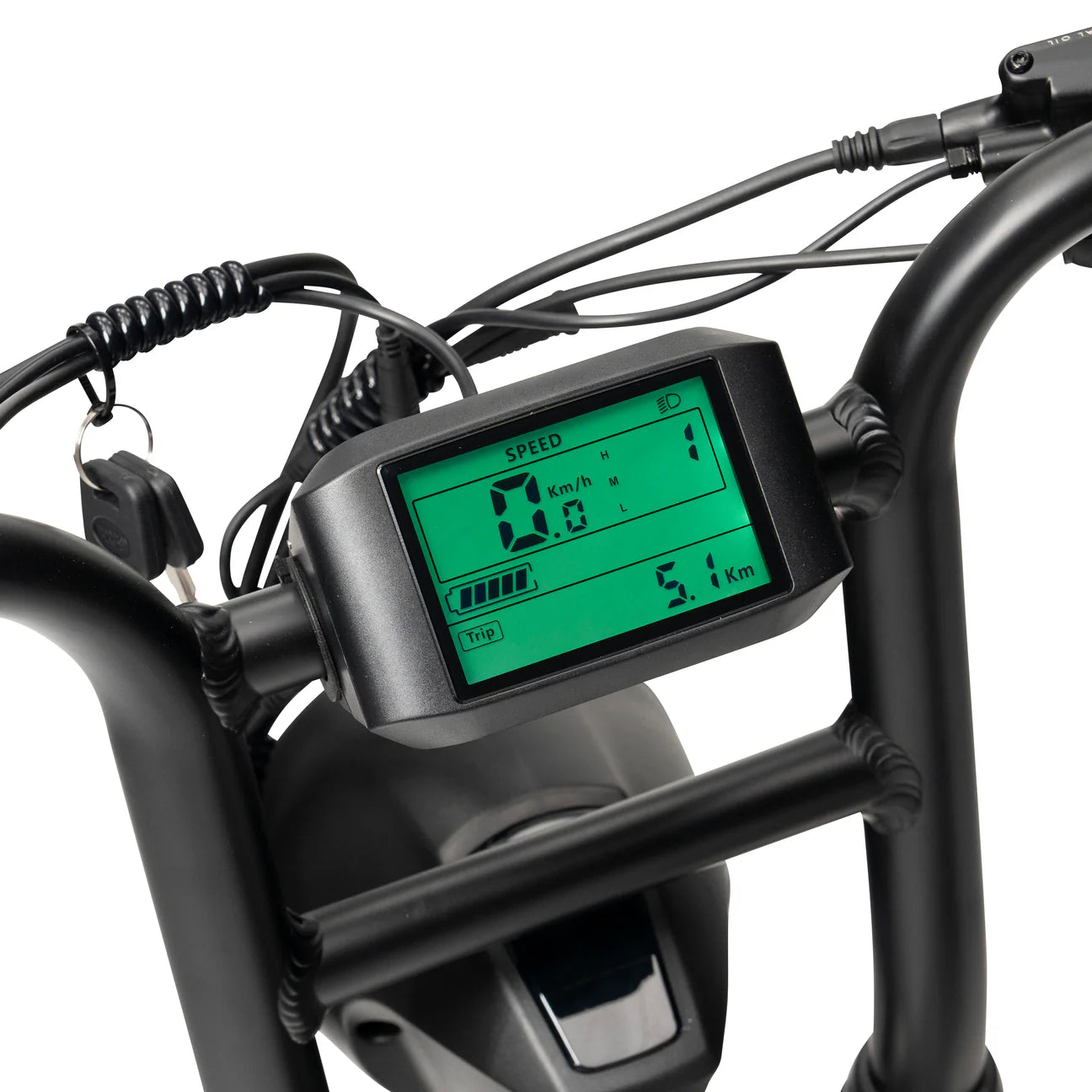

- Micro Intelligent Colour Display
- Front Suspension Fork
- Ampd Bros Signature Headlight
- Epic Metallic Colours for 2025
The ACE-X ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 80km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE-X handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.
Experience the thrill of riding like never before with the ACE Cargo by Ampd Brothers - your perfect companion for every adventure, delivering unparalleled performance, style, and durability.
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
- We offer FREE Shipping Australia-wide for orders over $100.
- Excludes WA, Regional Remote Areas And Islands.
- Note: Some Bulk Items may require an extra shipping charge.
- You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s).
- Our products are sent directly from our Redfern, Sydney Warehouse.
- All orders are processed within 2-4 business days.
- Shipping charges for your order will be calculated and displayed at checkout.
- In-store pickup is available for online orders.
- Choose the pickup option at checkout.
- For 24 hours hour click & collect, please give us a call to confirm your arrival time: 02 9171 7860
- PedL will allow a return for store credit, exchange product or refund provided the item in question is returned within 7 days.
- All our E-Bikes and E-Scooters come with 12 months warranty on all electronic and mechanical parts (including battery, motor, controller, display, suspension, wheels) and also 1-2 year warranty on the bike or scooter frame.
- If the product is damaged you can let us know at contact@pedl.com.au.
- Please ensure that you keep the box/packaging for your product in case the item needs to be returned.
- Full Shipping & Returns details: https://www.pedl.com.au/pages/shipping
| ACE SERIES 4 – Specifications | |
|---|---|
| Range |
Ace Mini Models: 40km+ Ace Standard Models: 60km+ Ace Plus/Cargo Models: 80km+ |
| Battery |
Ace Mini: 48V / 480Wh, 10Ah Standard: 52V / 780Wh, 15Ah Plus/Cargo: 52V / 1,040Wh, 20Ah Samsung Premium 21700 Lithium cells Battery is removable and can be charged in bike or separately. |
| Motor Drive |
All Models: Bafang Rear Hub 250W High Torque Motor Ace Mini & Standard: 65N.m Ace Plus & Cargo: 80N.m All Models restricted to 25km/h |
| Controller |
Ampd Bro's Custom controller – high power density and advanced motor control algorithms. Ace Mini & Standard: Rated 500W / Peak 750W+ Ace Plus/Cargo: Rated 750W / Peak 1,000W+ |
| Ride Modes |
Mode 1 – Pedal Assist: Adjustable 1–5 (or optional 1–3 / 1–9) Mode 2 – Walk Mode: Idles bike up to 6km/h (hold "-" button) Mode 3 – Throttle Mode: Available with Off-Road Throttle Kit |
| Dimensions |
Overall Length: 1,750 mm Handlebar Height: 1,140–1,190 mm Handlebar Width: 660 mm Seat Height: 810 mm (fixed) Seat Length: 600 mm Ground Clearance: 270 mm Wheel Base: 1,160 mm Rider Height: Ideal up to 200 cm |
| Ace Mini Dimensions |
Overall Length: 1,470 mm Handlebar Height: 1,040 mm Handlebar Width: 660 mm Seat Height: 770 mm (fixed) Seat Length: 370 mm Ground Clearance: 190 mm Wheel Base: 990 mm Rider Height: Ideal up to 170 cm |
| Weights |
N.W 10Ah Battery: 3.2 kg N.W 15Ah Battery: 4.34 kg N.W 20Ah Battery: 5.12 kg Standard ACE + Battery: 32.3 kg ACE Plus + Battery: 36 kg ACE Mini + Battery: 29 kg ACE Cargo + Battery: 40.5 kg Max Loading: 180 kg ACE Mini Max Loading: 100 kg |
- All products that are shipped are checked by the manufacturer and by Pedl mechanics however it is important that all bolts and screws on products are checked and tightened during assembly and before embarking on your first ride. This is the responsibility of the rider and Pedl will not be liable for any injury caused by improper assembly which includes misalignment and bolts not being checked for the correct tightness.
- It is the responsibility of the user to read and fully understand the literature provided by Pedl via email at sale for this product when purchased. This information includes, Battery care, Maintenance information and Warranty Information.
- Range and speed of this product will vary based on variables such as weight, terrain, degree of incline, wind, battery age, battery charge, speed reached and all other variables that would affect travel.
- Pedl advertises and sells its products for the purpose of recreational use. Each state and territory in Australia maintains a different set of rules and regulations for the usage of our products. It is the responsibility of users to ride with caution, wear a helmet and protective gear during use, and ensure compliance with local by-laws including requirements of use. Any information or representation provided by Pedl is of a general nature and may vary between users depending on individual circumstances.
- Please note that while we ensure all our bikes are carefully assembled and inspected before shipment, some minor adjustments may still be required. It is not uncommon for gears to be slightly misaligned, brake discs to rub, mudguards to be misaligned, or other adjustments to be needed after assembly. These issues are typically due to the natural settling of components during shipping and are considered a normal part of the assembly process. As such, these adjustments are not covered under Pedl’s warranty.
For best performance, we recommend that you have your bike assembled or inspected by a professional bike technician.
