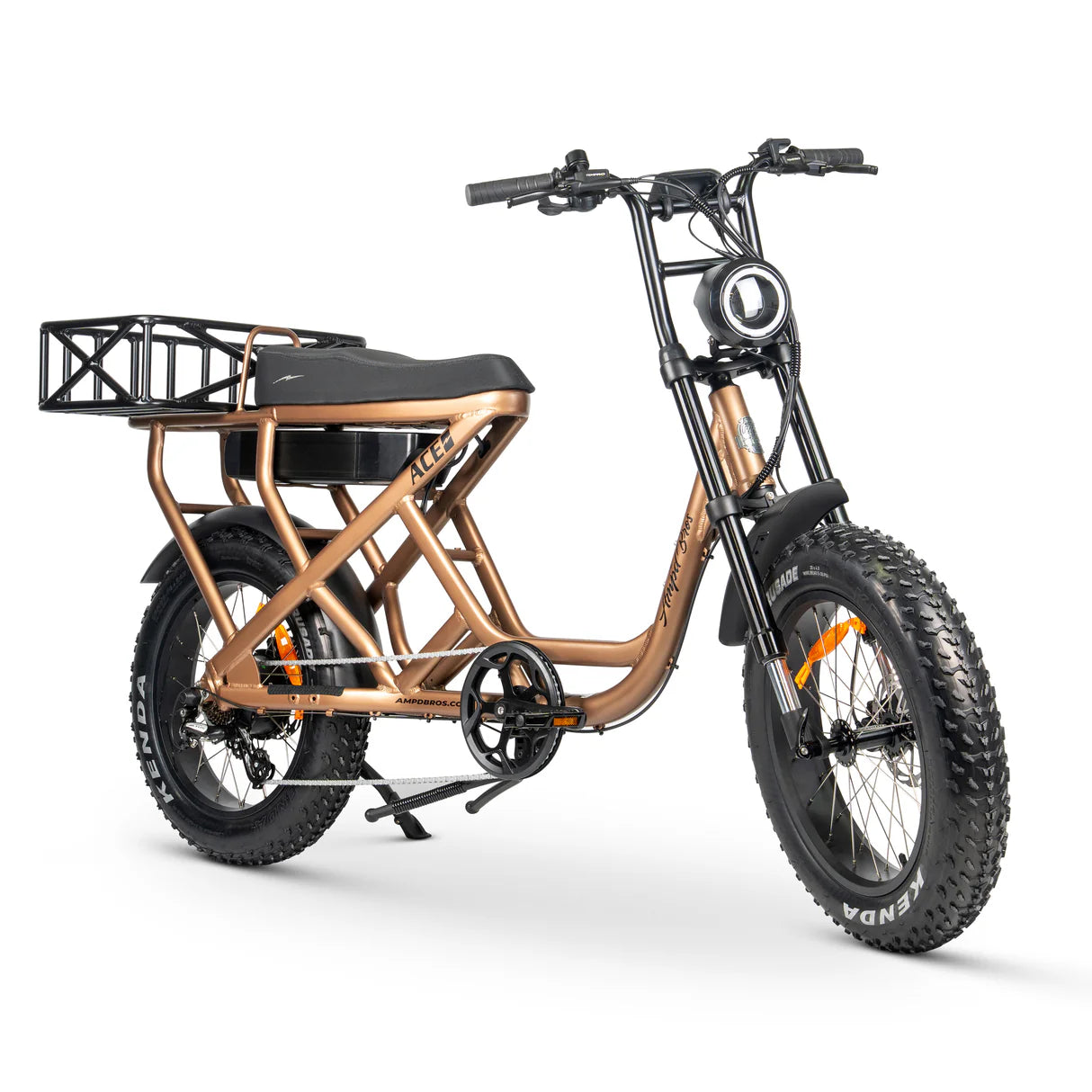

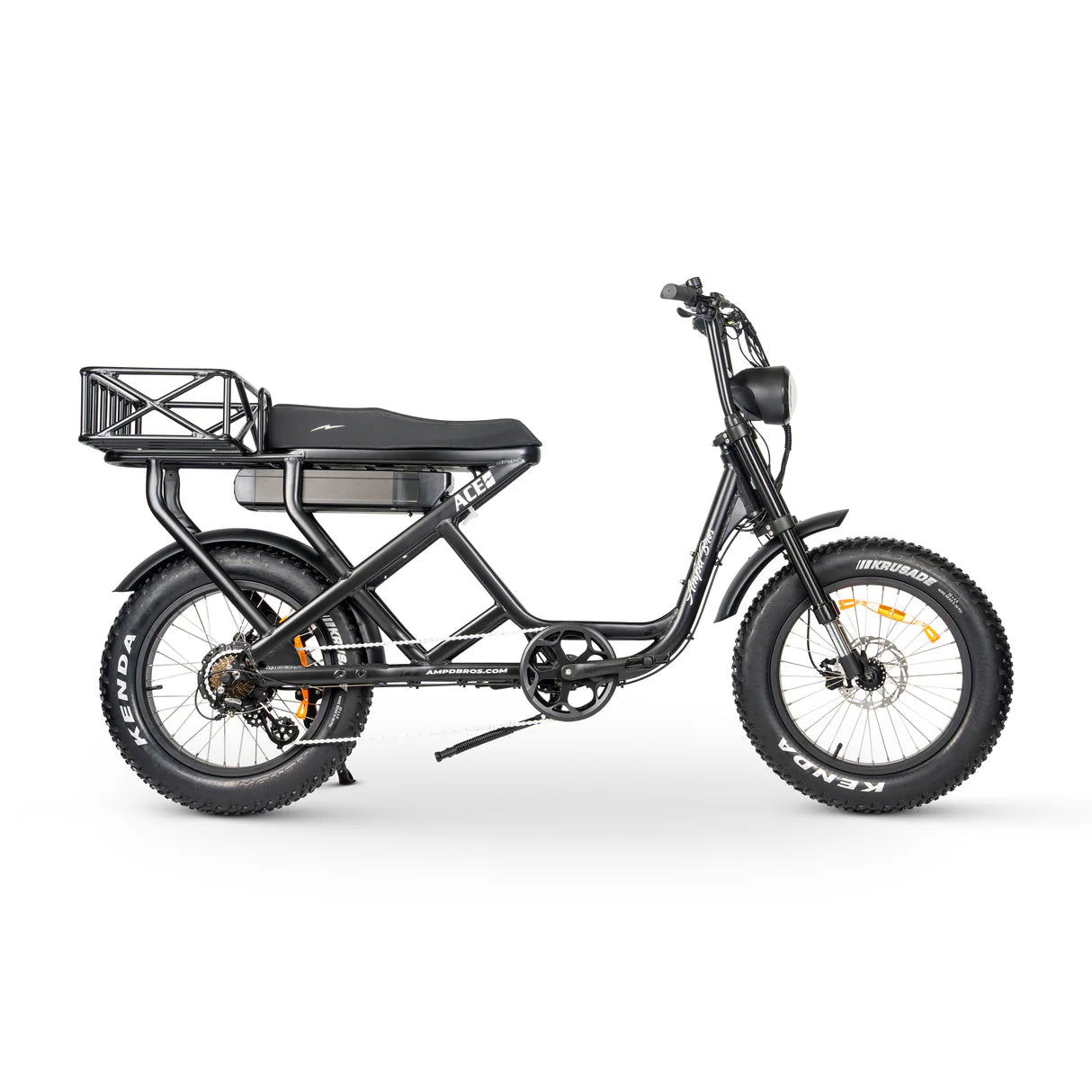

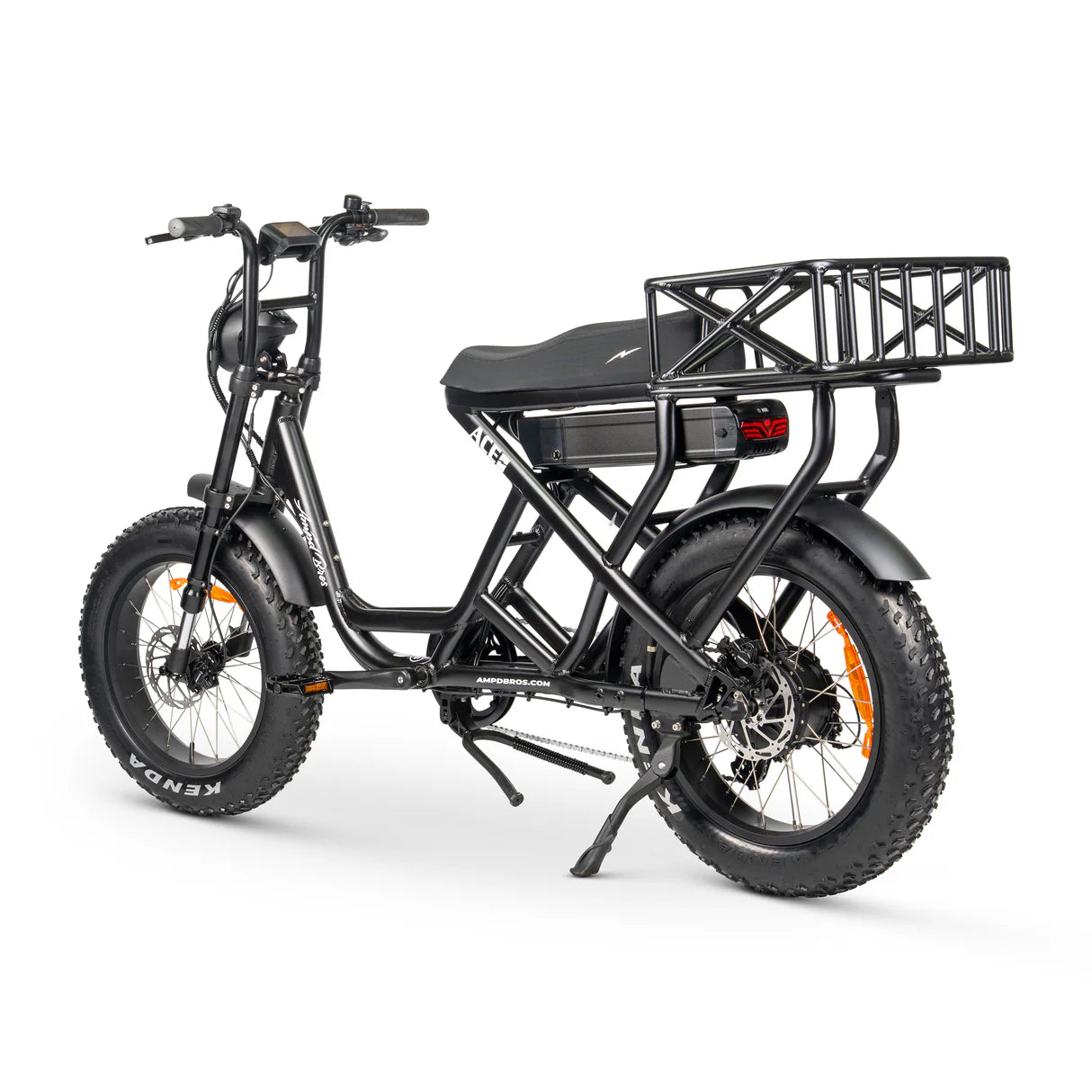

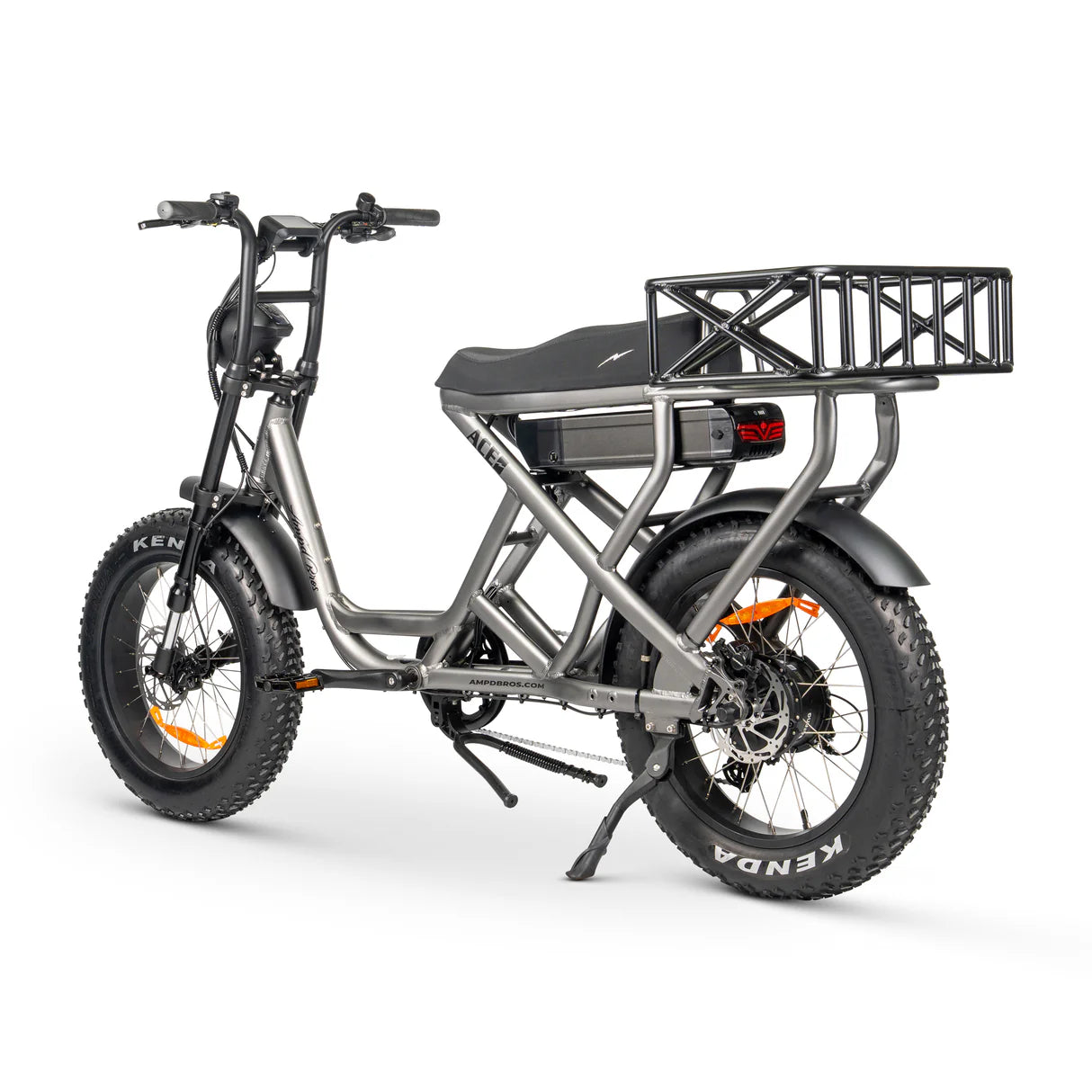

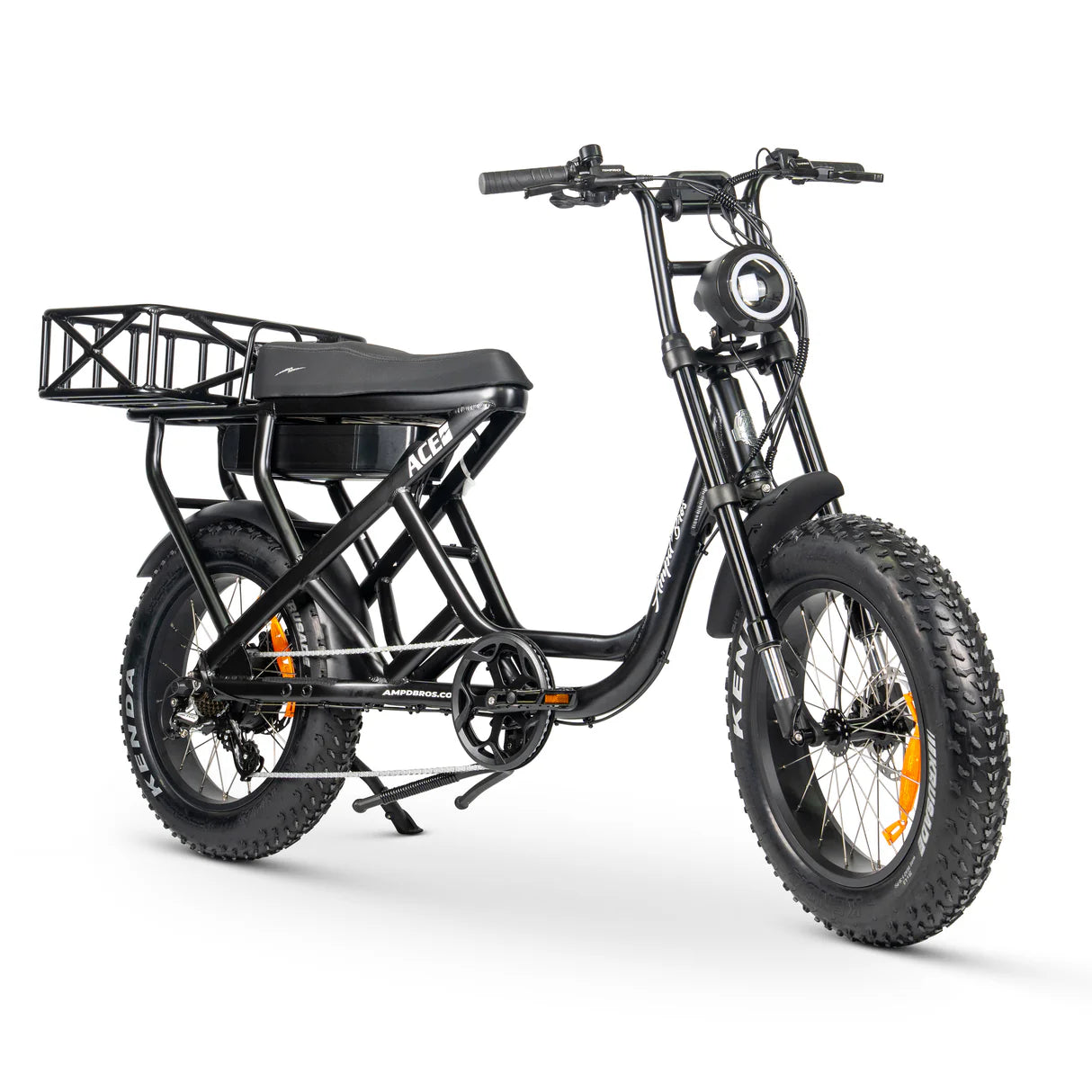

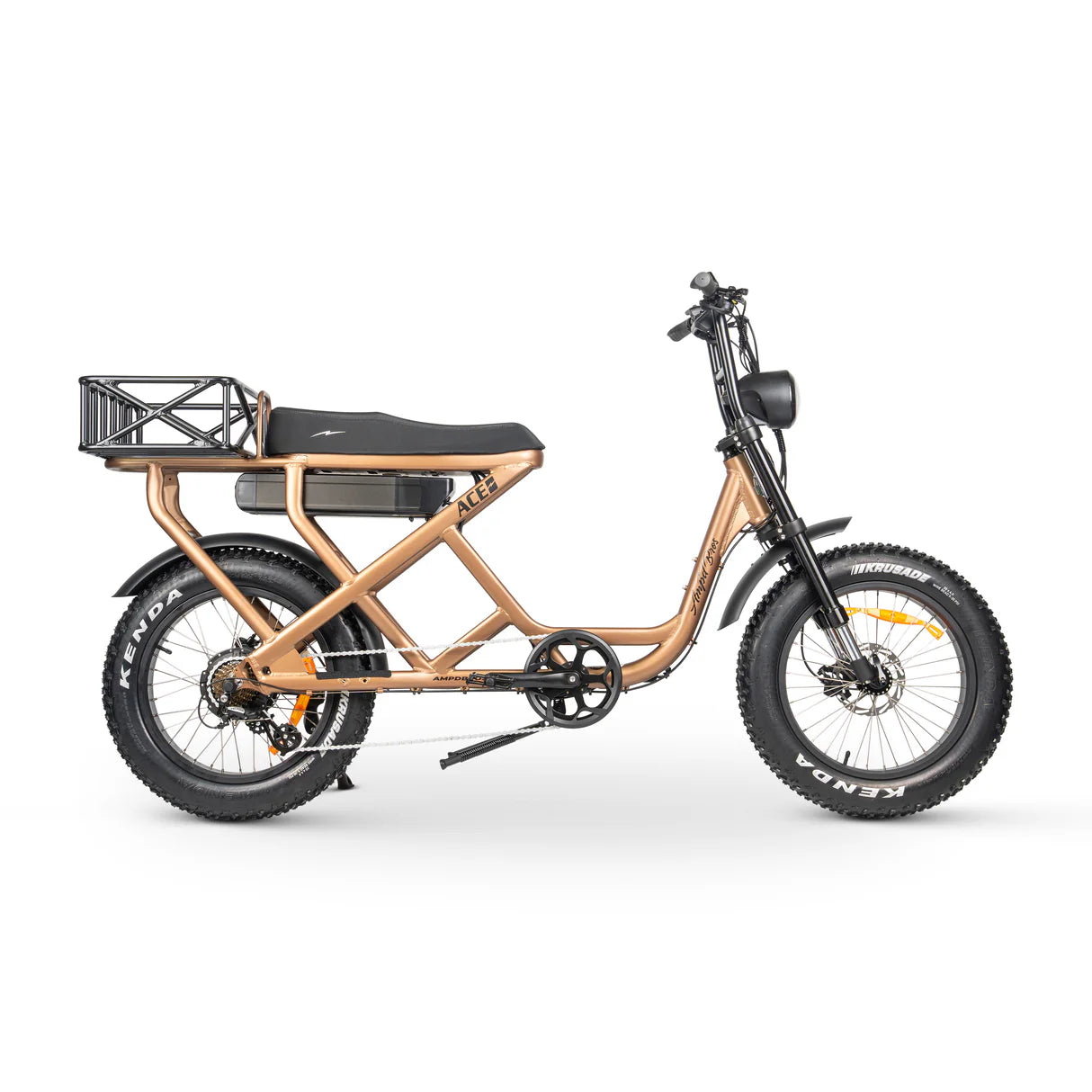

Introducing the ACE-S Cargo MAX – Built for More!
The ACE-S Cargo MAX takes everything you love about the ACE range and supercharges it for ultimate cargo-hauling capability. Designed with an integrated extra-large rear rack, this powerhouse e-bike is built to carry more gear, more weight, and even additional passengers—all while delivering the same rugged performance you expect from Ampd Bros.
Equipped with front suspension forks, the ACE-S Cargo MAX offers a smoother, more stable ride across all terrains. At its heart, the high torque 80N.M Bafang Rear Hub Motor delivers serious power, letting you cruise at higher speeds with ease.
Crafted with a sleek Low Bar Step-Through frame, the ACE-S Cargo MAX is all about accessibility and comfort, making it perfect for riders of all sizes. With its heavy-duty construction, this bike is designed for adventure, work, and everything in between.
Since its debut in 2019, the ACE Bike series has been Australia’s favourite fat tyre bike, and the Cargo MAX continues that legacy. Featuring a Shimano 7-Speed Derailleur, vibrant colour options, and our GEN3 Aluminium Battery with 21700 cells (30% larger than competitors), this bike is engineered for maximum power, efficiency, and safety.
The Custom Master Control unit enhances motor performance with advanced algorithms, seamless light controls, and improved diagnostics. Powered by Bafang’s High Torque Motor, the ACE-S Cargo MAX is ready to tackle any journey—whether you’re commuting, exploring, or hauling heavy loads.
More Cargo. More Power. More Adventure.
The ACE-S Cargo MAX is ready to roll. Are you?
What's New for ACE Cargo MAX?

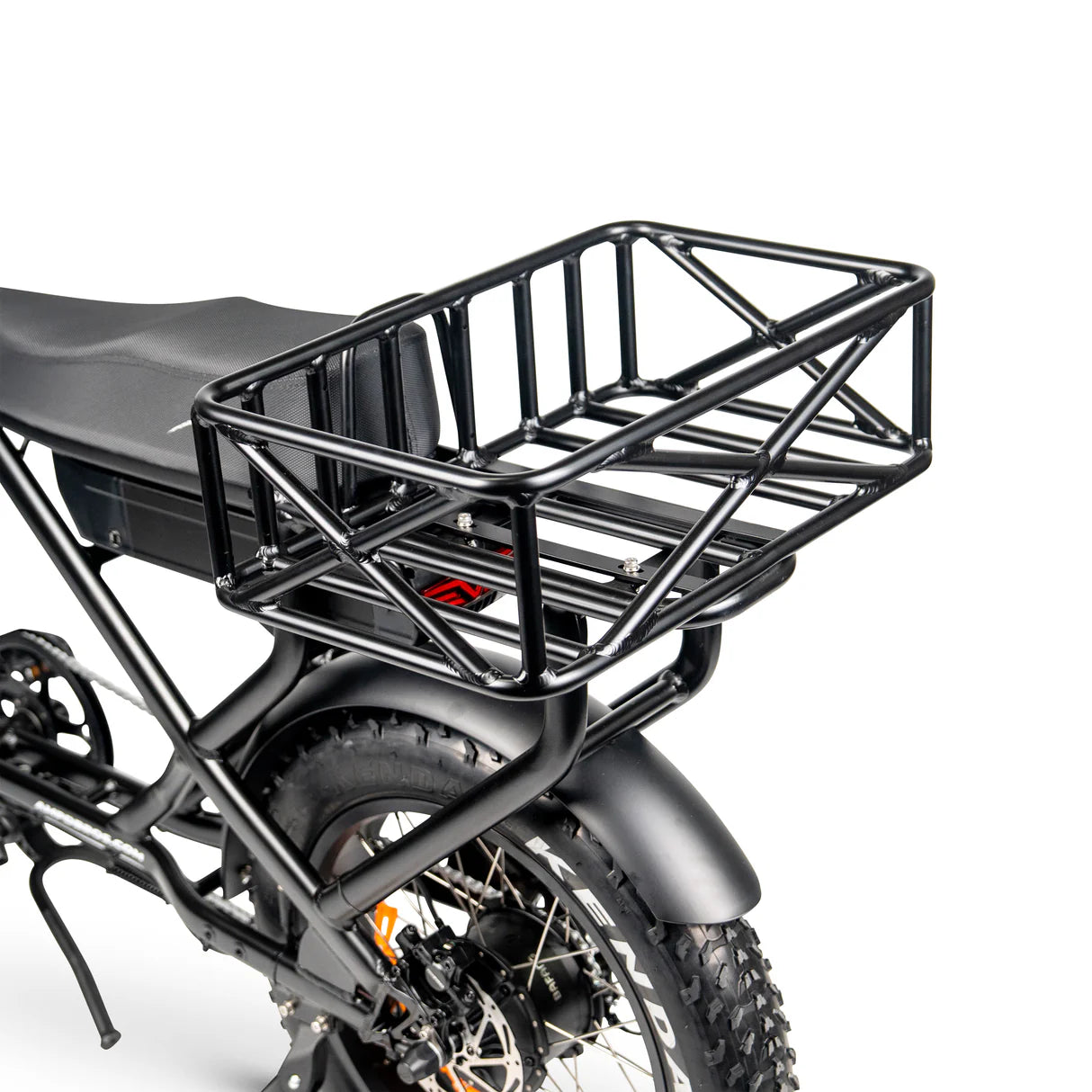

- Extended to Integrate a Large Rear Rack
- 52V 20AH Battery
- Micro Intelligent Colour Display
- Front Suspension Fork
- Ampd Bros Signature Headlight
- Epic Metallic Colours for 2025
The ACE Cargo ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 80km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE Cargo handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.
Join the ACE revolution and unlock limitless possibilities with the ACE-S Electric Fat Tyre Bike – your ticket to exhilarating adventures awaits!
Specifications:
ACE SERIES 4
Range
- Ace Mini Models 40km+
- Ace Standard Models 60km+
- Ace Plus/Cargo Models 80km+
Battery
- Ace Mini 48V / 480Wh, 10AH
- Standard 52V / 780Wh, 15AH
- Plus/Cargo 52V / 1,040Wh, 20AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Motor Drive
- All Models Bafang Rear Hub 250W High Torque Motor
- Ace Mini & Standard 65N.m
- Ace Plus+ & Cargo 80N.m
- All Models Restricted to 25km/h
Controller
- Ampd Bro's Custom - Best-in-class power density and state-of-the-art motor control algorithms.
- Ace Mini & Standard Rated to 500W / Peak 750W+
- ACE Plus/Cargo Rated to 750W / Peak 1,000W+
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- Ace Mini Ampd Bros Hydraulic with 160mm Disc
- Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Drivetrain
- Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
- All Other Models Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance & Rust Resistant
Construction
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Mini & Standard Models No Suspension
- Plus+ Models Front Custom Tuned Adjustable Fork
- Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
- Ace Mini 16x.40" Innova Mud Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 5-6hrs 10Ah Batteries with Standard 2A Charger
- 7-8hrs 15Ah Batteries with Standard 2A Charger
- 9-10hrs 20Ah Batteries with Standard 3A Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Ace Mini Dimensions
- Overall Length 1,470 mm
- Handlebar Height 1040 mm
- Handlebar Width 660 mm
- Seat Height 770 mm Fixed Height
- Seat Length 370 mm
- Ground Clearance 190 mm
- Wheel Base 990 mm
- Rider Height Ideal for Riders up to 170cm Tall
Weights
- N.W of 10Ah Battery 3.2kg
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- N.W of ACE Mini + Battery 29 kg
- N.W of ACE Cargo + Battery 40.5 kg
- Max Loading 180 kg
- ACE Mini Max Loading 100 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
- We offer FREE Shipping Australia-wide for orders over $100.
- Excludes WA, Regional Remote Areas And Islands.
- Note: Some Bulk Items may require an extra shipping charge.
- You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s).
- Our products are sent directly from our Redfern, Sydney Warehouse.
- All orders are processed within 2-4 business days.
- Shipping charges for your order will be calculated and displayed at checkout.
- In-store pickup is available for online orders.
- Choose the pickup option at checkout.
- For 24 hours hour click & collect, please give us a call to confirm your arrival time: 02 9171 7860
- PedL will allow a return for store credit, exchange product or refund provided the item in question is returned within 7 days.
- All our E-Bikes and E-Scooters come with 12 months warranty on all electronic and mechanical parts (including battery, motor, controller, display, suspension, wheels) and also 1-2 year warranty on the bike or scooter frame.
- If the product is damaged you can let us know at contact@pedl.com.au.
- Please ensure that you keep the box/packaging for your product in case the item needs to be returned.
- Full Shipping & Returns details: https://www.pedl.com.au/pages/shipping
- All products that are shipped are checked by the manufacturer and by Pedl mechanics however it is important that all bolts and screws on products are checked and tightened during assembly and before embarking on your first ride. This is the responsibility of the rider and Pedl will not be liable for any injury caused by improper assembly which includes misalignment and bolts not being checked for the correct tightness.
- It is the responsibility of the user to read and fully understand the literature provided by Pedl via email at sale for this product when purchased. This information includes, Battery care, Maintenance information and Warranty Information.
- Range and speed of this product will vary based on variables such as weight, terrain, degree of incline, wind, battery age, battery charge, speed reached and all other variables that would affect travel.
- Pedl advertises and sells its products for the purpose of recreational use. Each state and territory in Australia maintains a different set of rules and regulations for the usage of our products. It is the responsibility of users to ride with caution, wear a helmet and protective gear during use, and ensure compliance with local by-laws including requirements of use. Any information or representation provided by Pedl is of a general nature and may vary between users depending on individual circumstances.
- Please note that while we ensure all our bikes are carefully assembled and inspected before shipment, some minor adjustments may still be required. It is not uncommon for gears to be slightly misaligned, brake discs to rub, mudguards to be misaligned, or other adjustments to be needed after assembly. These issues are typically due to the natural settling of components during shipping and are considered a normal part of the assembly process. As such, these adjustments are not covered under Pedl’s warranty.
For best performance, we recommend that you have your bike assembled or inspected by a professional bike technician.
