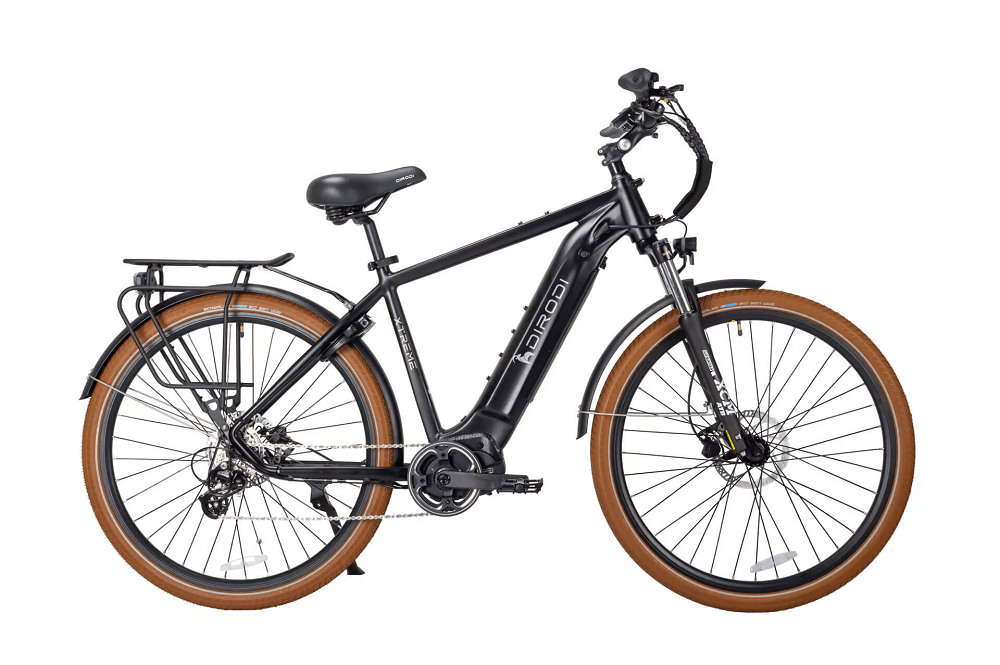

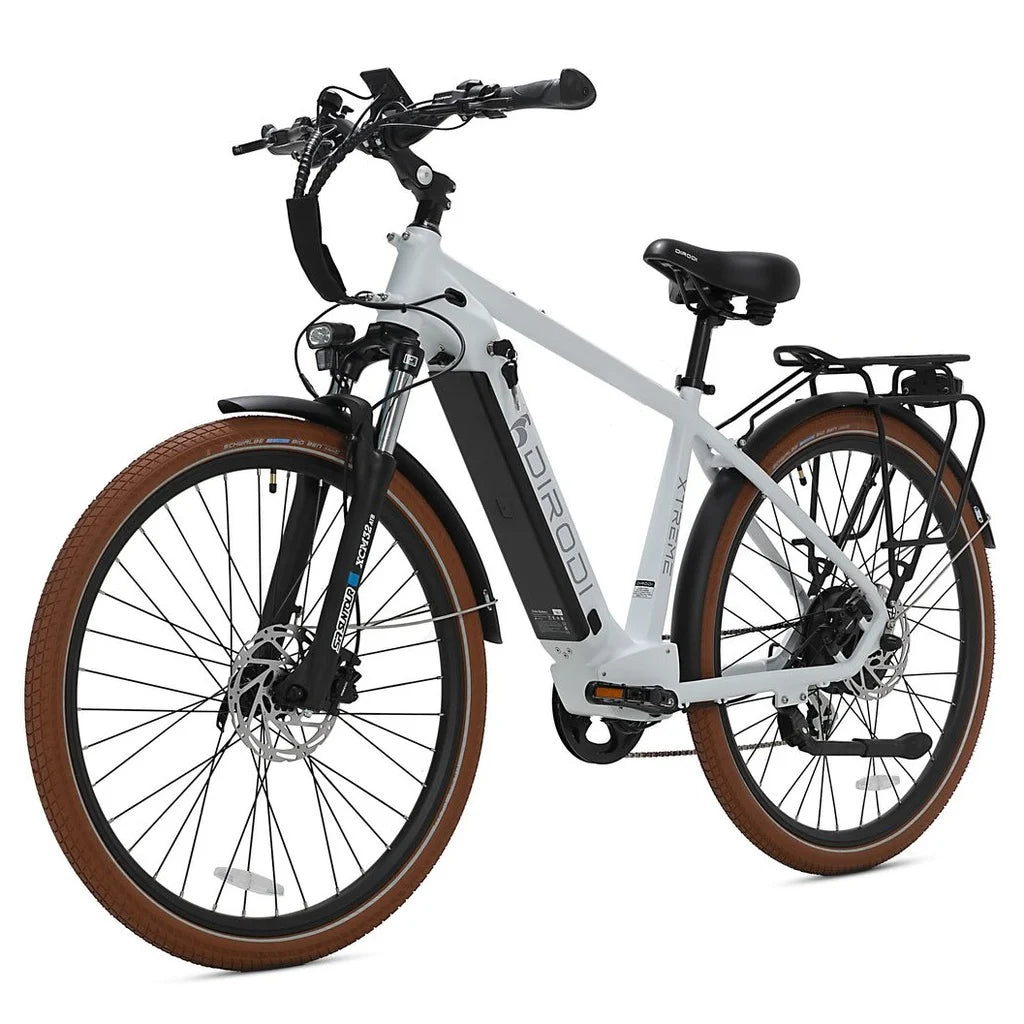

DIRODI XTREME ELECTRIC BIKE
xTreme Gen 3 is one of the most feature-rich electric bikes in the market. it comes with a high torque (60NM) 250W 48V rear hub motor or a 750W 48V (85NM of torque) rear hub motor, integrated 48V 14AH Samsung battery, Schwalbe Bigben balloon feel puncture-resistant tyres, front suspension forks, integrated ABUS wheel lock, integrated front and rear lights, colourful display, Tektro hydraulic brakes, front carrier, MIK-HD revolutionary click system rear rack, throttle, 8-speed Shimano Altus gear system and an optional 48V 20AH dual battery and many more features for a hassle-free ride.
FEATURE
250W REAR HUB MOTOR
HIDDEN REMOVABLE BATTERY
xTreme Gen 3 uses a large size 48V 14AH Samsung battery hidden inside the frame that gives it an attractive minimal look. The hidden battery might make the bike seem non-electrical at the first glance, and that can reduce the risk of theft by itself! It is a removable battery that can be easily brought inside the home or office for a recharge. The battery is located in the centre of the frame, which brings the centre of gravity towards the middle of the bike. This will make it much easier to lift the bike or to ride the bike without any assistance when the battery is flat.
RANGE
xTreme has an average range of 60-80km range. On xTreme Gen 3, you can install an optional massive 48V 20AH battery. With the second battery, the total battery size will be 2.4 times the original battery size (34AH vs 14AH), which will increase the range to 170-200km. xTreme gen 3 comes with a battery balancer, which automatically switches to the second battery once the primary battery becomes flat.
SUNTOUR SUSPENSION FORKS
DiroDi xTreme uses Suntour front suspension forks to handle bumps and gives you a smooth and comfortable ride. In fact, xTreme is solely designed for the rider’s comfort part by part, from the wide Big Ben tyres and an oversized saddle to premium suspension forks.
The Suntour XCM suspension also has a Lockout feature meaning you can simply lock it. This option comes in handy when you are riding the bike on smooth terrain where there are no bumps. Locking up the suspension will help you get a faster and more rigid ride without bouncing up and down when you don’t need to.
REVOLUTIONARY MIK HD REAR RACK AND ACCESSORIES
MIK HD rack system is a patented german design rack and accessories. This rack system solves a significant problem with bikes: You use your bike for different purposes, and for each purpose, you need a different accessory installed on the bike. To buy groceries, you will need a large basket. To ride your bike on your camping trips, you will need a pannier bag. To take your child with you on a weekend ride, you need a child seat. On regular bikes, you need to screw each of those accessories and then unscrew and remove them, which is going to be very time-consuming. With MIK HD racks, you can install/remove any MIK HD-compatible accessory (Child seats, baskets, pannier bags etc.) in 2 seconds! The accessory will click into the rack, and you won’t need to use any screws to fix it to the rack.
REVOLUTIONARY MIK HD REAR RACK AND ACCESSORIES
Some well know child seat brands including Polisport and Urban Iki have made MIK HD-compatible child seats. Also for other MIK HD accessories including baskets, pet carriers, pannier bags, etc. refer to Basil bags Australia website or search for MIK HD accessories on google.
SHIMANO ALTUS 8-SPEED GEAR SYSTEM
xTreme gen 3 is equipped with a Shimano Altus 8-speed gear system. Shimano Altus provides a silent and smooth gear change experience. Having 8 gears provides a wide gear ratio, which enables you to ride really fast or climb steep hills with ease when needed.
QUICK RELEASE FRONT WHEEL
Don’t worry about transporting your bike in your car. The xTreme comes with a quick-release front wheel, which allows you to remove and reinstall the wheel in a minute! This can help you fit your bike in your car as it takes less space once the wheel is removed. And of course, later you can easily reinstall the wheel in under a minute.
TEKTRO HYDRAULIC BRAKE
Braking experience plays a critical role in providing the premium ride experience, which xTreme is all about. xTreme comes with best-in-class, Tektro HD-E350 hydraulic brakes with 180mm rotors. Compared to mechanical brakes, hydraulic brakes provide more stopping power with less pressure required on the brake levers. Moreover, the brake pads in hydraulic disc brakes are self-adjusting. So when the pads are worn, automatically the distance between the pads and the rotor is adjusted so you will always have tight brakes. However, with mechanical brakes, you need to readjust the brakes from time to time.
GEL VELO SADDLE
Even on the priciest bikes, saddles can sometimes feel uncomfortable. They’re too thin or too wide, they don’t have enough gel padding, or they just don’t feel right.
But not with Dirodi xTreme! The Gel Velo Saddle on the xTreme model is large and comfortable and is designed to support you in enjoying your ride.
SCHWALBE PUNCTURE RESISTANT TYRES
Getting a flat tyre is an awkward situation and it can get even worse if you’re far away from home. That’s why for xTreme, the best German bike tyre brand, Schwalbe, is used. xTreme comes with 28″ 2.0″ Big Ben Puncture-Resistant Tyres. Schwalbe tyres have a fascinating paradox in their construction: They are soft and comfortable, but also have an incredibly long life. It’s an incredible technology only Schwalbe tyres have in among tens of different tyre brands we have tested at DiroDi! Schwalbe big ben tyres are relatively wide (2.0″) to provide the feeling as if you are on a balloon. Having relatively wide tyres means You can ride xTreme on the road as well as on gravel or on mild off-road tracks.
GERMAN DESIGNED ABUS WHEEL LOCK
The ABUS German designed wheel lock on xTreme bike makes your bike safe while you are enjoying a cup of coffee in a café, making a delivery or any other situation when you get off your bike briefly.
It is firmly attached to the wheel itself, so you don’t have to look for a post to lock your bike onto, but if you want to do so, there are optional extensions of the ABUS wheel lock (cable lock & chain lock) that you can use for double safety.
You can even use a U-lock along with the wheel lock to secure your bike even better for situations when you leave your bike unattended for long.
THUMB THROTTLE
xTreme comes with a throttle, which enables you to ride the bike without pedalling. The throttle is locked to 6 km / h out of the box to be compliant with Australian laws. The throttle max speed can be unlocked for off-road use only. The throttle works the best on off-road, beach rides, etc. when you simply want to get a fast ride doing minimum pedalling.
FRONT CARRIER
xTreme Gen 3 comes with a front carrier, which provides a base on which a basket or any other type of storage can be installed. On xTreme, as opposed to most bikes, the front carrier is attached to the frame rather than the forks. This will enhance the handling noticeably as the weight of the cargo is not transferred to the wheel, and the basket won't turn when you turn the wheel. The front carrier can be easily removed, if not needed.
FRONT AND REAR LIGHTS
Spanninga Axendo Front Light and Spanninga Lineo Rear Light are a dynamic duo that truly bring your bike to life! The front light with 40 Lux light output uses the reverse beam technology and the rear light uses the Light Line Technology and they are both designed to make your ride as visible and safe as possible to other vehicles on the road.
These lights are both integrated directly into the battery of your bike so you don’t have to worry about charging them separately.
ADJUSTABLE STEM
xTreme is built with you in mind. xTreme Gen 3 comes with an upgraded height-adjustable stem. The handlebars' height is no longer fixed and it can be increased or decreased depending on your liking.
SPECIFICATION
BatteryBattery Description |
Lithium Battery |
---|---|
Battery Voltage |
36 |
Battery A/H |
17.5 |
Battery W/H |
630 |
Charger Model |
Sans 42V 2A DC2.1 Charger |
Charging Time (Hour) |
7.5 |
Max Range (KM) |
120 |
Average Range (KM) |
80 |
Throttle Range (KM) |
30 |
Battery Weight (KG) |
3 |
Removable Battery |
Yes |
Waterproof Rating |
IP54 |
---|---|
Road Legal |
Yes |
Road Legality Note |
Road legal given the throttle is not unlocked and the max speed isn't increased from the default 25km/h |
Sitting Position |
Upright |
---|---|
Handlebars Type |
Flat |
Saddle Model |
Velo Gel Saddle |
Grips Model |
Velo High Performance Grips |
Front Light |
Yes |
---|---|
Rear Light |
yes |
Front Carrier |
No |
Rear Rack |
Yes |
Rear Basket |
No |
Mudguards |
Yes |
Bottle Holder |
No |
Bell |
Yes |
Wheel Lock |
Yes |
USB Charger |
Yes |
Other |
Hidden Battery (Integrated into frame design) |
Brake Model |
Tektro HD-E350 |
---|---|
Brake Type |
Hydraulic Disk Brakes |
Brake Pads Model |
E10.11 |
Brake Pads Material |
Compound |
Rotor Size (MM) |
180 |
Brake Cut off Sensor |
Yes |
Number of gears |
8 |
---|---|
Derailleur Model |
Shimano Altus |
Cassette |
13-32 |
Gear Shifter |
Shimano Altus |
Chain Model |
TEC C70 |
Chainring Model |
Prowheel Double Chainring |
Chainring Tooth Count |
42 |
Suspension Compression Adjustment |
No |
---|---|
Suspension |
Yes |
Suspension Model |
SR Suntour Performance Front Suspension Forks |
Suspension Travel (CM) |
10 |
Throttle |
Yes |
---|---|
Throttle Type |
Thumb Throttle |
Default Throttle Max Speed (KM/H) |
6 |
Throttle Max Unlocked Speed (KM/H) |
40 |
Tyre Model |
Schwalbe Big Ben Plus Tyres |
---|---|
Tyre Width (Inch) |
2 |
Puncture Resistant Tyres |
Yes |
Tyre Colour |
Brown |
Front Wheel Mount Type |
Thru-Axle |
Rear Wheel Mount Type |
Nuts |
Frame Size (Inch) |
28 |
---|---|
Frame Type |
Step-Over |
Frame Material |
Aluminium |
Max Load (KG) |
120 |
Frame Colours |
Matte Black, Matte White |
Rider Min Height (CM) |
170 |
---|---|
Rider Max Height (CM) |
195 |
Bike Weight (KG) |
26 |
---|---|
Axle To Axle Length (CM) |
116 |
Total Length (CM) |
187cm |
Adjustable Seat Height |
Yes |
Minimum Seat Height (CM) |
97 |
Maximum Seat Height (CM) |
112 |
Adjustable Handlebars Height |
No |
Minimum Handlebars Height (CM) |
111 |
Maximum Handlebars Height (CM) |
111 |
Adjustable Handlebars Angle |
No |
Handlebars Width (CM) |
68 |
Standover Height (CM) |
85 |
Motor Brand / Model |
MXUS 250W Brushless Rear Hub Motor, MXUS 750W Brushless Rear Hub Motor |
---|---|
Motor Type |
Brushless Geared Rear Hub Motor |
Default Maximum Speed (KM/H) |
25 |
Torque (NM) |
40 |
Box Dimensions (CM) |
140(L)*25.5(W)*91(H) |
---|---|
Box Weight (KG) |
36 |
Frame |
Step Over |
---|---|
Integrated Light |
Yes |
